WE-EF LEUCHTEN

Installation and Maintenance

Instructions

Inground Luminaire

ETC330-GB LED

ETC340-GB LED

Surge Protection

This product features built-in surge protection circuitry in compliance with

applicable standards.

For comprehensive protection of a luminaire installation against lightning and

electrical surges, it is essential to cover mains supply and data input lines at

the distribution board level, by using respective primary (Type 1) and secondary

(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.

Warning

Ensure that all required surge protection measures are in place and activated

prior to luminaire installation. Also, disconnect luminaires before operating

high-power devices such as, for example, electrical arc welders.

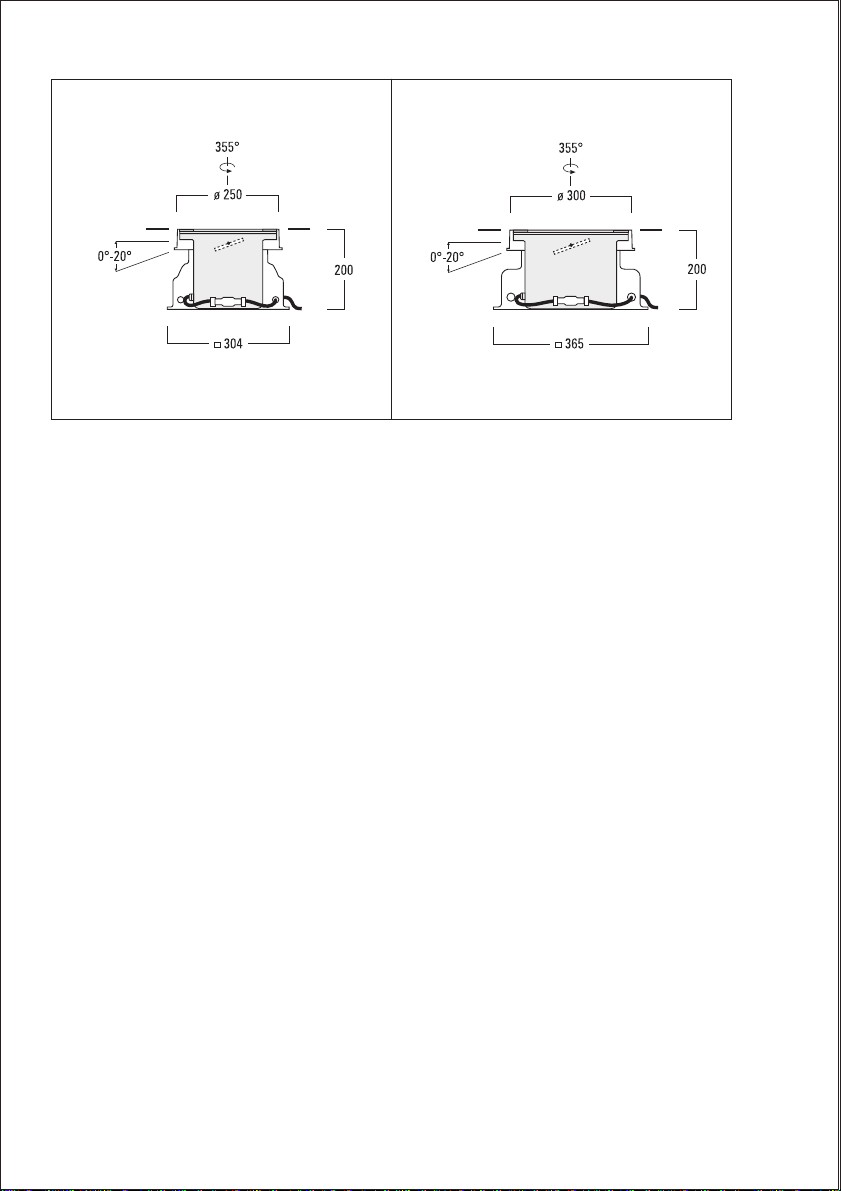

Inground Luminaire

IP67, IK10+, Class I, ta = 40°C

ETC340-GBETC330-GB

Light Source

LED

Maintenance

Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.

Do not use high-pressure cleaners.

In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out

E\DVXLWDEO\TXDOLƂHGDQGWUDLQHGSURIHVVLRQDO

Warning: Do not open luminaire while mains supply is switched on.

Installation

The product must be installed and maintained by a

VXLWDEO\TXDOLƂHGSURIHVVLRQDOLQFRPSOLDQFHZLWKODWHVW

building/construction and/or electrical regulations and

relevant legislation.

Warning: Switch off mains electrical supply prior to

installing and connecting the luminaire.

Notice:,IWKHOXPLQDLUHLVPRGLƂHGE\DQ\ERG\RWKHU

than the original manufacturer, then the warranty will

no longer be valid and shall become the full respon-

sibility of the modifying person/organisation. Claims

based on defects attributable to improper installation

and/or application, and the consequences thereof, are

excluded.

Minimum Distance

ETC330-GB: No minimum distance.

ETC340-GB: Ensure the minimum distance for objects

to be illuminated is correct (see illustration ------m

inside luminaire).

Installation Methods

For proper installation, use the supplied installation

blockout.

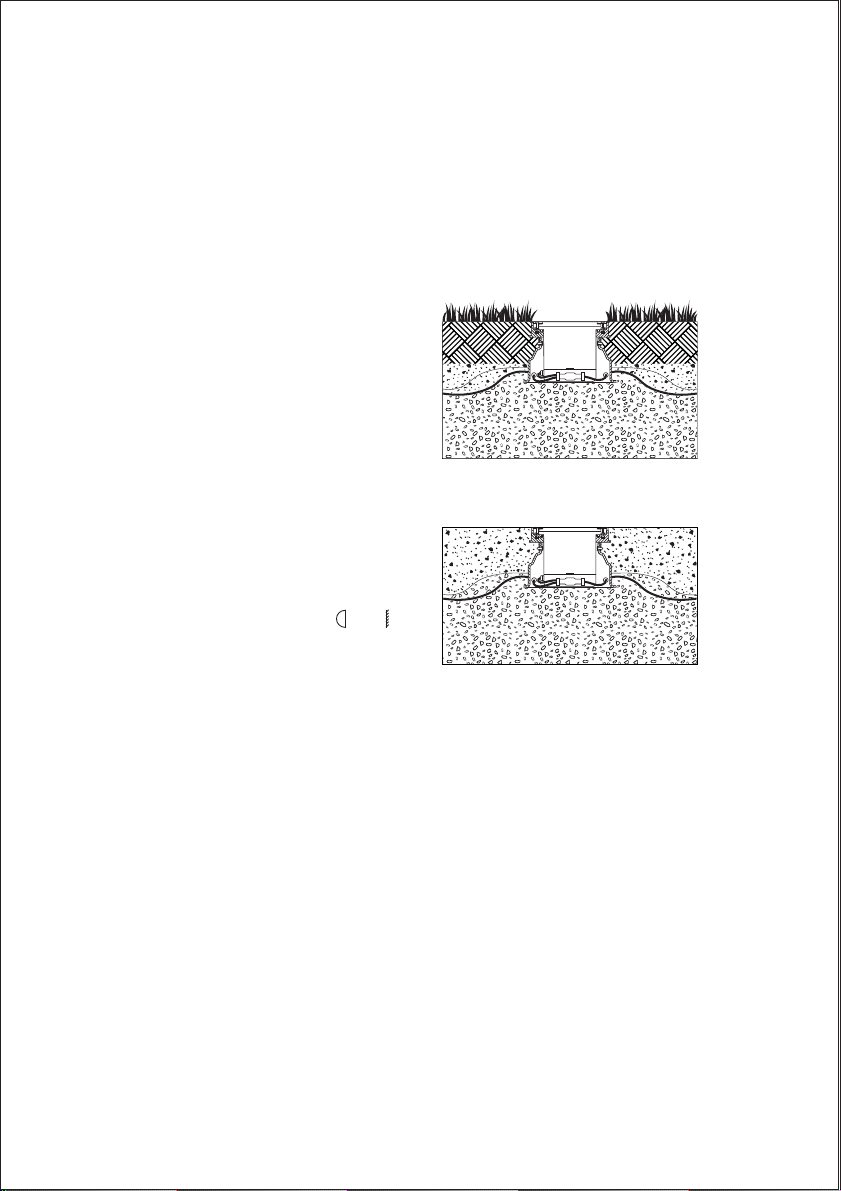

Ensure that proper drainage is provided for the shown

installation methods:

In landscape areas, soil with gravel base (Fig. I).

In paved areas, concrete with gravel base (Fig. II).

Fig. II

Fig. I

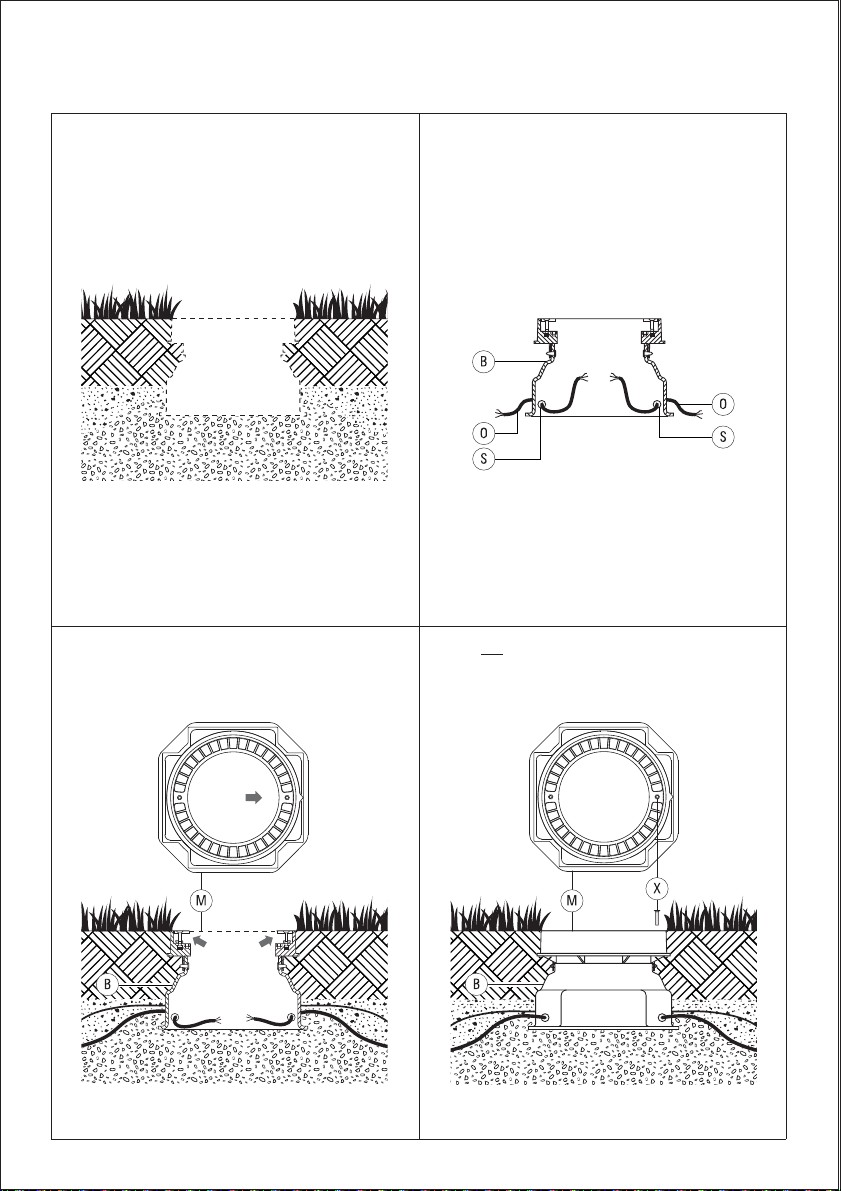

1) Ensure a suitable recess.

Phase One

Blockout Installation Procedure

3) Set mounting ring B/Min position. 4) Do not remove screws Xfrom mounting ring M.

2) Select appropriate installation blockout

holes Sfor mains supply cable(s) O.

orientation

FLUSH

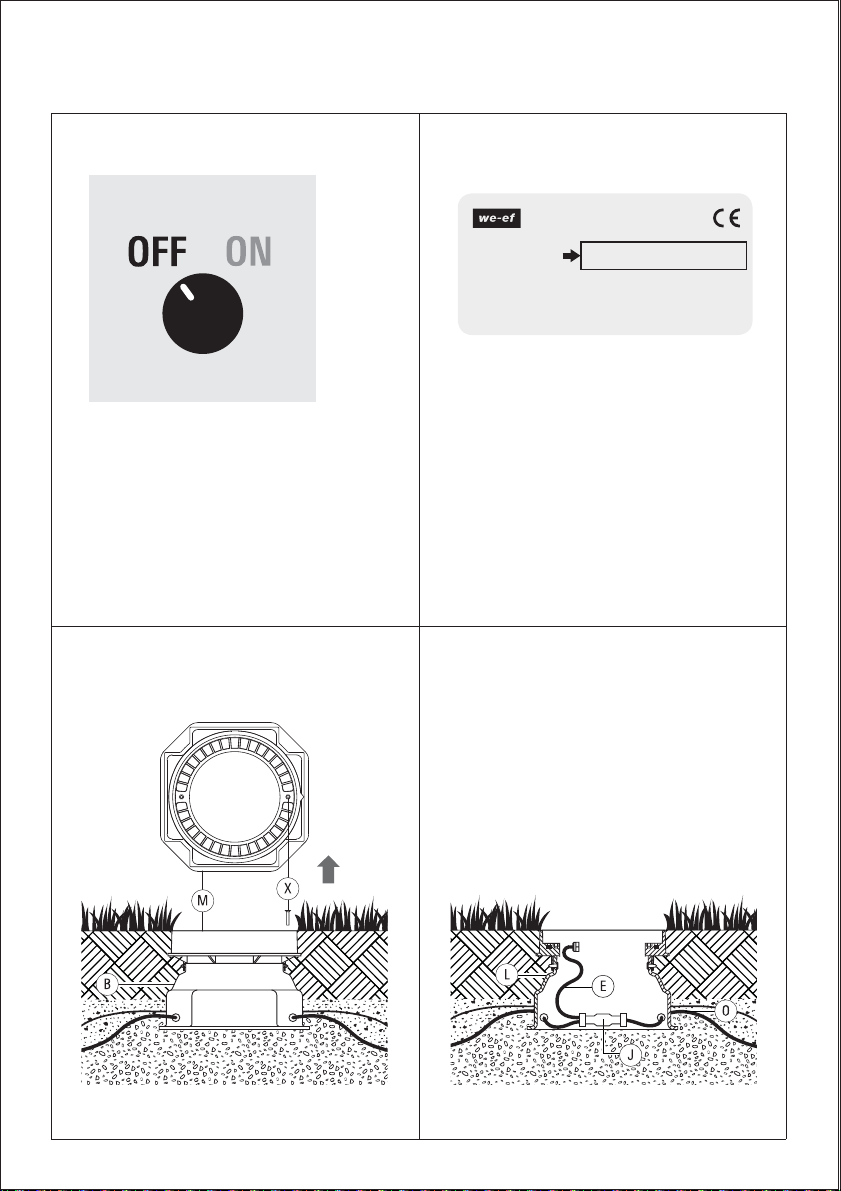

5) Switch off mains electrical supply.

8) Terminate cable Eand mains supply cable Oin

sealable junction box J.

7) Remove screws Xfrom mounting ring M.

Phase Two

Luminaire Installation, Electrical Connection, and Aiming Procedure

6) Check that rating shown on luminaire label

conforms with mains electrical supply.

(example)

ETC330-GB 220-240V/60/Hz, 1-10V

185-XXXX SOE XXXXXXX

LED 4000K 12W item no. XXX

03/17 IP67

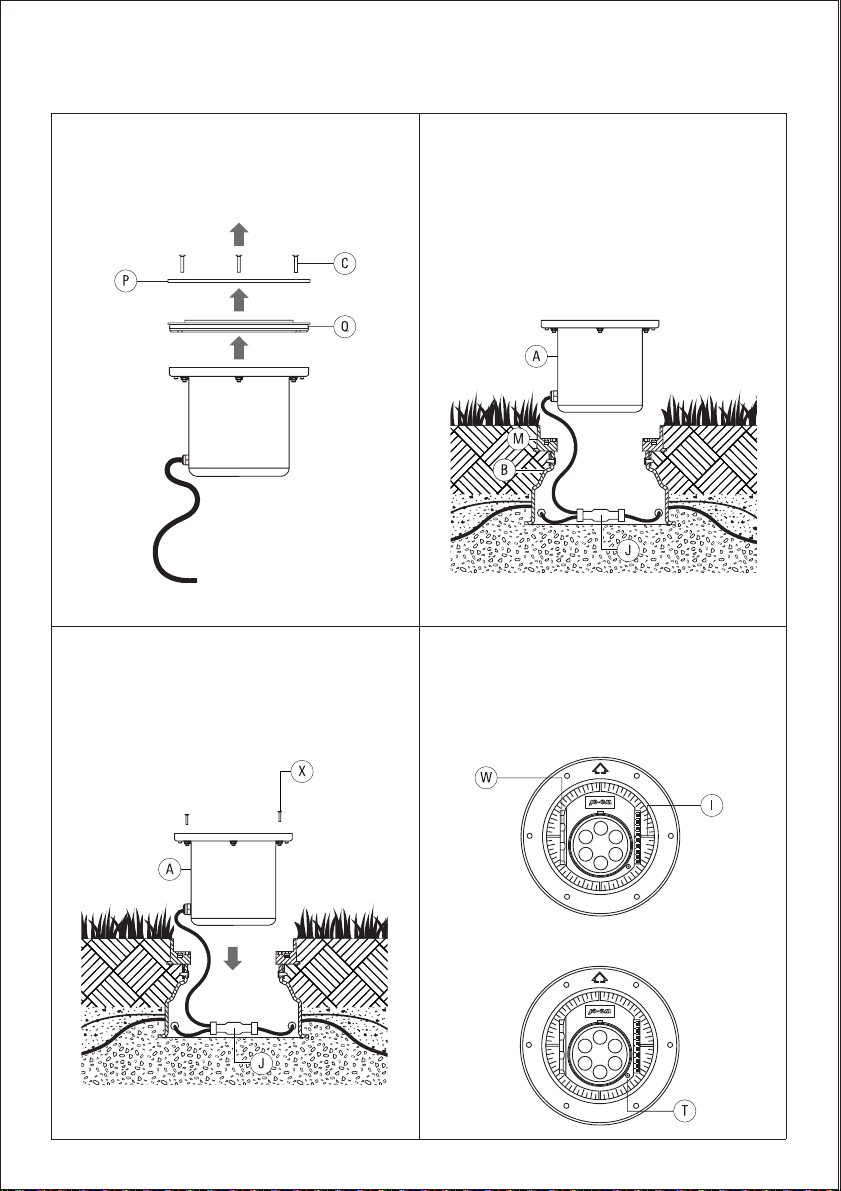

9) Remove cover Pand lens/gasket Qby loosening

screws C.

12.1) Insert screw driver into a slot on locking

wheel W. Rotate locking wheel Win

the 23(1GLUHFWLRQ+ROGƂQVIto aim

horizontally…

12.2) Insert screw driver into hole Tto aim vertically.

10)Set cables and sealable junction box J

inside installation blockout B.

11)Place housing Ainto blockout/mounting

ring assembly B/M. Tighten screws X.

B/M

15)Switch on and wait 30 minutes.

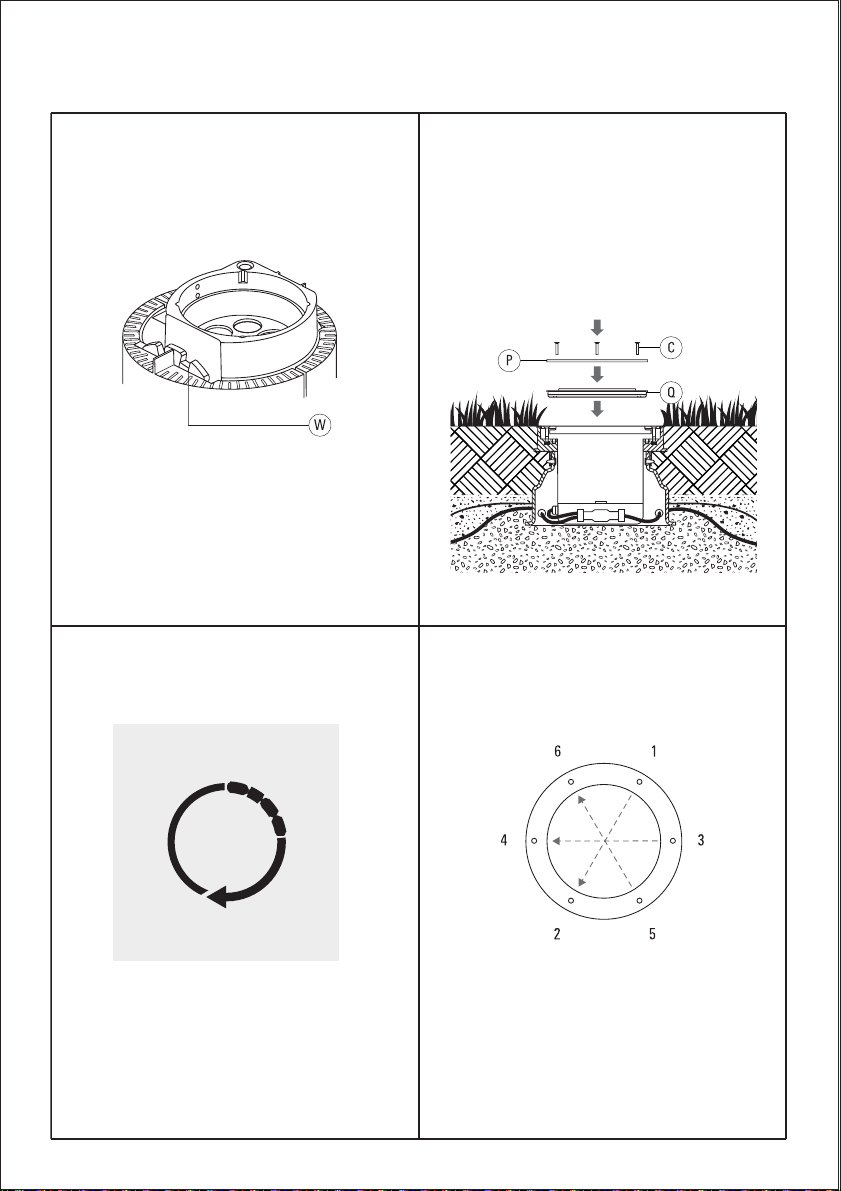

13) Reinsert screw driver into slot on locking

wheel Wand rotate it in the 'LOCK' direction.

Use only moderate torque.

14)Reposition lens/gasket assembly Qand

cover P.



MIN

16)Tighten screws in criss-cross sequence.

Using torque 5 Nm for ETC330-GB and 6 Nm

for ETC340-GB.

www.we-ef.com

WE-EF LEUCHTEN

Germany

Tel +49 5194 909 0

Fax +49 5194 909 299

info.germany@we-ef.com

WE-EF LUMIERE

France

Tel +33 4 74 99 14 44

Fax +33 4 74 99 14 40

info.france@we-ef.com

WE-EF HELVETICA

Switzerland

Tel +41 22 752 49 94

Fax +41 22 752 49 74

info.switzerland@we-ef.com

WE-EF LIGHTING

United Kingdom

Tel +44 844 880 5346

Fax +44 844 880 5347

info.uk@we-ef.com

WE-EF LIGHTING

Thailand

Tel +66 2 738 9610

Fax +66 2 175 2174

LQIRDVLDSDFLƂF#ZHHIFRP

WE-EF LIGHTING

Australia

Tel +61 3 8587 0444

Fax +61 3 8587 0499

info.australia@we-ef.com

WE-EF LIGHTING

United States of America

Tel +1 724 742 0030

Fax +1 724 742 0035

info.usa@we-ef.com

TO9128W0318 © WE-EF 2018

7HFKQLFDOVSHFLƂFDWLRQVDUH

subject to change.
