WE-EF VFL530-SE LED Manuale utente
WE-EF LEUCHTEN
Installation and Maintenance
Instructions
Street and Area Lighting Luminaire
VFL530-SE LED
VFL540-SE LED
Surge Protection
This product features built-in surge protection circuitry in compliance with
applicable standards.
For comprehensive protection of a luminaire installation against lightning and
electrical surges, it is essential to cover mains supply and data input lines at
the distribution board level, by using respective primary (Type 1) and secondary
(Type 2) surge arrestors in compliance with EN61643-11/IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and activated
prior to luminaire installation. Also, disconnect luminaires before operating
high-power devices such as, for example, electrical arc welders.
Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
1
IP66, IK08, Class I, ta = 25°C
Street and Area Lighting
VFL530-SE LED VFL540-SE LED
50 91
ø 42 x 100
300
485
60
50 101
300
ø 60 x 100
680
50
Mounting height m
for VFL530/VFL540 3 - 6
Weight kg
for VFL530 - 12 LED max 6.4
for VFL530 - 24 LED max 6.6
for VFL540 max 8.4
Windage area m
2
VFL530 0.040
VFL540 0.046

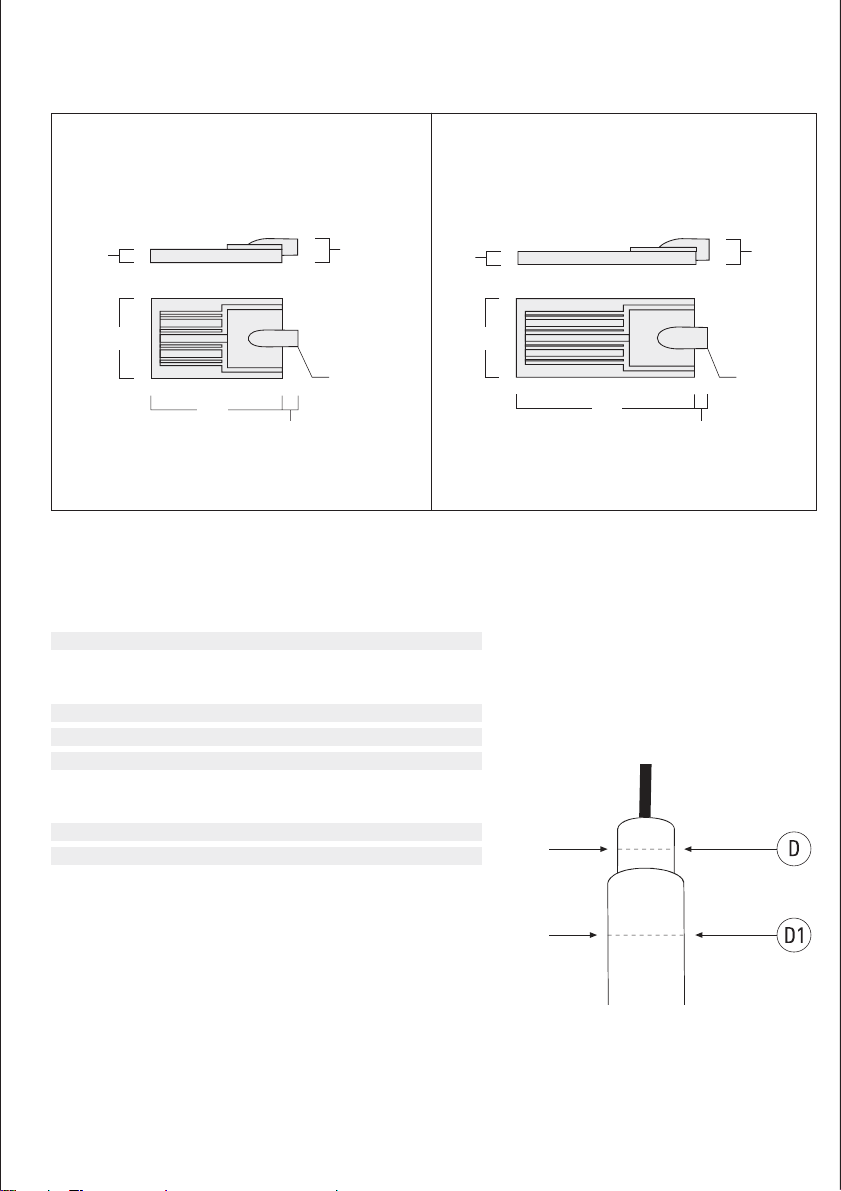

Installation: horizontal, light output downwards,
Suitable for spigot diameter D = 60 x 80 mm or D = 76 x 80 mm
Upper pole offset D1 max. 102 mm
2
Light Source
LED
Maintenance
Apart from cleaning the product’s exterior surfaces, no special maintenance work is required.
Do not use high-pressure cleaners.
In case of component failure due to abnormal circumstances or at end of life, replacement must be carried out
E\DVXLWDEO\TXDOLƂHGDQGWUDLQHGSURIHVVLRQDO
Warning: Do not open luminaire while mains supply is switched on.
3
InstallationProcedure
1) Switchoffthemainselectricalsupply.
2) Checkthatratingshownonluminairelabelconforms
withmainselectricalsupply.
3) FeedmainscableAintooutreachbracketCand
pole,whilesettingluminaireassemblyinposition.
TightenscrewsB.
4) TrimmainssupplycableAtothedesiredlengthand
connectleadstotheirrespectiveterminalsatthe
baseofpole
(L=Phase,N=Neutral, =Earthing).
Installation
The product must be installed and maintained by a
VXLWDEO\TXDOLƂHGSURIHVVLRQDOLQFRPSOLDQFHZLWKODWHVW
building/construction and/or electrical regulations and
relevant legislation.
The supply cable must be installed inside the pole and
not be exposed to the outside environment.
Warning: Switch off mains electrical supply prior to
installing and connecting the luminaire.
Notice:,IWKHOXPLQDLUHLVPRGLƂHGE\DQ\ERG\RWKHU
than the original manufacturer, then the warranty will
no longer be valid and shall become the full respon-
sibility of the modifying person/organisation. Claims
based on defects attributable to improper installation
and/or application, and the consequences thereof, are
excluded.
4
L
N
Supply cable
www.we-ef.com
WE-EF LEUCHTEN
Germany
Tel +49 5194 909 0
Fax +49 5194 909 299
info.germany@we-ef.com
WE-EF LUMIERE
France
Tel +33 4 74 99 14 44
Fax +33 4 74 99 14 40
info.france@we-ef.com
WE-EF HELVETICA
Switzerland
Tel +41 22 752 49 94
Fax +41 22 752 49 74
info.switzerland@we-ef.com
WE-EF LIGHTING
United Kingdom
Tel +44 844 880 5346
Fax +44 844 880 5347
info.uk@we-ef.com
WE-EF LIGHTING
Thailand
Tel +66 2 738 9610
Fax +66 2 175 2174
LQIRDVLDSDFLƂF#ZHHIFRP
WE-EF LIGHTING
Australia
Tel +61 3 8587 0444
Fax +61 3 8587 0499
info.australia@we-ef.com
WE-EF LIGHTING
United States of America
Tel +1 724 742 0030
Fax +1 724 742 0035
info.usa@we-ef.com
TO9198W1117 © WE-EF 2017
7HFKQLFDOVSHFLƂFDWLRQVDUH
subject to change.
