Viper-208-TBN Series

Managed EN 50155 Backbone Routing Switch

Table of Contents

1. General Information ........................................................................ 3

1.1. Legal Information ................................................................... 3

1.2. About This Guide ................................................................... 3

1.3. Software Tools ...................................................................... 3

1.4. License and Copyright for Included FLOSS ................................. 3

1.5. WeOS ................................................................................. 3

2. Safety and Regulations ................................................................... 4

2.1. Warning Levels ..................................................................... 4

2.2. Safety Information ................................................................. 5

2.3. Care Recommendations ......................................................... 6

2.4. Product Disposal ................................................................... 7

2.5. Compliance Information .......................................................... 7

2.5.1. Agency Approvals and Standards Compliance .................... 7

2.5.2. FCC Part 15.105 Class A Notice ...................................... 8

2.5.3. Simplified Declaration of Conformity .................................. 8

3. Product Description ........................................................................ 9

3.1. Product Description ................................................................ 9

3.2. Available Models ................................................................... 9

3.3. Hardware Overview ............................................................. 10

3.4. Connector Pinout ................................................................. 11

3.5. Bypass Functionality ............................................................ 12

3.6. LED Indicators .................................................................... 15

3.7. Dimensions ........................................................................ 16

4. Installation .................................................................................. 17

4.1. Wall Mounting ..................................................................... 17

4.2. Protective Earth Connection .................................................. 17

4.3. Connection of Cables ........................................................... 18

4.4. Cooling .............................................................................. 19

4.5. Replacement of Product ........................................................ 19

4.6. EN 45545-2 Mounting Notes .................................................. 19

5. Specifications .............................................................................. 20

5.1. Interface Specifications ......................................................... 20

5.2. Type Tests and Environmental Conditions ................................. 23

6. Revision Notes ............................................................................ 25

2 Viper-208-TBN Series

1. General Information

1.1. Legal Information

The contents of this document are provided “as is”. Except as required by applicable law,

no warranties of any kind are made in relation to the accuracy and reliability or contents of

this document, either expressed or implied, including but not limited to the implied

warranties of merchantability and fitness for a particular purpose. Westermo reserves the

right to revise this document or withdraw it at any time without prior notice.

Under no circumstances shall Westermo be responsible for any loss of data or income or

any special, incidental, and consequential or indirect damages howsoever caused.

More information about Westermo can be found at www.westermo.com.

1.2. About This Guide

This guide is intended for installation engineers and users of the Westermo products.

It includes information on safety and regulations, a product description, installation

instructions and technical specifications.

1.3. Software Tools

Related software tools are available at www.westermo.com/support/software-tools.

1.4. License and Copyright for Included FLOSS

This product includes software developed by third parties, including Free/Libre Open

Source Software (FLOSS). The specific license terms and copyright associated with the

software are included in each software package respectively. Please visit the product web

page for more information.

Upon request, the applicable source code will be provided. A nominal fee may be charged

to cover shipping and media. Please direct any source code request to your normal sales or

support channel.

1.5. WeOS

This product runs WeOS 5 (Westermo Operating System). Instructions for quick start,

configuration and factory reset are found in the WeOS user documentation at

www.westermo.com.

Viper-208-TBN Series 3

2. Safety and Regulations

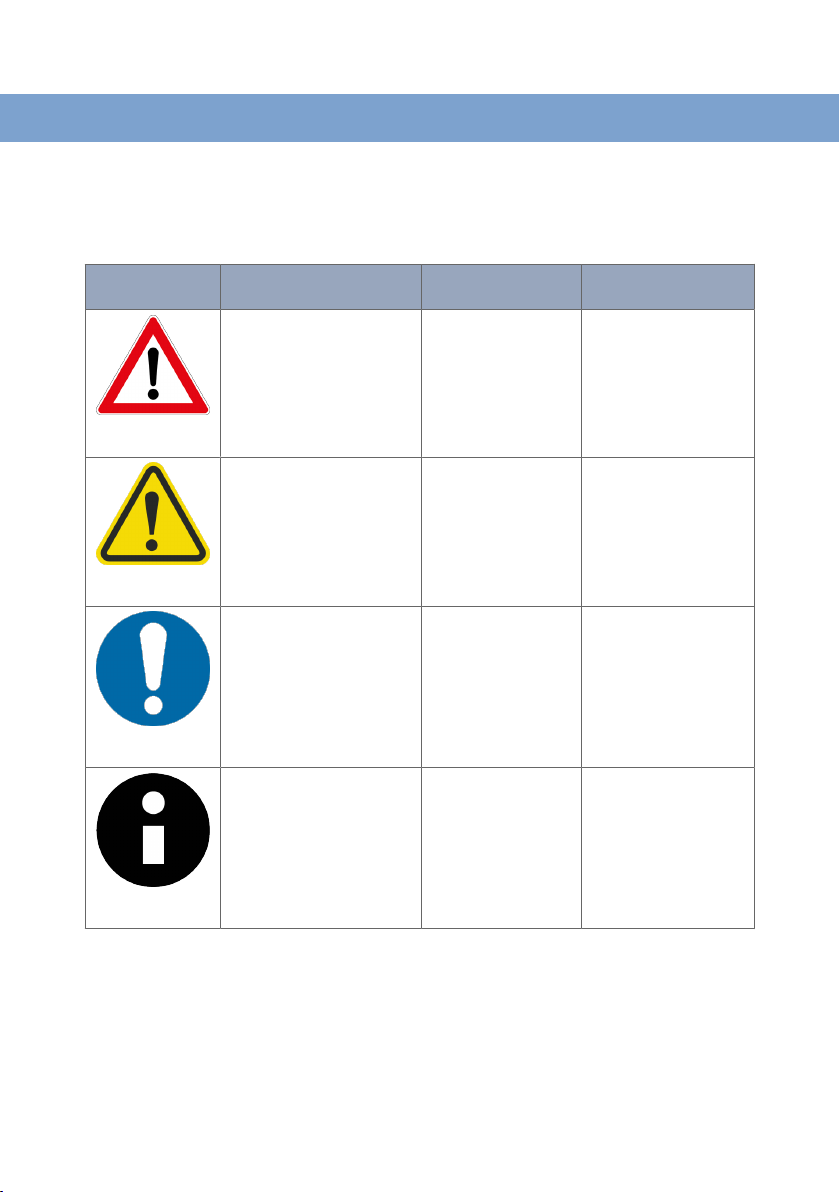

2.1. Warning Levels

Warning signs are provided to prevent personal injuries and/or damages to the product.

The following levels are used:

Level of warning Description Consequence

personal injury

Consequence

material damage

WARNING

Indicates a potentially

hazardous situation

Possible death or major

injury

Major damage to the

product

CAUTION

Indicates a potentially

hazardous situation

Minor or moderate

injury

Moderate damage to the

product

NOTICE

Provides information in order

to avoid misuse of the

product, confusion or

misunderstanding

No personal injury Minor damage to the

product

NOTE

Used for highlighting general,

but important information

No personal injury Minor damage to the

product

Table 1. Warning levels

4 Viper-208-TBN Series

2.2. Safety Information

Before installation:

Read this manual completely and gather all information available on the product. Make sure

it is fully understood. Check that your application does not exceed the safe operating

specifications for the product.

WARNING - SAFETY DURING INSTALLATION

The product must be installed and operated by qualified service personnel

and installed into an apparatus cabinet or similar, where access is

restricted to service personnel only.

During installation, ensure a protective earthing conductor is first

connected to the protective earthing terminal (only valid for metallic

housings). Westermo recommends a cross-sectional area of at least 4

mm2.

Upon removal of the product, ensure that the protective earthing

conductor is disconnected last.

WARNING - HAZARDOUS VOLTAGE

Do not open an energised product. Hazardous voltage may occur when

connected to a power supply.

WARNING - PROTECTIVE FUSE

The power supply wiring must be sufficiently fused. The fuse must be IEC

60127 certified and rated for T1.6 A and 250 V.

It must be possible to disconnect manually from the power supply. Ensure

compliance to national installation regulations.

This product has no internal fuse and should be connected via an external

fuse for protection.

WARNING - REDUCE THE RISK OF FIRE

To reduce the risk of fire, use only telecommunication line cords with a

cable diameter of AWG 26 or larger. Regarding power cable dimensions,

see Interface Specifications.

Viper-208-TBN Series 5

CAUTION - CABLE TEMPERATURE RATING FOR FIELD

TERMINAL WIRES

There may be a requirement on the minimum temperature rating of the

cable to be connected to the field wiring terminals, see Interface

Specifications.

CAUTION - ELECTROSTATIC DISCHARGE (ESD)

Prevent electrostatic discharge damage to internal electronic parts by

discharging your body to a grounding point (e.g. use a wrist strap).

CAUTION - HOT SURFACE

Be aware that the surface of this product may become hot. When it is

operated at high temperatures, the external surface may exceed Touch

Temperature Limit according to the product's relevant electrical safety

standard.

This product complies with Touch Temperature Limits throughout its

operational temperature range.

NOTE - MECHANICAL FORCE ON VENTILATION

MEMBRANE

Do not cover or bring mechanical force to the ventilation membrane on

the back of the product.

2.3. Care Recommendations

Follow the care recommendations below to maintain full operation of the product and to

fulfill the warranty obligations:

• Do not drop, knock or shake the product. Rough handling above the specification may

cause damage to internal circuit boards.

• Use a dry or slightly water-damp cloth to clean the product. Do not use harsh

chemicals, cleaning solvents or strong detergents.

• Do not paint the product. Paint can clog the product and prevent proper operation.

If the product is used in a manner not according to specification, the protection provided

by the equipment may be impaired.

If the product is not working properly, contact the place of purchase, the nearest

Westermo distributor office or Westermo technical support.

6 Viper-208-TBN Series

2.4. Product Disposal

This symbol means that the product shall not be treated as unsorted municipal waste when

disposing of it. It needs to be handed over to an applicable collection point for recycling

electrical and electronic equipment.

By ensuring the product is disposed of correctly, you will help to reduce hazardous

substances and prevent potential negative consequences to both the environment and

human health, which could be caused by inappropriate disposal.

Figure 1. WEEE symbol for treatment of product disposal

2.5. Compliance Information

2.5.1. Agency Approvals and Standards Compliance

Type Approval/Compliance

Climate • EN 50155 class OT4/IEC 60571 class TX, Railway applications - Electronic

equipment used on rolling stock, Rapid temperature variations class H2

• IEEE 1478 class 1, condition E4 (incl Salt Mist), Environmental conditions for transit

rail car electronic equipment

EMC • EN/IEC 61000-6-2, Immunity industrial environments

• EN/IEC 61000-6-4, Emission industrial environments

• EN 50121-4/IEC 62236-4, Railway signalling and telecommunications apparatus

• EN 50121-3-2/IEC 62236-3-2 Railway applications – Rolling stock – apparatus

• Tested and verified for Class S1, DB EMC Regulation 06, Commodity team Radio

compatibility in VDB Rev 1.0 (Shunting Radio)

• Tested and verified for FCC part 15b class A (CFR 47)

Mechanical

(Shock and

vibration)

• EN 61373 category 1, class A and B

• IEEE 1478 class 1, condition E4, including shock tests 10 g/30 ms and 20 g/11 ms in

all directions

Insulation

(Coordination and

test)

• EN 50124-1, Railway applications – Insulation coordination

• EN 50155/IEC 60571, Railway applications - Electronic equipment used on rolling

stock

Fire protection • EN 45545-2, Fire protection on railway vehicles

• NFPA 130, Fire protection for fixed guideway transit and passenger rail system

Safety • EN/IEC 61010-1, -2-201, Safety requirements for electrical equipment for

measurement, control, and laboratory use

Table 2. Agency approvals and standards compliance

Viper-208-TBN Series 7

2.5.2. FCC Part 15.105 Class A Notice

This product has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference

when the product is operated in a commercial environment.

This product generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the user manual, may cause harmful interference to radio

communications. Operation of this product in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at the users

own expense.

2.5.3. Simplified Declaration of Conformity

Hereby, Westermo declares that this product is in compliance with applicable EU directives

and UK legislations. The full declaration of conformity and other detailed information is

available at www.westermo.com/support/product-support.

Figure 2. The European Conformity and the UK Conformity Assessment markings

8 Viper-208-TBN Series

3. Product Description

3.1. Product Description

The Viper TBN is a managed backbone routing switch optimised for the needs of the

railway rolling stock market. The dual bypass relay ensures that aggregated links between

cars are maintained, even if there is a power failure in one car. Gbps ports cope with high

bandwidth backbone, consist ring and end-devices.

The Viper is designed to withstand the tough environment on-board trains, exposing the

switch to constant vibration, extreme temperatures, humidity and a demanding electrical

environment.

A GORE-TEX® membrane prevents internal condensation. Threading integrated in chassis

provides for additional vibration resistance. High-level isolation between all interfaces

enables direct connectivity to vehicle auxiliary power and protects against overvoltage and

flashover. IP67 protection prevents ingress of water and dust. An overall optimised design

results in an extremely compact package in combination with very high MTBF for easy

integration and low lifecycle cost.

Thorough type testing at independent ISO/IEC 17025 and ILAC MRA certified labs,

accredited to a wide range of standards, show that the Viper series fulfills EN 50155 and

other requirements. The state-of-the-art Westermo production facility ensures the quality

of each individual unit, e.g. through temperature cycling burn-in testing.

The WeOS operating system offers an extensive suite of IP networking features for

resilient and flexible networks, e.g. the FRNT ring protocol with very fast failover. The

powerful layer 3 routing capability ensures communication between the backbone and

consist networks and offers full support for IEC 61375, including TTDP network

inauguration and TRDP realtime data protocol. The backup device accessory matches the

Viper in robustness and offers easy configuration update and backup.

3.2. Available Models

Art. no. Model Software Gbps ports

3635-2020 Viper-208-T4G-TBN L3 4

3635-2120 Viper-208-T8G-TBN L3 8

Table 3. Available Viper TBN models

NOTE - MECHANICAL FORCE ON VENTILATION

MEMBRANE

Do not cover or bring mechanical force to the ventilation membrane on

the back of the product.

Viper-208-TBN Series 9

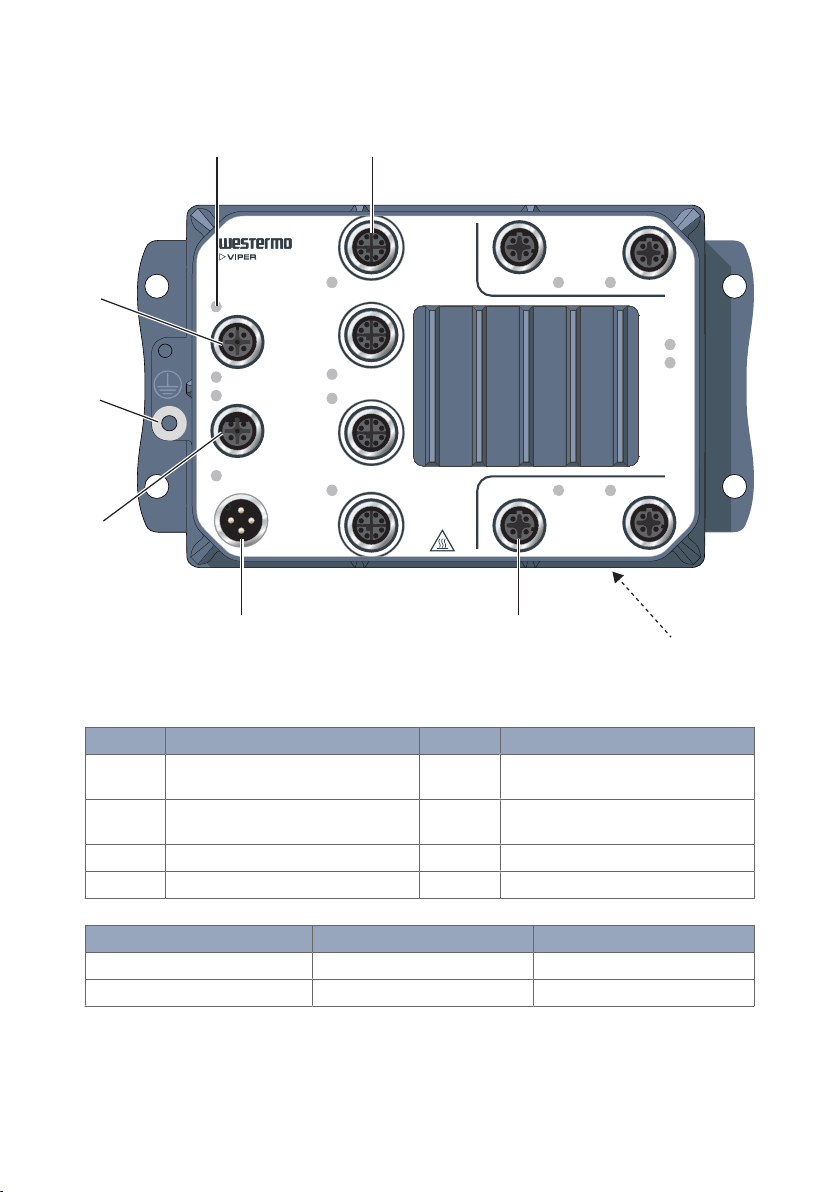

3.3. Hardware Overview

CON

FRNT

RSTP

USB

X1 X5 X7

Bypass 1

Bypass 2

X4 X6

24-110 V

M12 Torque 0.6±0,1 Nm / 0,45±0,1 lbft

1 2

Illustrated by a Viper-208-T4G-TBN

Figure 3. Location of interface ports and LED indicators

No. Description No. Description

1 LED indicator 2 1 Gbps port (double ring symbol on

front of product, see table below)

3 GORE-TEX ventilation membrane on

the rear side

4 100 Mbps port (single ring symbol on

front of product, see table below)

5 Power connection 6 Console port

7 Protective earth connection 8 USB port

Model Mbps ports Gbps ports

Viper-208-T4G-TBN X5 to X7 X1 to X4

Viper-208-T8G-TBN - X1 to X8

10 Viper-208-TBN Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Westermo Interruttore

Westermo

Westermo Lynx DSS L108-F2G-S2 EX Manuale utente

Westermo

Westermo RedFox RFI-119-F4G-T7G Manuale utente

Westermo

Westermo Lynx DSS L106-F2G EX Manuale utente

Westermo

Westermo Viper-008 Manuale utente

Westermo

Westermo Viper 108 Manuale utente

Westermo

Westermo Lynx SERIES Manuale utente

Westermo

Westermo Lynx DSS L108-F2G-S2 EX Manuale utente

Westermo

Westermo Lynx SERIES Manuale utente

Westermo

Westermo RedFox 7528 Series Manuale utente

Westermo

Westermo RedFox 5528 Series Manuale utente

Westermo

Westermo Lynx DSS L108 Manuale utente

Westermo

Westermo Viper 008 Manuale utente

Westermo

Westermo Lynx L110 F2G EX Manuale utente

Westermo

Westermo Viper 12A-PoE Series Manuale utente

Westermo

Westermo MRI-128-F4G Series Manuale utente

Westermo

Westermo Lynx 5500 Series Manuale utente

Westermo

Westermo RedFox-5728-F4G-T24G-LV Manuale utente

Westermo

Westermo Lynx L106-S2 Manuale utente

Westermo

Westermo Lynx L206-F2G-EX Manuale utente

Westermo

Westermo Lynx DSS L206-S2 Manuale utente

Westermo

Westermo Viper-8 Series Manuale utente

Westermo

Westermo PSI-1010G-24V Manuale utente

Westermo

Westermo Viper 12A Series Manuale utente

Westermo

Westermo Lynx L206-F2G Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
