Wharfedale Pro Typhon Series Manuale utente

WWW.WHARFEDALEPRO.COM

POWERFUL | PORTABLE | VERSATILE PA

TYPHON-AX12

TYPHON-AX12-BT

TYPHON-AX8

TYPHON-AX8-BT

Wharfedale Pro Typhon Series User Manual

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS …………………………………………… 1

TYPHON - Pronounced - “TYF—ON” ……………………………………………… 2

IMPORTANT WARNINGS & SAFETY INSTRUCTIONS ………………………… 3 - 4

REAR PANEL FEATURES ..………………………………………………………… 5 - 8

TECHNICAL DRAWINGS ………..……..……..……..……..……………………….. 9 - 10

SPECIFICATIONS ……………………………………………………………………. 11 - 12

IMPORTANTSAFETY INSTRUCTIONS

TYPHON - Pronounced - “TYF—ON”

In ancient mythology, Typhon was a giant who brought fear to his enemies. From a similar era

to the Titans, it is said that the God Typhon had the power to create and control massive wind

tornadoes in his battles. Mythology also often refers to him as being invincible.

Power, control and “invincibility” are all features which Typhon active loudspeakers

have been designed around.

Two sized models are available. 8” and 12”. Both sizes feature the same 720w contin-

uous ampliﬁcation power and both sizes are available as an aptX Bluetooth model.

A polypropylene cabinet design with a full frontal steel grille houses the most advanced

active loudspeakers ever created by Wharfedale Pro. This injection moulded cabinet is

carefully engineered to feature 5 carry handles making transportation easy and well

balanced.

Advanced internal DSP algorithms generate a sound stage which surpasses the dimen-

sions of the cabinet. The two separate Class D power amps (600w RMS for the LF and

120w RMS for the HF) deliver huge output power while keeping the overall weight to

minimum. The eﬃciency of the ampliﬁer stage means that Typhon uses convection

cooling - resulting in a more reliable product with quieter operation.

Custom Wharfedale Pro transducers have been selected for Typhon. The custom com-

pression driver features a 1.75” voice coil. This is coupled to a 100° x 80° waveguide for

smooth HF dispersion. The custom Wharfedale Pro LF transducers (8” in Typhon-AX8

and 12” in Typhon-AX12) have newly designed ferrite cores and use ﬂat coil windings to

aid cooling. All models feature a moisture rejecting cone material which allows Typhon

to be used in damp or humid conditions.

The Typhon-AX12-BT and Typhon-AX8-BT feature aptX Bluetooth input connectivity and

stereo linking which makes setup with mobile devices simple and cable free.

Features

• 720w continuous (1440w peak)

• Full frontal steel grilles with inner cloth protection

• Top and bottom practical handles

• Bi-ampliﬁed with Class D amps

• 4 position DSP

• 9 x M8 rigging points

• 2.5” LF transducer voice coil with ﬂat windings

• 1.75” HF compression driver voice coil

• 100° x 80° dispersion Hybrid Symmetry waveguide

• RCA inputs (Typhon-AX8 and Typhon-AX8-BT only)

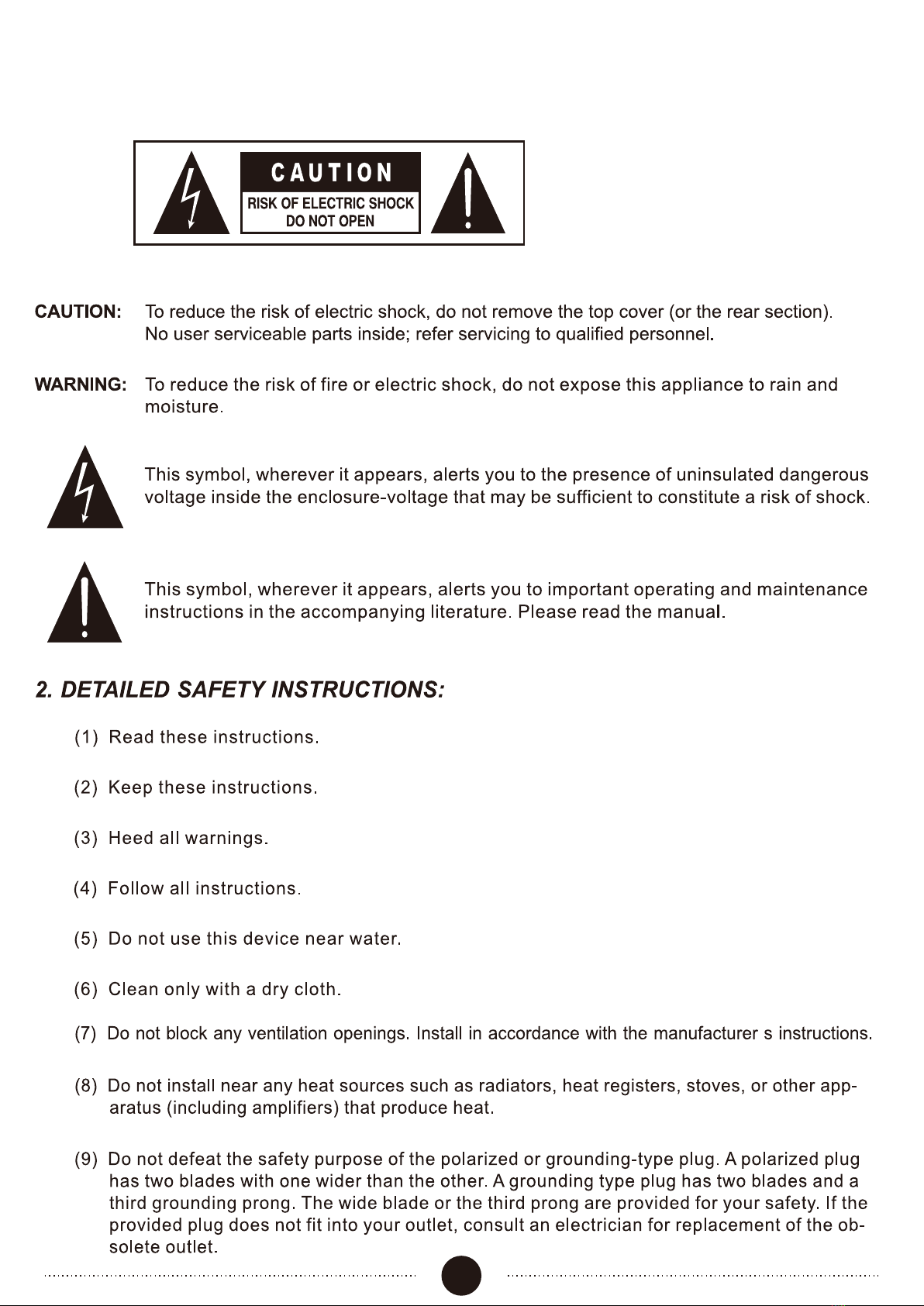

IMPORTANTWARNINGS & SAFETY INSTRUCTIONS

1. Read these instructions – All the safety and operating instructions should be read

before this product is operated.

2. Keep these instructions – The safety and operating instructions should be retained

for future reference.

3. Heed all warnings – All warnings on the appliance and in the operating instructions

should be adhered to.

4. Follow all instructions – All operating and use instructions should be followed.

5. Do not use this apparatus near water – The appliance should not be used near water

or moisture – for example, in a wet basement or near a swimming pool, and the like.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacture’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized

plug has two blades with one wider than the other. A grounding plug has two blades

and a third grounding prong. The wide blade or the third prong is provided for your

safety. If the provided plug does not ﬁt into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at the plugs,

convenience receptacles, and at the point where they exit from the apparatus.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer,

or sold with the apparatus. When a cart or rack is used, use caution when moving

the cart/apparatus combination to avoid injury from tip-over.

13. Unplug the apparatus during lightning storms or when unused for long periods of

time.

14. Refer all servicing to qualiﬁed personnel. Servicing is required when the apparatus

has been damaged in any way, such as power supply cord or plug is damaged, liquid

has been spilled or objects have fallen into the apparatus has been exposed to rain

or moisture, does not operate normally, or has been dropped.

17.

- This lightning ﬂash with arrowhead symbol within an equilateral triangle is intended

to alert the user to the presence of non-insulated “dangerous voltage” within the

product’s enclosure that may be of suﬃcient magnitude to constitute a risk of electric

shock.

- Warning: To reduce the risk of electric shock, do not remove cover (or back) as there

are no user-serviceable parts inside. Refer servicing to qualiﬁed personnel.

- The exclamation point within an equilateral triangle is intended to alert the user to

the presence of important operating and maintenance instructions in the literature

accompanying the appliance.

18. Protective earthing terminal. The apparatus should be connected to a mains

socket outlet with a protective earthing connection.

19. the ventilation should not be impeded by covering the ventilation openings with

items, such as newspapers, table-cloths, curtains, etc.;

20. No naked ﬂame sources, such as lighted candles, should be placed on the apparatus.

21. Attention should be drawn to environmental aspects of battery disposal.

22. The mains plug is used as disconnect device, the disconnect device shall remain

readily operable.

23. The product is designed to use in moderate climates.

15. CAUTION: These servicing instructions are for use by qualiﬁed service personnel

only. To reduce the risk of electric shock, do not perform any servicing other than

that contained in the operating instructions unless you are qualiﬁed to do so.

16. WARNING：To reduce the risk of ﬁre or electric shock, do not expose this apparatus

to rain or moisture. The apparatus shall not be exposed to dripping or splashing and

that objects ﬁlled with liquids, such as vases, shall not be placed on apparatus.

REAR PANEL FEATURES

Typhon-AX12 and Typhon-AX12-BT

Typhon-AX8 and Typhon-AX8-BT

AC INPUT

OFF

POWER

FRONT

LED

LOOP

A B

INPUT

(BALANCED)(BALANCED)

OUTPUT

Made in China

Serial No.

VOLUME+6

-∞

VOLUME

-∞

LINE

MIC

LINE

ST BT

PAIR

1 2 3 4

LIMIT

POWER

90Hz

HPF

D-EQ

MIX

FLAT

PUNCH

2 3 4

MONITOR

DSP SETTING

BASS

AC 220-240V~50/60Hz

600W

FUSE T3.15AL 250V

AC INPUT

OFF

POWER

FRONT

LED

LOOP

A B

INPUT

(BALANCED)(BALANCED)

OUTPUT

Made in China

Serial No.

VOLUME+6

-∞

VOLUME

-∞

LINE

MIC

1 2 3 4

LIMIT

POWER

90Hz

HPF

D-EQ

MIX

FLAT

PUNCH

2 3 4

MONITOR

DSP SETTING

BASS

AC 220-240V~50/60Hz

600W

FUSE T3.15AL 250V

1. VOLUME controls for INPUT A and INPUT B:

These knobs control the level of each input channel.

2. DSP setting : (4 modes)

1) FLAT

2) MONITOR

3) BASS

4) PUNCH

3. DSP Selection

With each tap of the D-EQ button, the DSP will step through each of the 4 above

DSP modes. The LED will show which DSP mode is currently active.

4. Bluetooth operation (Typhon-AX12-BT and Typhon-AX8-BT only) :

a. MONO Mode:

Press and release the PAIR button on one speaker only.

Select “Wharfedale Pro BT” on your device. The BT LED will change to solid when

paired.

To disconnect, press and release the PAIR button.

b. STEREO Link Mode: - For use with 2 units of Typhon-AX12-BT OR Typhon-AX8-BT

Press and hold the PAIR button on each speaker until the ST LED is blinking. The

ST LED will change to solid when Linked.

Press and release the PAIR button on one speaker. Then select “Wharfedale PRO

BT” on your device. The BT LED will change to solid when paired. The selected

speaker will be the left channel.

To disconnect, press and hold the PAIR button for 5 Seconds.

Transmission distance note : A single speaker working range is about 15 meters

(Bluetooth device (eg Phone) to single speaker). When using a Bluetooth Typhon

in stereo link mode the working range is about 10m (Bluetooth device (eg Phone)

to speaker). In this mode the linked speakers can be up to 8m apart.

Phone

Bluetooth device

Typhon-AX12-BT

Typhon-AX8-BT

15m

Phone

Bluetooth device

Typhon-AX12-BT

Typhon-AX8-BT

Typhon-AX12-BT

Typhon-AX8-BT

10m 10m

5. GAIN selection switch A: This switch selects the proper gain structure for INPUT

A. If a microphone is connected to INPUT A, use mic mode (up). If the signal

source is anything other than a microphone (eg an analogue playback device,

keyboard or mixer output) use the line selection (down).

6. GAIN selection switch B: This switch selects the proper gain structure for INPUT

B. If a Bluetooth device is connected to INPUT B, use BT mode (up). If the signal

source is anything other than a Bluetooth device (eg analogue playback device,

keyboard or mixer output) use the line selection (down).

7. 90Hz Hi Pass Filter switch:

Used to reduce bass buildup due to half space loading. This is especially useful

when using the Typhon on the ﬂoor as a ﬂoor monitor.

8. Power “ON” indicator LED and LIMIT indicator LED: The bracketed LED to the

left of the POWER switch illuminates when the power switch is in the ‘ON’ posi

tion. The LIMIT LED illuminates when the signal limiter is limiting the level of the

signal. This process prevents distortion and overload.

9. Horn LED defeat switch: Switches oﬀ the front horn power LED for discrete

applications.

10. POWER ON / OFF switch: This switch turns the power on and oﬀ.

11. Output source “LOOP / MIX” switch: In the “LOOP” mode, this switch routes the

signal of INPUT B to the line level XLR OUTPUT jack, bypassing the EQ section

and volume control. When in the MIX mode, this switch routes the combined (or

“mixed”) signals of both INPUT A and INPUT B to the line level XLR OUTPUT jack.

12. XLR and ¼” input jacks for INPUT A and INPUT B.: These connectors allow XLR

or ¼” balanced input connections to INPUT A and INPUT B

13. XLR line level OUTPUT: This connector provides a balanced line level output for

connection to additional active loudspeakers (such as another Typhon-AX12),

powered subwoofers or external ampliﬁers.

14. POWER cord input: Typhon uses a standard IEC, three prong, grounded AC elec

trical connection. Be sure that you are plugging into the correct source voltage

that matches what is indicated just below the power cord jack.

15. RCA Inputs: Typhon-AX8 and Typhon-AX8-BT only. For connection to stereo

line level audio sources.

Altri manuali per Typhon Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Wharfedale Pro Altoparlanti

Wharfedale Pro

Wharfedale Pro WLA Series Manuale utente

Wharfedale Pro

Wharfedale Pro 105T Manuale utente

Wharfedale Pro

Wharfedale Pro Heritage Manuale utente

Wharfedale Pro

Wharfedale Pro Reason Series Manuale utente

Wharfedale Pro

Wharfedale Pro Diamond 9.0 Manuale utente

Wharfedale Pro

Wharfedale Pro WLA Series Manuale utente

Wharfedale Pro

Wharfedale Pro WLA-218BX Manuale utente

Wharfedale Pro

Wharfedale Pro WLA-218BA Manuale utente

Wharfedale Pro

Wharfedale Pro DIAMOND 8 Series Manuale utente

Wharfedale Pro

Wharfedale Pro Programme-X Series Manuale utente

Wharfedale Pro

Wharfedale Pro Achromatic WA-W4 Manuale utente

Wharfedale Pro

Wharfedale Pro Titan 12 ACTIVE Manuale utente

Wharfedale Pro

Wharfedale Pro Programme-X35E Manuale utente

Wharfedale Pro

Wharfedale Pro Delta-15 Guida

Wharfedale Pro

Wharfedale Pro WH-DFS Manuale utente

Wharfedale Pro

Wharfedale Pro DIAMOND 8.1 PRO ACTIVE Manuale utente

Wharfedale Pro

Wharfedale Pro Zaldek Surround Manuale utente

Wharfedale Pro

Wharfedale Pro DIAMOND 12 3D SURROUND Manuale utente

Wharfedale Pro

Wharfedale Pro TITAN-AX15 Manuale utente

Wharfedale Pro

Wharfedale Pro D9.1 Manuale utente

Wharfedale Pro

Wharfedale Pro Diamond 11.0 Manuale utente

Wharfedale Pro

Wharfedale Pro WLA-12 Guida

Wharfedale Pro

Wharfedale Pro Crystal-4.2 Manuale utente

Wharfedale Pro

Wharfedale Pro ELYSIAN Series Manuale utente

Manuali Altoparlanti popolari di altre marche

argon audio

argon audio IE20 Manuale utente

Denon

Denon SC-N7 Manuale utente

Gemline

Gemline Ace 3952 Manuale utente

Focal

Focal ON WALL 300 Manuale di istruzioni

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuale utente

SoundLogic

SoundLogic BCCS-6/6395 Manuale utente

Peavey

Peavey DTH 218 Manuale utente

Avantree

Avantree Pluto Air Manuale utente

Morel

Morel Integra Series INTEGRA OVATION 4 Manuale utente

Oppo

Oppo SONICA Manuale utente

Bose

Bose SoundLink Wireless Music System Manuale utente

Rocksteady

Rocksteady Stadium Manuale utente

Bowers & Wilkins

Bowers & Wilkins 4 Manuale utente

Sonance

Sonance SONOS OUTDOOR Series Manuale utente

Electro-Voice

Electro-Voice EVID FM4.2 Manuale utente

Pioneer

Pioneer XW-HTD630 Manuale utente

Onn

Onn BWA16AA002 Manuale utente

HP GL313AA - USB Speakers PC Multimedia Manuale utente
