User Manual

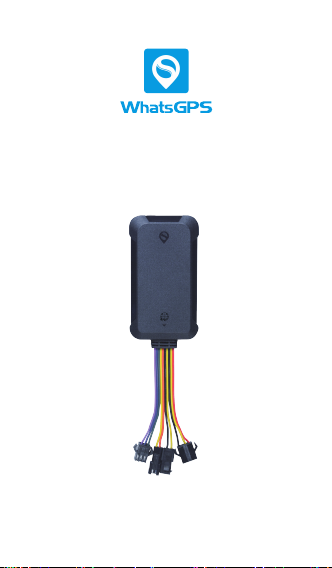

S5L
4G GPS Vehicle Tracker
Product Introduction
This user manual has been specially designed to
guide you through the functions and features of your
GPS vehicle tracker.
Start Guide
◆ Main device
◆ Power cord
◆ Relay line, 4-pin relay
◆ SOS cable
◆Fuel cable
◆ User manual
◆ Real-time GPS+AGPS tracking
◆ Track by time interval/distance/direction change
◆ Track through SMS, APP, Web
◆ Remotely fuel/power cut-off control
◆ SOS alarm
◆ Geo-fence alarm
1.1 Accessories
1.2 Main Functions
◆ Vibration alarm
◆ Movement alarm
◆ External power supply cut-off alarm
◆ Over-the Air (OTA)
◆ Low battery alert
Frequency : FDD B1/B2/B3/B4/B5/B7/B8/B28
TDD B40
WCDMA 850/900/1900/2100MHz
GSM 850/900/1800/1900MHz
Networks WCDMA /EDGE/GPRS
Location Time
Operating Voltage 9-36VDC<300mA
Cold Start: ＜35s
Hot Start：＜2s
Location Accuracy :<10 meters
Operating Temperature :-20℃ ~ +70℃
Weight :80g
Dimension: 83(L) x 46(W) x 14.5(H) mm
1.3 Specifications
My device
2.1Cable connection
2.2 LED indicators
1 2 3
1、Purple
2、Blue
3、Green
4、yellow
5、Red
6、Black
6 4 54 5 6 4
Oil Pump
Fuel oil sensor
Earth Wire
Temperature sensor
Relay
Battery
Ignition
1
2
3
321
After-sales service
Light type
Off
Normal flashing (1 time / S)
Slow flashing (1 time / 2S)
Light status
No power / device failure
Slow flashing
The server is connected
Networking
once / 200ms data
sending
Red light (power indicator)
4、Interface definition
2.3 Device Installation
Note: When device is connected with external power,
please turn on the battery switch. The battery will then
connect with the device circuits and its built-in battery
will be charged. If battery is OFF, battery can't be
charged. The device will be power off if no external
power supply.
Power on/ Power off
Power on:Once you insert a valid SIM card and
connect all the wires, turn on the device. Power LED
will flash first. During signal searching process stable
Power off: Just turn off the power switch.
Operation of device
4.4 Vibration alarm(default OFF)
4.1 SOS
4.2 Power cut-off alarm
4.3 Low battery alarm
Main Functions
In emergent case, press SOS for 3 seconds to
activate SOS alarm.
Then the device will send SOS SMS to preset SOS
numbers and
then dial the numbers in a loop for 3 times until the
call is picked up.
Alarm message will also send to platform. (See
command list 7-8)
When the electricity supply of device is cut off, it will
activate cut-off alarm.
When battery is low, the device will activate low
battery alarm.
When vehicle vibrates several times, the vibration
alarm will be triggered. If no ignition after 3 minutes
(ACC OFF), the device will send vibration alarm
message immediately. .
4.5 Oil/Electricity cut-off
Notice
When vehicle is stolen, oil/electricity cut-off
command can be sent by platform, APP or SMS.
1.Make sure ACC is correctly connected.
2.When ACC is OFF, command will be executed
immediately.
3.When ACC is ON, but GPS is not fixed, command
will be postponed.
4.When ACC is ON, GPS is fixed, command will be
executed when
vehicle speed is less than 20km/h.
If you want to cut off/restore oil by SMS command,
you have to set a
center number firstly. Only the center number can
send the cut
off/restore oil command to the device.
Notice
1.Only the SOS number can be used to set center
number.
2.Only the SOS number can be used to delete
center number.
3.There is only one center number can be set.
Platform Operation
5.1 APN & Server setting
4.6 Restore oil/electricity
When alarm is all-clear, you can send restore
oil/electricity command by platform, APP or SMS and
restore vehicle power. (See command list 7-15)
4.7 Restart device
If GPRS is abnormal (device is offline), you can send
SMS command RESET# to restart the device. Device
will reboot after 20 seconds after receiving the
command.
To ensure normal network operation, please confirm
your APN and server setting before login.
In most countries, APN could be automatically
adapted to local
mobile operators. If not, please send SMS to set the
APN.
If username and password is required for APN,
please add it into the command.
Confirm the server address and setting with
distributors. If server is incorrect, please send SMS to
change.
5.2Download APP
Common Command List
SERVER,mode,domainName/IP,port,0＃
E.g. SERVER,1,a.whatsgps.com,6801,0#
SERVER,0,47.75.111.37,6801,0#
mode = 1 means set with domain name
mode = 0 means set with ip address
Please download and install the APP in designated
website, APP
store or Google Play store,www.whatsgps.com .
Edit SMS command in the right column to the device
SIM number to achieve respective function as below:
Set IP1
2
3
4
SERVER ,1,IP/domain,
port#
Upload interval
time setting
SOS phone
number setting
TIMER,10#
SOS,A,number1,number2,
number3#
APN,cmnet#
APN,g.claro.com.br,.claro.
claro#
Set APN
After-sales service
Trouble shooting
If you are having trouble with your device, try these
troubleshooting
procedures before contacting a service professional.
Delete SOS
phone number
Center phone
number setting
5
6
7
8
SOS,D,number1,number2,
number3#
Set the petrol/
electricity
Reboot
RELAY,T#
RESET#
CENTER,A,phone number#
After-sales service
Causes
problem
Poor signal
Unable to
boot
The signal waves
unable to transmit
when use the GPS
tracker in the places
that have poor signal
reception, such as:
tall building around
or basement.
Using the GPS
tracker in the
places that
have good
signal
condition.
Solutions
Low battery Charge the
device battery
