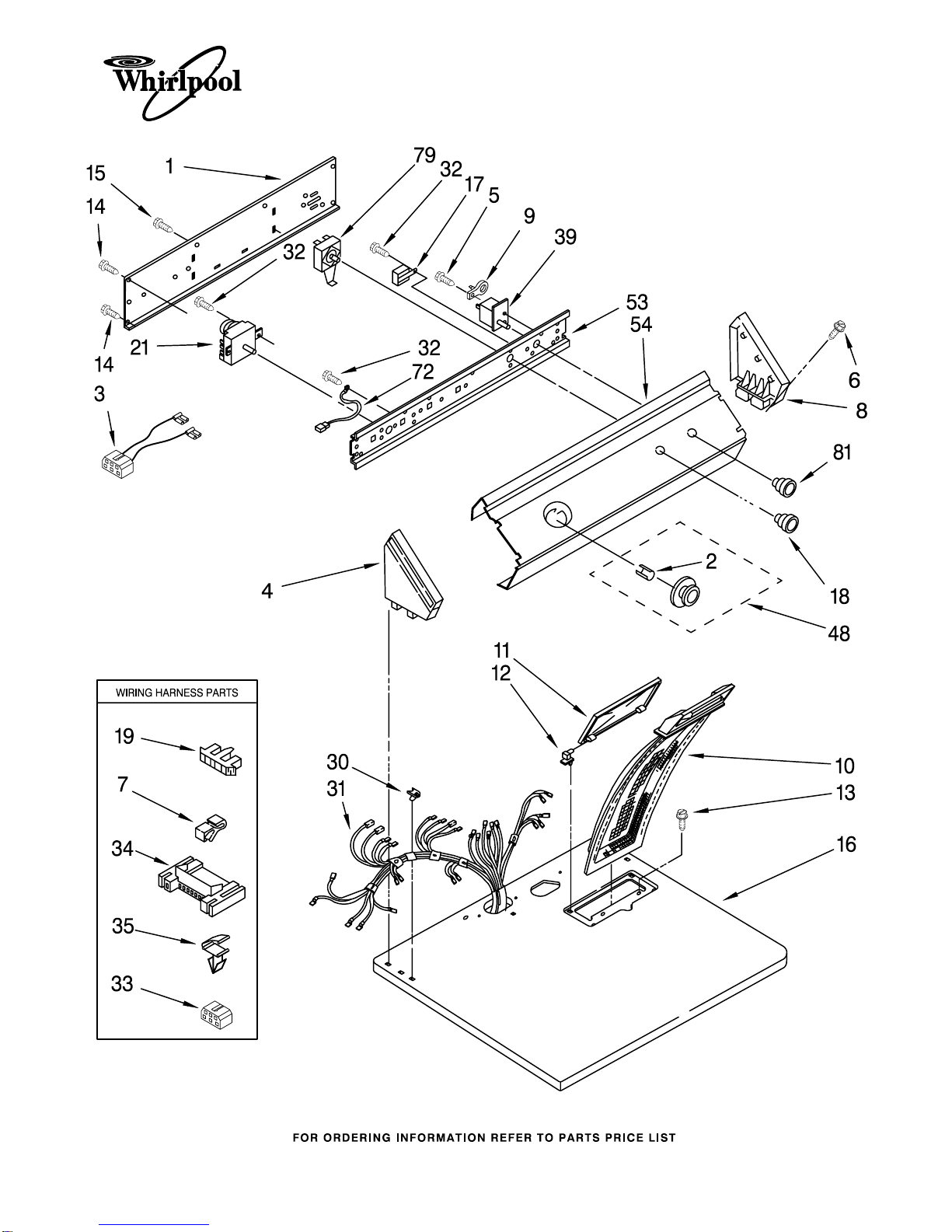

TOP AND CONSOLE PARTS
1
For Models: LER7646AQ1, LER7646AZ1
(Designer White) (Designer Almond)
8−94 Litho in U.S.A. (wwc) Part No. 4377263
ELECTRIC DRYER
TOP AND CONSOLE PARTS
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
LITERATURE AND OPTIONAL PARTS
2
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
For Models: LER7646AQ1, LER7646AZ1
(Designer White) (Designer Almond)
4377263
1 3397545 Panel, Rear
Console
2 688805 Clip
3 3396029 Wire−Jumper
Assembly
4 Cap, End (L.H.)
3358531 White
3358532 Almond
5 3390647 Screw, 8−18 x 1/2
6 3353145 Screw, Console
7 689180 Clip, Retainer
8 Cap, End (R.H.)
3358516 White
3358517 Almond
9 3388706 Resistor, Timer
10 349639 Screen, Lint
11 Cover, Lint Screen
688150 White
689310 Almond
12 339229 Hinge, R.H.
339230 Hinge, L.H.
13 688983 Screw, 8−18 x 5/8
14 693994 Screw (4)
15 693995 Screw (2)
16 Top
3396022 White
3396023 Almond
17 694419 Buzzer, Mini
18 Knob, Control
3358435 White
3358436 Almond
19 3397269 Connector, Timer
21 3398137 Timer, 60 Hz.
30 357213 Nut, Push−In (2)
31 3399663 Harness, Wiring
(Includes 690261
Terminal Block)
32 3390646 Screw, 8−18 x 5/16
33 3347243 Connector,
6 Circuit
34 3395683 Connector,
Housing
35 3394427 Clip. Harness
39 3395395 Switch,
Push−To−Start
48 Timer Knob
Assembly
3396146 White
3396149 Almond
53 3396293 Bracket, Control
54 Panel, Control
3397212 White
3399021 Almond
72 690853 Wire, Ground
79 3396013 Switch, Cycle
Selection
81 Knob, Push
To Start
3396161 White
3396164 Almond
LITERATURE PARTS
LIT3396303 Guide, Use & Care
LIT3397597 Instructions,
Installation
LIT3399691 Label, Wiring
Diagram
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
LIT677818 Dryer
OPTIONAL PARTS NOT INCLUDED
PAINT, TOUCH−UP (1/2oz.)
72017 White
72107 Almond
PAINT, PRESSURIZED SPRAY
(13 oz.)
350930 White
350956 Almond
350938 Primer, Gray
PAINT, BULK (1 qt.)
799344 White (Uncut)
978883 Almond (Uncut)

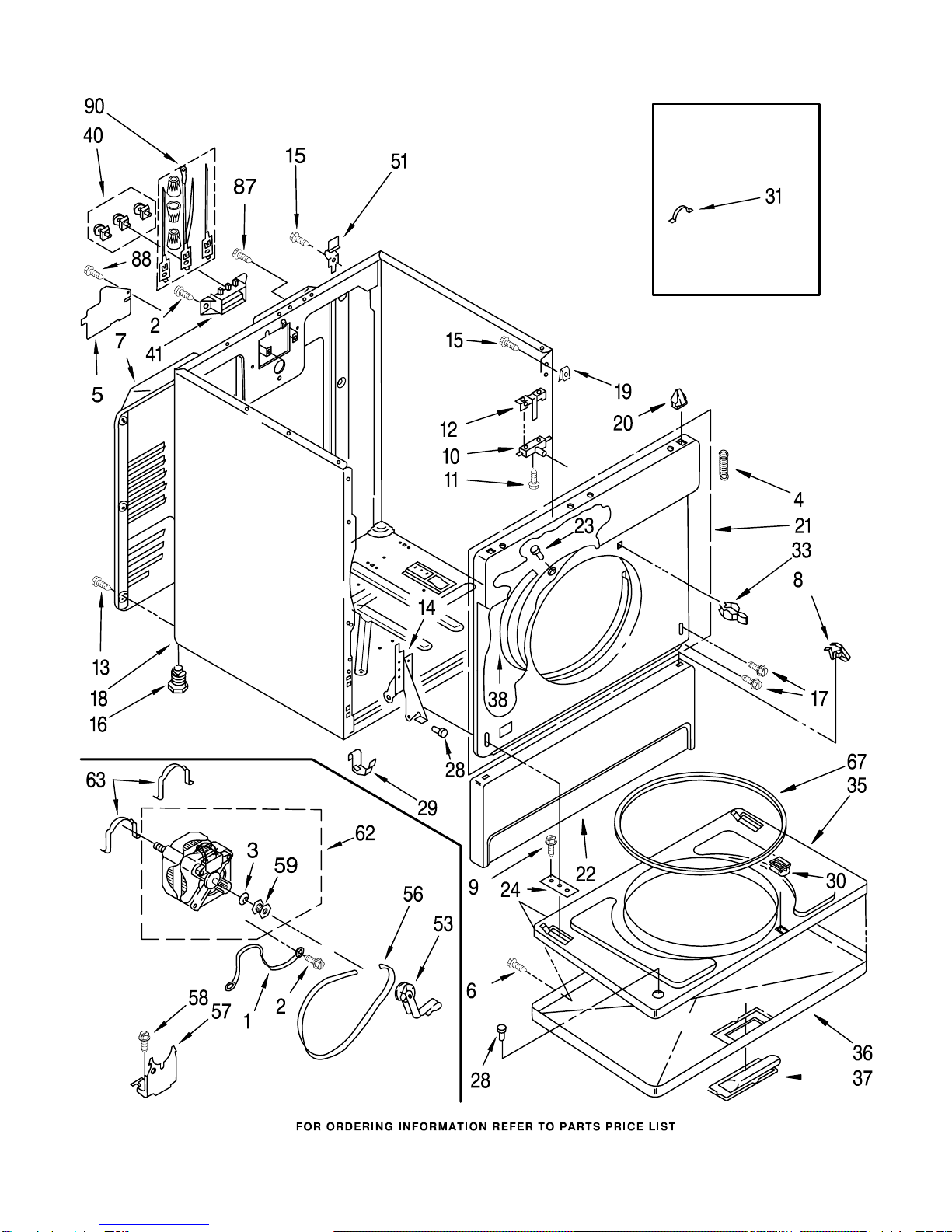

CABINET PARTS
3
For Models: LER7646AQ1, LER7646AZ1
(Designer White) (Designer Almond)
4377263
CABINET PARTS
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
4
For Models: LER7646AQ1, LER7646AZ1
(Designer White) (Designer Almond)
4377263
1 690236 Wire, Ground
(Motor)
2 3393008 Screw, 10−16 x 1/2
3 3393657 Restrainer, Belt
4 237979 Spring, Door (2)
5 3396795 Cover, Terminal
Block
6 694091 Screw
7 3396805 Panel, Rear
8 3388229 Clip,
Toe Panel (2)
9 3357011 Screw,
10−16 x 1/2
10 347207 Switch, Door
11 98129 Screw,
6−20 x 1−3/8 (2)
12 691581 Lever, Door Switch
13 693994 Screw, Rear Panel
Mounting
14 687905 Hinge, R.H.
687906 Hinge, L.H.
15 343641 Screw, 10−16 x 1/2
16 3392100 Foot, Dryer
279810 Foot − Optional
(Extended Length
Package Of 2)
(Not Included)
17 342043 Screw,
10−32 x 1/2
18 Cabinet
3399585 White
3399586 Almond
(Includes Illus.
Nos. 5, 7, 16, 41
and 57)
19 98234 Clip, Ground
20 690363 Lock, Front
Top (2)
21 Upper Front
Panel
338012 White
689533 Almond
22 Panel, Toe
692427 White
692428 Almond
23 685203 Clip, Felt Pad
24 337189 Clip, Hinge (2)
28 238614 Bumper
29 297092 Clip, Hinge (2)
30 690081 Catch, Door
31 98997 Clip, Harness
33 696144 Strike, Door
35 695954 Door, Rear
36 Door Front
348728 White
689330 Almond
37 Handle, Door
690270 White
690271 Almond
38 349464 Seal & Bearing
Assembly
40 279393 Terminal Block
Kit For
Terminal Block
41 690261 Block, Terminal
51 238088 Hinge, Top (2)
53 691366 Idler & Pulley
Assembly
56 660996 Belt, Drive
57 348780 Base, Motor
58 172455 Bolt,
5/16−18 x 3/4
59 3389627 Pulley, 60 Hz.
62 3395652 Motor Assembly
60 Hz.
63 660658 Clamp, Motor
343481 (Alt.)
685441 (Alt.)
67 3390733 Seal, Door
87 697776 Screw, 10−32 x 1/2
(External Ground)
88 693995 Screw, 10−16 x 1/2
90 279318 Terminal, Tinned
& Brass (3)
(Includes Illus. 40)

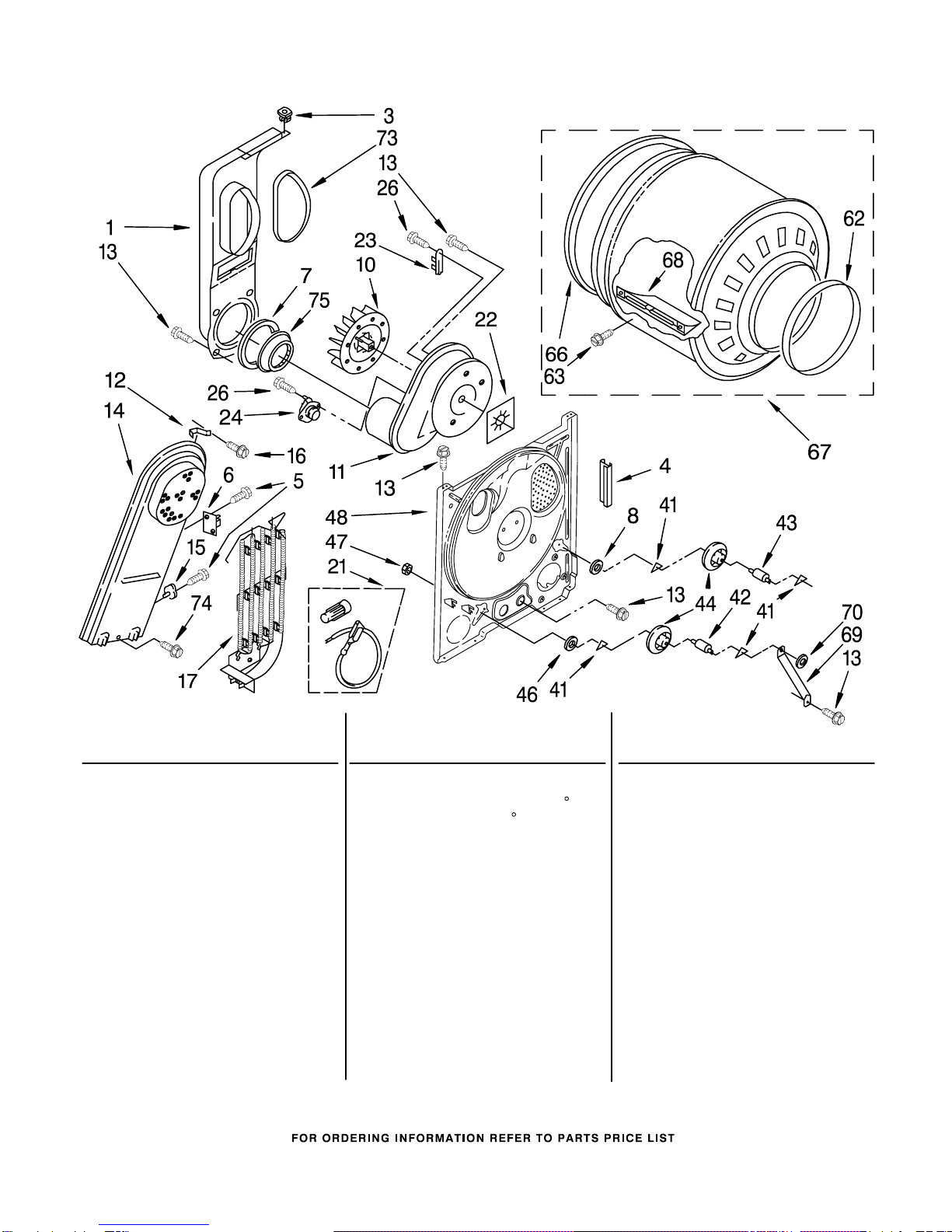

BULKHEAD PARTS
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
5
For Models: LER7646AQ1, LER7646AZ1
(Designer White) (Designer Almond)
4377263
1 3396352 Lint Chute Assembly
(Includes Item
No.73)
3 98460 Nut, Push−In (2)
4 686889 Pad, Cabinet
5 90767 Screw, 8 x 3/8
6 3398671 Thermal, Cut−Off
(Hi−Limit
Thermostat Illus.
No.15 Included)
7 347139 Seal, Lint
Chute
8 3388703 Washer, Support
10 694089 Wheel, Blower
11 695081 Housing, Blower
12 3398161 Clip
13 343641 Screw, 10−16 x 1/2
14 695547 Box, Heater
15 3390291 Thermostat,
High Limit 250 F
(121.1 C) (60 Hz.)
16 3400800 Screw, 8−18 x 3/4
17 660982 Element, Heater
(For 240 Volt
Installation)
693300 (Alt.)
696579 (Alt.)
693062 (Alt.)
21 279457 Wire Kit (For
Heater Element
Wiring Harness
Repair)
22 3392123 Seal, Blower
23 3392519 Fuse, Thermal
24 3387139 Thermostat,
Internal Bias
26 695239 Screw, 8−18 x 1/2
41 690997 Ring, Tri
42 3399506 Shaft, L.H.
43 3399507 Shaft, R.H.
44 3397588 Roller, Support
46 348197 Washer, Support
47 3359452 Nut, 3/8−16
48 3399464 Bulkhead
62 3394509 Ring, Bearing
63 97787 Screw, 11−16 x 7/8
66 3397509 Seal, Rear Drum
67 3396778 Drum Assembly
68 342847 Baffle, Drum
69 348945 Bracket, Support
70 90296 Clip
73 3398160 Seal
74 687128 Screw, 10−16 x 1/2
75 696302 Shield, Exhaust
