Whirlpool GR563LXSB1 Manuale utente

COOKTOP PARTS

For Models: GR563LXSQ1, GR563LXSB1, GR563LXST1, GR563LXSS1

(White) (Black) (Biscuit) (Black Stainless)

30" ELECTRIC CERAN

FREESTANDING RANGE

SELF CLEAN OVEN

6−06 Litho In U.S.A. (LWP) Part No. 8188430 Rev A

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9762981 Tech Sheet

9762996 Installation

Instructions

Template, Anti−Tip

9757143 English/French

9757142 English/Spanish

9762761 Safer Cooking Tips

9763001 Owner’s Manual

W10035930

Spring, Locator

3 3196170 Screw

4 Cooktop

9763334 White

9763336 Black

9763335 Biscuit

7 Element, Surface

9759351 2400/1000 W−LF/RF

8523698 1200 W − LR/RR

9762851 120 W − CR

8 8524132 Shield, Wiring

9 Bracket, Element

8272791 (2)

8273720 (1)

10 3196169 Screw

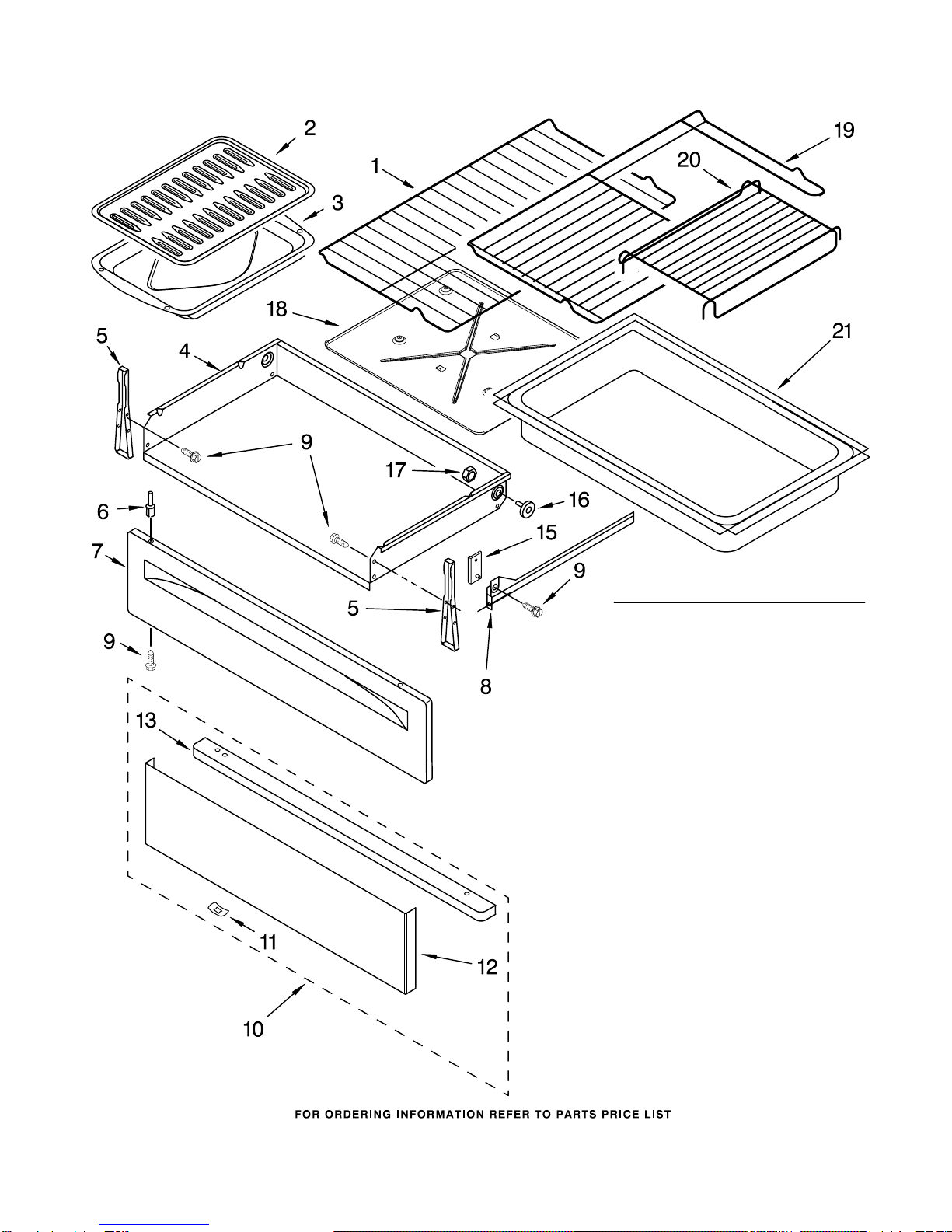

DRAWER & BROILER PARTS

For Models: GR563LXSQ1, GR563LXSB1, GR563LXST1, GR563LXSS1

(White) (Black) (Biscuit) (Black Stainless)

8188430

Illus. Part

No. No. DESCRIPTION

1 3195710 Rack, Oven (2)

2 3195996 Grill, Broiler

3 3196076 Pan, Broiler

4 9761030 Drawer, Storage

5 9758200 Bracket, Drawer(2)

6 Rivet, Push (2)

3196814 White

3196813 Black

7 Panel, Drawer Frnt

8053339 White

8053341 Black

8272501 Biscuit

8 Rail, Drawer

8274191 Right Hand

8274190 Left Hand

9 3196168 Screw

10 For Stainless

Model Only

11 9781235 Clip

12 9755798 Panel, Stainless

13 9757237 Handle, Drawer

15 8522669 Spacer, Glide

16 9751138 Roller (2)

17 487939 Nut (2)

18 9756711 Heat Shield,

Drawer

19 8274021 Rack, Partial

20 8274022 Rack, Insert

21 9761032 Liner, Drawer

CHASSIS PARTS

For Models: GR563LXSQ1, GR563LXSB1, GR563LXST1, GR563LXSS1

(White) (Black) (Biscuit) (Black Stainless)

8188430

CHASSIS PARTS

For Models: GR563LXSQ1, GR563LXSB1, GR563LXST1, GR563LXSS1

(White) (Black) (Biscuit) (Black Stainless)

8188430

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9761300 Vent Tube Assbly

2 8273905 Support, Corner LR

3 Panel, Side (2)

8053830 White−Textured

8053832 Black−Textured

8272519 Biscuit−Textured

W10010350

Seal, Oven Flange

5 8522416 Seal, Oven Door

6 9757341 Element, Broil

7 9755770 Element, Bake

(Hidden Bake)

8 9757239 Rod − Door Switch

9 3196548 Fuse, Thermal

10 3195736 Support, Front (2)

11 3196037 Foot, Front (2)

12 Frame, Front

(Not Serviced)

13 8054068 Tray, Insulation

14 3196576 Clip, Panel (6)

15 9760314 Rail, Base (2)

16 9761935 Foot, Rear (2)

17 3195987 Support, Corner RR

18 9761301 Screen − Catalyst

19 3186116 Support, Oven (2)

20 3186034 Bracket, Service

21 9761958 Block, Terminal

22 8274034 Back, Main

23 9757262 Switch, Door

24 3196701 Light Socket Assy

25 311255 Bulb, Oven Light

26 9755771 Cover, Tray

27 8273902 Sensor, Oven

28 3196165 Screw

29 3196179 Screw

30 3196178 Screw

31 3400016 Screw

33 3196172 Screw

W10031780

Screw

35 3196566 Screw

36 3196560 Screw

37 3196174 Screw

38 9758238 Retainer, Side (2)

39 9761490 Insulation

40 9761512 Clip − Mounting

41 9761013 Latch, Door

42 3196961 Rod, Latch

43 9757241 Latch Asy, Rear

44 9758701 Spacer, Door

45 3196169 Screw

46 9755769 Tray, Hidden

Bake Element

47 9759689 Card, Insulator

48 9758283 Cover, Box

49 112432 Nut (3)

50 9760407 Bracket−Mounting

INSULATION

8272616 Insulation, Wrap

9755772 Insulation, Back

8272613 Insulation, Vent

CONTROL PANEL PARTS

For Models: GR563LXSQ1, GR563LXSB1, GR563LXST1, GR563LXSS1

(White) (Black) (Biscuit) (Black Stainless)

8188430

CONTROL PANEL PARTS

For Models: GR563LXSQ1, GR563LXSB1, GR563LXST1, GR563LXSS1

(White) (Black) (Biscuit) (Black Stainless)

8188430

Illus. Part

No. No. DESCRIPTION

1 Endcap

W10009040

White Left Hand

W10009050

White Right Hand

W10009080

Black Left Hand

W10009090

Black Right Hand

W10009060

Biscuit Left Hand

W10009070

Biscuit Right Hand

2 9762095 Bracket, Console

3 Panel, Backguard

9762585 White

9762586 Black

9762587 Biscuit

9762588 Unvl Slvr for SS

4 Switch, Infinite

9758060 Left Front

3148951 Left Rear

3148951 Right Rear

9758060 Right Front

5 8523265 Light, Indicator

6 3196068 Lens, Light

7 Knob, Infinite (4)

9757132 White

9758129 Black

9757626 Biscuit

8 8523280 Shield, Heat

9 Glss Swtch Membrn

9763545 White

9763546 Black

9763547 Biscuit

10 9756999 Cover, Rear

11 Bezel, Keep Warm

9757489 White

9758489 Black

9758488 Biscuit

12 9763681 Control, Range

13 3196178 Screw

14 9757613 Nameplate

15 9756366 Cover, Rear

(Console)

16 3400882 Screw

17 8272820 Switch

18 Button

9757492 White

9758491 Black

9758490 Biscuit

19 9760080 Cnntr,Cable Flex

21 9757358 Reflector, Light

22 Screw

3196166 White

3196168 Black

8281194 Biscuit

23 9757490 Support, Glass

24 3196178 Screw

DOOR PARTS

For Models: GR563LXSQ1, GR563LXSB1, GR563LXST1, GR563LXSS1

(White) (Black) (Biscuit) (Black Stainless)

8188430

DOOR PARTS

For Models: GR563LXSQ1, GR563LXSB1, GR563LXST1, GR563LXSS1

(White) (Black) (Biscuit) (Black Stainless)

8188430

Illus. Part

No. No. DESCRIPTION

1 Trim, Top

9761975 White

9762391 Black

9761976 Biscuit

9761977 Stainless Steel

2 3196164 Screw

3 Handle, Door

9761978 White

9761979 Black

9761980 Biscuit

9761981 Stainless Steel

4 9761344 Liner, Door

5 8522414 Seal, Window

6 9758162 Glass, Inner (2)

7 3186289 Frame, Glass

8 8272618 Insulation, Door

9 9761357 Retainer, Insul.

10 9761496 Hinge, Door (2)

11 Glass, Outer

W10010660

White

W10010680

Black

W10010670

Biscuit

W10010690

Stainless Model

12 Trim, Side

8523166 White Left Hand

8523172 White Right Hand

8523171 Black Left Hand

8523165 Black Right Hand

8523167 Biscuit Left Hand

8523173 Biscuit Right Hand

9762249 Unv Slvr LH

9762250 Unv Slvr RH

13 3196160 Screw

14 Trim, Lower

8523175 White

8523177 Black

8523178 Biscuit

15 3196025 Clip, Glass (4)

W10031790

Screw

19 9761517 Clip, Door Mntg

20 3196165 Screw

W10031780

Screw

22 3196794 Bracket, Window(2)

OPTIONAL PARTS

For Models: GR563LXSQ1, GR563LXSB1, GR563LXST1, GR563LXSS1

(White) (Black) (Biscuit) (Black Stainless)

8188430

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Following Parts Not Illustrated

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3184478 Cleaner, Glass

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

9762815 Harness, Wire

(Cooktop Left)

W10044070

Harness, Wire

(Cooktop Right)

W10017460

Harness, Wire

(Main)

9763631 Harness,Wire

(Sensor/Dr Switch)

9757339 Harness, Bake

Element (Hidden)

3196520 Clip, Harness

8523279 Wire, Ground

3196173 Screw, Ground

3196154 Screw

313660 Clip − Grnd Wire
