Whirlpool ED22DQ Manuale utente

A Note To You 2

EiiZZZ:d* 3

Parts And Features 4

Before Using Your

Refrigerator 5

Using Your

Refrigerator 7

Caring For Your

Refn’gerzrtor 23

Food Storage Guide 26

If Y?u Need

EZ”,” . 26

Warranty 32

l-BOO-253-1301

Cdl us with questions or comments.

NO-FROST REFRIGERATOR-FREEZERS

WITH lHI~(&&iP?‘”

MODELS ED27DQ ED25DQ ED22DQ ED22HD

A Note To You

Thank you for buyina a WhirlpooP appliance.

You have purchased a quality, wo&c/ass home appliance. Years of engineering experience

went into its manufacturing. To ensure that you enjoy many years of trouble-free operation,

we developed this Use and Care Guide. It is full of valuable information on how to operate

and maintain your appliance properly and safely. Please read it carefully. Also, please com-

plete and mail the Ownership Registration Card provided with your appliance. This will help

us notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

This symbol will help alert you to such

dangers as personal injury, burns, fire

and electrical shock.

This symbol will help you avoid actions

which could cause product damage

(scratches, dents, etc.) and damage to

your personal property.

Our Consumer Assistance Center number, l-800-253-1301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see “If You Need Assistance Or Service” on page 28. If you need further help, feel free to call

our Consumer Assistance Center. When calling, you will need to know your appliance’s

complete model number and serial number. You can find this information on the model and

serial number label (see diagram on page 4). For your convenience, we have included a

handy place below for you to record these numbers, the purchase date from the sales slip

and your dealer’s name and telephone number. Keep this book and the sales slip together in

a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

Important Safety Instructions

Read all instructions before using the

refrigerator.

Child entrapment and suffocation are

not problems of the past. Junked or

abandoned refrigerators are still danger-

ous ... even if they will “just sit in the

garage a few days.”

If you are getting rid of your old refrig-

erator, do it safely.

Never allow children to operate, play

with, or crawl inside the refrigerator.

Never clean refrigerator parts with

flammable fluids. The fumes can create a

fire hazard or explosion.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install and level the refrigerator on a floor

that will hold the weight and in an area

suitable for its size and use.

Do not install the refrigerator near an oven,

radiator or other heat source.

Do not use the refrigerator in an area

where the room temperature will fall below

55°F (13°C).

Keep the refrigerator out of the weather.

Connect the refrigerator only to the proper

kind of outlet, with the correct electrical

supply and grounding.

Do not load the refrigerator with food

before it has time to get property cold.

Use the refrigerator only for the uses

described in this manual.

Properly maintain the refrigerator.

Be sure the refrigerator is not used by

anyone unable to operate it properly.

Parts And Features

This section contains captioned illustrations. Use them to become familiar with where all parts

and features are located and what they look like. Your refrigerator may have some or all of

the features shown, and they may not look like the illustrations. This manual covers many

models. Model

and serial

Automatk ke

maker with Light Control panel Light number label

(on some models) (on side wall)

III

I / --

Slideout

freezer

baskets*

Temperature-

controlled

meat drawer

mptt?>m

(on some models) 11111

Meat drawer I

(on side wall)

Leveling rollers

(behind base grille)

Number varies with model

Base grille Model ED27DQ

shown

Control panel

I I

Freezer control Refrigerator control

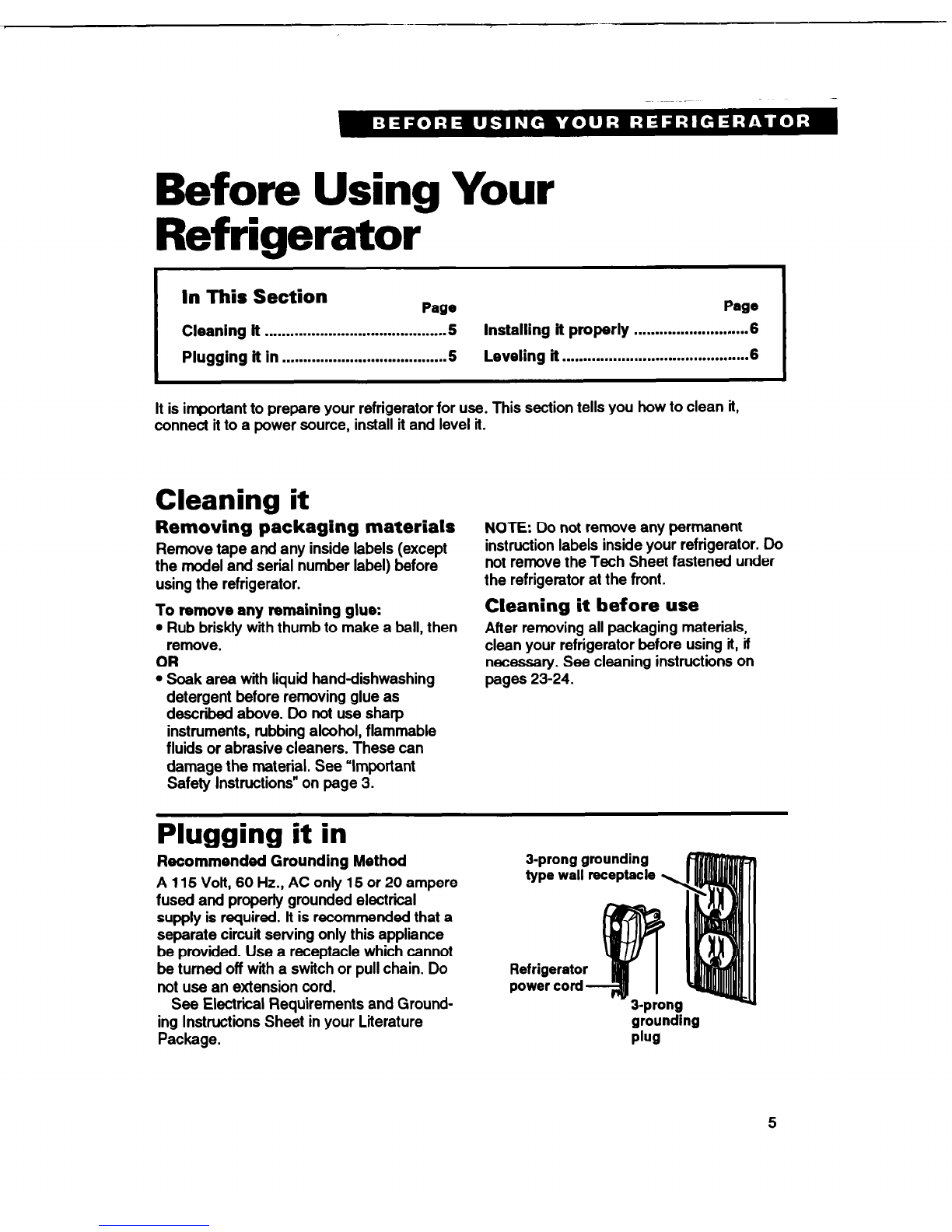

Before Using Your

Refrigerator

In This Section

Page I

Cleaning ft ........................................... 5 Installing it properly ........................... 6

Plugging it in ....................................... 6 Leveling it ............................................ 6 I

It is important to prepare your refrigerator for use. This section tells you how to clean it,

connect it to

power source, install it and level it.

Cleaning it

Removing packaging materials

Remove tape and any inside labels (except

the model and serial number label) before

using the refrigerator.

To remove any remaining glue:

Rub briskly with thumb to make a ball, then

remove.

Soak area with liquid handdishwashing

detergent before removing glue as

described above. Do not use sharp

instruments, rubbing alcohol, flammable

fluids or abrasive cleaners. These can

damage the materiil. See “Important

Safety Instructions” on page 3.

NOTE:

Do not remove any permanent

instruction labels inside your refrigerator. Do

not remove the Tech Sheet fastened under

the refrigerator at the front.

Cleaning it before use

After removing all packaging materials,

clean your refrigerator before using it, if

necessary. See cleaning instructions on

pages 23-24.

Plugging it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere

fused and properly grounded electrical

supply is required. lt is recommended that

separate circuit sewing only this appliance

be provided. Use a receptacle which cannot

be turned off with a switch or pull chain. Do

not use an extension cord.

See Electriil Requirements and Ground-

ing Instructions Sheet in your Literature

Package.

3-prong grounding

type wall receptacle

Refrigerator

power cord 3

grounding

Plug

installing it properly

Allow lh inch (1.25 cm) space on each

side and at the top of the refrigerator for

ease of installation.

If the refrigerator is to be against a wall,

you might want to leave extra space on

the hinge side closest to the wall so the

door can be opened wider.

The refrigerator can be flush against the

wall.

Make sure ice maker water supply has

been connected. Refer to Installation

Instructions.

Leveling it

Your refrigerator has 2 front leveling

screws-one on the right and one on the left.

Right

to raise;

left to lower

To adjust one or both of these, follow the

directions below.

Remove base grille. (See page 20.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclock-

Use a screw-

drlver to adjust

wise.

4. Check with level.

5. Replace base grille. (See page 20.)

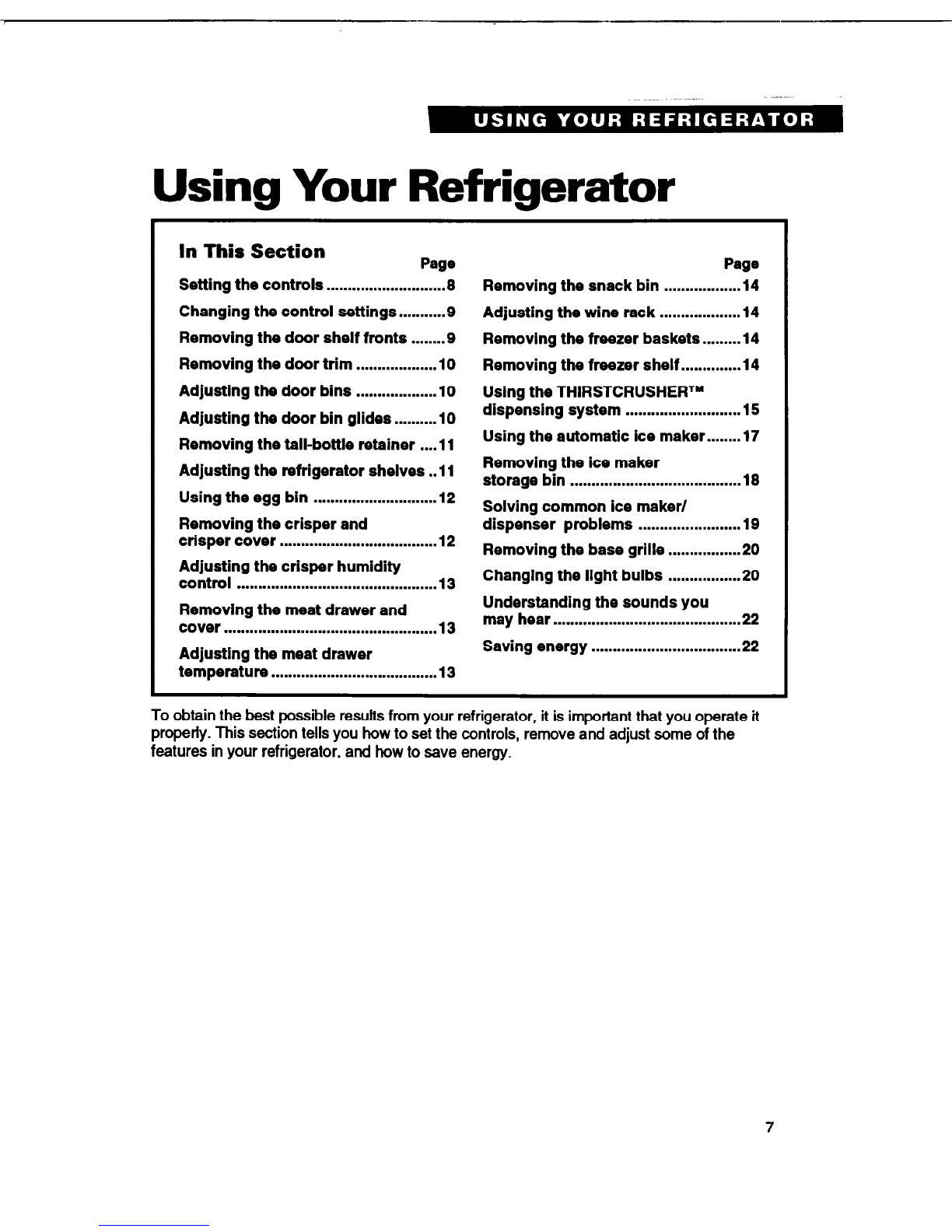

Using Your Refrigerator

In This Section

Page

Setting the controls ............................8

Changing the control settings ...........8

Removing the door shelf fronts ........8

Removing the door trim ...................10

Adjusting the door bins ...................10

Adjusting the door bin glides ..........10

Removing the tall-bottle retainer ....11

Adjusting the refrigerator shelves ..11

Using the egg bin .............................12

Removing the crisper and

crisper

cover

.....................................12

Adjusting the crisper humidity

control ...............................................13

Removing the meat drawer and

cover ..................................................13

Adjusting the meat drawer

temperature .......................................13

Page

Removing the snack bin ................. .14

Adjusting the wine rack .................. .14

Removlng the freezer baskets.. .......14

Removing the freezer shelf.. ............14

Using the THIRSTCRUSHERTY

dispensing system ........................... 15

Using the automatic ice maker.. ......17

Removing the ice maker

storage bin ........................................ 18

Solving common ice maker/

dispenser problems ....................... .19

Removing the base grille ................ .20

Changing the light bulbs ................ .20

Understanding the sounds you

may hear ............................................ 22

Saving energy ................................... 22

To obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section tells you how to set the controls, remove and adjust some of the

features in your refrigerator, and how to save energy.

Setting the controls

Controls for the refrigerator and freezer are in

the refrigerator. When you plug in the refrigerator

for the first time:

1. Set the Refrigerator Control to 3.

Refrigerator Control adjustments range from

1 (warmest) to 5 (coldest).

2. Set the Freezer Control to 8.

Freezer Control adjustments range from

A (warmest) to C (coldest).

3. Give the refrigerator time to cool down com-

pletely before adding food. This may take

several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls are set correctly when

milk or juice is as cold as you like and when

ice cream is firm. If you need to adjust these

settings, see “Changing the control settings”

on page 9.

NOTE: The Automatic Exteriir Moisture

control continuously guards against

moisture build-up on the outside of your

refrigerator cabinet. This control does not

have to be set or adjusted.

Changing the control settings

If you need to adjust temperatures in

refrigerator or freezer, use the settings listed

in the chart below

a guide. If you have

questions, call our Consumer Assistance

Center number, l-800-253-1 301.

Adjust the Refrigerator Control first.

Wait at least 24 hours between adjustments.

Then adjust the Freezer Control if needed.

CONDITION:

Refrigerator

section

too warm

Freezer

section

too warm

Refrigerator

section

too cold

Ice not

made fast

enough

Both

sections

too warm

REASON:

Door opened often

Large amount of food added

Room temperature too warm

Door opened often

Large amount of food added

Very cokl room temperature

(can’t cycle often enough)

Controls not set correctly

for your conditions

RECOMMENDED

CONTROL SElTlNGS:

Refrigerator 4

Freezer A

Refrigerator 3

Freezer C

Refrigerator 2

Freezer B

Heavy ice usage

Very cold room temperature

(can’t cycle often enough)

Door opened often

Large amount of food added

Very warm or very cold room

temperatures

Refrigerator 3

Freezer C

Refrigerator 4

Freezer B

Removing the door shelf fronts

(on some models)

Remove the door shelf fronts for easier

cleaning.

To remove shelf fronts:

Remove all items from the shelf.

2. Pull out on the inside tab at each end of

the shelf front.

3. Pull shelf front straight out.

To replace shelf fronts:

Line up each end of the shelf front with

the button on the door liner wall.

2. Push shelf front straight back until it

snaps securely into place.

3. Replace items on the shelf.

Removing the door trim (dispenser area)

(on some models)

Remove the trim above the dispenser area

for easier cleaning.

To remove trim:

Remove all items from the shelf.

2. Pull straight up at each end of the trim.

To replace trim:

Line up each end of the trim above the

trim pocket opening in the door liner wall.

2. Push the trim straight down until it stops.

3. Replace items on the shelf.

Adjusting the door bins

To remove door bins:

Lift bin up.

2. Pull bin straight out.

To replace door bins:

Slide bin in

above

desired support button.

2. Push

down

until it stops.

Adjusting the door bin glides

Use the bin/shelf glides to secure odd-

shaped items or to separate other items.

1. Grasp glide.

2. Slide glide along bin/track.

NOTE:

Shelf glides cannot be removed.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Whirlpool Frigorifero

Whirlpool

Whirlpool 2318493-D-WH Istruzioni utente

Whirlpool

Whirlpool GS6NHAXVA05 Manuale utente

Whirlpool

Whirlpool WHR27BKE Manuale utente

Whirlpool

Whirlpool 2300253 Manuale utente

Whirlpool

Whirlpool GI0FSAXVA - 19.8 cu. ft. Refrigerator Manuale utente

Whirlpool

Whirlpool ER8MHKXRB Manuale utente

Whirlpool

Whirlpool ED5VHEXVQ Istruzioni per il montaggio

Whirlpool

Whirlpool Gold GSS30C6EY Manuale utente

Whirlpool

Whirlpool AFG 6212 B Manuale utente

Whirlpool

Whirlpool MSB26C6MDM02 Manuale utente

Whirlpool

Whirlpool ET1CHEXVB00 Manuale utente

Whirlpool

Whirlpool W10433428B Manuale utente

Whirlpool

Whirlpool W10131411A Manuale utente

Whirlpool

Whirlpool REFRIGERATOR Manuale utente

Whirlpool

Whirlpool W10249204A Manuale utente

Whirlpool

Whirlpool W10730921A Manuale utente

Whirlpool

Whirlpool 4ED27DQ Manuale utente

Whirlpool

Whirlpool B2lDK Manuale utente

Whirlpool

Whirlpool W6RXNGFWB - 16 CF Glass Shelves Contour Do Istruzioni per il montaggio

Whirlpool

Whirlpool REFRIGERATOR Manuale utente

Whirlpool

Whirlpool GI6FARXXQ Manuale utente

Whirlpool

Whirlpool WTE25112 Manuale utente

Whirlpool

Whirlpool WRIBT24WA Manuale utente

Whirlpool

Whirlpool EB19ZK Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
