CABINET PARTS

For Models: GB2SHDXTQ00, GB2SHDXTB00, GB2SHDXTS00

(White) (Black) (Stainless Steel)

5−08 Litho In U.S.A. (tpm) Part No. W10132687 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: GB2SHDXTQ00, GB2SHDXTB00, GB2SHDXTS00

(White) (Black) (Stainless Steel)

W10132687

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

12828178 Use & Care Guide

12863066 Energy Tag

8208183 Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Plug, Button (3)

4344209 White

4344208 Black

4 8171247 Insulation

5 8170886 Roller Assembly

6 8170869 Clip, Grille

7 67006642 Pin, Center Hinge

8 67006611 Bolt, Adjusting

(Front Roller)

9 67006521 Screw

11 67006380 Screw

12 67006473 Screw

13 8208155 Cover, Water Line

14 67006303 Screw

15 Hinge, Center

67006960 White

67007043 Black

16 67006287 Screw

17 Cover, Corner

8170860 White

8170858 Black

8170859 Biscuit

19 Hinge, Bottom

8171067 White

8171066 Black

20 67006473 Screw

21 4344265 Clip

22 Grille Assembly

(Includes Clips)

67007004 White

67006954 Black

23 4343702 Clip

25 67006425 Screw

27 8170920 Cover, Water Valve

30 8170910 Cover, Unit

31 8208154 Fill Tube Assy.

32 67007121 Power Cord

33 8170924 Insulation, Sound

37 8170861 Tube, Drain

38 8170862 Clip, Drain Tube

41 8170974 Hinge, Top

42 Cover, Hinge

8170977 White

8170975 Black

43 8170878 Plug, Button

46 8171272 Foot Brake

Following Parts Not Illustrated

8170942 Clamp, Tube

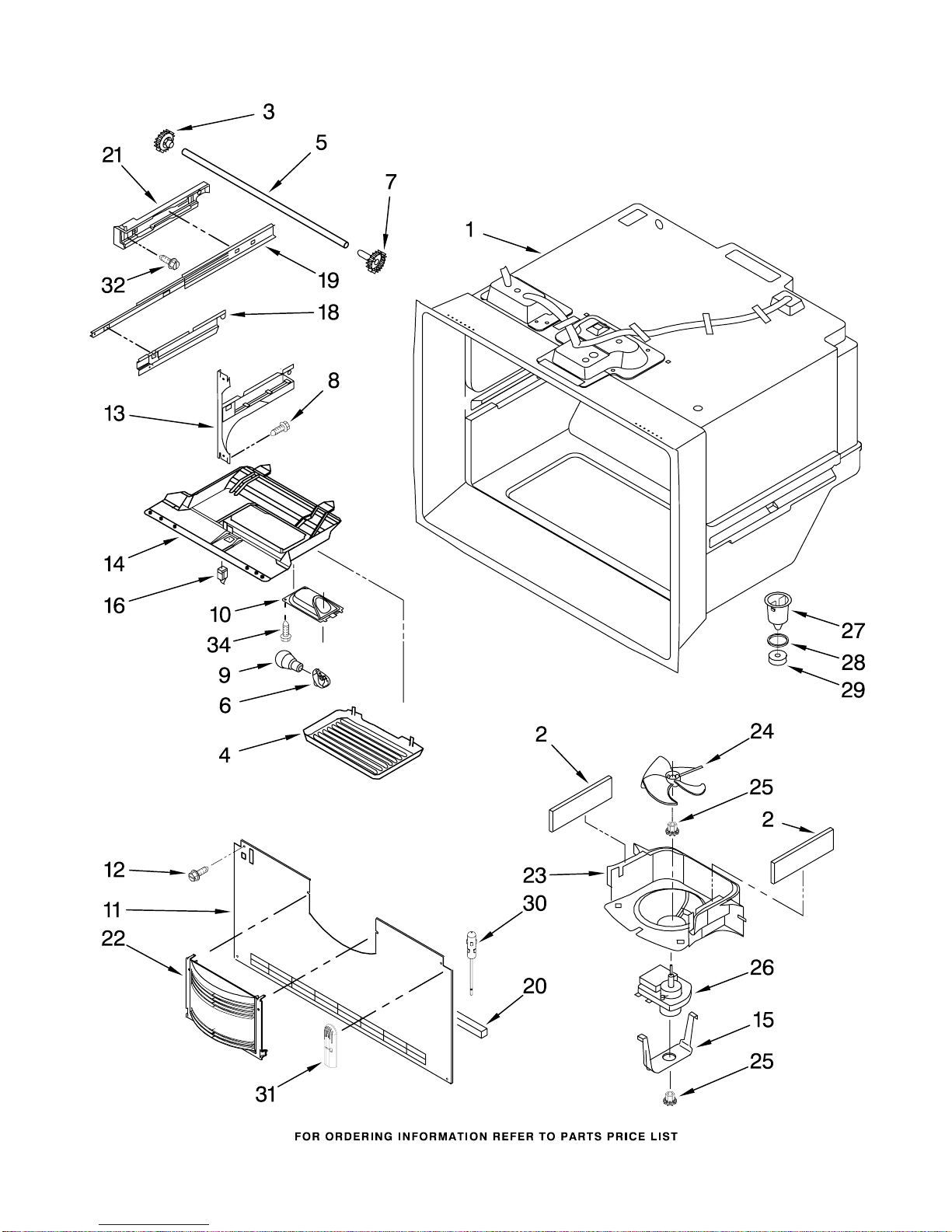

FREEZER LINER PARTS

For Models: GB2SHDXTQ00, GB2SHDXTB00, GB2SHDXTS00

(White) (Black) (Stainless Steel)

W10132687

FREEZER LINER PARTS

For Models: GB2SHDXTQ00, GB2SHDXTB00, GB2SHDXTS00

(White) (Black) (Stainless Steel)

W10132687

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 8170897 Gasket, Foam

3 8171237 Gear (Left)

(Includes Item 7)

4 8208205 Cover, Light

5 8171229 Shaft

6 67002216 Socket, Light

7 8171236 Gear(Right)

(Includes Item 3)

8 67006473 Screw

9 A0282812 Bulb, Light

10 8170838 Housing, Frz. Light

11 8208235 Cover, Evaporator

12 67006425 Screw

13 Bracket, Door

8171232 Left

8171233 Right

14 8208206 Housing, Lighting

15 8208285 Clip, Evap. Motor

16 8208349 Switch, Light

18 Bracket, Basket

8171234 Left

8171235 Right

19 67006607 Slide, Drawer

20 8208203 Gasket, Bottom

21 Bracket, Slide

8208215 Left

8208216 Right

22 13024802 Cover, Fan Shroud

23 8171153 Shroud, Evap.Fan

24 8170544 Blade, Fan

(Evaporator)

25 8171086 Grommet (2)

26 8170894 Motor, Evaporator

27 4344385 Funnel, Drain

(Incl. # 28 & 29)

28 4344311 Seal

29 4344310 Gasket

30 8208196 Thermistor

31 8208202 Cover, Thermistor

32 67006406 Screw

33 67006530 Screw

Following Parts Not Illustrated

67006095 Harness, Lights

(Freezer)

FREEZER DOOR PARTS

For Models: GB2SHDXTQ00, GB2SHDXTB00, GB2SHDXTS00

(White) (Black) (Stainless Steel)

W10132687

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Freezer Door

(w/ Insulation)

W10175552

White

W10175551

White

67007149 Stainless Steel

2 Handle

2319729W White

2319729B Black

2319729S Stainless Steel

3 Door Gasket,

Magnetic

8171163 White

8171162 Black

4 8171220 Stud, Handle

5 8170956 Screw

6 Plug, Button (2)

8208212 White

8208213 Black

7 67006408 Screw

REFRIGERATOR LINER PARTS

For Models: GB2SHDXTQ00, GB2SHDXTB00, GB2SHDXTS00

(White) (Black) (Stainless Steel)

W10132687

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 8208184 Bracket, Control

and Lights

3 8208185 Overlay

4 8208186 Housing,

Electronic Control

5 67006740 Electronic Control

6 4344571 Switch, Light

7 8208188 Cover, Light

8 8208189 Housing, Light

9 A0282812 Bulb, Light (2)

10 67002216 Socket, Light (2)

11 8208191 Insert,

Damper Cover

12 67006602 Screw

13 8208193 Cover, Damper

14 8208194 Insulation

15 8208195 Control, Damper

16 8208196 Thermistor

Following Parts Not Illustrated

8208197 Harness,

Damper Control

8208198 Harness, Controls

(Refrigerator)

(Includes # 16)

REFRIGERATOR DOOR PARTS

For Models: GB2SHDXTQ00, GB2SHDXTB00, GB2SHDXTS00

(White) (Black) (Stainless Steel)

W10132687

REFRIGERATOR DOOR PARTS

For Models: GB2SHDXTQ00, GB2SHDXTB00, GB2SHDXTS00

(White) (Black) (Stainless Steel)

W10132687

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(w/Liner)

12658565W

White

12658565B

Black

12658566S

Stainless Steel

2 8170956 Screw

3 8171204 Door, Compartment

4 8170793 Tray, Dairy

5 8171166 Shelf Bin

(Medium)(4)

6 Plug, Handle Hole

8170791 White

8170792 Black

7 Plug, Button

8208212 White

8208213 Black

8 Door Gasket,

Magnetic

8171197 White

8170758 Black

9 Door Handle

2319729W White

2319729B Black

2319729S Stainless Steel

11 Door Closure

8171245 White

8171246 Black

13 8171220 Stud, Handle

14 8170795 Shelf, Bin (Large)

15 67006287 Screw

17 Stop, Door

8171205 White

8171214 Black

18 Bushing

8208208 White

8171213 Black

19 8170797 Nameplate

UNIT PARTS

For Models: GB2SHDXTQ00, GB2SHDXTB00, GB2SHDXTS00

(White) (Black) (Stainless Steel)

W10132687

UNIT PARTS

For Models: GB2SHDXTQ00, GB2SHDXTB00, GB2SHDXTS00

(White) (Black) (Stainless Steel)

W10132687

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

2 8208223 Blade, Fan

3 8208371 Base

4 67006425 Screw

7 12870501 Harness, Evap.

Heater

8 8170911 Drain Pan

9 8171209 Grommet (3)

10 8171152 Evaporator Heater

11 67007052 Strap

12 67005560 Overload

(Includes Relay &

Capacitor)

13 8170914 Gasket

14 8208287 Bi−Metal

15 8208321 Grommet

17 8208368 Capacitor

18 67006132 Condenser

20 8170882 Tray, Drip

22 8170889 Evaporator

23 Dam

8171155 Right Side

8171154 Left Side

24 8208221 Motor, Fan

25 4343918 Clip, Heater

26 8208233 Harness, Unit

27 2317845 Drier (Service)

28 8208289 Compressor

(Includes Items

11, 12, 15,

17 & 27)

31 12575305 Shroud

32 8208222 Bracket, Fan Motor

34 10547003 Clip, Drier

36 67005149 Roller

39 4343845 Grommet (4)

40 8208234 Screw

41 67006434 Axle, Roller

42 4344219 Clip, Evaporator

43 67006737 Screw

44 67006432 Screw

53 67006573 Screw

55 8171240 Tube, Drain

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.00 Ozs.

(R−134A)
