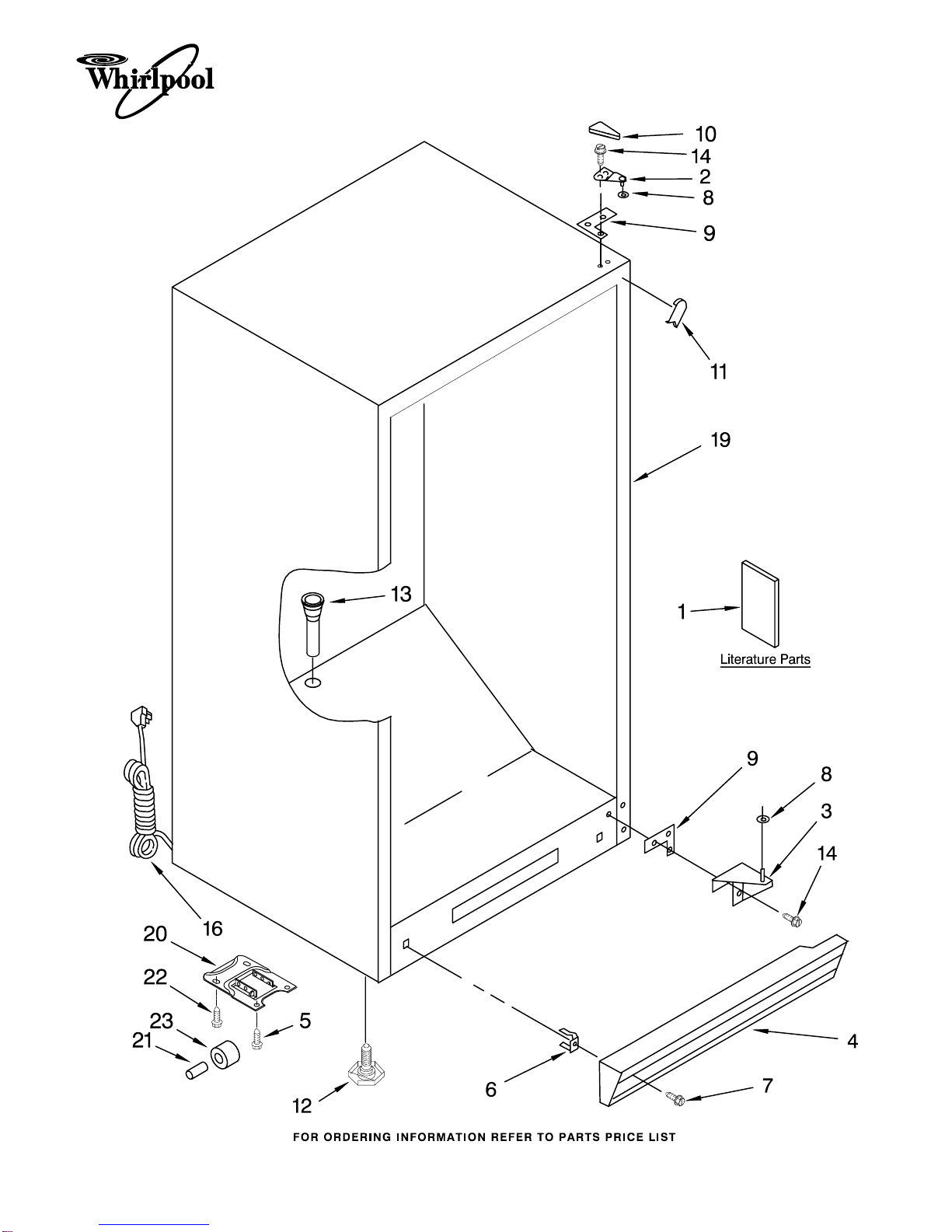

CABINET PARTS

For Models: EL8ATRRRQ00, EL8ATRRRS00

(White) (Stainless Steel)

3−06 Litho in U.S.A. (tpm) Part No. 8214780

REFRIGERATOR

CABINET PARTS

For Models: EL8ATRRRQ00, EL8ATRRRS00

(White) (Stainless Steel)

8214780

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8210433 Owners Manual

8210378 Energy Guide/Tag

2 Top Hinge

4390885 White

8210251 Black

3 Bottom Hinge

8210223 White

8210268 Black

4 Grille

(Includes 6 & 7)

8210290 White

8210294 Black

5 4357277 Screw

6 4356803 Clip, Grille

7 4357243 Screw

8210262 Black

8 4390520 Washer

9 4390489 Shim Bottom

10 Cover, Hinge

4357279 White

4390763 Black

11 Filler, Corner

8210227 White

8210228 Black

12 4390866 Leg, Leveller

13 4357268 Grommet, Drain

14 4356830 Screw

16 8210302 Power Cord

19 Cabinet (Not A

Serviceable Part)

20 8210265 Bracket, Roller

21 8210211 Axle

22 8210266 Screw

23 8210210 Roller, Front

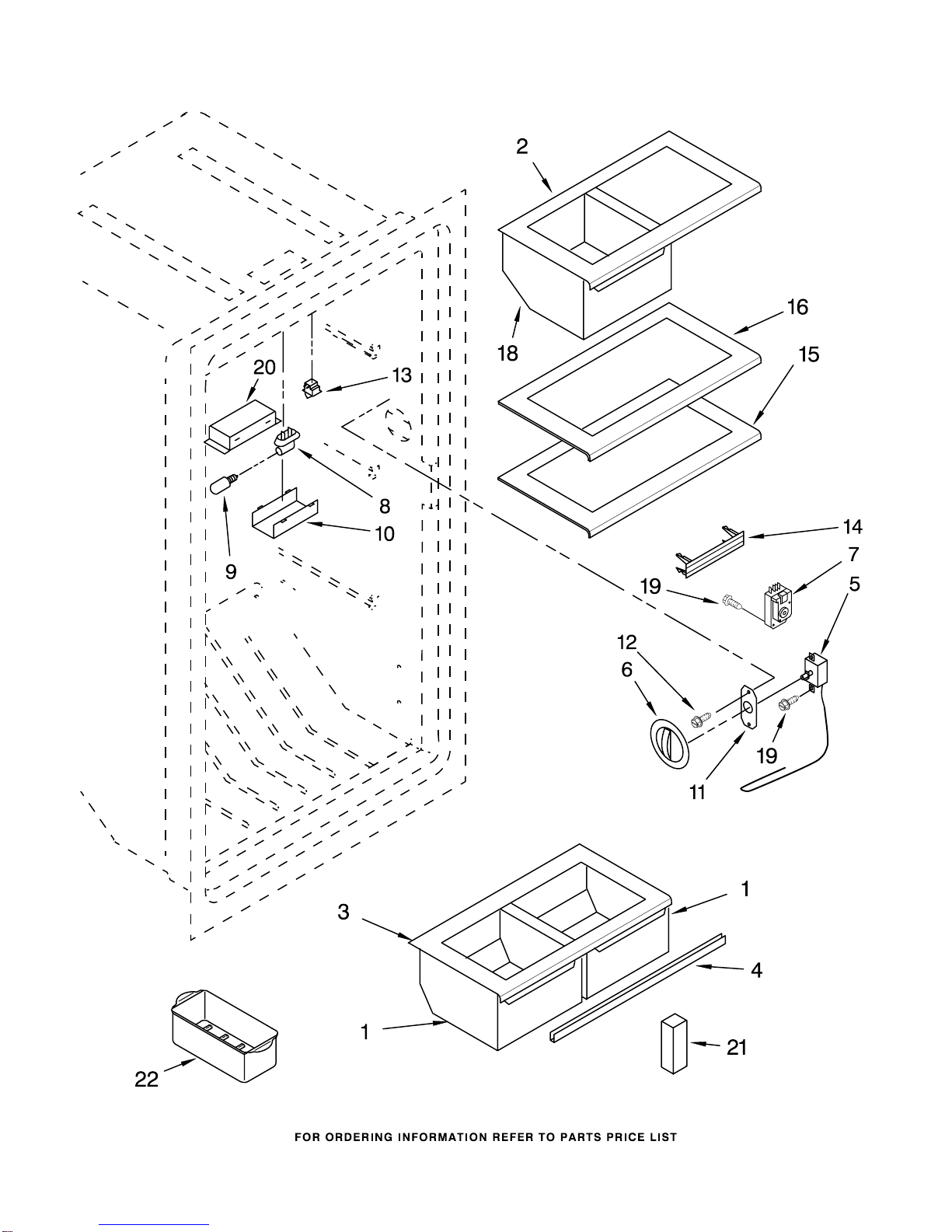

LINER PARTS

For Models: EL8ATRRRQ00, EL8ATRRRS00

(White) (Stainless Steel)

8214780

LINER PARTS

For Models: EL8ATRRRQ00, EL8ATRRRS00

(White) (Stainless Steel)

8214780

Illus. Part

No. No. DESCRIPTION

1 8210342 Pan, Crisper

2 4390770 Shelf, Crisper

(Upper)

3 8210384 Shelf, Crisper

(Lower)

4 4390773 Channel,

Crisper Cover

5 4390766 Thermostat

6 4357292 Knob, Thermostat

7 4357124 Timer, Defrost

8 4390644 Lamp, Socket

9 4390465 Bulb

10 4390743 Light Shield

11 4357041 Plate,

Thermostat

12 4357042 Screw

13 4390513 Light, Switch

14 4357295 Vent Plug

15 4390768 Shelf, Middle

16 4390767 Shelf, Top

18 8210236 Pan, Crisper

(Upper)

19 4356849 Screw

20 4390744 Bracket, Light

21 4390774 Support,

Crisper Cover

22 4390775 Egg Bin

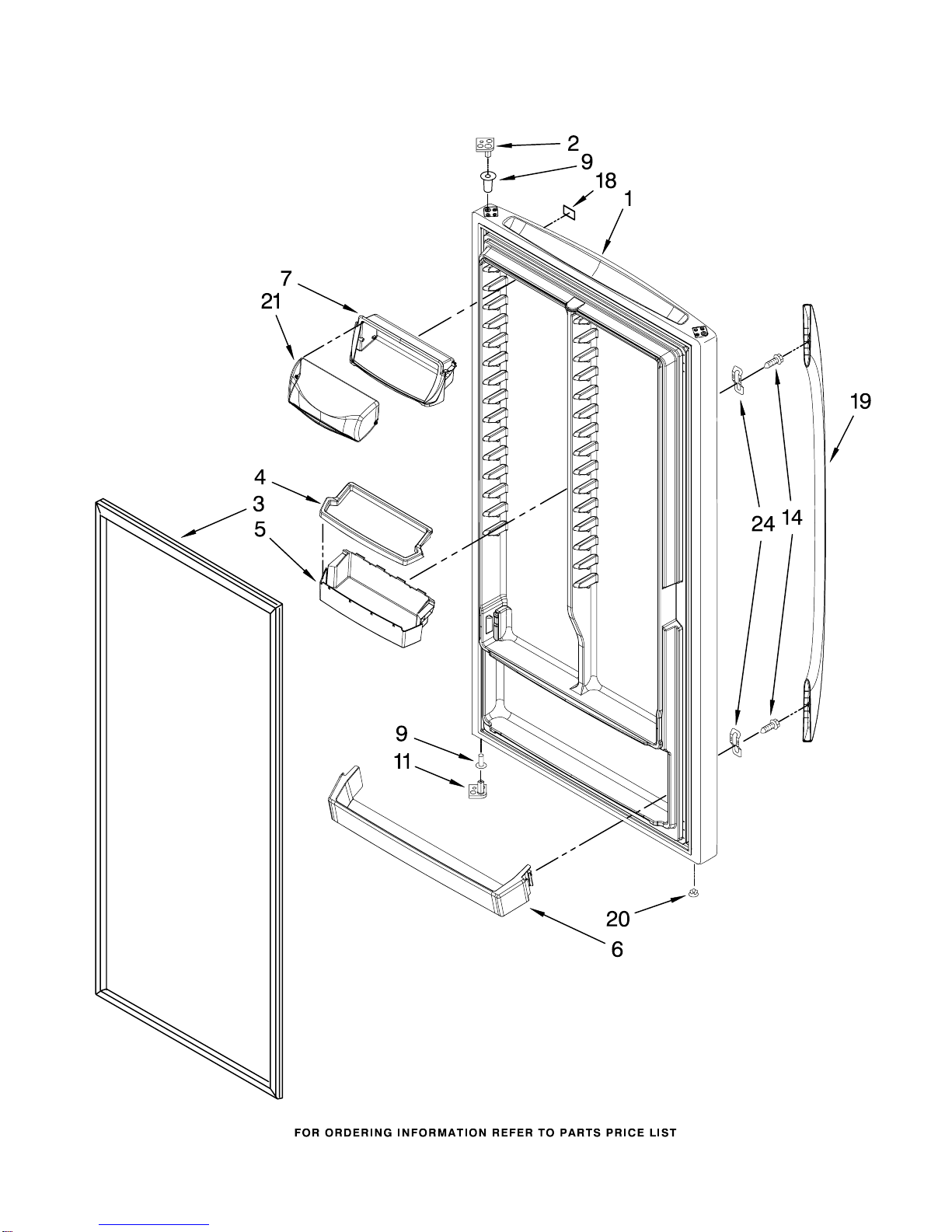

DOOR PARTS

For Models: EL8ATRRRQ00, EL8ATRRRS00

(White) (Stainless Steel)

8214780

DOOR PARTS

For Models: EL8ATRRRQ00, EL8ATRRRS00

(White) (Stainless Steel)

8214780

Illus. Part

No. No. DESCRIPTION

1 Exterior Door

(Includes

Interior liner)

8210413 White

8210414 Stainless Steel

2 Stop, Door

8210401 White

8210402 Black

3 Gasket

8210339 White

8210343 Black

4 8210383 Cover, Bin

5 8210380 Bin, Door

6 8210379 Rail, Door

(Lower)

7 8210381 Housing, Dairy

Compartment

9 Bushing, Lower

Hinge

4390731 White

4390869 Black

11 Stop, Door

(Bottom)

8210400 Natural

14 489491 Screw

18 Nameplate

4390656 White

4390758 Black

19 Handle

2313345W White

2313345B Black

20 4357067 Vent Plug

21 8210382 Door,

Compartment

24 2255411 Clip, Handle

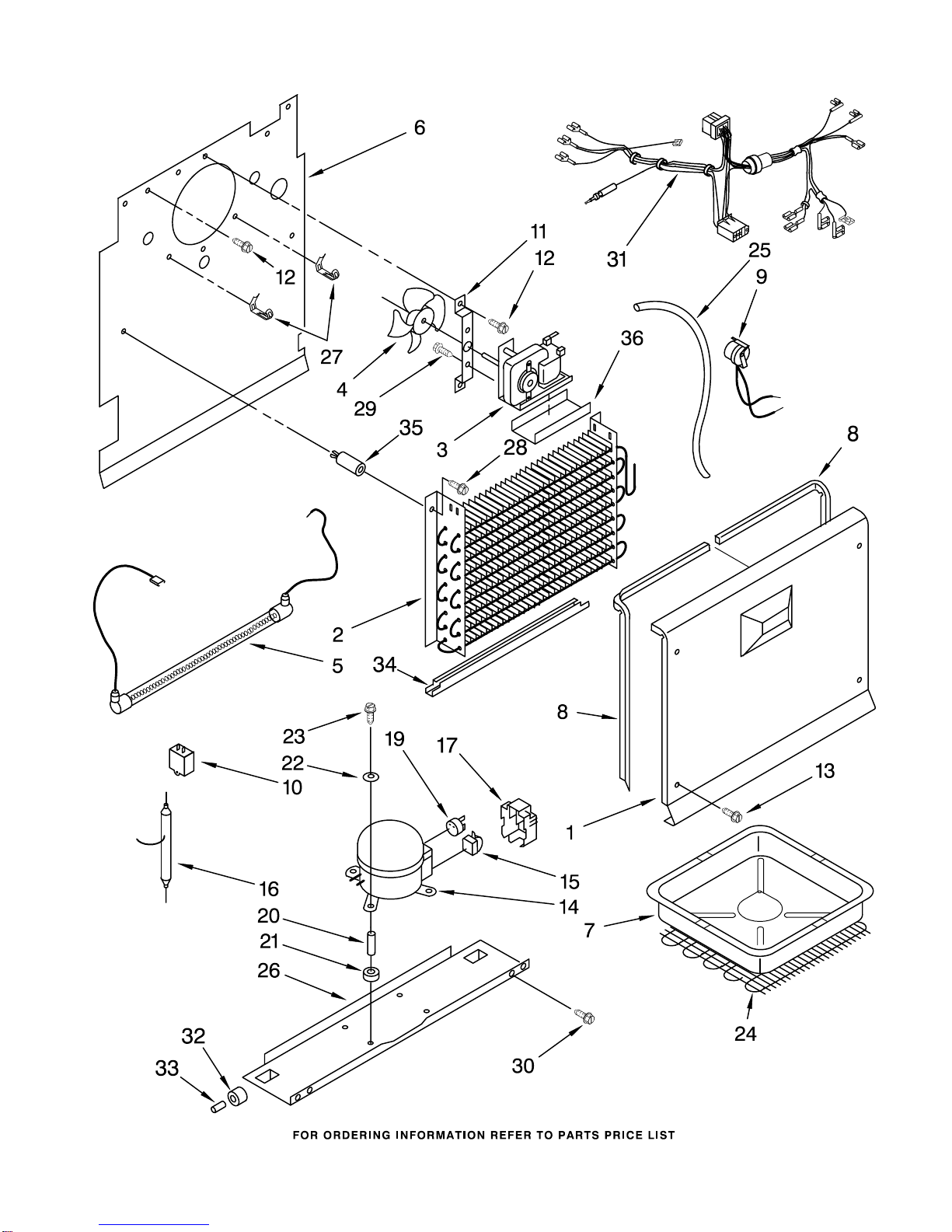

UNIT PARTS

For Models: EL8ATRRRQ00, EL8ATRRRS00

(White) (Stainless Steel)

8214780

UNIT PARTS

For Models: EL8ATRRRQ00, EL8ATRRRS00

(White) (Stainless Steel)

8214780

Illus. Part

No. No. DESCRIPTION

1 4390662 Cover, Evaporator

2 4390782 Evaporator

3 4357004 Fan Motor

4 4356920 Fan Blade

5 4356923 Heater Defrost

6 4357123 Plate, Evaporator

Mount

7 4390932 Drain Pan

8 Gasket, Cover

Evaporator

4390663 Right

4390664 Left

9 4390783 Bi−Metal Defrost

10 8210239 Capacitor

11 4357129 Bracket, Motor

12 4356943 Screw, Motor

13 4357110 Screw

14 8210240 Compressor

(Includes Items

15,16,17 & 19)

15 4356738 Relay

16 4357299 Drier

17 8210242 Cover

19 8210241 Overload

20 4356846 Sleeve

21 4356335 Grommet,

Compressor

22 4356847 Washer

23 8210220 Screw, Compressor

24 8210300 Condenser

25 4357245 Heat, Exchanger

26 Compressor Pan

4390753 White

8210202 Black

27 4356952 Thermostat, Clip

28 4390821 Screw

29 4356970 Screw

30 4357277 Screw

31 8210301 Harness, Unit

32 4390754 Roller

33 8210211 Axle

34 4356924 Shield, Heater

35 4357020 Grommet

36 4357128 Shield, Motor

REFRIGERANT CHARGE

4.107 oz.

(R−134A)

OPTIONAL PARTS (NOT INCLUDED)

For Models: EL8ATRRRQ00, EL8ATRRRS00

(White) (Stainless Steel)

8214780

Illus. Part

No. No. DESCRIPTION

Customer Touch−Up Material

350930 Enamel, White

(13 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

Miscellaneous

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4 x 108")

978941 Insulation

Fiberglass

(63−1/2" x 35−1/2

x 2−5/8")

505587 Sealer Mastic

(1 Qt.)

503695 Cork Sealer

(1/4 Pound)
