CABINET PARTS

For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02

(White) (Black) (Satina) (Stainless Steel)

7−07 Litho In U.S.A. (rrm) Part No. W10154410 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02

(White) (Black) (Satina) (Stainless Steel)

W10154410

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2265591 Service &

Wiring Sheet

2316016 Use & Care Guide

W10130119

Energy Guide

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual, Ref./ Fzr.

2 2261963 Hinge Butt, Top

3 2324094 Roller, Front

4 487996 Cap, Bushing

5 2264535 Foam Block

6 Cover, Hinge

2213360 White

2213363 Black

7 488296 Washer

8 2264132 Cover, Unit

9 2222100 Screw

10 489442 Screw

11 2266506 Spacer−Back−CB

12 2166086 Hinge, Center

13 Shim, Hinge

Center

2166043 White

2215385 Black

14 489497 Screw

15 2221926 Hinge Butt,

Bottom

16 9791682 Hinge−Pin,

Bottom

17 3428970 Screw

18 2201567 Shim, Bottom

Hinge

19 2174760 Fitting, Water Tube

20 Hole Plug (6)

2201012 White

2183998 Black

21 1106508 Seal

22 2262176 Screw

23 Corner Filler

2166003 White

2215384 Black

24 489341 Washer

25 487576 Washer 7/64

26 Rail, Center

(Not Serviced)

27 Cabinet (Not a

Serviceable Part)

DOOR PARTS

For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02

(White) (Black) (Satina) (Stainless Steel)

W10154410

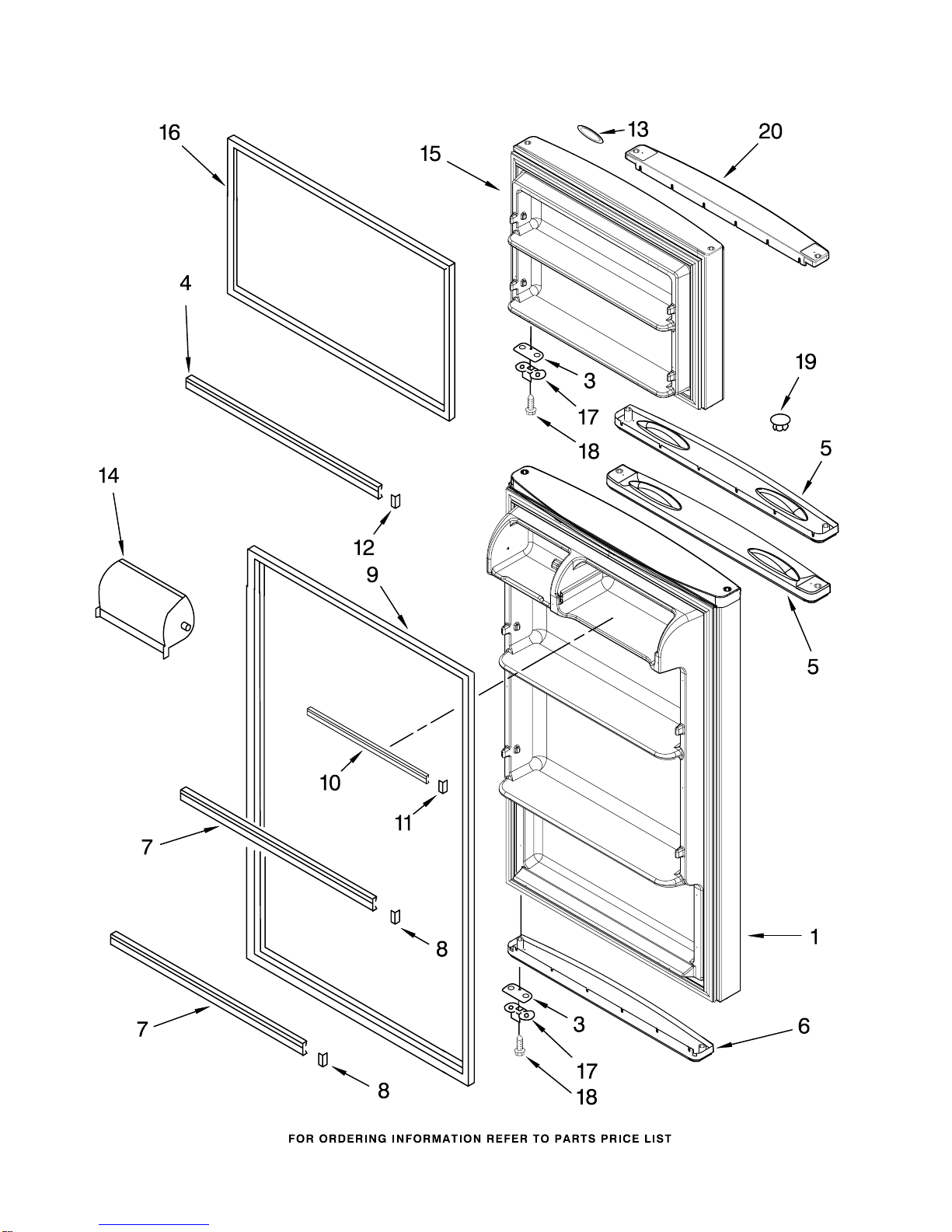

DOOR PARTS

For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02

(White) (Black) (Satina) (Stainless Steel)

W10154410

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 5,6 & 9)

2265677W White

2265677B Black

2265677L Satina

2265677S Stainless Steel

3 Shim, Door Stop

2258681W White

2258681B Black

4 2266727 Trim, Door Shelf

5 Handle,

2265645W White

2222045 Black

6 Endcap, Bottom

2265647W White

2222048 Black

7 2266738 Trim, Door Shelf

8 2195916 Endcap, Trim

9 Door Gasket,

Magnetic

2264727 White

2264723 Black

10 2266729 Trim, Door Shelf

11 2156007 Plug, Trim

12 2156003 Endcap, Trim

13 2262218 Nameplate

14 2207942 Door Compartment

15 Freezer Door

(Includes

Illus. 5,16 & 20)

2265678W White

2265678B Black

2265678L Satina

2265678S Stainless Steel

16 Door Gasket,

Magnetic

2264726 White

2264722 Black

17 2189202 Bracket, Door Stop

18 8533904 Screw

19 Hole Plug

2212648 White

2212651 Black

20 Endcap, Top

2265644W White

2252863 Black

LINER PARTS

For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02

(White) (Black) (Satina) (Stainless Steel)

W10154410

LINER PARTS

For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02

(White) (Black) (Satina) (Stainless Steel)

W10154410

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 939962 Rivet

3 2252837 Cover, Air Diffuser

4 2303825 Adaptive Defrost

Control

5 489174 Screw

6 2263075 Gasket, Air Duct

7 2262434 Wire Assembly

Control Box

8 2162085 Socket, Light

9 2197404 Fan Support

Bracket

10 2197405 Fan Mounting

Bracket

11 2169142 Fan Blade

12 2263083 Control Box

13 2325701 Thermostat

14 489399 Screw

15 1118680 Thermostat Tube

Barrier

16 2264715 Cover, Evaporator

17 2252970 Light Bulb

18 9791702 Light Shield

19 1118894 Rocker Arm

Switch

20 2217784 Cover, Hole

21 2319444 Wiring, Freezer

(Includes Item 32)

22 2202885 Control Knob

23 9790408 Air Tower

24 2197052 Hood And Foil

Assembly

25 2261978 Cover, Air Return

26 2252834 Air Diffuser

27 941839 Hole Plug

28 2264462 Grommet, Motor

29 489478 Screw

30 2201212 Evaporator Fan

Motor

31 2262178 Screw

32 2266067 Defrost, BI−Metal

33 2252846 Gasket, Body

Air Diffuser

36 2256983 Rivet

37 488693 Screw

38 489442 Screw

40 2256958 Insulation (4)

41 2263082 Grill (4)

42 2261879 Wiring Harness,

Freezer Light

43 2256949 Light Holder

44 2256948 Deflector, Light

45 2263413 Light Socket

46 R−31244 Light Bulb

47 2256946 Cover,

Light Holder

48 2256947 Lens, Light

49 2252831 Air Duct

Assembly

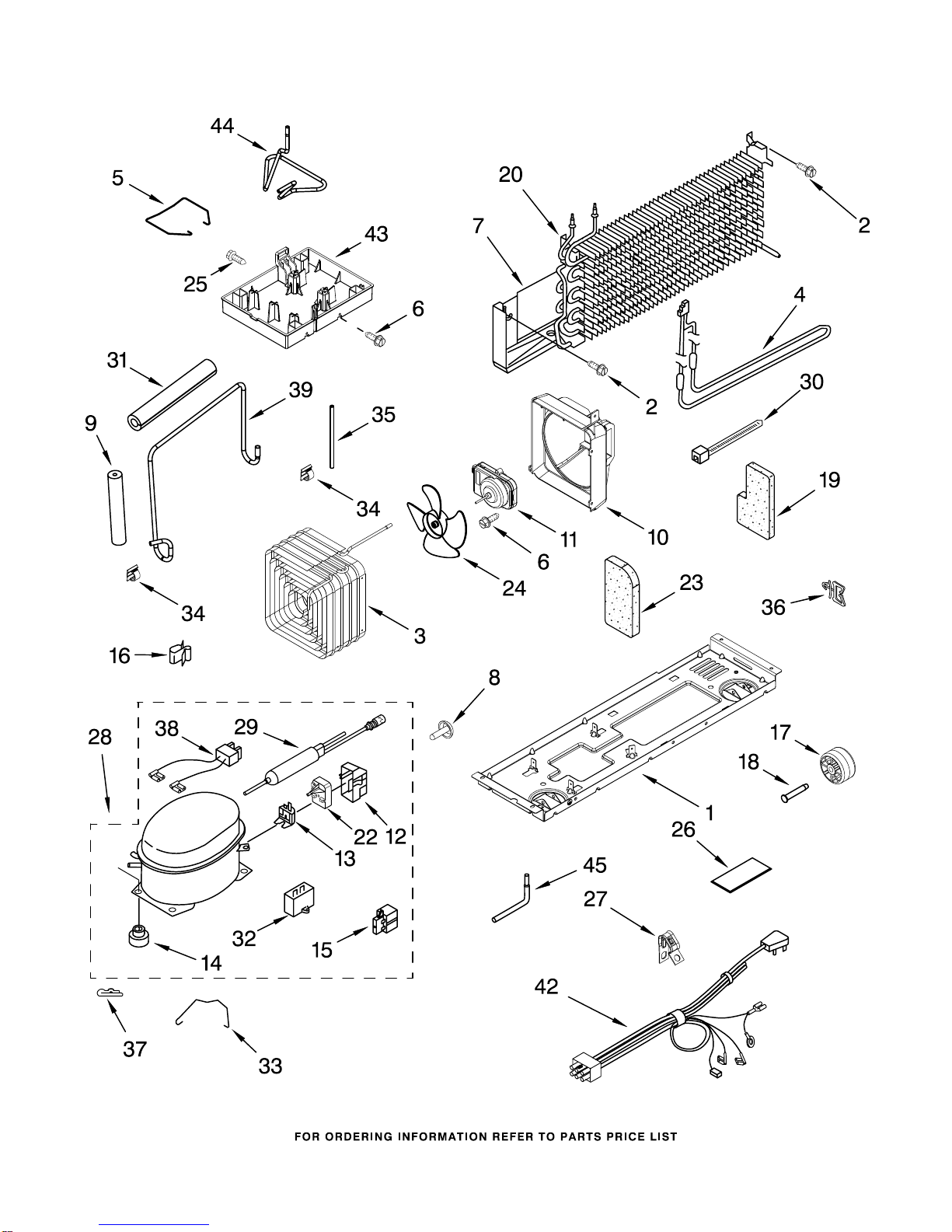

UNIT PARTS

For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02

(White) (Black) (Satina) (Stainless Steel)

W10154410

UNIT PARTS

For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02

(White) (Black) (Satina) (Stainless Steel)

W10154410

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10127456

Support Plate,

Compressor

2 489442 Screw

3 2264004 Condenser

4 2176942 Heater, Defrost

5 2264835 Clip, Condensor

6 8533859 Screw

7 2319224 Heat Shield

8 2264516 Snap Rivet

9 2161302 Sleeve

10 2263929 Air Baffle

11 2188875 Motor, Condensor

12 4387731 Cover

(Service Only)

13 4390624 Overload

(Service Only)

14 Grommet

2264447 Production

4387558 Service

15 2225929 Start Relay

(Service Only)

16 939054 Clip, Wire

17 2150304 Roller

18 2264756 Axle, Rivet

19 2262191 Wedge, Evaporator

20 2263920 Evaporator Assy.

22 2225929 Start− Device

Combination

(Start Relay and

Overload for

Production

Compressor Only)

23 2262192 Wedge, Evaporator

24 2264129 Fan Blade

25 2264841 Screw

26 2266360 Shield−Electrical

27 549193 Clamp, Cord

28 2217634 Compressor

(Includes Items

12,13,14,15,29

32 & 38)

29 Drier

2317845 Service

30 2263990 Strap

31 2264838 Sleeve

32 Capacitor

2264017 Production

1118576 Service

33 2212996 Bale Strap

34 1114718 Clip, Wiring

35 2264278 Tube, Drain

36 2266467 Clip−Harness

37 24364001 Clip, Compressor

38 4387765 Wire Assembly

(Service Only)

39 2264131 Extension,

Tube−Heat

42 2263753 Wire Assy. Unit

43 2263928 Evaporator Tray

44 2316181 Tube, Discharge

45 VS20001 Tube, Process

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

3.75 Ozs.

(R134A)

SHELF PARTS

For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02

(White) (Black) (Satina) (Stainless Steel)

W10154410

Illus. Part

No. No. DESCRIPTION

1 2201793 Ice Tray (2)

2 2263641 Shelf

3 2262441 Glass Cover

4 2263086 Crisper Pan

(Includes Items

15, 16 & 17)

5 2262442 Glass, Shelf

8 2222031 Cover, Crisper

9 2252848 Shelf−Frame, Wire

12 2263087 Trim, Meat Pan

13 2256601 Holder, Meat Pan

14 2263088 Meat Pan

(Includes #12)

15 2212446 Body, Humidity

Control

16 2176222 Slide, Humidity

Control

17 2263085 Trim, Crisper Pan

18 2215011 Trim, Shelf

(Front)

19 2215010 Trim, Shelf

(Rear)

OPTIONAL PARTS (NOT INCLUDED)

For Models: ER8AHKXRQ02, ER8AHKXRB02, ER8AHKXRL02, ER8AHKXRS02

(White) (Black) (Satina) (Stainless Steel)

W10154410

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

978941 Insulation,

Fiberglass

(63−1/2" x 35−1/2"

x 2−5/8")

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4" x 108")

876305 Kit, Insulation

(14 Pcs.

3" x 24" x 48")

876370 Kit, Insulation

(2 Pcs.

3" x 24 " x 48")

876029 Kit, Foam Slab

(30" x 32−1/2" x

1−1/2")

505587 Sealer, Mastic

(1 Qt.)

511873 Touch−Up, White

Porcelain (2 Oz.)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

606755 Bag, Insulation

(36−5/8" x 46")

799833 Kit, Evaporator

Repair

(Aluminum Epoxy)

799832 Kit, Porcelain

Repair (White)

503695 Cork Sealer

(1/4 Pound)

Customer Touch−Up Material

350942 Primer, White

(12 Oz. Spray Can)

350939 Enamel, Black

(12 Oz. Spray Can)

350930 Enamel, White

(12 Oz. Spray Can)

4392901 Enamel, Biscuit

(12 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

4392899 Brush Touch−Up Kit

(Biscuit)

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

799340 Enamel, Black

(1 Qt. Uncut)

4392900 Enamel, Biscuit

(1 Qt. Uncut)

833938 Kit, Terminal

Connector

Important: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

FIELD INSTALLABLE

ICE MAKER

2155469 ECKMF90

TORX SCREW WRENCH

1117510 Torx Key
