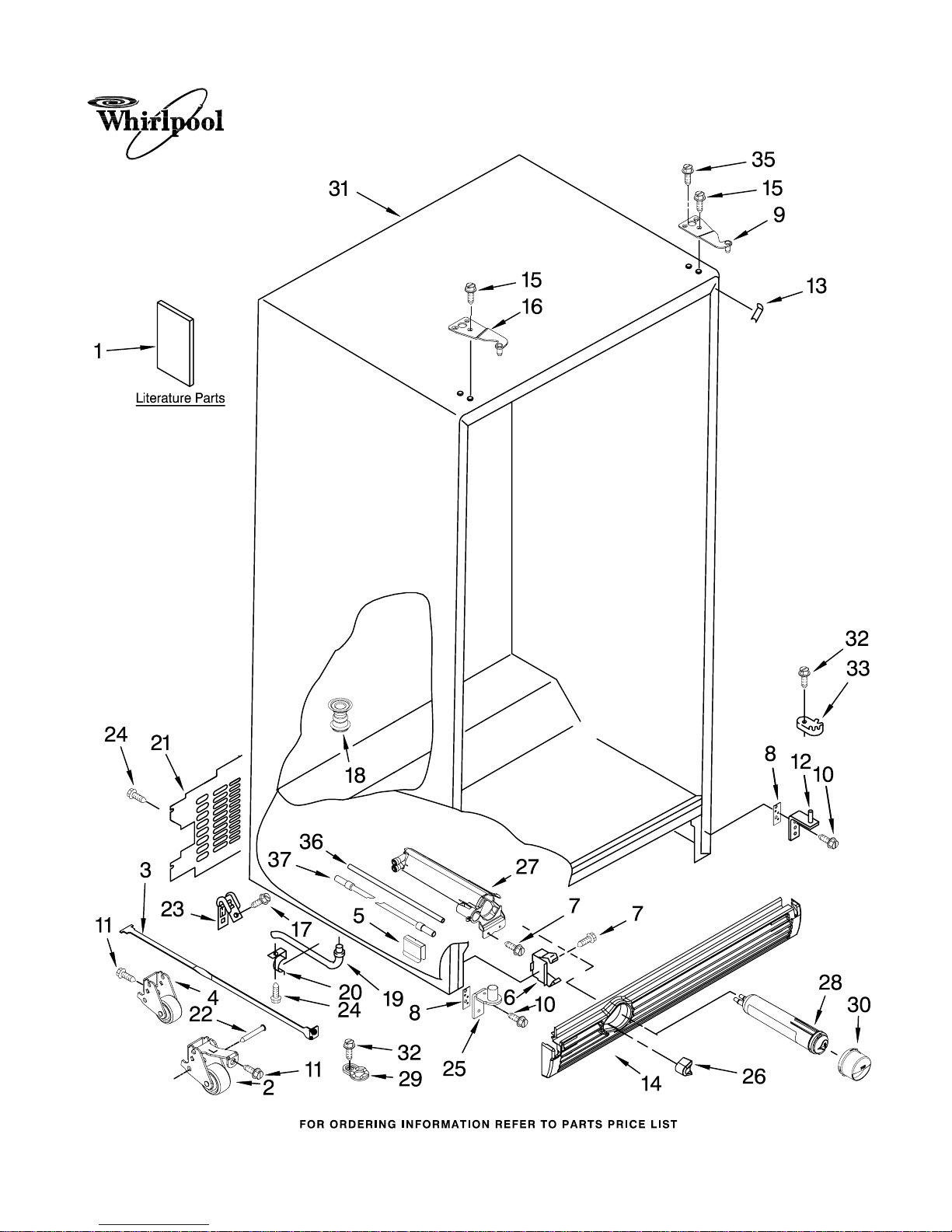

CABINET PARTS
1
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
02−08 Printed In U.S.A. (jdc) Part No. W10187556 Rev. A
REFRIGERATOR
CABINET PARTS
2
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
2318582 Use & Care Guide
W10152830
Service & Wiring
Sheet
2318510 Installation
Instructions
W10175675
Energy Guide
2220407 Modular Icemaker
Service Sheet
2 Front Roller Asm
2306950 Left Side
2306951 Right Side
3 2223263 Strap, Roller
4 2306949 Roller, Rear (2)
5 2223388 Clip, Retainer (4)
6 2155013 Clip, Grille
7 489478 Screw
8 2223545 Shim
9 Hinge Top, RC
2307008W White
2307008B Black
2307008AP
Apollo Gray
10 3400113 Screw
11 3400243 Screw
12 2307179 Hinge Assembly,
Bottom−RC
13 Filler, Wrapper
2223893W White
2223893B Black
2223893AP
Apollo Gray
14 Grille
2322234W White
2322234B Black
2322234MG
Midnight Grey
15 3400108 Screw
16 Hinge, Top FC
2307007W White
2307007B Black
2307007AP
Apollo Gray
17 489464 Screw
18 2304888 Drain Fitting
19 2254566 Tube, Extension
20 488366 Clip, Drain Tube
21 2223409 Cover, Unit
22 2223387 Pin, Roller (4)
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2307152 Hinge Assembly,
Bottom−FC
26 Button, Water
Filter
2260503W White
2260503B Black
2260503MG
Midnight Grey
27 2260526 Housing, Water
Filter
28 4396841 Water Filter
29 2307051 Door Closer, FC
30 Cap, Water
Filter
2260502W White
2260518B Black
2260518MG
Midnight Grey
31 Cabinet (Not A
Serviceable Part)
32 489483 Screw
33 2307049 Door Closer, RC
35 3400858 Screw
36 2255153 Tube, Filter
Outlet
37 8201597 Tube, Filter
Inlet

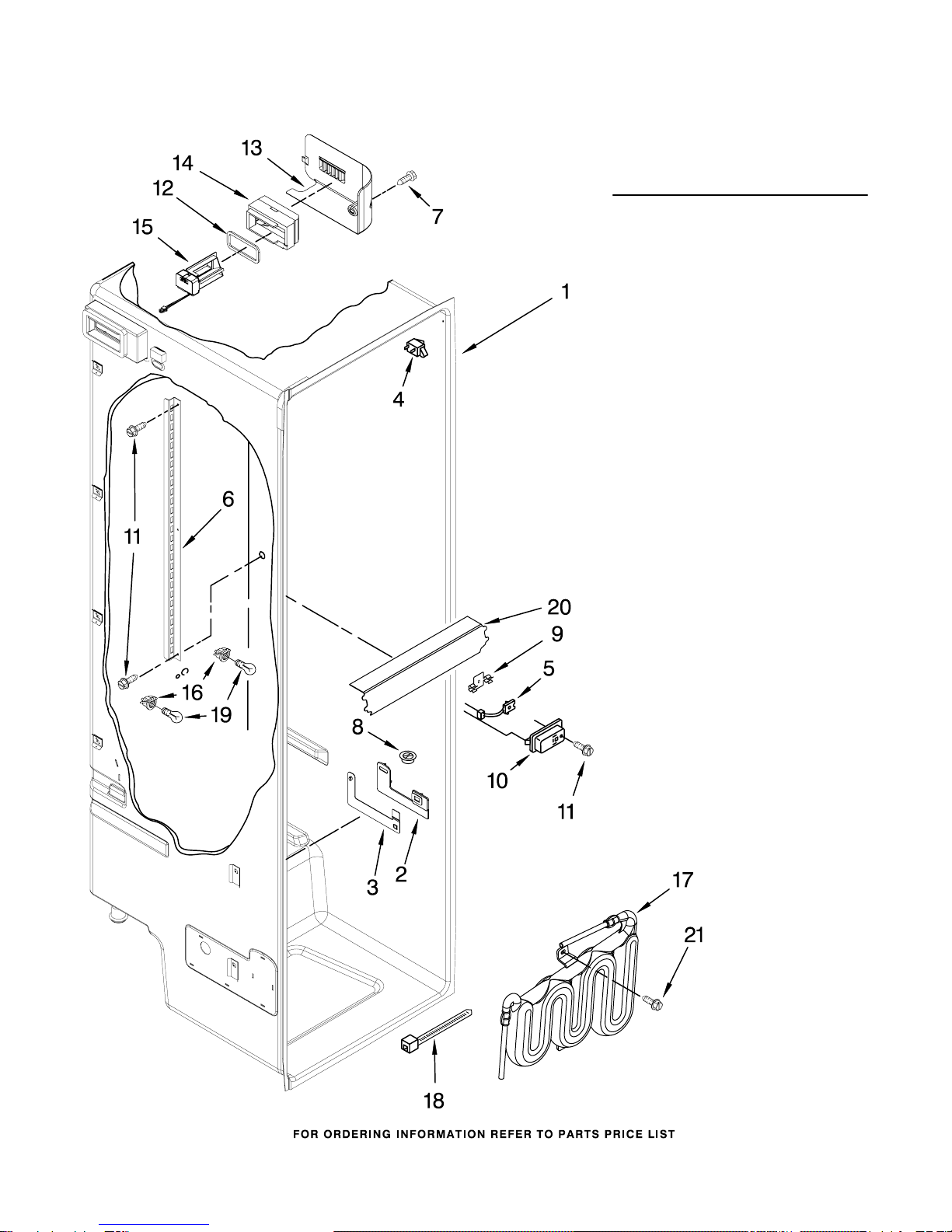

REFRIGERATOR LINER PARTS
3
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2223524 Escutcheon, Meat
Pan Control
3 2223339 Slide Meat
Pan Control
4 1118894 Switch, Rocker
Arm
5 2188820 Thermistor
6 2319866 Ladder, Shelf (2)
7 489084 Screw
8 2171846 Release Valve
9 2209204 Clip, Thermistor
10 1116793 Cover, Thermistor
11 489478 Screw
12 2304597 Gasket,
Air Baffle
13 2223403 Cover,
Air Baffle
14 2224076 Air Diffuser
Assembly
15 2220377 Air Baffle
16 2162085 Socket
17 2307107 Reservoir
18 2205813 Strap
19 2255743 Light Bulb
20 2223663 Light Lens
21 488280 Screw

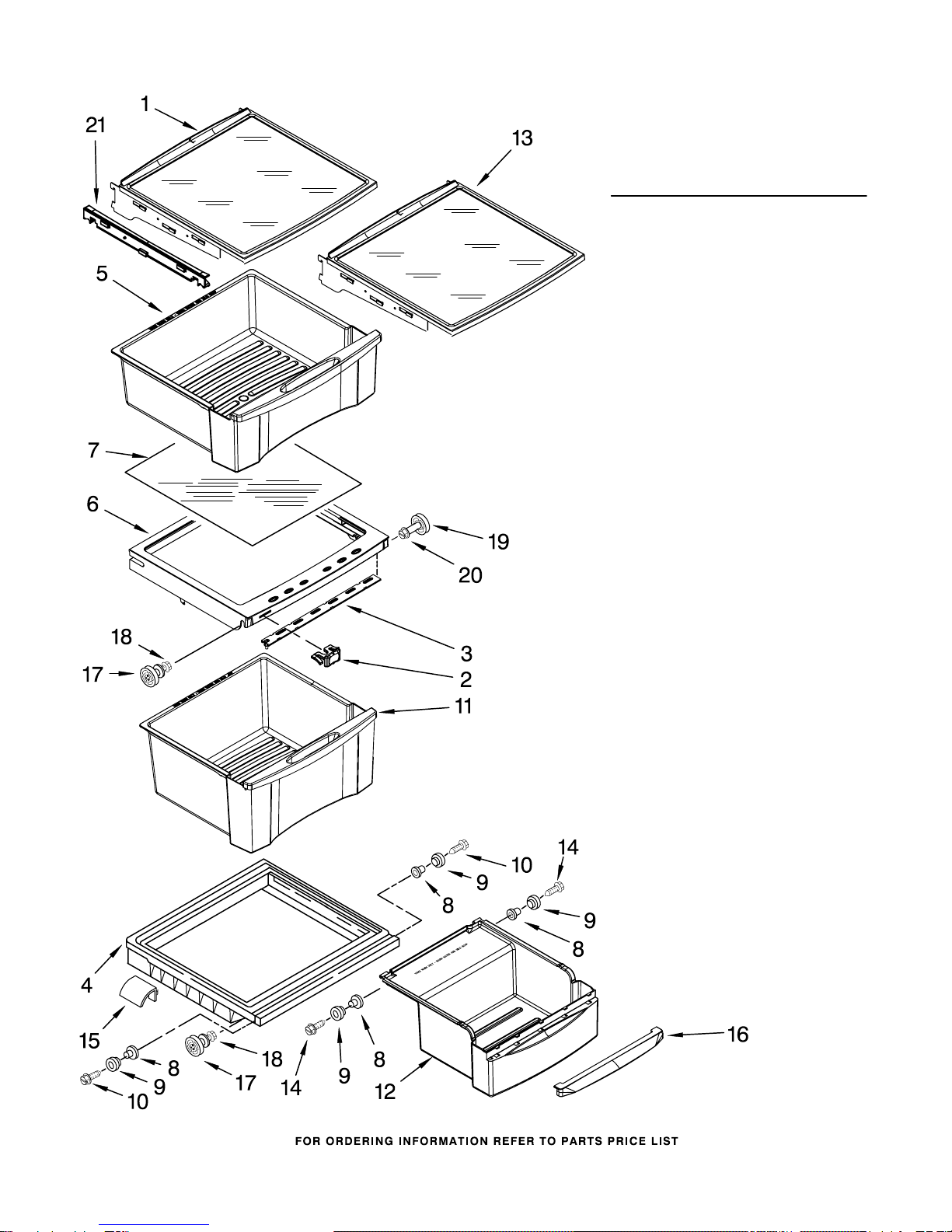

REFRIGERATOR SHELF PARTS
4
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
Illus. Part
No. No. DESCRIPTION
1 2223288 Pan Assembly
(Includes #31)
2 2223309 Button, Humidity
3 2223308 Slide, Humidity
4 2203027 Cover, Meat Pan
(Includes Items
8, 9, 10, & 15)
5 2223261 Snack Pan
6 2223307 Cover, Crisper
(Includes 2 & 3)
7 2223591 Glass, Cover
8 2174478 Eyelet, Roller
9 2188212 Roller
10 489211 Screw
11 2223235 Crisper Pan
12 2223526 Meat Pan
(Includes 8,
9, 10, & 15)
13 2224059 Shelf and Frame
Assembly (3)
14 489261 Screw
15 2223487 Deflector
16 2203029 Handle
17 2196485 Stud Assembly
18 3400894 Screw
19 2196483 Stud Assembly
20 8281158 Screw
21 2223320 Slide, Pan

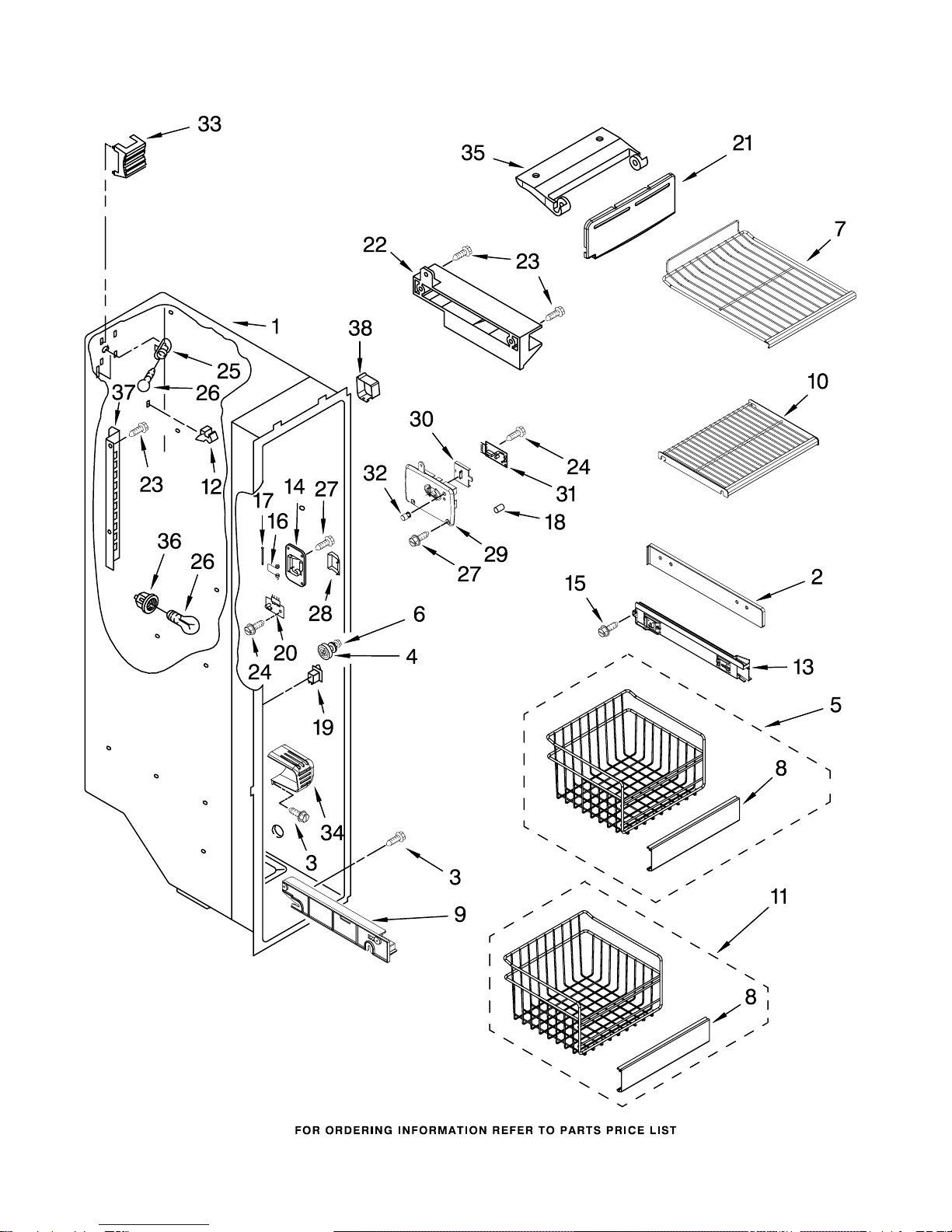

FREEZER LINER PARTS
5
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
FREEZER LINER PARTS
6
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2223777 Spacer, Slide (2)
3 3400893 Screw
4 2196483 Stud Assembly
5 2223690 Basket, Deep (2)
6 8281158 Screw
7 2223500 Shelf Assembly,
Cantilever (2)
8 2223782 Front, Basket
9 Shelf Track
2223787 Right Side
2223788 Left Side
10 2254615 Shelf, Fixed
11 2223692 Basket, Lower
12 842534 Clip, Air Duct (2)
13 Glide Assembly,
Basket (2)
2301544 Right Side
2301545 Left Side
14 2259487 Cover, Emitter
15 8534064 Screw
16 2198635 Spring
17 2198634 Pin
18 2198665 Tube, P.C. Board
19 1115373 Switch, Rocker Arm
20 2220398 P.C. Board
Emitter
21 2223321 Cover, Ice Maker
22 Slide, Ice Maker
Mounting
2212321 Right Side
2306900 Left Side
23 489478 Screw
24 489214 Screw
25 2162085 Light Socket
26 2255743 Light Bulb
27 8281185 Screw
28 2198633 Flipper
29 2255558 Cover, Receiver
30 2255562 Slide, Ice Maker
Shut Off
31 2255114 P.C. Board,
Receiver
32 2198643 Lens
33 2198589 Light Shield
34 2212340 Light Lens
35 2198641 Bracket, Ice Maker
Cover
36 2155597 Socket, Light
37 Ladder
2198609 Left Side
2198610 Right Side
38 2303378 Shield, Wiring

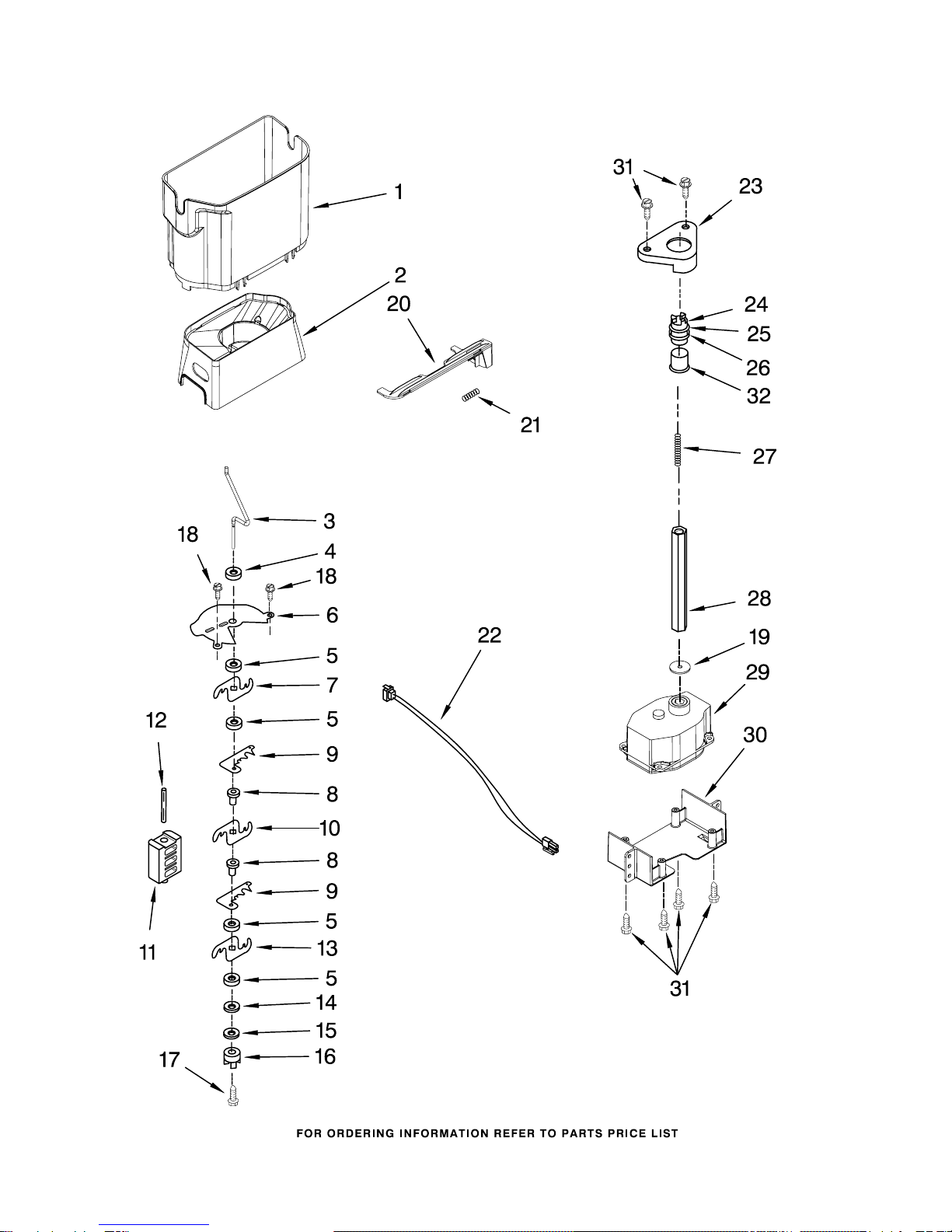

MOTOR AND ICE CONTAINER PARTS
7
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
MOTOR AND ICE CONTAINER PARTS
8
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
Illus. Part
No. No. DESCRIPTION
1 2305416 Ice Bin
2 2305206 Crusher Bin
3
W10140642
Auger
4 2258220 Washer
5 1119007 Spacer, Flat (4)
6 2305244 Cover, Crusher
7 2257024 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2198602 Block, Blade
12 489229 Roll Pin
13 2257022 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2220457 Coupling
17 8281164 Screw
18 3400065 Screw
19 2305382 Rubber Boot
20 2305443 Latch, Bin
21 2198608 Spring, Latch
22 2187813 Wire Assembly,
IDI Motor
23 2212369 Holder
24 2220458 Coupling, Bottom
25 2198628 Seal
26 2212370 Washer
27 2198607 Spring
28 2305243 Drive Shaft
29 2252130 Dispenser, Motor
30 2305208 Bracket, Motor
31 8281163 Screw
32 2212365 Sleeve, Coupling
100 2320330 Ice Container
(Complete)

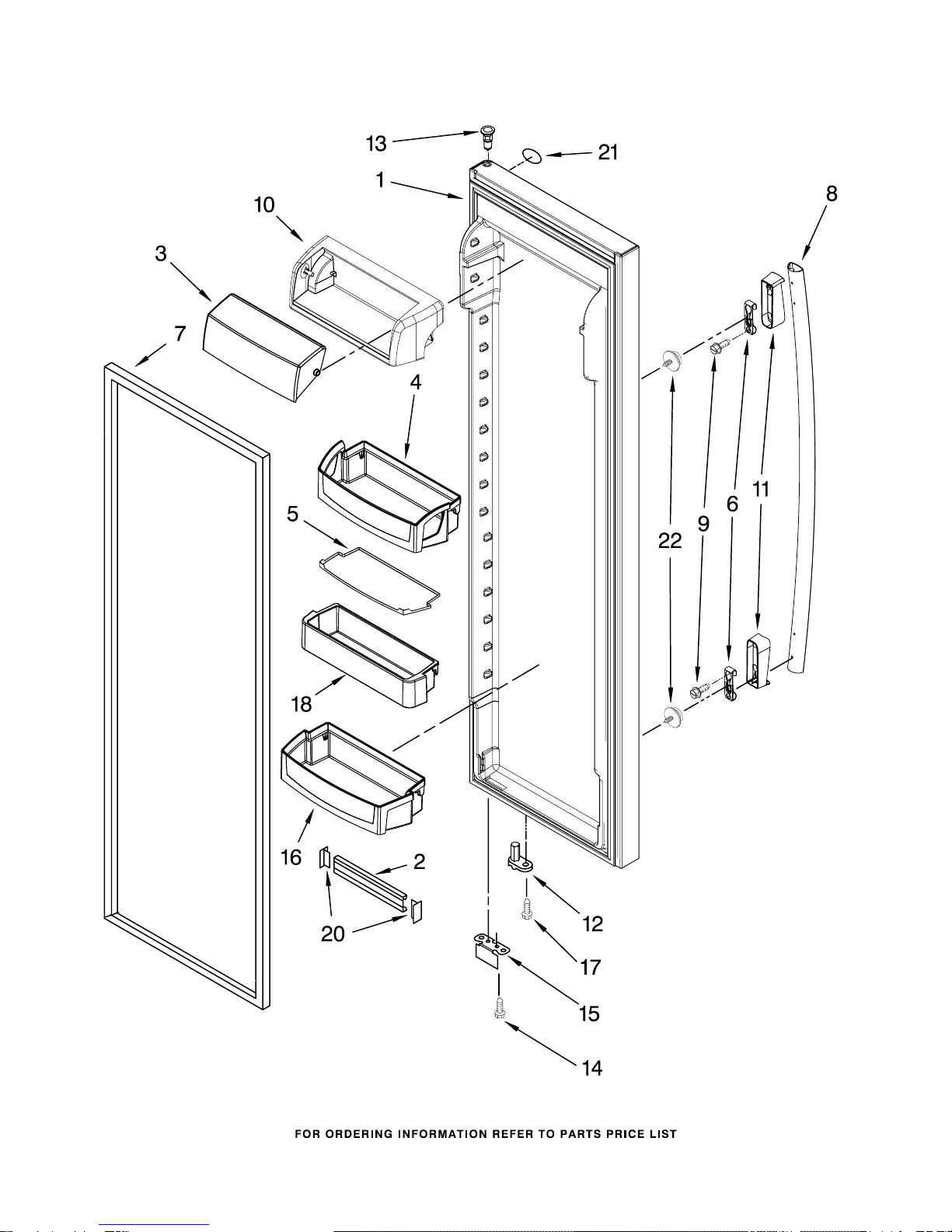

REFRIGERATOR DOOR PARTS
9
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
REFRIGERATOR DOOR PARTS
10
For Models: GC3NHAXVQ00, GC3NHAXVB00, GC3NHAXVY00, GC3NHAXVA00, GC3NHAXVS00
(White) (Black) (Mono Satina) (Mono Stainless) (Stainless)
W10187556
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
W10168248
White
W10168249
Black
W10168250
Mono Satina
W10168251
Monochromatic
Stainless
W10172106
Stainless Steel
2 2203087K Trim, Shelf
3 2255421 Dairy Door
4 2223463K Door Bin
5 2223464K Mat, Bin (3)
6 2255411 Clip, Mounting
7 Door Gasket,
Magnetic
2223841 Mist Beige
2223911 Black
2326342 Apollo Grey
8 Handle
W10127808
White
W10127809
Black
W10127811
Nickel Alloy
9
W10155511
Screw
10 2223879 Dairy Compartment
11 Endcap, Handle
W10127813
White
W10127814
Black
W10152864
Nickel Alloy
12 2182178 Door Closer,
Upper Cam
13 2182181 Thimble, Top
14 489420 Screw
15 Bracket, Door Stop
2306940 Chrome
2306940B Black
16 2223239K Door Bin (2)
17 3400012 Screw
18 2224173 Door Bin,
Shallow
20 2156006K Plug, Trim
21 2220214 Nameplate
22
W10129563
Screw, Handle
