CABINET PARTS
1
For Models: ET1MHKXMQ03, ET1MHKXMT03, ET1MHKXMB03
(White) (Biscuit) (Black)
10−05 Litho In U.S.A. (djc) Part No. 8199479
REFRIGERATOR
CABINET PARTS
2
For Models: ET1MHKXMQ03, ET1MHKXMT03, ET1MHKXMB03
(White) (Biscuit) (Black)
8199479
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
2314273 Service &
Wiring Sheet
2302183 Energy Label
2314472 Use & Care Guide
2225413 Customer
Instructions
Following May Be Purchased
DO−IT−YOURSELF
REPAIR MANUALS
677969 Do−It−Yourself
Manual, Ref./Fzr.
2 2189410 Hinge (Top)
3 2166108 Roller, Front (2)
4 489427 Screw
5 489341 Washer
6 2179826 Rivet
7 3400504 Screw
8 549193 Clamp, Cord
9 489497 Screw
10 2183972 Hinge, Center
11 2183854 Shim, Hinge
Center
12 8281265 Screw
13 2254473 Hinge Butt
14 Fitting, Water Tube
(Not Serviced)
15 Hole Plug (6)
2201012 White
2200924 Biscuit
2183998 Black
16 Seal, Front
(Not Serviced)
17 Seal, Rear
(Not Serviced)
18 Corner Filler (2)
2201014 White
2200926 Biscuit
2201017 Black
19 Grille
(Includes
Illus. 20)
2254313 White
2254316 Biscuit
2254315 Black
20 2189356 Clip, Grille (2)
21 487576 Washer
22 Cover, Hinge
2213360 White
2213364 Biscuit
2213363 Black
23 Rail, Center
(Not Serviced)
24 2202884 Cover, Unit
25 Cabinet (Not a
Serviceable Part)

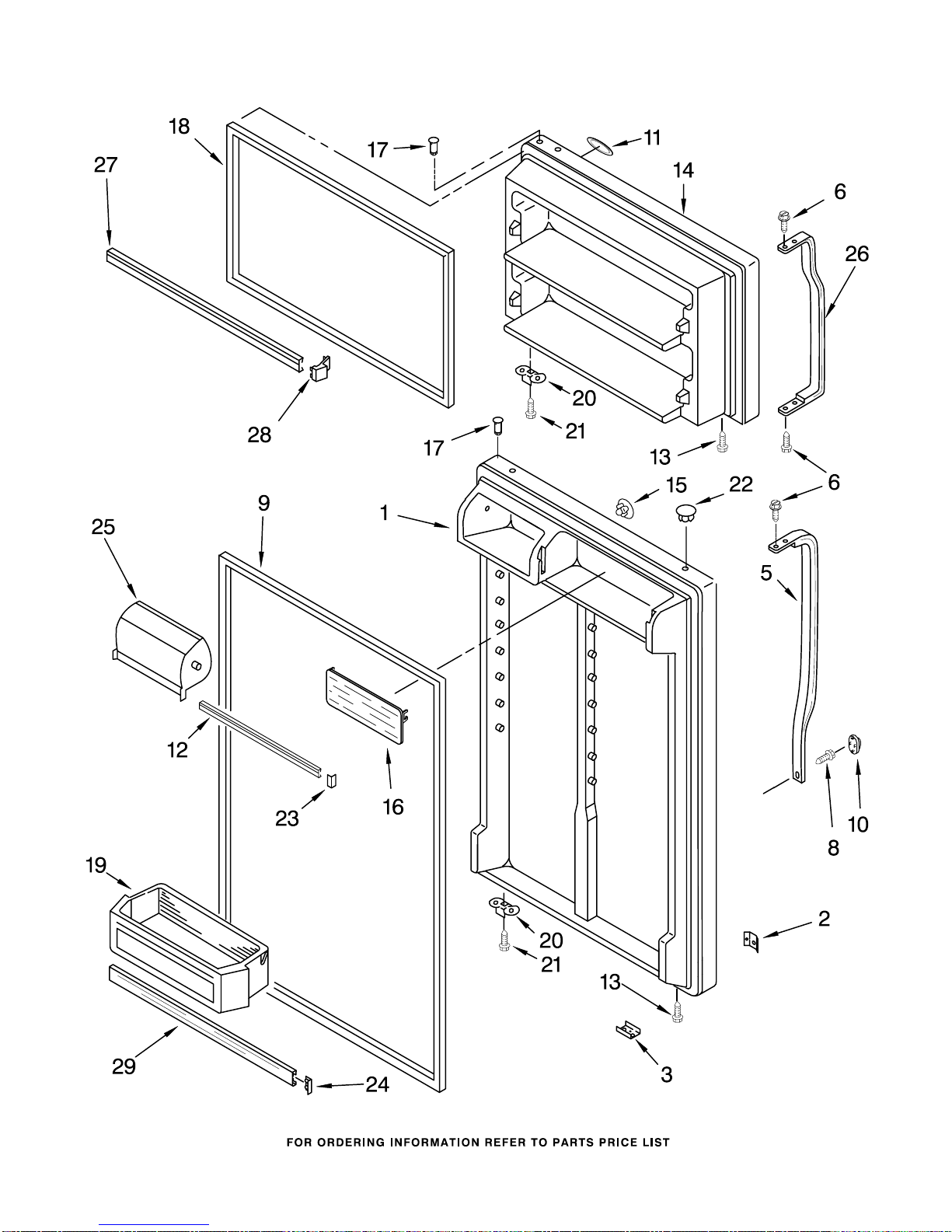

DOOR PARTS
3
For Models: ET1MHKXMQ03, ET1MHKXMT03, ET1MHKXMB03
(White) (Biscuit) (Black)
8199479
DOOR PARTS
4
For Models: ET1MHKXMQ03, ET1MHKXMT03, ET1MHKXMB03
(White) (Biscuit) (Black)
8199479
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes
Illus. 2,3,9 & 17)
2183920 White
2205284 Biscuit
2200714 Black
2 939101 Screw Anchor
3 2183198 Tap Plate
5 Handle,
Refrigerator
2202807W White
2202807T Biscuit
2202807B Black
6 489357 Screw
8 8281146 Screw
9 Door Gasket,
Magnetic
2202875 Mist Beige
2202882 Black
10 Cover, Screw
2202819W White
2202819T Biscuit
2202819B Black
11 2262218 Nameplate
12 2195378 Trim, Door Shelf
13 8281206 Screw
14 Freezer Door
(Includes
Illus. 3,17 & 18)
2182489 White
2204686 Biscuit
2200711 Black
15 Hole Plug,
Handle
2189000 White
2200936 Biscuit
2189009 Black
16 2188236 Shelf, Flip−Up
17 2183003 Thimble
18 Door Gasket,
Magnetic
2214967 Mist Beige
2214969 Black
19 2204812 Bin, Door Shelf
20 2189202 Bracket, Door
Stop
21 488921 Screw
22 Hole Plug
2212648 White
2212649 Biscuit
2212651 Black
23 2156007 Plug, Trim
24 2156006 Plug, Trim
25 2218118 Compartment Door
26 Handle, Freezer
2202806W White
2202806T Biscuit
2202806B Black
27 2195947 Trim, Door (2)
28 2195916 Endcap, Trim (4)
29 2195948 Trim, Door
LINER PARTS
5
For Models: ET1MHKXMQ03, ET1MHKXMT03, ET1MHKXMB03
(White) (Biscuit) (Black)
8199479
LINER PARTS
6
For Models: ET1MHKXMQ03, ET1MHKXMT03, ET1MHKXMB03
(White) (Biscuit) (Black)
8199479
Illus. Part
No. No. DESCRIPTION
1 Liner (Not a
Serviceable Part)
2 2197380 Grommet (2)
3 2254360 Gasket, Evaporator
Cover (2)
4 2314156 Defrost Timer
5 2204640 Thermostat, Tube
Barrier
6 941839 Hole Plug
7 2187885 Wire Assembly
Control Box
8 2162085 Socket, Light
9 98129 Screw (2)
10 2214986 Fan Motor
11 2163777 Fan Blade
12 2218381 Control Box
13 2225460 Thermostat
14 489478 Screw
15 488208 Screw
16 2254263 Cover, Evaporator
17 2160708 Light Bulb
18 2254454 Bracket
Evap. Fan, Rear
19 1118894 Switch, Rocker Arm
21 2176281 Cover, Air
Diffuser
22 2202885 Knob, Thermostat
23 2254354 Air Tower
24 2189452 Air Diffuser,
Bottom
26 2212439 Air Separator
Assembly
27 2205003 Cover, Hole
28 2171931 Valve−Tube, Body
29 2254453 Bracket,
Fan Motor
31 2204639 Shield, Heat
32 487996 Cap
33 2310043 Wire Assembly
Freezer Compartment
(Includes Item 34)
34 2314158 Defrost, BI−Metal
35 940014 Hole Plug,
Control Box
UNIT PARTS
7
For Models: ET1MHKXMQ03, ET1MHKXMT03, ET1MHKXMB03
(White) (Biscuit) (Black)
8199479
UNIT PARTS
8
For Models: ET1MHKXMQ03, ET1MHKXMT03, ET1MHKXMB03
(White) (Biscuit) (Black)
8199479
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 2225596 Plate, Unit
Mounting
2 4387765 Wire Assembly
(Service Only)
3 2214960 Condenser
4 2314157 Heater, Defrost
5 2254249 Evaporator Assy.
6 8533859 Screw
7 2254295 Drain Pan
8 2183454 Relay
(Service Only)
9 2176301 Bracket, Heater
10 2300638 Extension, Air
Baffle
11 2255113 Strap
12 4387731 Cover
(Service Only)
13 4390624 Overload
(Service Only)
14 Grommet (4)
1100826 Production
4387558 Service
15 2225785 Start−Device
Combination
(Start Relay and
Overload for
Production
Compressor Only)
17 2150304 Roller (2)
18 2221797 Rivet
19 2182338 Clip, Heater
20 489373 Screw
21 2169104 Insulation,
Sound Dampening
23 2201185 Support Block
24 3400518 Screw
28 2225833 Compressor
(Includes Items
2,8,12,13,14,
29 & 32)
29 Drier
2199167 Production
4387019 Service
30 2155774 Clamp
32 Capacitor
2169373 Production
1118576 Service
33 2302249 Air Baffle
34 2188874 Motor, Condenser
35 2187382 Wire Assy, Unit
36 2225834 Fan Blade
37 2225564 Tube, Discharge
38 2225565 Tube, Suction
39 2154109 Tube, Process
40 488500 Screw
41 2300635 Tray, Evaporator
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
4.00 Ozs.
(R134A)
SHELF PARTS
9
For Models: ET1MHKXMQ03, ET1MHKXMT03, ET1MHKXMB03
(White) (Biscuit) (Black)
8199479
Illus. Part
No. No. DESCRIPTION
1 2210522 Shelf, Ladder (2)
2 2300520 Shelf, Ladder
Center
3 2200988 Glass, Full Shelf
4 2163762 Cup, Shelf Mtg.
5 489478 Screw
6 2188687 Trim Shelf, Rear
7 2201102E Shelf,
Cantilever
8 2188685 Trim, Shelf Front
9 2210526 Crisper Cover
10 2188691 Trim Shelf, Front
11 2210573 Insert, Crisper
Cover
12 2201106 Pan Shelf,
Cantilever
14 2200987 Glass, Shelf
15 2163832 Crisper Support
16 2201104E Shelf, Full
Cantilever
17 2189454 Shelf, Freezer
18 2188689 Trim, Shelf Rear
19 2188711 Trim Shelf, Side
20 2218132K Pan, Meat
24 2218141 Crisper Pan
(Includes
Illus. 25 & 26)
25 2212446 Body, Humidity
Control
26 2176222 Slide, Humidity
Control
OPTIONAL PARTS
10
For Models: ET1MHKXMQ03, ET1MHKXMT03, ET1MHKXMB03
(White) (Biscuit) (Black)
8199479
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
978941 Insulation,
Fiberglass
(63−1/2" x 35−1/2"
x 2−5/8")
212643 Sealer, Gum
(4 Feet)
479502 Tape, Vinyl
(3/4" x 108")
876305 Kit, Insulation
(14 Pcs.
3" x 24" x 48")
876370 Kit, Insulation
(2 Pcs.
3" x 24 " x 48")
876029 Kit, Foam Slab
(30" x 32−1/2" x
1−1/2")
505587 Sealer, Mastic
(1 Qt.)
511873 Touch−Up, White
Porcelain (2 Oz.)
542638 Grease, Silicone
(1/2 Oz.)
542639 Cement,
Alumilastic
(1−1/4 Oz.)
606755 Bag, Insulation
(36−5/8" x 46")
799833 Kit, Evaporator
Repair
(Aluminum Epoxy)
799832 Kit, Porcelain
Repair (White)
503695 Cork Sealer
(1/4 Pound)
Customer Touch−Up Material
350942 Primer, White
(12 Oz. Spray Can)
350939 Enamel, Black
(12 Oz. Spray Can)
350930 Enamel, White
(12 Oz. Spray Can)
4392901 Enamel, Biscuit
(12 Oz. Spray Can)
72017 Brush Touch−Up Kit
(White)
72032 Brush Touch−Up Kit
(Black)
4392899 Brush Touch−Up Kit
(Biscuit)
Refinishing Material
799340 Enamel, Black
(1 Qt. Uncut)
799344 Enamel, White
(1 Qt. Uncut)
4392900 Enamel, Biscuit
(1 Qt. Uncut)
833938 Kit, Terminal
Connector
Important: The spray paint is
not to be used where the paint
may make contact with the door
gaskets.
FIELD INSTALLABLE
ICE MAKER
2155469 ECKMF94
TORX SCREW WRENCH
1117510 Torx Key
