Whirlpool GC3SHEXNB15 Manuale utente

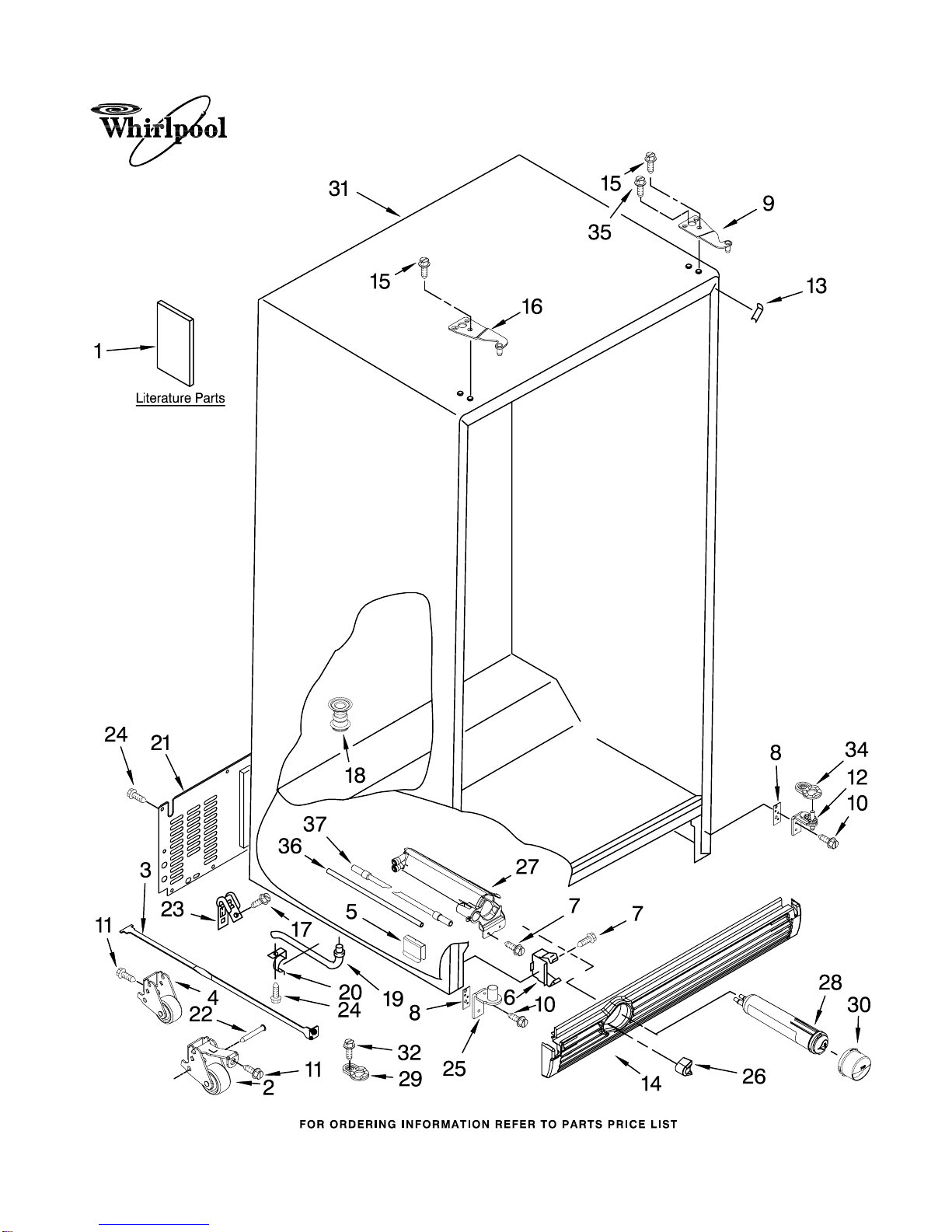

CABINET PARTS
1
For Models: GC3SHEXNQ15, GC3SHEXNT15, GC3SHEXNB15, GC3SHEXNS15
(White) (Biscuit) (Black) (Stainless Steel)
11−06 Printed In U.S.A. (rrm) Part No.W10118285
REFRIGERATOR
CABINET PARTS
2
For Models: GC3SHEXNQ15, GC3SHEXNT15, GC3SHEXNB15, GC3SHEXNS15
(White) (Biscuit) (Black) (Stainless Steel)
W10118285
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
2318582 Use & Care Guide
2223996 Installation
Instructions
2322229 Service & Wiring
Sheet
2322226 Energy Guide
2220407 Modular Icemaker
Service Sheet
2 Front Roller Asm
2306950 Left Side
2306951 Right Side
3 2223263 Strap, Roller
4 2306949 Roller, Rear (2)
5 2223388 Clip, Retainer (4)
6 2155013 Clip, Grille
7 489478 Screw
8 2223545 Shim
9 Hinge Top, RC
2307008W White
2307008T Biscuit
2307008B Black
10 3400113 Screw
11 3400243 Screw
12 2307179 Hinge Assembly,
Bottom−RC
13 Filler, Wrapper
2223893W White
2223893T Biscuit
2223893B Black
14 Grille
2322206W White
2322206T Biscuit
2322206B Black
15 3400108 Screw
16 Hinge, Top FC
2307007W White
2307007T Biscuit
2307007B Black
17 489464 Screw
18 2304888 Drain Fitting
19 2199954 Tube, Extension
20 1108439 Clip, Drain Tube
21 2223409 Cover, Unit
22 2223387 Pin, Roller (4)
23 549193 Clamp, Service
Cord
24 489084 Screw
25 2307152 Hinge Assembly,
Bottom−FC
26 Button, Water
Filter
2260503W White
2260503T Biscuit
2260503B Black
27 2260526 Housing, Water
Filter
28 4396710 Water Filter
29 2307051 Door Closer, FC
30 Cap, Water
Filter
2260518W White
2260518T Biscuit
2260518B Black
31 Cabinet (Not A
Serviceable Part)
32 489483 Screw
34 2307049 Door Closer (RC)
35 3400858 Screw
36 2304709 Tube, Filter
Outlet
37 2319868 Tube, Filter
Inlet

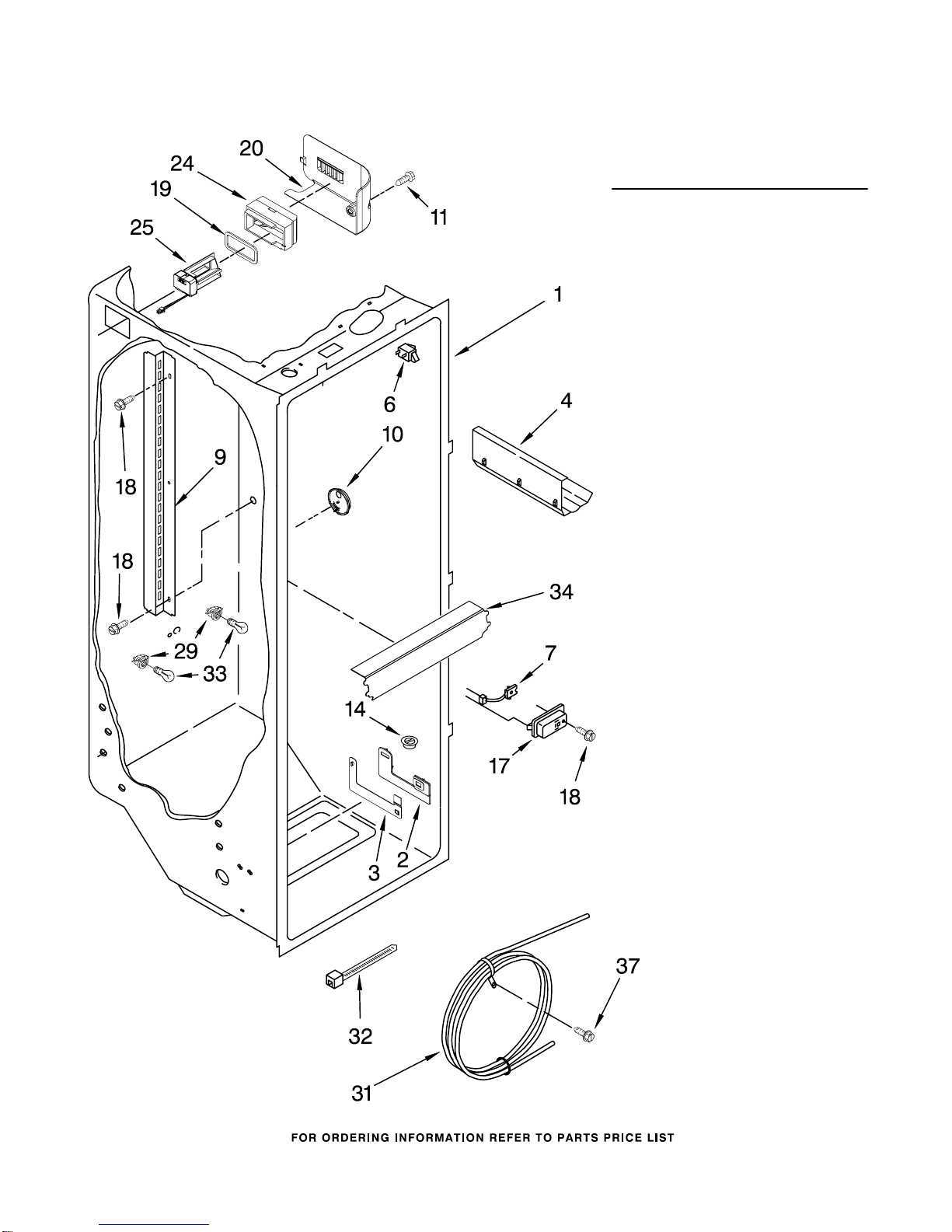

REFRIGERATOR LINER PARTS
3
For Models: GC3SHEXNQ15, GC3SHEXNT15, GC3SHEXNB15, GC3SHEXNS15
(White) (Biscuit) (Black) (Stainless Steel)
W10118285
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 2223524 Escutcheon, Meat
Pan Control
3 2223339 Slide Meat
Pan Control
4 2179375 Wine Rack
6 1118894 Switch, Rocker
Arm
7 2188820 Thermistor
9 2319866 Ladder, Shelf (2)
10 2261601 Housing, Door
Control
11 489084 Screw
14 2171846 Release Valve
17 2317105 Cover, Thermistor
18 489478 Screw
19 2304597 Gasket,
Air Baffle
20 2223403 Cover,
Air Baffle
24 2224076 Air Diffuser
Assembly
25 2220377 Air Baffle
29 2162085 Socket
31 2223876 Reservoir
32 2307062 Strap
33 2255743 Light Bulb
34 2223663 Light Lens
37 488280 Screw

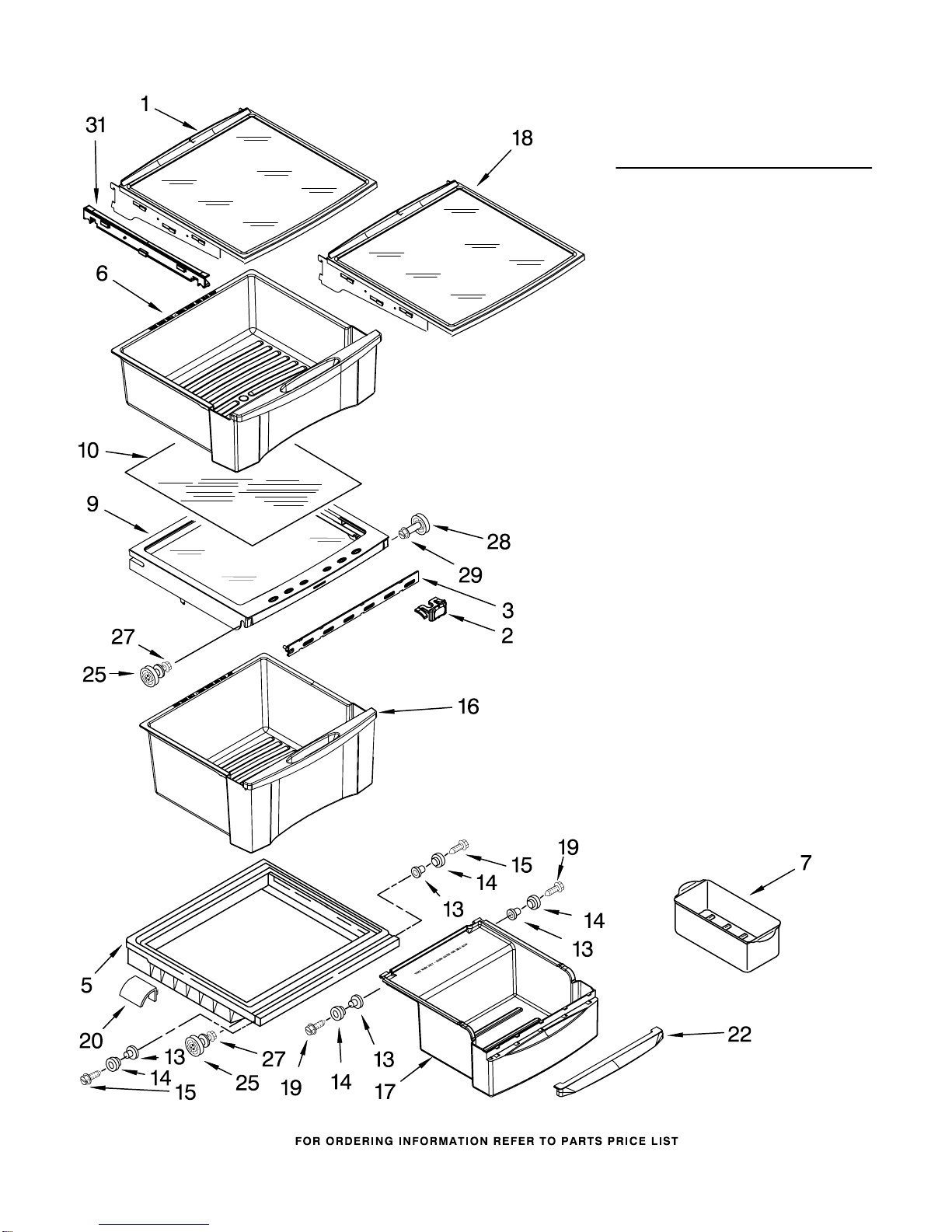

REFRIGERATOR SHELF PARTS
4
For Models: GC3SHEXNQ15, GC3SHEXNT15, GC3SHEXNB15, GC3SHEXNS15
(White) (Biscuit) (Black) (Stainless Steel)
W10118285
Illus. Part
No. No. DESCRIPTION
1 2223288 Pan Assembly
(Includes #31)
2 2223309 Button, Humidity
3 2223308 Slide, Humidity
5 2203027 Cover, Meat Pan
(Includes Items
13, 14, 15 & 20)
6 2223261 Snack Pan
7 2216625 Egg Bin
9 2223307 Cover, Crisper
(Includes 2 & 3)
10 2223591 Glass, Cover
13 2174478 Eyelet, Roller
14 2188212 Roller
15 489211 Screw
16 2223235 Crisper Pan
17 2223526 Meat Pan
(Includes 13,
14, 19 & 22)
18 2224059 Shelf and Frame
Assembly (3)
19 489261 Screw
20 2223487 Deflector
22 2203029 Handle
25 2196485 Stud Assembly
27 3400894 Screw
28 2196483 Stud Assembly
29 8281158 Screw
31 2223320 Slide, Pan

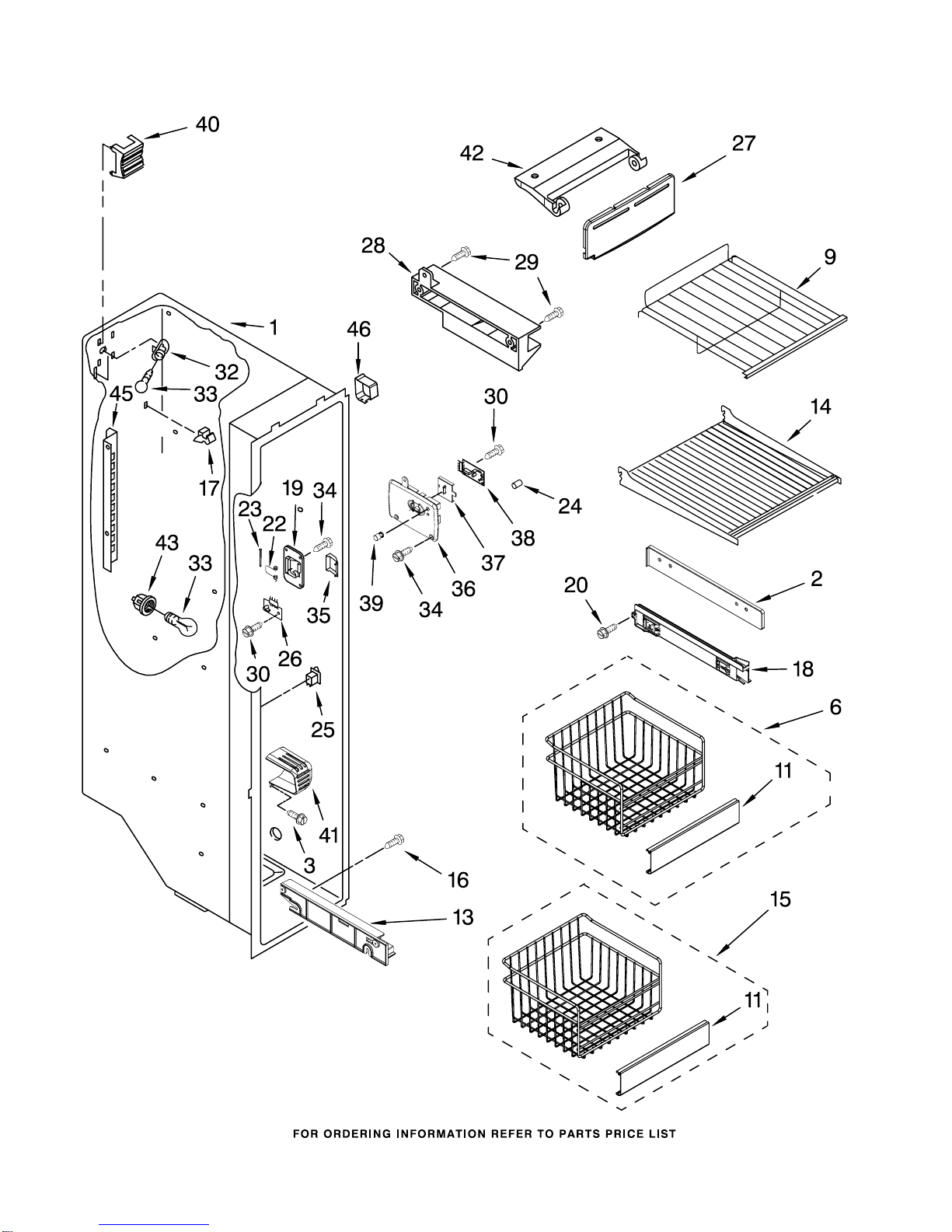

FREEZER LINER PARTS
5
For Models: GC3SHEXNQ15, GC3SHEXNT15, GC3SHEXNB15, GC3SHEXNS15
(White) (Biscuit) (Black) (Stainless Steel)
W10118285
FREEZER LINER PARTS
6
For Models: GC3SHEXNQ15, GC3SHEXNT15, GC3SHEXNB15, GC3SHEXNS15
(White) (Biscuit) (Black) (Stainless Steel)
W10118285
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 2223777 Spacer, Slide (2)
3 3400893 Screw
6 2223690 Basket, Deep (2)
9 2223500 Shelf Assembly,
Cantilever (2)
11 2223782 Front, Basket
13 Shelf Track
2223787 Right Side
2223788 Left Side
14 2223681 Shelf, Fixed
15 2223692 Basket, Lower
16 489427 Screw
17 842534 Clip, Air Duct (2)
18 Glide Assembly,
Basket (2)
2301544 Right Side
2301545 Left Side
19 2259487 Cover, Emitter
20 8534064 Screw
22 2198635 Spring
23 2198634 Pin
24 2198665 Tube, P.C. Board
25 1115373 Switch, Rocker Arm
26 2220398 P.C. Board
Emitter
27 2223321 Cover, Ice Maker
28 Slide, Ice Maker
Mounting
2212321 Right Side
2306900 Left Side
29 489478 Screw
30 489214 Screw
32 2162085 Light Socket
33 2255743 Light Bulb
34 8281185 Screw
35 2198633 Flipper
36 2255558 Cover, Receiver
37 2255562 Slide, Ice Maker
Shut Off
38 2255114 P.C. Board,
Receiver
39 2198643 Lens
40 2198589 Light Shield
41 2212340 Light Lens
42 2198641 Bracket, Ice Maker
Cover
43 2155597 Socket, Light
45 Ladder
2320024 Left Side
2320025 Right Side
46 2303378 Shield, Wiring

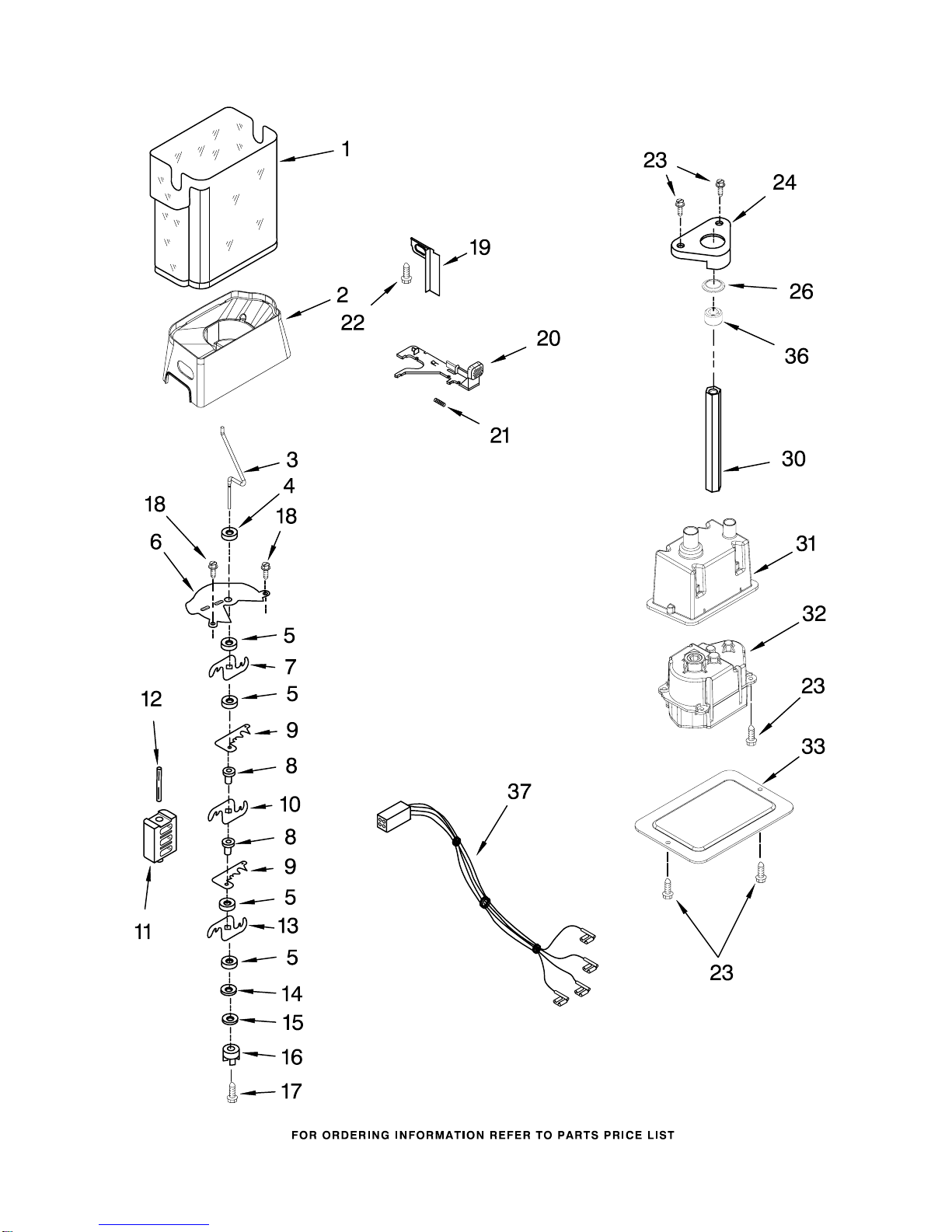

MOTOR AND ICE CONTAINER PARTS
7
For Models: GC3SHEXNQ15, GC3SHEXNT15, GC3SHEXNB15, GC3SHEXNS15
(White) (Biscuit) (Black) (Stainless Steel)
W10118285
MOTOR AND ICE CONTAINER PARTS
8
For Models: GC3SHEXNQ15, GC3SHEXNT15, GC3SHEXNB15, GC3SHEXNS15
(White) (Biscuit) (Black) (Stainless Steel)
W10118285
Illus. Part
No. No. DESCRIPTION
1 2223317 Ice Bin
2 2255574 Crusher Bin
3 2320327 Auger
4 2258220 Washer
5 1119007 Spacer, Flat (6)
6 2255460 Cover, Crusher
7 2257022 Blade, Rotary
8 1119005 Spacer, Step (2)
9 2257020 Blade, Fixed
10 2257023 Blade, Rotary
11 2198602 Block, Blade
12 489229 Roll Pin
13 2257024 Blade, Rotary
14 489235 Washer, Plain
15 2198661 Washer, Coupling
16 2188918 Coupling
17 8281164 Screw
18 3400065 Screw
19 2255575 Button, Bin
20 2212371 Latch, Bin
21 2198608 Spring, Latch
22 2198671 Screw
23 8281163 Screw
24 2188919 Holder
26 2198628 Seal
30 2188916 Drive Shaft
31 2256154 Enclosure, Motor
32 2315547 Dispenser, Motor
33 2212305 Cover
36 2315559 Sleeve, Coupling
37 2187725 Wire Harness,
IDI Motor
100 2320333 Ice Container
Assembly

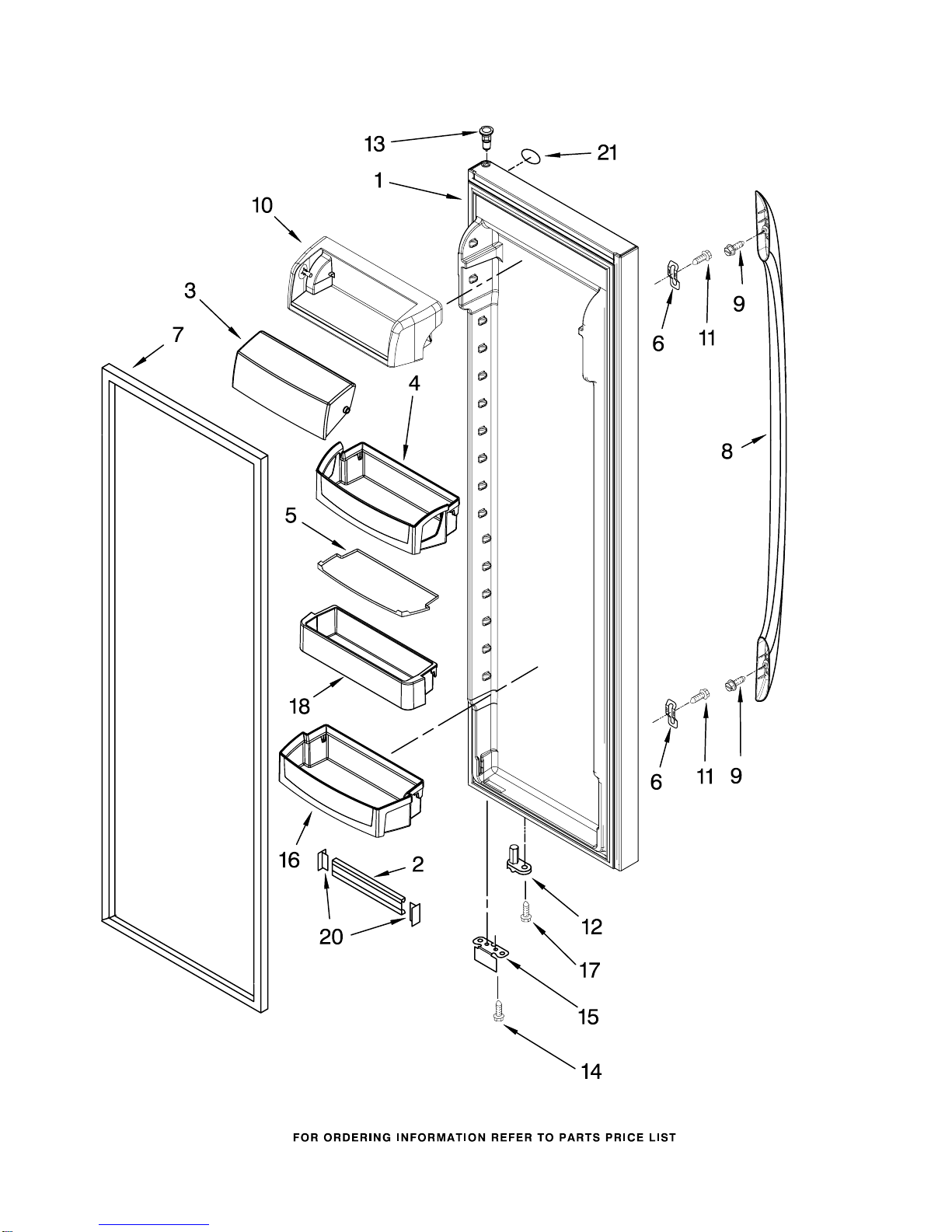

REFRIGERATOR DOOR PARTS
9
For Models: GC3SHEXNQ15, GC3SHEXNT15, GC3SHEXNB15, GC3SHEXNS15
(White) (Biscuit) (Black) (Stainless Steel)
W10118285
REFRIGERATOR DOOR PARTS
10
For Models: GC3SHEXNQ15, GC3SHEXNT15, GC3SHEXNB15, GC3SHEXNS15
(White) (Biscuit) (Black) (Stainless Steel)
W10118285
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(Includes #7)
2307196W White
2307196T Biscuit
2307196B Black
2322201S Stainless Steel
2 2203087K Trim, Shelf
3 2255421 Dairy Door
4 2223463K Door Bin
5 2223464K Mat, Bin (3)
6 2255411 Clip, Mounting
7 Door Gasket,
Magnetic
2223841 Mist Beige
2223911 Black
8 Handle
(Includes #9)
2305993W White
2305993T Biscuit
2305993B Black
9 8533920 Screw
10 2223879 Dairy Compartment
11 489491 Screw
12 2307048 Door Closer,
Upper Cam
13 2308091 Thimble, Top
14 489420 Screw
15 Bracket, Door Stop
2306940 Chrome
2306940B Black
16 2304952K Door Bin (2)
17 3400012 Screw
18 2224173 Door Bin,
Shallow
20 2156006K Plug, Trim
21 2220214 Nameplate
