CABINET PARTS

For Models: GB2SHDXTQ11, GB2SHDXTB11, GB2SHDXTS11, GB2SHDXTL11

(White) (Black) (Stainless Steel) (Satina)

1−08 Litho In U.S.A. (cjj) Part No. W10187662 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: GB2SHDXTQ11, GB2SHDXTB11, GB2SHDXTS11, GB2SHDXTL11

(White) (Black) (Stainless Steel) (Satina)

W10187662

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10137645

Use & Care Guide

W10179468

Energy Guide

W10165418

Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Plug, Button (3)

67001130 White

67001131 Black

4 B5759649 Insulation

5 67006118 Roller Assembly

6 12627302 Clip, Grille

7 67006642 Pin, Center Hinge

8 67006611 Bolt, Adjusting

(Front Roller)

9 67006521 Screw

10 67006380 Screw (3)

11 67006473 Screw

12 67003331 Cover, Water Line

13 67006303 Screw (3)

14 Hinge, Center

67006960 White

67007043 Black

15 67006433 Screw

16 Cover, Corner

67003484 White

67003485 Black

17 67007174 Foot, Cabinet

18 67006564 Screw (8)

19 Grille Assembly

(Includes Clips)

67007004 White

67006954 Black

20 M0114003 Clip

21 67006425 Screw

22 67001097 Cover, Water Valve

12575101ED

Cover, Unit

W10137519

Elbow, Fill Tube

25 67003796 Insulation, Sound

W10164397

Tube, Drain

27 67001067 Clip, Drain Tube

12566604ED

Hinge, Top

29 Cover, Hinge

67001014 White

67001012 Black

30 67003868 Foot Brake

Following Parts Not Illustrated

8170942 Clamp, Tube

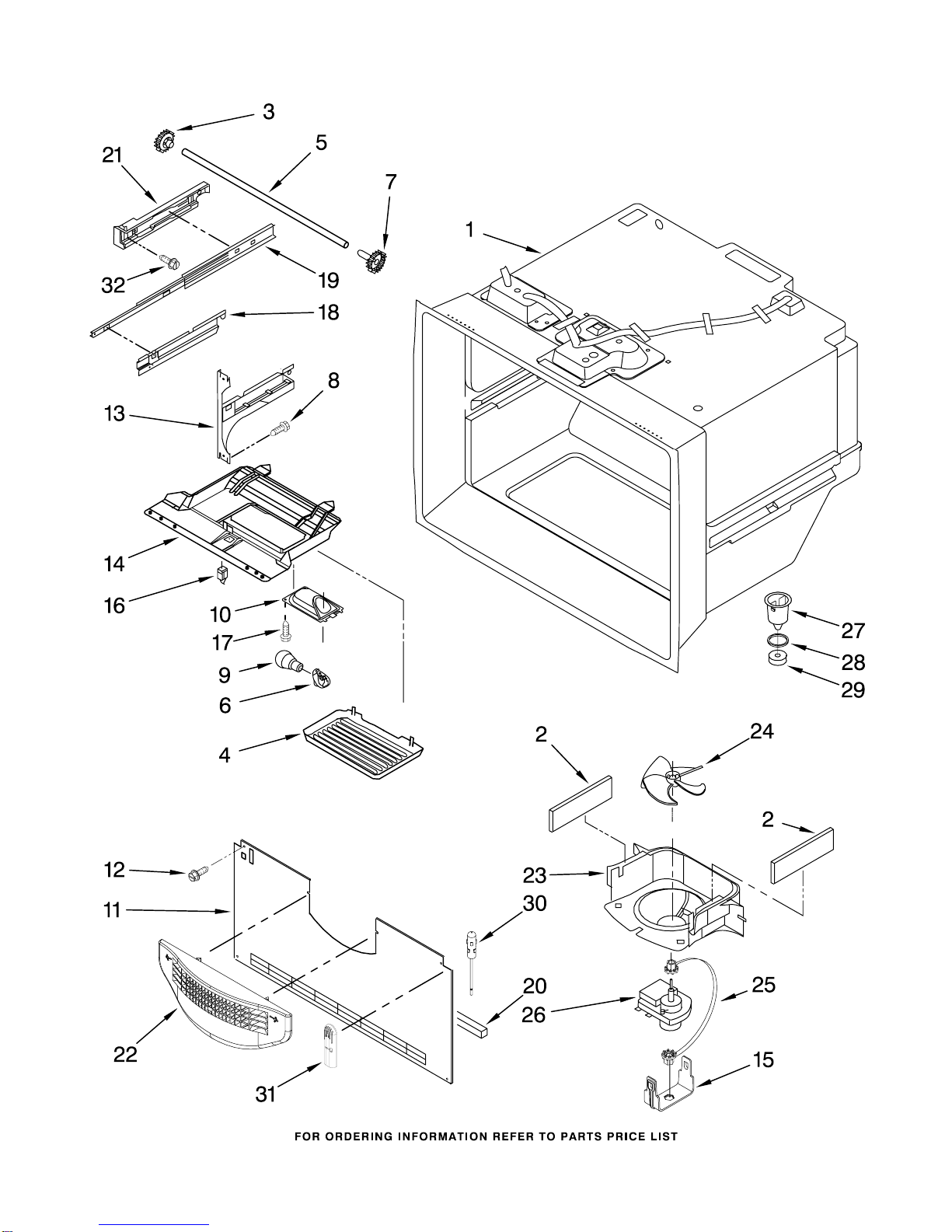

FREEZER LINER PARTS

For Models: GB2SHDXTQ11, GB2SHDXTB11, GB2SHDXTS11, GB2SHDXTL11

(White) (Black) (Stainless Steel) (Satina)

W10187662

FREEZER LINER PARTS

For Models: GB2SHDXTQ11, GB2SHDXTB11, GB2SHDXTS11, GB2SHDXTL11

(White) (Black) (Stainless Steel) (Satina)

W10187662

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 12002497 Gear (Left)

(Includes Item 7)

4 67003905 Cover, Light

5 67004261 Shaft

Y12570701

Socket, Light

7 12002497 Gear(Right)

(Includes Item 3)

8 67006473 Screw

9 A0282812 Bulb, Light

10 67001035 Housing, Frz. Light

11 67005872 Cover, Evaporator

12 67006425 Screw

13 Bracket, Door

W10122147

Left

W10122148

Right

14 67003906 Housing, Lighting

W10167028

Clip, Evap. Motor

16 67005653 Switch, Light

17 67006530 Screw

18 Bracket, Basket

W10187668

Left

W10187677

Right

W10120018

Slide, Drawer

20 67003731 Gasket, Bottom

21 Bracket, Slide

W10128118

Left

W10128119

Right

W10175909

Cover, Fan Shroud

W10167023

Shroud, Evap.Fan

24 2169142 Blade, Fan

(Evaporator)

W10121318

Grommet

26 67003636 Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

30 12002355 Thermistor

31 67003924 Cover, Thermistor

32 67006406 Screw

Following Parts Not Illustrated

67006095 Harness, Lights

(Freezer)

FREEZER DOOR PARTS

For Models: GB2SHDXTQ11, GB2SHDXTB11, GB2SHDXTS11, GB2SHDXTL11

(White) (Black) (Stainless Steel) (Satina)

W10187662

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Freezer Door

(w/ Insulation)

W10187672

White

W10187673

Black

W10170543

Stainless Steel

W10187676

Satina

2 Handle

2254600W White

2254600B Black

2254600S Stainless Steel

3 Door Gasket,

Magnetic

W10130894

White

W10130587

Black

4 67006113 Mount, Handle

5 67006901 Screw

6 Plug, Button (2)

10712401 White

67004838 Black

REFRIGERATOR LINER PARTS

For Models: GB2SHDXTQ11, GB2SHDXTB11, GB2SHDXTS11, GB2SHDXTL11

(White) (Black) (Stainless Steel) (Satina)

W10187662

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

Y67003896

Bracket, Control

and Lights

3 67005190 Overlay

W10185244

Housing,

Electronic Control

W10165748

Board, Control

6 C3680310 Switch, Light

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

16 12002355 Thermistor

17 M0310343 Plug Button

Following Parts Not Illustrated

8208198 Harness, Controls

(Refrigerator)

(Includes # 16)

REFRIGERATOR DOOR PARTS

For Models: GB2SHDXTQ11, GB2SHDXTB11, GB2SHDXTS11, GB2SHDXTL11

(White) (Black) (Stainless Steel) (Satina)

W10187662

REFRIGERATOR DOOR PARTS

For Models: GB2SHDXTQ11, GB2SHDXTB11, GB2SHDXTS11, GB2SHDXTL11

(White) (Black) (Stainless Steel) (Satina)

W10187662

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(w/Liner)

12658565W

White

12658565B

Black

W10187674

Stainless Steel

W10187675

Satina

2 67006901 Screw

3 67003819 Door, Dairy

4 67001279 Tray, Dairy

5 67003777 Bucket

(Medium)(4)

6 Plug, Handle Hole

67001130 White

67001131 Black

12246606 Stainless Steel

7 Plug, Button

10712401 White

67004838 Black

8 Door Gasket,

Magnetic

W10130893

White

W10131327

Black

9 Door Handle

2254600W White

2254600B Black

2254600S Stainless Steel

10 Door Closure

67003638 White

67003639 Black

11 6700113 Mount, Handle

12 67001748 Retainer

13 67006287 Screw

14 Stop, Door

67003779 White

67003780 Black

15 Bushing

67004977 White

67004978 Black

16 2220214 Nameplate

UNIT PARTS

For Models: GB2SHDXTQ11, GB2SHDXTB11, GB2SHDXTS11, GB2SHDXTL11

(White) (Black) (Stainless Steel) (Satina)

W10187662

UNIT PARTS

For Models: GB2SHDXTQ11, GB2SHDXTB11, GB2SHDXTS11, GB2SHDXTL11

(White) (Black) (Stainless Steel) (Satina)

W10187662

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

W10162928

Blade, Fan

3 67005744 Basepan

4 67006425 Screw

5 67005491 Block, Condenser

W10167036

Tube, Discharge

W10119856

Harness, Evap.

Heater

8 67004713 Drain Pan

9 61004743 Grommet (3)

10 67001794 Evaporator Heater

W10136415

Clip, Capacitor

W10136414

Overload

(Includes Relay &

Capacitor)

13 61003210 Gasket

W10165425

Thermostat

W10137529

Grommet

16 67006573 Screw

W10169124

Grommet

18 67006132 Condenser

19 67006432 Screw

20 67001080 Tray, Drip

21 67006737 Screw

22 12001919 Evaporator

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

26 13060302 Harness, Unit

27 B2150504 Drier (Service)

W10130129

Compressor

29 2264017 Capacitor

30 67006434 Axle, Roller

W10158508

Shroud

32 67004953 Bracket, Fan Motor

33 67004954 Screw

34 10547003 Clip, Drier

35 67005149 Roller

36 10623002 Clip, Evaporator

37 67005680 Grommet (2)

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.00 Ozs.

(R−134A)
