Whirlpool GR2FHMXVB00 Manuale utente

CABINET PARTS

For Models: GR2FHMXVQ00, GR2FHMXVB00, GR2FHMXVS00, GR2FHMXVY00

(White) (Black) (Stainless Steel) (Apollo Grey)

3−09 Litho In U.S.A. (rrm) (eeb) Part No. W10175703 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: GR2FHMXVQ00, GR2FHMXVB00, GR2FHMXVS00, GR2FHMXVY00

(White) (Black) (Stainless Steel) (Apollo Grey)

W10175703

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10142143

Service &Wiring Sheet

W10173293

Energy Label

Use & Care Guide

W10131409

Bilingual

W10131417

Trilingual

2225623 Modular Icemaker

Service Sheet

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677969 Do−It−Yourself

Manual, Ref./Fzr.

2 2189410 Hinge (Top)

3 2166108 Roller, Front (2)

4 489427 Screw

5 489385 Clamp, Tube

(Water Supply Line)

11 3400504 Screw

12 549193 Clamp, Cord

13 2179826 Rivet

15 489497 Screw

16 2254618 Hinge, Center

17 2183852 Shim, Hinge Center

18 489464 Screw

20 2254473 Hinge Butt

24 Fitting, Water Tube

(NOT SERVICED)

27 Hole Plug (6)

2201012 White

2183998 Black

2254506 Apollo Grey

35 Corner Filler (2)

2201014 White

2201017 Black

2254507 Apollo Grey

36 Grille

(Includes Illus. 39)

2254313 White

2254315 Black

2254530 Apollo Grey

37 489341 Washer, Plain

38 487576 Washer, Nylon

39 2189356 Clip, Grille (2)

40 Cover, Hinge

2213360 White

2213363 Black

2254510 Apollo Grey

41 Rail, Center

(NOT SERVICED)

44 2254576 Cover, Unit

45 Cabinet (Not a

Serviceable Part)

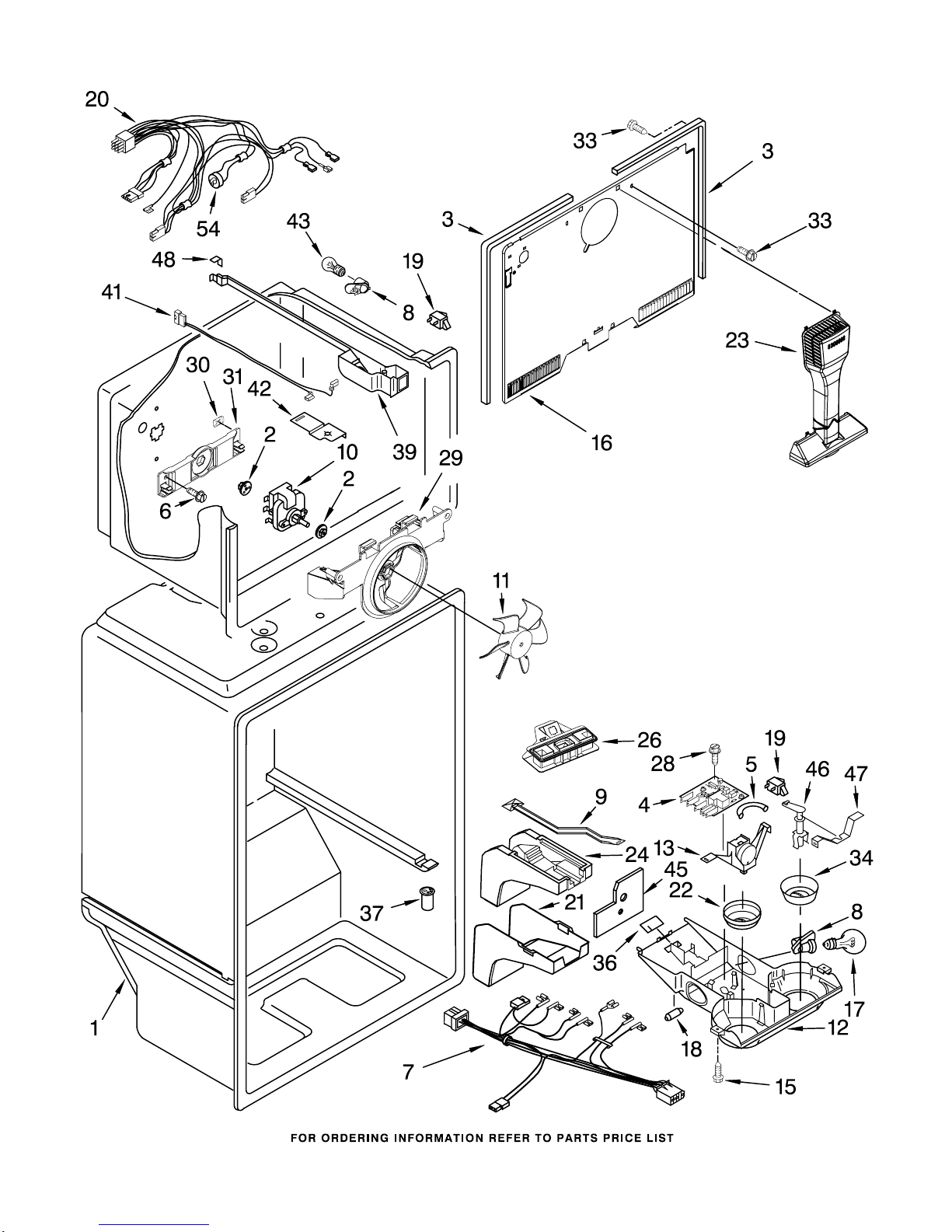

LINER PARTS

For Models: GR2FHMXVQ00, GR2FHMXVB00, GR2FHMXVS00, GR2FHMXVY00

(White) (Black) (Stainless Steel) (Apollo Grey)

W10175703

LINER PARTS

For Models: GR2FHMXVQ00, GR2FHMXVB00, GR2FHMXVS00, GR2FHMXVY00

(White) (Black) (Stainless Steel) (Apollo Grey)

W10175703

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2197380 Grommet (2)

3 2254360 Gasket, Evaporator

Cover

4 2304099 Adaptive,

Defrost Control

5 2212485 Thermostat Tube

Barrier

6 488208 Screw

7 2310057 Wire Assembly,

Control Box

8 2162085 Socket, Light

9 2179858 Damper, Air

10 2315539 Fan Motor

11 2163777 Fan Blade

12 2212982 Control Box

13 2200859 Thermostat Assembly

(Includes

Illus. 5 & 18)

15 489442 Screw

16 2320193 Cover, Evaporator

17 2255743 Light Bulb (2)

18 2200831 Weight, Thermal

19 1118894 Rocker Arm

Switch

W10129795

Wire Assembly,

Freezer Compartment

(Includes

Illus. 54)

21 2176281 Cover, Air

Diffuser

22 2200863 Knob, Thermostat

23 2254354 Air Tower

24 2189452 Air Diffuser,

Bottom

26 2212439 Air Separator

Assembly

28 8534009 Screw

29 2254453 Bracket,

Fan Motor

30 2320183 Retainer−Screw

31 2254454 Bracket

Evap. Fan, Rear

33 489478 Screw

34 2302536 Knob, Damper

36 2205079 Seal, Rear

Thermostat

37 2171931 Valve−Tube, Body

39 2300418 Housing Base

41 2187601 Wiring Harness,

Freezer Light

42 2193491 Electrical Shield,

Freezer Light

43 2260802 Light Bulb

45 2204639 Shield, Heat

46 2179859 Post, Damper

47 2163810 Bracket,

Damper Knob

48 2166284 Gasket, Rear

54 2321800 Defrost, BI−Metal

SHELF PARTS

For Models: GR2FHMXVQ00, GR2FHMXVB00, GR2FHMXVS00, GR2FHMXVY00

(White) (Black) (Stainless Steel) (Apollo Grey)

W10175703

SHELF PARTS

For Models: GR2FHMXVQ00, GR2FHMXVB00, GR2FHMXVS00, GR2FHMXVY00

(White) (Black) (Stainless Steel) (Apollo Grey)

W10175703

Illus. Part

No. No. DESCRIPTION

1 2210522 Shelf, Ladder (2)

2 2300520 Shelf, Ladder

Center

3 2163762 Cup, Shelf Mtg.

5 489478 Screw

6 3400065 Screw

7 2214913 Glass, Shelf

8 2254352 Ice Bucket

9 2314500 Crisper Cover

10 2214911 Shelf Assembly

11 2210573 Glass, Crisper

Cover

12 2214892 Frame Assembly,

Meat Shelf

15 2314478 Crisper, Support

16 2214909 Shelf Assembly,

Spillguard (2)

17 2184667 Shelf, Freezer

19 2218139 Pan, Crisper

(Includes

Illus. 32,36 & 43)

20 2218132 Pan, Meat

32 2176222 Slide, Crisper

36 2212446 Body, Humidity

Control

43 2195341 Trim, Crisper Pan

44 2176357 Trim, Meat Pan

REFRIGERATOR DOOR PARTS

For Models: GR2FHMXVQ00, GR2FHMXVB00, GR2FHMXVS00, GR2FHMXVY00

(White) (Black) (Stainless Steel) (Apollo Grey)

W10175703

REFRIGERATOR DOOR PARTS

For Models: GR2FHMXVQ00, GR2FHMXVB00, GR2FHMXVS00, GR2FHMXVY00

(White) (Black) (Stainless Steel) (Apollo Grey)

W10175703

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes

Illus. 8 & 12)

2202519 White

2204867 Black

2218278 SS/Black Gasket

W10171491

SS/Apollo

2 2300431 Mat, Rubber

(Door Bin)

4 2189202 Bracket, Door

Stop

5 Hole Plug, Endcap

2204837 White

2204840 Black

2254518 Apollo Grey

6 489276 Screw, 8−18 x 3/4

7 Hole Plug

Hinge Sleeve

2212648 White

2212651 Black

2254517 Apollo Grey

8 Door Gasket,

Magnetic

2202875 Mist Beige

2202882 Black

W10171475

Apollo Grey

11 2210566 Housing Compartment

12 2183003 Thimble

13 2195388 Tray, Door

19 Endcap, Handle

2212624 White

2221644 Black

W10171488

Apollo Grey

20 2300425 Bin, Door Shelf (3)

21 2195948 Trim, Door Shelf

22 2218109 Door Compartment

23 2159306 Trim, Door Shelf

38 2177340 Endcap, Door Trim

39 2156006 Plug−Trim

Grey Gasket

UNIT PARTS

For Models: GR2FHMXVQ00, GR2FHMXVB00, GR2FHMXVS00, GR2FHMXVY00

(White) (Black) (Stainless Steel) (Apollo Grey)

W10175703

UNIT PARTS

For Models: GR2FHMXVQ00, GR2FHMXVB00, GR2FHMXVS00, GR2FHMXVY00

(White) (Black) (Stainless Steel) (Apollo Grey)

W10175703

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2320187 Plate, Unit

Mounting

2 2169104 Insulation,

Sound Dampening

3 2214960 Condenser

4 2314157 Heater, Defrost

5 2254249 Evaporator Assy.

6 8533859 Screw

7 2254295 Drain Pan

8 2176301 Bracket, Heater

9 2319835 Grommet−Cond(4)

10 2300638 Extension, Air

Baffle

12 4387731 Cover

(Service Only)

13 4390624 Overload

(Service Only)

14 Grommet (4)

1100826 Production

4387558 Service

15 2225929 Start−Device

Combination

(Start Relay and

Overload for

Production

Compressor Only)

17 2150304 Roller (2)

18 2221797 Rivet

19 2182338 Clip, Heater

20 489373 Screw

21 488500 Screw

22 2201185 Support Block

23 3400518 Screw

26 2255113 Strap, Compressor

27 4387765 Wire Assembly

(Service Only)

28 2218968 Compressor

(Includes Items

12,13,14,27,29,

31 & 32)

29 Drier

2319825 Production

2317845 Service

30 2155774 Wire Tie

31 2183454 Relay

(Service Only)

32 Capacitor

2264017 Production

1118576 Service

39 2315541 Air Baffle

40 2188874 Motor, Condenser

42 2187382 Wire Assy. Unit

43 2225834 Fan Blade

46 2205384 Tube, Discharge

47 2225237 Tube, Suction

48 2154109 Tube, Process

58 2254574 Evaporator Tray

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.0 Ozs.

(R134A)
