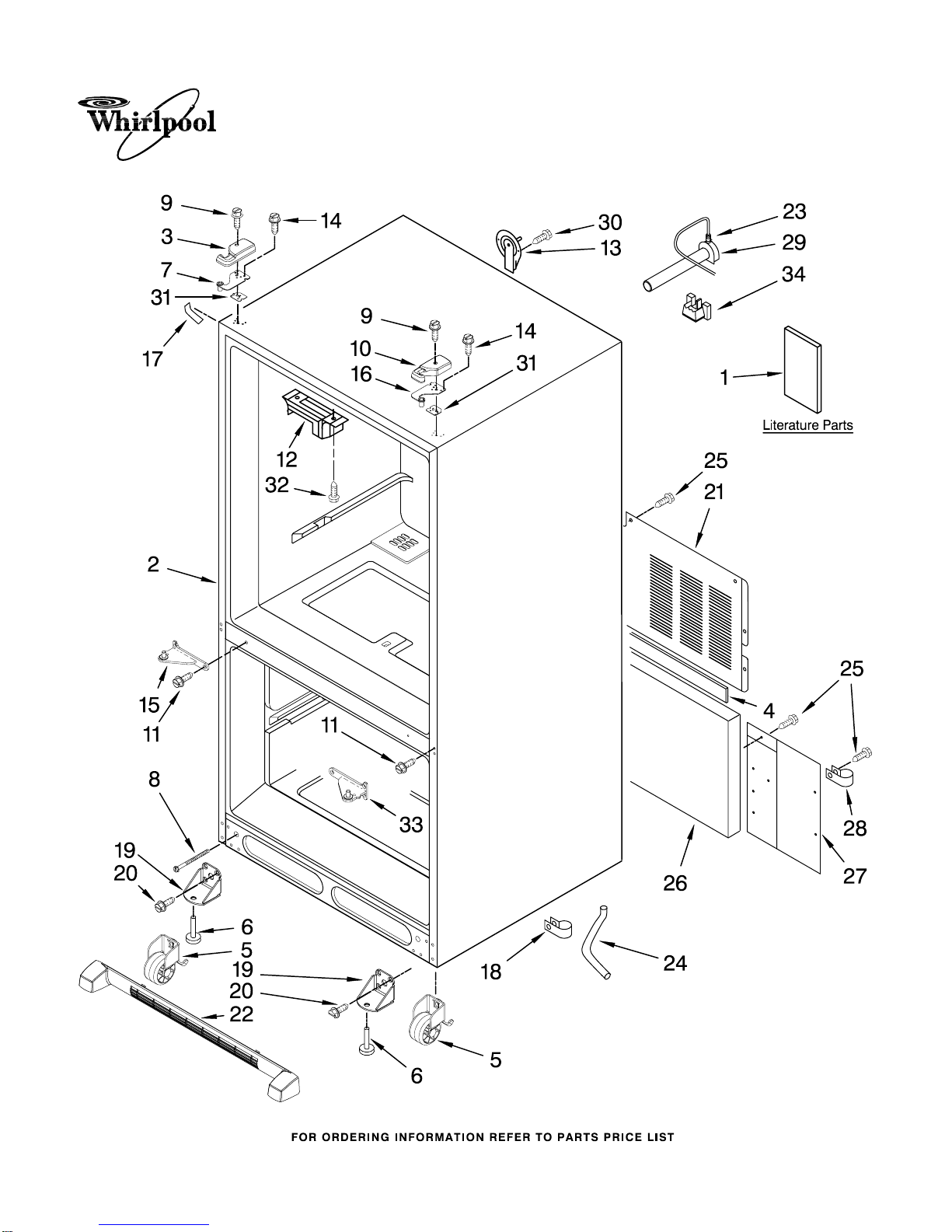

CABINET PARTS

For Models: GX5FHTXVQ00, GX5FHTXVB00, GX5FHTXVA00, GX5FHTXVY00

(White) (Black) (Monochromatic (Monochromatic

Satina) Stainless)

REFRIGERATOR

12−10 Litho in U.S.A. (MMS) (psw) Part No. W10218853 Rev. D

CABINET PARTS

For Models: GX5FHTXVQ00, GX5FHTXVB00, GX5FHTXVA00, GX5FHTXVY00

(White) (Black) (Monochromatic (Monochromatic

Satina) Stainless)

W10218853

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10200283

Use & Care Guide

W10187810

Energy Guide

12827967 Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Cover, Left Hinge

67005953 White

67005951 Black

W10191116

Apollo Grey

4 B5759649 Gasket

5 67006118 Roller Assy. (2)

6 67003868 Foot, Brake

12963204ED

Hinge, Left Top

8 67006611 Bolt, Adjusting

(Front Roller)

9 67006521 Screw

10 Cover, Right Hinge

67005958 White

67005956 Black

W10191117

Apollo Grey

11 67005822 Screw

12 67003405 Block, Pivot

13 67003331 Cover, Water Line

14 67006303 Screw (3)

15 Hinge, Center (LT)

67006277 White

67006442 Black

W10191142

Apollo Grey

12963205ED

Hinge, Right Top

17 Cover, Corner

67003484 White

67003485 Black

W10191102

Apollo Grey

W10157973

Clip, Drain

19 67007174 Bracket, Foot (2)

20 67006564 Screw (4)

12575101ED

Cover, Unit

22 Grille, Toe

67006377 White

67006375 Black

W10191107

Apollo Grey

23 M0114003 Clip, Speed

W10164397

Tube, Drain

25 67006425 Screw

26 67003796 Fiber, Acoustic

27 67004098 Cover, Water Valve

28 M0108105 Clamp, Tube

W10137519

Elbow, Fill Tube

30 67006287 Screw

31 Shim, Top Hinge

67006308 Left

67006309 Right

32 67006669 Screw, Block

33 Hinge, Center (RT)

67006379 White

67006443 Black

W10191143

Apollo Grey

34 67004092 Block, Filter

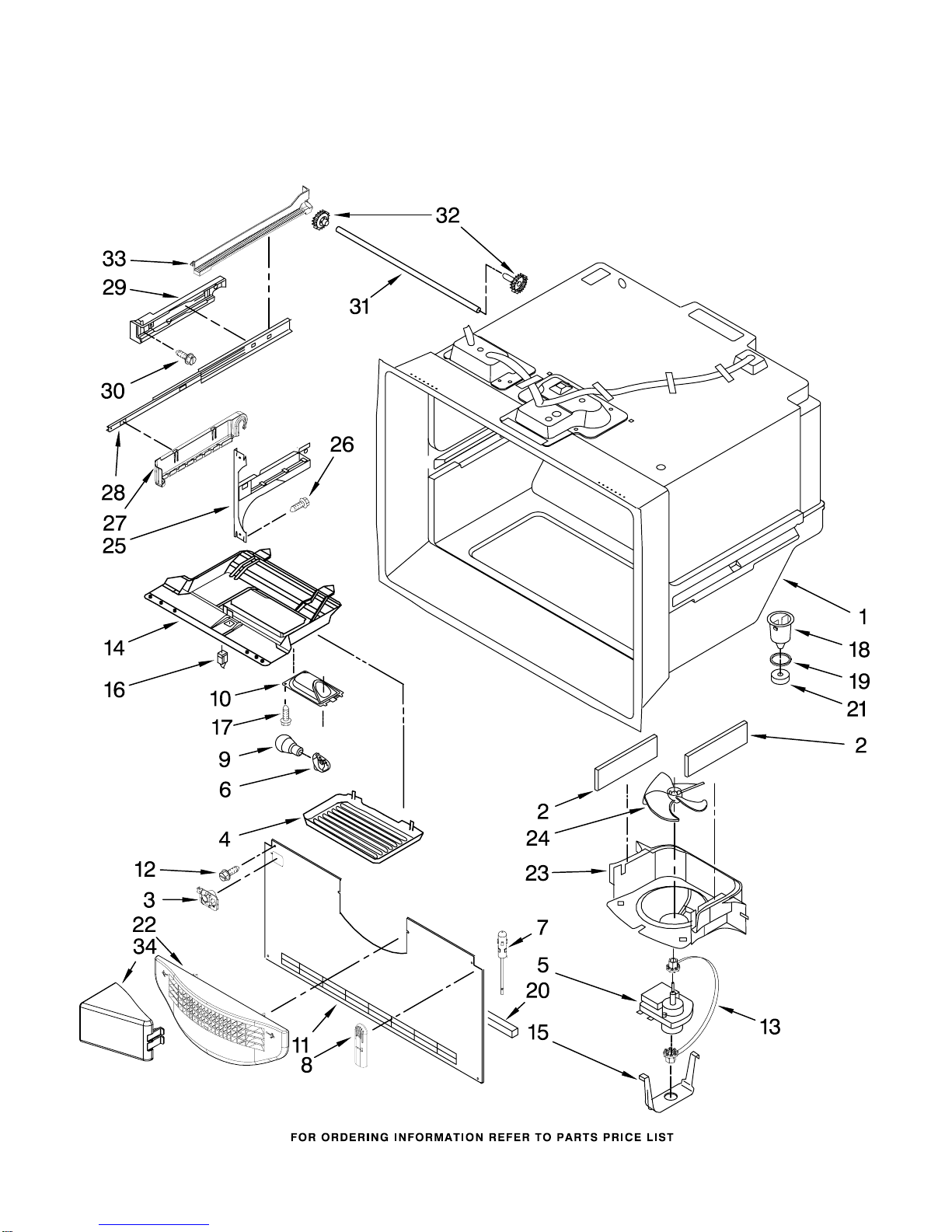

FREEZER LINER PARTS

For Models: GX5FHTXVQ00, GX5FHTXVB00, GX5FHTXVA00, GX5FHTXVY00

(White) (Black) (Monochromatic (Monochromatic

Satina) Stainless)

W10218853

FREEZER LINER PARTS

For Models: GX5FHTXVQ00, GX5FHTXVB00, GX5FHTXVA00, GX5FHTXVY00

(White) (Black) (Monochromatic (Monochromatic

Satina) Stainless)

W10218853

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 67005874 Guide, Fill Tube

4 67003905 Cover, Light

W10128551

Motor, Evaporator

Y12570701

Socket, Light

7 12002355 Thermistor

8 67003924 Cover, Thermistor

9 A0282812 Bulb, Light

10 67001035 Housing, Light

11 67005873 Cover, Evaporator

12 67006425 Screw

W10121318

Grommet

14 67003906 Module, Light

W10208652

Clip, Evap. Motor

16 67005653 Switch, Light

17 67006530 Screw

18 D7753903 Funnel, Drain

19 M0500703 Seal

20 67002492 Gasket, Bottom

21 B8381501 Gasket

W10175909

Grille, Fz Air

W10167023

Shroud, Evap.Fan

24 2169142 Blade, Fan

(Evaporator)

25 Bracket, Door

W10122147

Left

W10122148

Right

26 67006473 Screw (8)

27 Cradle, Basket

W10187668

Left

W10187667

Right

W10120018

Slide, Drawer (2)

29 Adapter, Slide

W10149390

Left

W10149391

Right

30 67006406 Screw (6)

31 67004017 Shaft

32 Gears

67006407 RH

67004430 LH

33 Rail, Side

W10146443

Left

W10146444

Right

W10157765

Diverter, Air

Following Parts Not Illustrated

67006095 Harness, Lights

(Freezer)

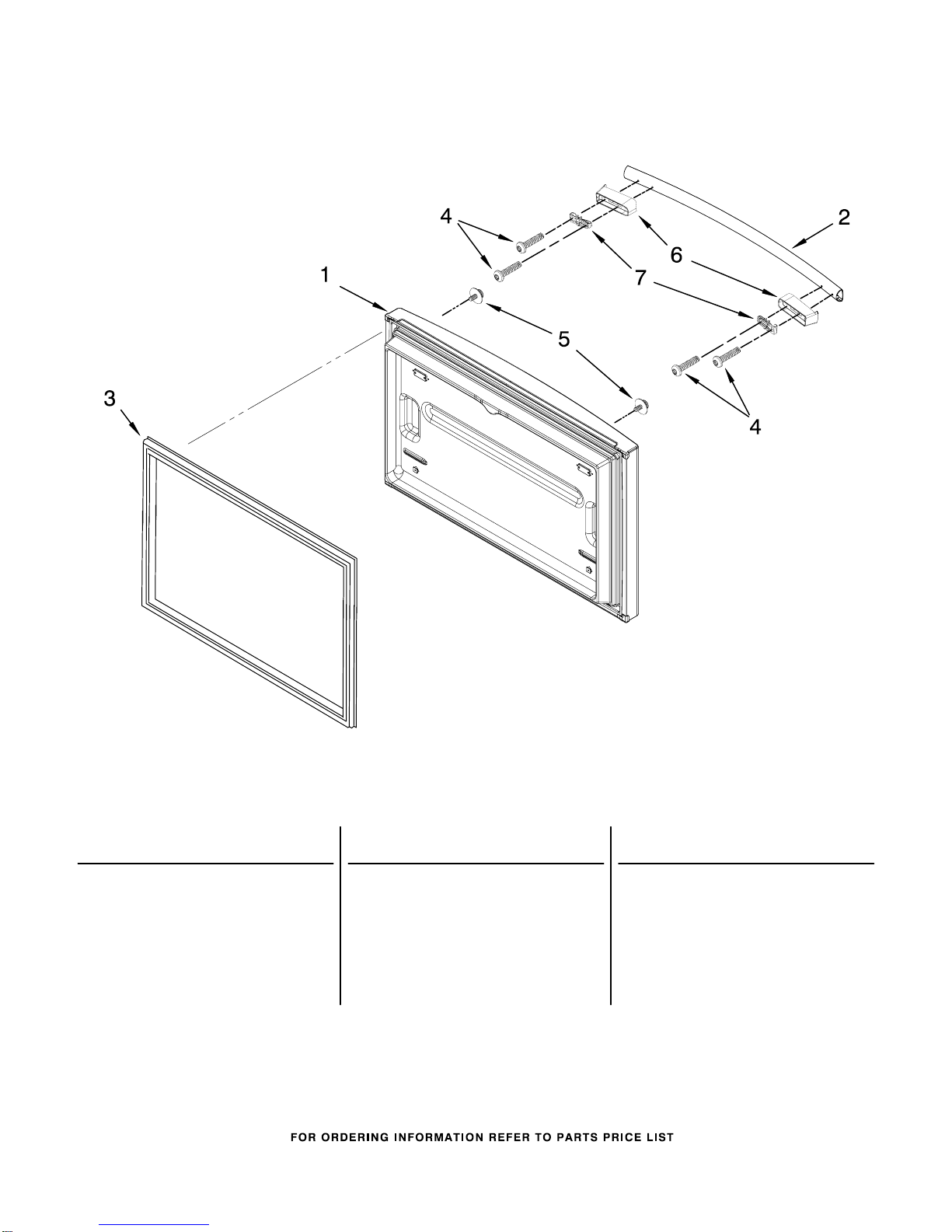

FREEZER DOOR PARTS

For Models: GX5FHTXVQ00, GX5FHTXVB00, GX5FHTXVA00, GX5FHTXVY00

(White) (Black) (Monochromatic (Monochromatic

Satina) Stainless)

W10218853

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Door, Freezer

W10199889

White

W10199891

Black

W10199885

Stainless

W10205735

Satina

2 Handle, Door

W10159708

White

W10159709

Black

W10159711

Stainless

3 Gasket, Door

W10164040

White

W10164041

Black

W10164042

Apollo Grey

W10201588

Screw, Handle

5 12992902 Mount, Handle

6 Endcap, Handle

W10157435

White

W10157436

Black

W10172586

Stainless

13067102SP

Clip, Handle

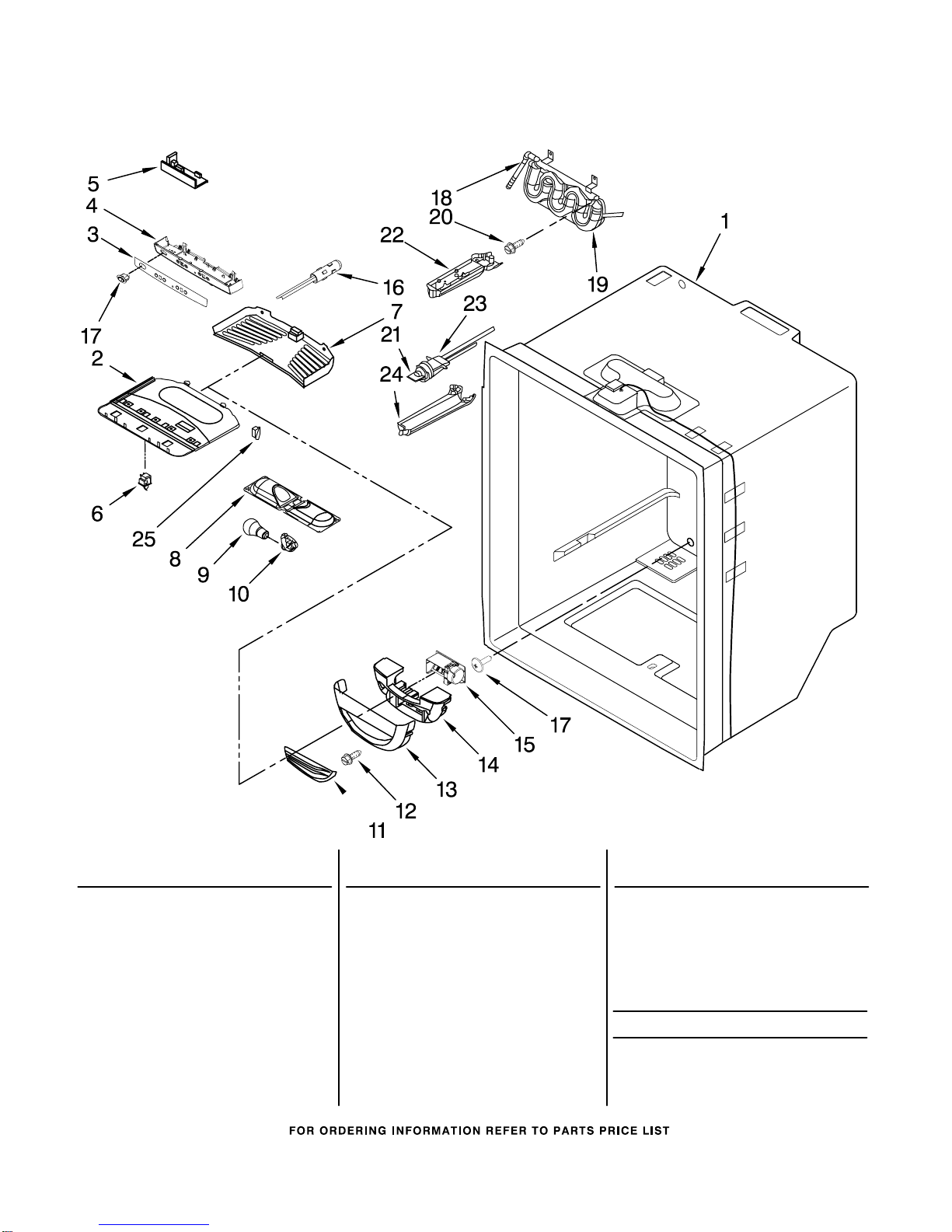

REFRIGERATOR LINER PARTS

For Models: GX5FHTXVQ00, GX5FHTXVB00, GX5FHTXVA00, GX5FHTXVY00

(White) (Black) (Monochromatic (Monochromatic

Satina) Stainless)

W10218853

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 67004078 Module, Light

W10180451

Overlay

W10190014

Module, Control

W10165748

Board, Control

6 C3680310 Switch, Light (2)

7 67003897 Cover, Light

8 67003901 Housing, Light

9 A0282812 Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67003900 Insert,

Damper Cover

12 67006602 Screw

13 67003899 Cover, Damper

14 67006604 Insulation

W10127429

Control, Damper

(Includes Harness)

16 12002355 Thermistor

17 67003940 Switch, Energy

Saver

18 61006182 Union

W10153959

Tank, Water

20 67006400 Screw

21 12664501 Plug, Filter

Bypass

22 67001668 Plate, Filter

23 67006524 Head Water Filter

Assembly

24 12568001 Cover, Filter

25 8171036 Switch, Limit

Following Parts Not Illustrated

67004032 Harness, Controls

(Refrigerator)

UKF8001 Filter, Water

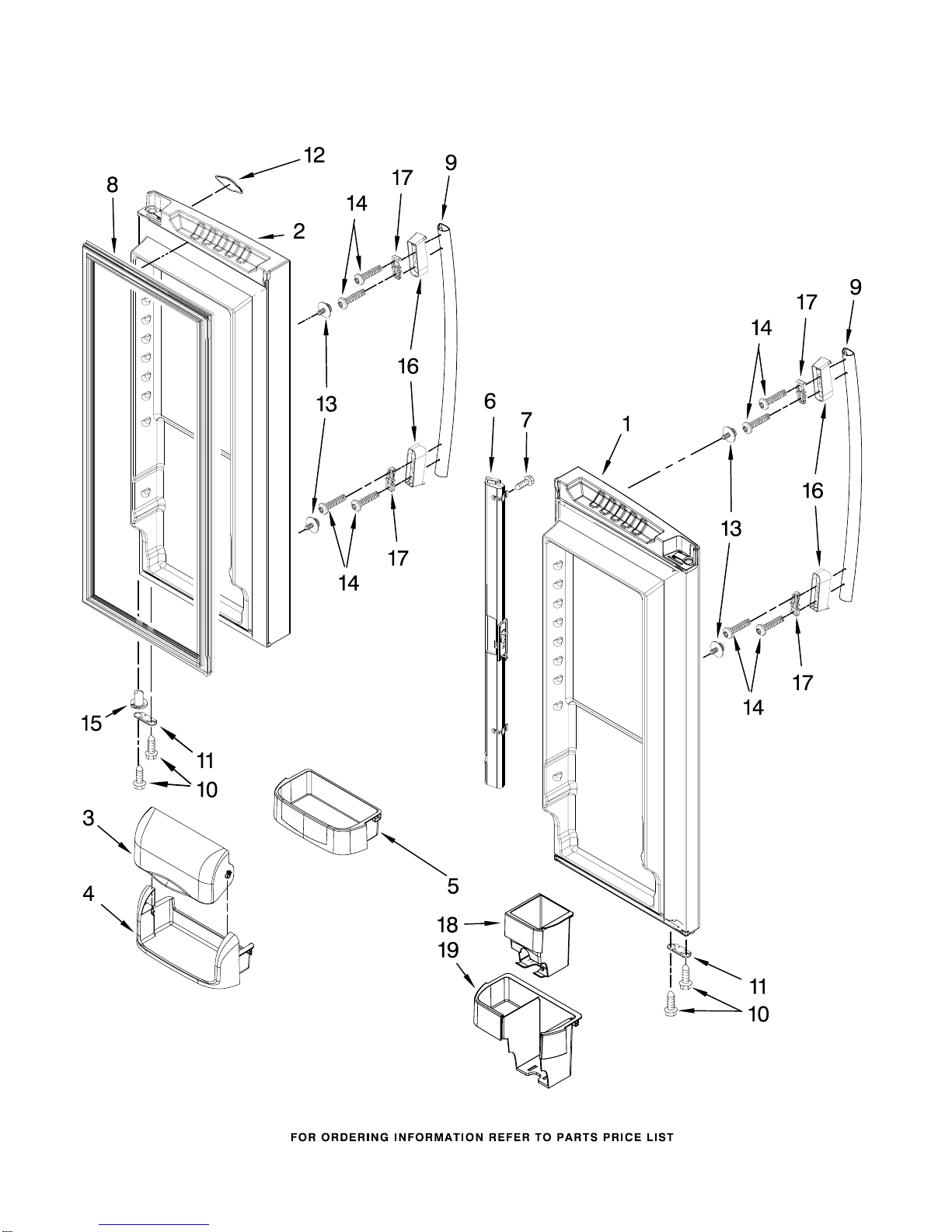

REFRIGERATOR DOOR PARTS

For Models: GX5FHTXVQ00, GX5FHTXVB00, GX5FHTXVA00, GX5FHTXVY00

(White) (Black) (Monochromatic (Monochromatic

Satina) Stainless)

W10218853

REFRIGERATOR DOOR PARTS

For Models: GX5FHTXVQ00, GX5FHTXVB00, GX5FHTXVA00, GX5FHTXVY00

(White) (Black) (Monochromatic (Monochromatic

Satina) Stainless)

W10218853

Illus. Part

No. No. DESCRIPTION

1 Door, Left

W10199095

White

W10199872

Black

W10199868

Satina

W10199863

Stainless

2 Door, Right

W10199092

White

W10200711

Black

W10199871

Satina

W10199865

Stainless

3 67003637 Door, Dairy

4 67001279 Tray, Dairy

5 Bucket, Door

67003777 Medium (3)

67003768 Gallon (1)

6 Mullion, Door

67003263 White

67003264 Black

W10199882

Apollo Grey

7 67006786 Screw

8 Gasket, Door

W10163894

White

W10163895

Black

W10179332

Apollo Grey

9 Handle, Door

W10157427

White

W10157428

Black

W10157430

Stainless

10 67006287 Screw

11 Stop, Door

12968202W

White

67007011 Black

W10191119

Apollo Grey

12 2220214 Nameplate

13 12992902 Mount, Handle

W10201588

Screw, Handle

15 Closure, Door

67003638 White

67003639 Black

W10191100

Apollo Grey

16 Endcap, Handle

W10157431

White

W10157432

Black

W10157434

Apollo Grey

W10172585

Nickel

13067102SP

Clip, Handle

13005401SP

Sleeve, Can

Dispenser

W10169346

Bucket, Can

Dispenser

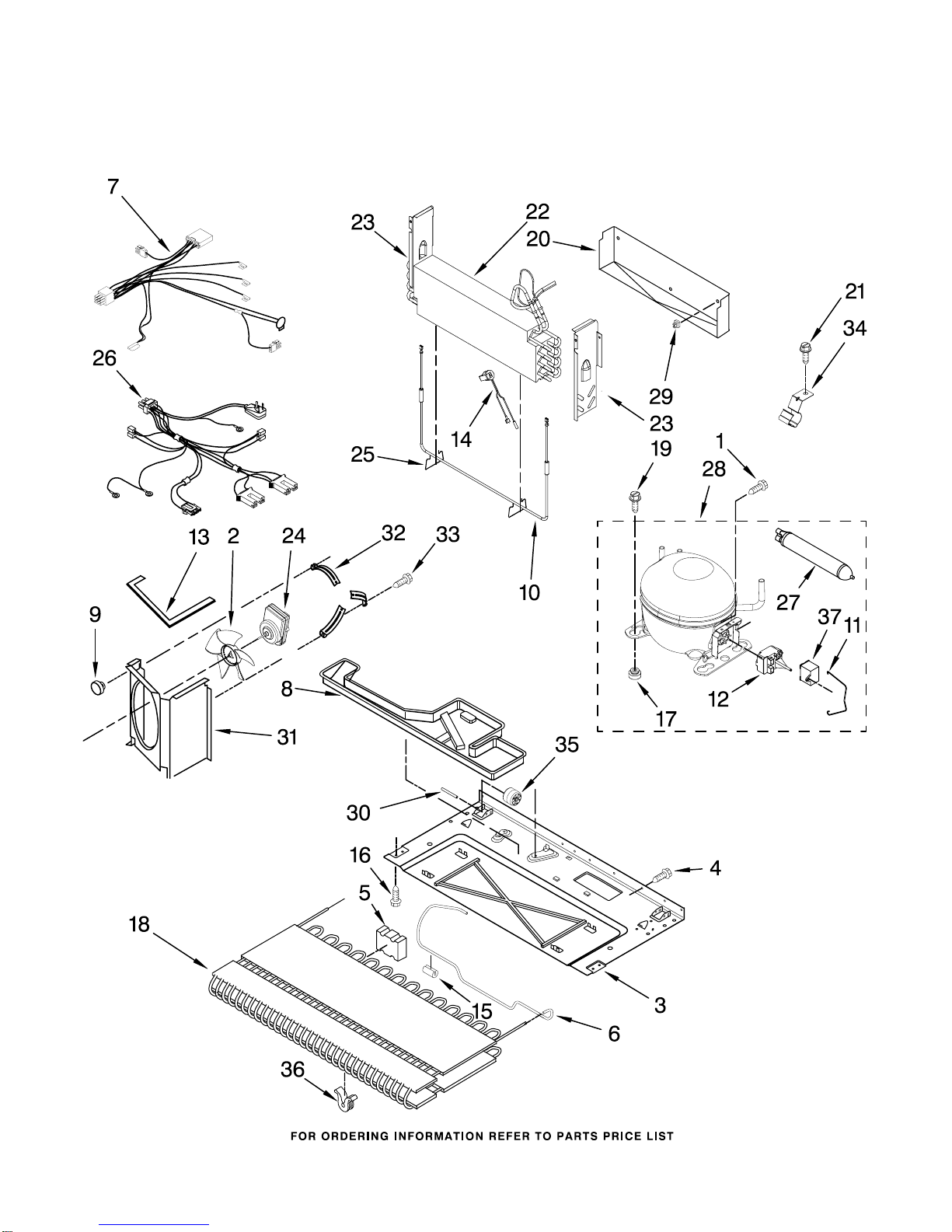

UNIT PARTS

For Models: GX5FHTXVQ00, GX5FHTXVB00, GX5FHTXVA00, GX5FHTXVY00

(White) (Black) (Monochromatic (Monochromatic

Satina) Stainless)

W10218853

UNIT PARTS

For Models: GX5FHTXVQ00, GX5FHTXVB00, GX5FHTXVA00, GX5FHTXVY00

(White) (Black) (Monochromatic (Monochromatic

Satina) Stainless)

W10218853

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

W10162928

Blade, Fan

3 67005889 Basepan

4 67006425 Screw

5 67005491 Block, Condenser

W10134293

Tube, Discharge

W10119856

Harness, Evap.

Heater

8 67007175 Pan, Drain

9 61004743 Grommet (3)

10 67002493 Heater, Defrost

11 2255199 Clip, Retainer

W10128791

Start Device

13 61003210 Gasket

W10165425

Thermostat,

Defrost

15 67005680 Grommet (2)

16 67006573 Screw

W10169124

Grommet (4)

18 67006131 Condenser

19 67006432 Screw

20 67002490 Tray, Drip

21 67006737 Screw

22 12002041 Evaporator Kit

(Incl. Evap., Heat

Shield, & Instr.

Sheet)

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

W10188474

Harness, Unit

with Power Cord

W10143759

Drier

W10134623

Compressor

(Includes items

11,12,17,27)

29 10623002 Clip, Evaporator

30 67006434 Axle, Roller (2)

31 12575309 Shroud

32 67004953 Bracket, Fan Motor

33 67004954 Screw

34 10547003 Clip, Drier

35 67005149 Roller (2)

W10137529

Grommet, Cond. (4)

37 2264017 Capacitor

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.25 Ozs.

(R−134A)
