CABINET PARTS

For Models: ET8WTKXKQ00, ET8WTKXKT00, ET8WTKXKB00

(White) (Biscuit) (Black)

05−01 Litho In U.S.A. (sg) Part No. 8197694

REFRIGERATOR

CABINET PARTS

For Models: ET8WTKXKQ00, ET8WTKXKT00, ET8WTKXKB00

(White) (Biscuit) (Black)

8197694

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT2213196

Service &

Wiring Sheet

LIT2218150

Energy Label

LIT2205266

Use & Care Guide

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677969

Do−It−Yourself

Manual, Ref./Fzr.

2 2189410 Hinge (Top)

3 2166108 Roller−Front (2)

5 489385 Clamp, Tube

(Water Supply Line)

7 2179826 Rivet

8 3400504 Screw

12 549193 Clamp−Cord

15 489497 Screw

16 2183972 Hinge, Center

17 2183854 Shim, Hinge

Center

18 3400881 Screw

20 2189194 Hinge Butt

23 2172743 Shim, Bottom

Hinge

24 Fitting, Water Tube

(NOT SERVICED)

27 Hole Plug (6)

2201012 White

2200924 Biscuit

2183998 Black

29 8281206 Screw

35 Corner Filler (2)

2201014 White

2200926 Biscuit

2201017 Black

36 Grille

2201009 White

2201021 Biscuit

2201011 Black

37 489341 Washer

38 487576 Washer

39 2189356 Clip−Grille

40 Cover−Hinge

2213360 White

2213364 Biscuit

2213363 Black

41 Rail, Center

(NOT SERVICED)

44 2202883 Cover, Unit

45 Cabinet (Not a

Serviceable Part)

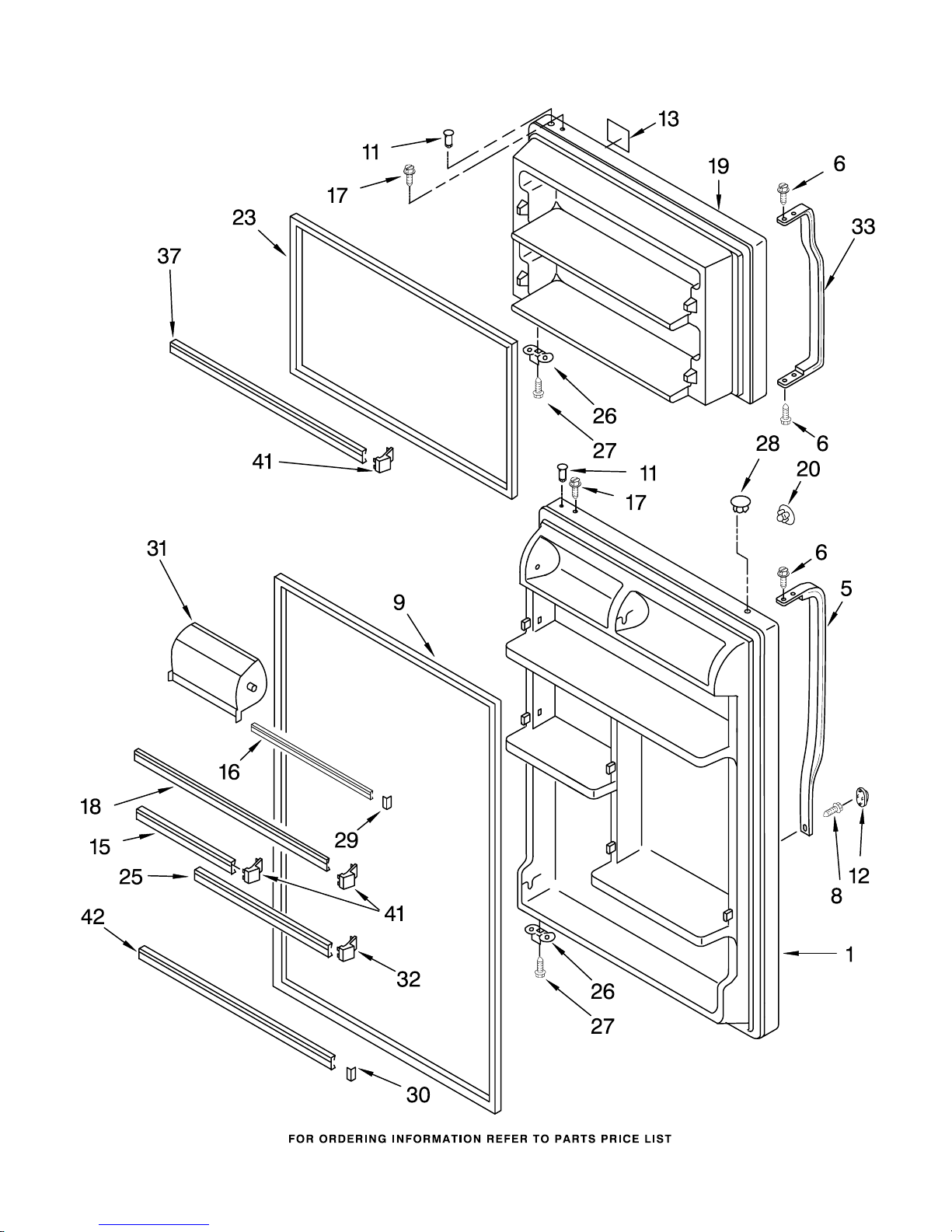

DOOR PARTS

For Models: ET8WTKXKQ00, ET8WTKXKT00, ET8WTKXKB00

(White) (Biscuit) (Black)

8197694

DOOR PARTS

For Models: ET8WTKXKQ00, ET8WTKXKT00, ET8WTKXKB00

(White) (Biscuit) (Black)

8197694

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes #9 & #11)

2183948 White

2205285 Biscuit

2213386 Black

5 Handle, R.C.

2202807W White

2202807T Biscuit

2202807B Black

6 489357 Screw

8 8281146 Screw

9 Door Gasket,

Magnetic

2159057 Mist Beige

2177305 Black

11 2183003 Thimble

12 Cover, Screw

2202819W White

2202819T Biscuit

2202819B Black

13 Nameplate

2157907 White

2213233 Biscuit

2152334 Black

15 2201052 Trim, Door

16 2180027 Trim, Door Shelf

17 3400518 Screw

18 2201051 Trim, Door

19 Freezer Door

(Includes #11 & #23)

2182487 White

2205279 Biscuit

2200710 Black

20 Hole Plug

2189000 White

2200936 Biscuit

2189009 Black

23 Door Gasket,

Magnetic

2159327 Mist Beige

2177304 Black

25 2195943 Trim, Door Shelf

26 2189202 Bracket, Door

Stop (2)

27 488921 Screw

28 Hole Plug

844478 White

2200934 Biscuit

2160808 Black

29 2156007 Plug−Trim (4)

30 2156006 Plug−Trim (4)

31 2188396 Compartment Door

32 2195915 Plug−Trim

33 Handle, F.C.

2202806W White

2202806T Biscuit

2202806B Black

37 2201050 Trim−Door (2)

41 2156003 Endcap (4)

42 2195949 Trim, Door

LINER PARTS

For Models: ET8WTKXKQ00, ET8WTKXKT00, ET8WTKXKB00

(White) (Biscuit) (Black)

8197694

LINER PARTS

For Models: ET8WTKXKQ00, ET8WTKXKT00, ET8WTKXKB00

(White) (Biscuit) (Black)

8197694

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 531933 Grommet (2)

3 2189268 Gasket, Evaporator

Cover (Side)

4 2213100 Control

Adaptive Defrost

5 2204640 Thermostat Tube

Barrier

6 941839 Hole Plug

7 2187350 Wire Assy.

Control Box

8 2162085 Socket, Light (2)

10 2183833 Fan Motor

11 2163777 Fan Blade

12 2212980 Control Box

13 2204605 Thermostat Assembly

(Includes Item 5)

14 489478 Screw

15 489412 Screw

16 2201170 Cover−Evaporator

17 2160708 Light Bulb

19 1118894 Rocker Arm

Switch

21 2176281 Cover, Air

Diffuser

22 2202885 Knob, Thermostat

23 2182340 Air Tower

24 2189452 Air Diffuser,

Bottom

25 2172565 Freezer Floor

26 2179877 Air Diffuser, Top

27 2205003 Cover, Hole

29 2200641 Bracket,

Fan Motor

30 2189267 Gasket, Evaporator

Cover (Top)

31 2204639 Shield, Heat

32 487996 Cap

33 2187301 Wire Assembly,

Freezer Compartment

39 2171931 Release Valve

42 98129 Screw

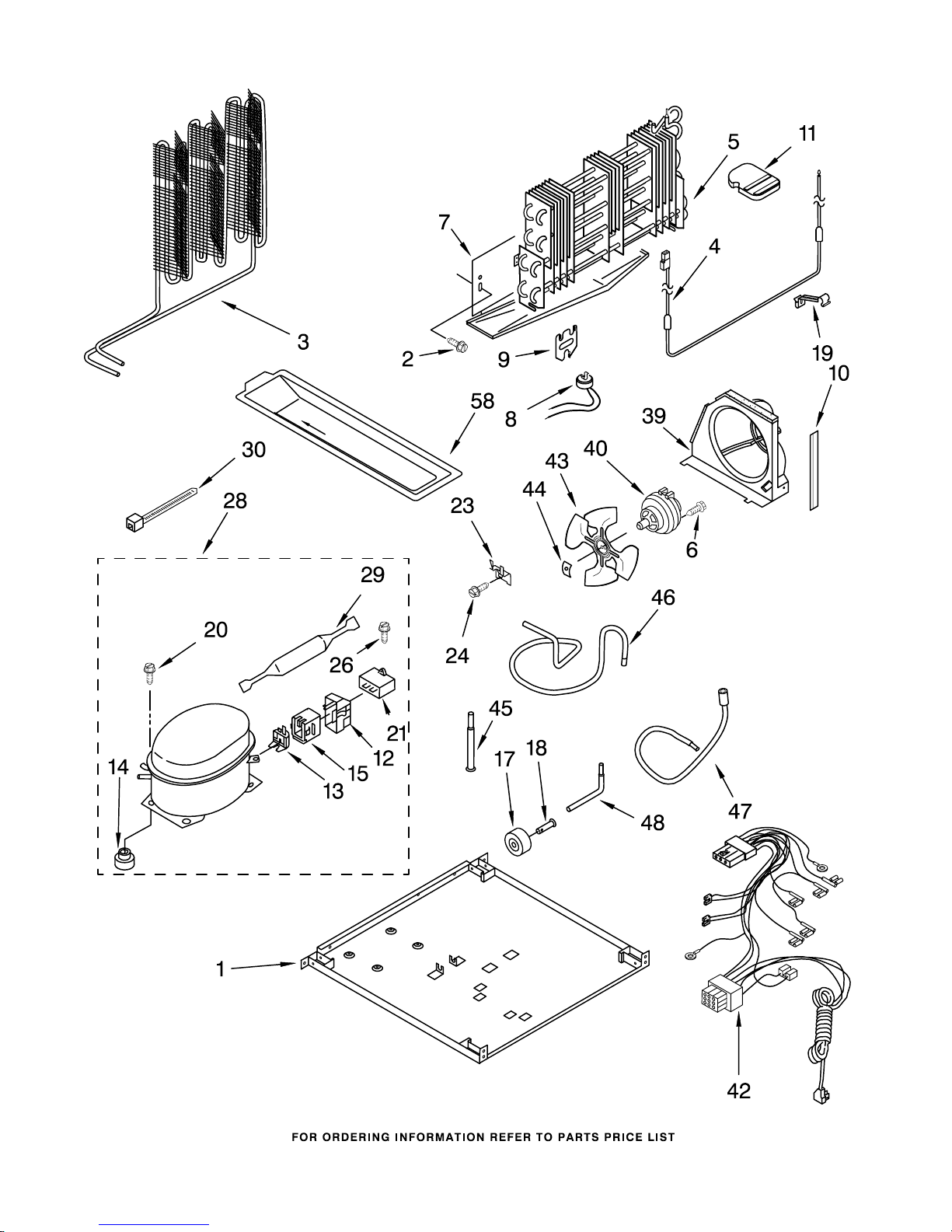

UNIT PARTS

For Models: ET8WTKXKQ00, ET8WTKXKT00, ET8WTKXKB00

(White) (Biscuit) (Black)

8197694

UNIT PARTS

For Models: ET8WTKXKQ00, ET8WTKXKT00, ET8WTKXKB00

(White) (Biscuit) (Black)

8197694

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2205341 Plate, Unit

Mounting

2 489478 Screw

3 2212599 Condenser

4 2176300 Heater, Defrost

5 2195391 Evaporator Assy.

6 489494 Screw

7 2172619 Drain Pan

8 2182380 Defrost Bi−Metal

9 2176301 Bracket, Heater

10 2163780 Extension, Air

Baffle

11 2201184 Support Block

12 4387731 Cover

13 Overload

4387938 Service

(Includes Relay)

14 Grommet (4)

1100826 Production

4387558 Service

15 2213106 Start Device

Combination

(Start Relay and

Overload for

Production

Compressor Only)

17 2150304 Roller (2)

18 981126 Rivet

19 2182338 Clip, Heater

20 489373 Screw

21 2169373 Capacitator

23 2166683 Clip, Capacitator

24 489427 Screw

26 488500 Screw

28 2212912 Compressor

(Includes Items

12,13,14,15,20,

21, & 29)

(Also Order

482801

Installation Kit

& 876765

Tube Kit)

29 Drier

2199167 Production

4387019 Service

30 2155774 Clamp

39 2198921 Air Baffle

40 2188537 Motor, Condenser

42 2187358 Wire Assy. Unit

43 2190685 Fan Blade

44 486692 Nut

45 2212603 Tube, Transition

46 2205294 Tube, Discharge

47 2205293 Tube, Suction

48 2212848 Tube, Process

58 2210451 Evap. Tray

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

4.00 Ozs.

(R134A)

SHELF PARTS

For Models: ET8WTKXKQ00, ET8WTKXKT00, ET8WTKXKB00

(White) (Biscuit) (Black)

8197694

Illus. Part

No. No. DESCRIPTION

1 841180 Ice Tray (2)

2 2163856 Shelf (2)

3 2195342 Cover, Crisper

4 2201023 Pan, Crisper

5 2163762 Cup, Shelf Mounting

6 2172541 Support, Crisper

Cover

7 2163835 Track, Crisper

8 2189453 Shelf

9 2201022 Pan, Crisper

10 2169921 Insert, Crisper

Cover

11 2210522 Shelf Ladder (2)

12 2202821 Shelf Ladder,

Center

14 2201031K Meat Pan

15 2163848 Cover, Meat Pan

16 489478 Screw

OPTIONAL PARTS

For Models: ET8WTKXKQ00, ET8WTKXKT00, ET8WTKXKB00

(White) (Biscuit) (Black)

8197694

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

Miscellaneous

978941 Insulation,

Fiberglass

(63−1/2" x 35−1/2"

x 2−5/8")

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4" x 108")

876305 Kit, Insulation

(14 Pcs.

3" x 24" x 48")

876370 Kit, Insulation

(2 Pcs.

3" x 24 " x 48")

876029 Kit, Foam Slab

(30" x 32−1/2" x

1−1/2")

505587 Sealer, Mastic

(1 Qt.)

511873 Touch−Up, White

Porcelain (2 Oz.)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

606755 Bag, Insulation

(36−5/8" x 46")

799833 Kit, Evaporator

Repair

(Aluminum Epoxy)

799832 Kit, Porcelain

Repair (White)

503695 Cork Sealer

(1/4 Pound)

Customer Touch−Up Material

350942 Primer, White

(13 Oz. Spray Can)

350939 Enamel, Black

(13 Oz. Spray Can)

350930 Enamel, White

(13 Oz. Spray Can)

350956 Enamel, Almond

(13 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

72107 Brush Touch−Up Kit

(Almond)

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

978883 Enamel, Almond

(1 Qt. Uncut)

833938 Kit, Terminal

Connector

Caution: The spray paint is

not to be used where the paint

may make contact with the door

gaskets.

FIELD INSTALLABLE

ICE MAKER

2155469 ECKMF94

TORX SCREW WRENCH

1117510 Torx Key
