MOTOR AND DRIVE PARTS

For Models: GX900QPPB2, GX900QPPQ2, GX900QPPT2, GX900QPPS2

(Black) (White) (Biscuit) (Stainless Steel)

11−05 LITHO IN U.S.A. (ebk) Part No. 882791

TRASH

COMPACTOR

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9872208 Use & Care Guide

9871765 Sheet, Tech

8052029 Label, 1−800

Number

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

677821 Do−It−Yourself

Manual

2 9870343 Motor, Drive

(Includes Item 13)

3 9871067 Screw,

4 776327 Plate, Motor

5 776338 Locknut, 10−32 (4)

6 4149667 Gear, Drive

7 454512 Pin, Slotted

Spring

8 776035 Washer, Wave

9 297462 Washer, Thrust

10 777124 Gear, Driven

11 776036 Clip, Ring

12 780477 Chain, Drive

13 777971 Switch, Motor

Parts Not Illustrated and

Optional Parts (Not Included)

9870118 Undercounter

Conversion Kit

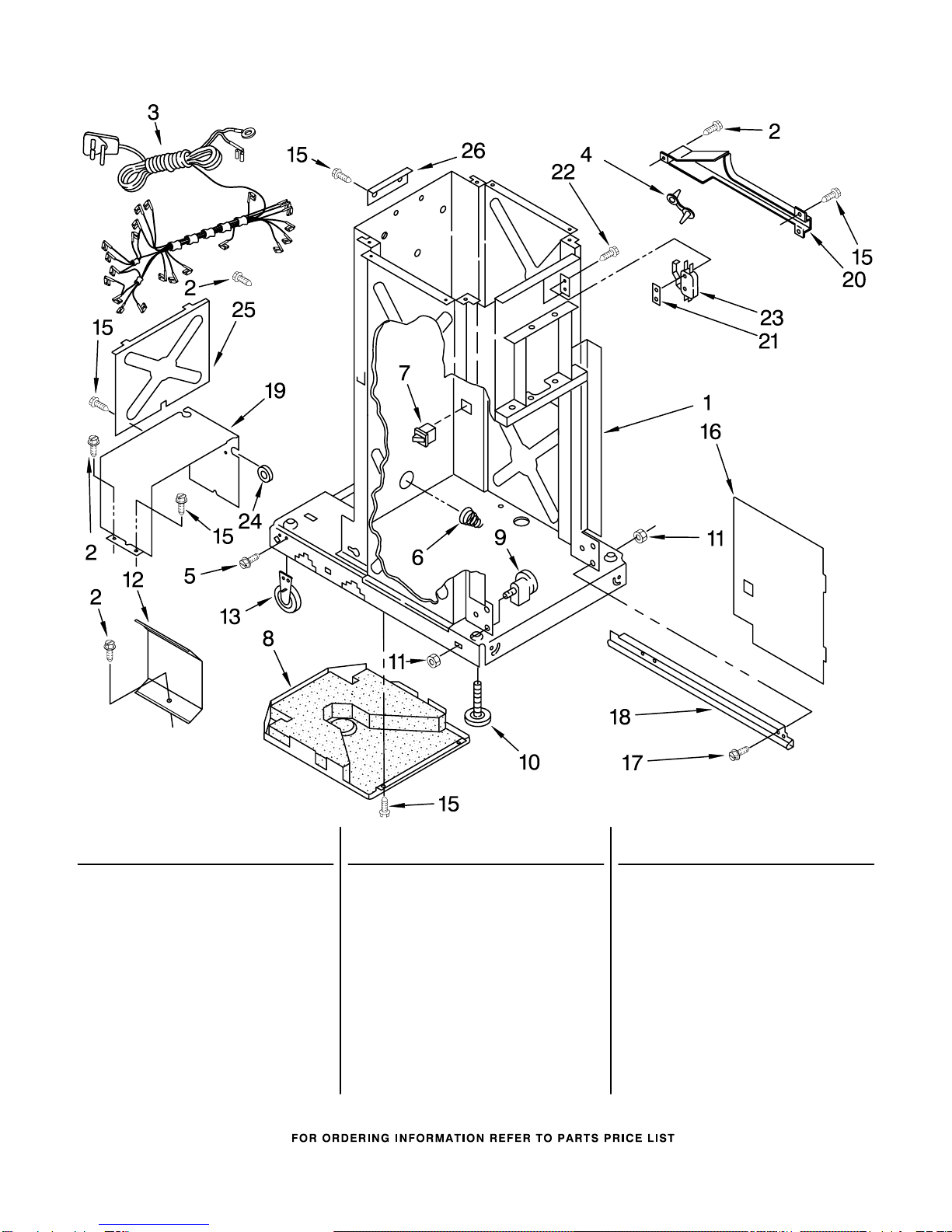

FRAME PARTS

For Models: GX900QPPB2, GX900QPPQ2, GX900QPPT2, GX900QPPS2

(Black) (White) (Biscuit) (Stainless Steel)

882791

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Frame (Not A

Serviceable Part)

2 4152204 Screw, 8−18 x 5/16

3 9872115 Cord, Power

4 777035 Clamp, Wire

5 780034 Screw,

10−24 x 3/8

6 777180 Spring,

Container

7 4149377 Switch, Drawer

Safety

8 9870167 Pan, Bottom

9 4153788 Bearing, Roller (2)

10 775526 Bolt, Leveler

11 776356 Locknut, 3/8−24

12 9870867 Shield, Slide

Track(2)

13 9870585 Wheel,

Leveler (2)

15 489478 Screw,

8−18 x 1/2

16 9870444 Panel, Inner

17 777458 Screw, 6−32 x 3/8

18 9870976 Frame, Slide

(R.H.)

9870975 Frame, Slide

(L.H.)

19 780434 Cover, Motor

20 4149659 Shield, Harness

21 777850 Nut, Plate

22 777849 Screw, 6−20 x 1

23 777811 Switch, Top Limit

& Directional

24 776118 Grommet,

Motor Cover

25 608009 Plate, Cover

26 775668 Angle, Frame Plate

PANEL AND CONTROL PARTS

For Models: GX900QPPB2, GX900QPPQ2, GX900QPPT2, GX900QPPS2

(Black) (White) (Biscuit) (Stainless Steel)

882791

PANEL AND CONTROL PARTS

For Models: GX900QPPB2, GX900QPPQ2, GX900QPPT2, GX900QPPS2

(Black) (White) (Biscuit) (Stainless Steel)

882791

Illus. Part

No. No. DESCRIPTION

1 Panel, Front

9871073 White

9871575 Biscuit

9871072 Black

2 489478 Screw, 8−18 x 1/2

3 9870125 Bracket, Protector

4 777070 Screw 8−32 X 5/16

7 777380 Switch, Rotary

8 4155141 Knob, Switch

9 Plate, Switch

9870356 White

9871642 Biscuit

9871161 Black

11 9871825 Cover, Top

(Recessed)

13 Switch,

Drawer Tilt

4152058 White

9871829 Black

14 9871824 Assembly, Switch

15 246131 Screw,

6−20 x 3/8

16 Escutcheon, Control

9872039W White

9872039T Biscuit

9872039B Black

19 Insert, Console

9872017W White

9872017T Biscuit

9872017B Black

21 9871993 Bracket, Retainer

24 777383 Nut, Rotary Switch

25 3400888 Screw

28 780239 Bracket,

Mounting (2)

(Alternate)

CONTAINER PARTS

For Models: GX900QPPB2, GX900QPPQ2, GX900QPPT2, GX900QPPS2

(Black) (White) (Biscuit) (Stainless Steel)

882791

CONTAINER PARTS

For Models: GX900QPPB2, GX900QPPQ2, GX900QPPT2, GX900QPPS2

(Black) (White) (Biscuit) (Stainless Steel)

882791

Illus. Part

No. No. DESCRIPTION

1 3400888 Screw 8−18 X 1/2

2 Handle, Container

9872040W White

9872040T Biscuit

9872040B Black

3 Panel, Container

Front

9871309 White

9871574 Biscuit

9871311 Black

9871770 Stainless

5 884573 Container

Assembly

7 3196175 Screw 8−18 X 1/2

9 776395 Guide, Rear

Latch

10 9870066 Latch Assembly

14 Pedal, Foot

9871031 White

9871577 Biscuit

4149672 Black

15 9871125 Actuator,

Safety Switch

16 9871602 Bearing Roller

Container (2)

17 776356 Locknut,

3/8−24 (2)

18 4147703 Retainer, Bag

(Contains 4 Each)

19 780263 Screw, Shoulder

8−16 x 7/16 (2)

20 776654 Pin

21 775736 Spring

22 775735 "E" Ring

25 4152204 Screw 8−18 X 5/16

26 775665 Plate, Latch

27 Guard, Toeplate

9871030 White

9871578 Biscuit

777328 Black

28 489478 Screw 8−18 X 1/2

POWERSCREW AND RAM PARTS

For Models: GX900QPPB2, GX900QPPQ2, GX900QPPT2, GX900QPPS2

(Black) (White) (Biscuit) (Stainless Steel)

882791

Illus. Part

No. No. DESCRIPTION

1 9870500 Screw, Power

Complete

Assembly (2)

2 Screw, Power

(Available Only

As Complete

Assembly)

3 779121 Plate, Bearing (2)

4 775482 Bearing, Needle (2)

5 776941 Hub, Power

Screw (2)

6 775481 Race, Thrust (4)

7 777385 Sprocket,

Washer (2)

8 4154842 Nut, Power

Screw (2)

9 777332 Washer, Cone (2)

10 9871067 Screw,

11 9871251 Ram Assembly

12 9870163 Nut, Power

14 9870187 Stud

16 9870037 Stop, Ram

Powerscrew (2)

17 9870498 Bracket, Top Limit

Switch

18 489399 Screw, (2)

8−32 x 5/16

19 9870775 Cap, Stop

20 9870169 Slide, Ram (4)

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

The Accessory Parts Listed Below

May or May Not Be Included With

Your Compactor.

1 Panel, Container

Front/Handle

4396297 White/White

4396296 Black/Black

4396298 Biscuit/Biscuit

4396299 Cobalt Blue/SSt.

4396300 Empire Red/SSt.

9871805 Majestic Yellow

w/SSt. Handle

2 Bag, Trash

(15" Plastic)

4318921 15 Pack

4318922 60 Pack

94318921 12 Boxes of

15 Pack

(15" Paper)

675186 12 Pack

882652 48 Pack

3 777635 Deodorizer,

Solid Stick−Ups

(2−Pack)

4 Deodorizer Block

9872166LG

Lemongrove

9872166GA

Green Apple

9872166L Lavender

5 13030 Carrier, Bag

(Includes No. 6)

6 777108 Handle, Bag

Carrier

7 675351 Grease, 4 Oz.

(Use on Power

Screw & Ram

Pressure Pads

8 Wire, 25’ Roll

10875 Blue 16 Ga.

242820 Black 14 Ga.

242825 Red 14 Ga.

242826 White 14 Ga.

47261 Black 12 Ga.

299885 Red 12 Ga.

47263 White 12 Ga.

9 279368 Adhesive,

Insulation

(2oz Tube)

10 Paint,

Touch−Up 1/2 Oz.

72107 Almond

72017 White

72032 Black

4892899 Biscuit

8171571 Cobalt Blue

8171651 Hunter Green

8171652 Empire Red

8171653 Majestic Yellow

11 Paint,

Spray 13 Oz.

350956 Almond

285006 Black

4392901 Biscuit

350930 White

OPTIONAL PARTS

NOT ILLUSTRATED

Framed Trim Kits

9871382 White

9871383 Black

9871600 Biscuit

For Models: GX900QPPB2, GX900QPPQ2, GX900QPPT2, GX900QPPS2

(Black) (White) (Biscuit) (Stainless Steel)

882791
