Whispbar K937W Manuale utente

K937W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 6 x 6 x 1 x 6

x 3 x 3 x 6 x 6

x 6

Revision No: 3C 1

Fitting Kit K937W

MAX kgs (lbs)

W/P WHD

Mercedes

Sprinter, 5dr Van 07-+ AU 75 kgs (165 lbs) 100 kgs (220 lbs)

Sprinter, 5dr Van 07-+ NZ 75 kgs (165 lbs) 100 kgs (220 lbs)

Sprinter, 5dr Van 07-+ EU 75 kgs (165 lbs) 100 kgs (220 lbs)

Sprinter, 5dr Van 07-+ ZA 75 kgs (165 lbs) 100 kgs (220 lbs)

Sprinter, 5dr Van 07-+ US 75 kgs (165 lbs) 100 kgs (220 lbs)

2

Fitting Kit K937W

Sprinter, 5dr Van 07-+ (AU)

Sprinter, 5dr Van 07-+ (NZ)

Sprinter, 5dr Van 07-+ (EU)

Sprinter, 5dr Van 07-+ (ZA)

Sprinter, 5dr Van 07-+ (US)

3

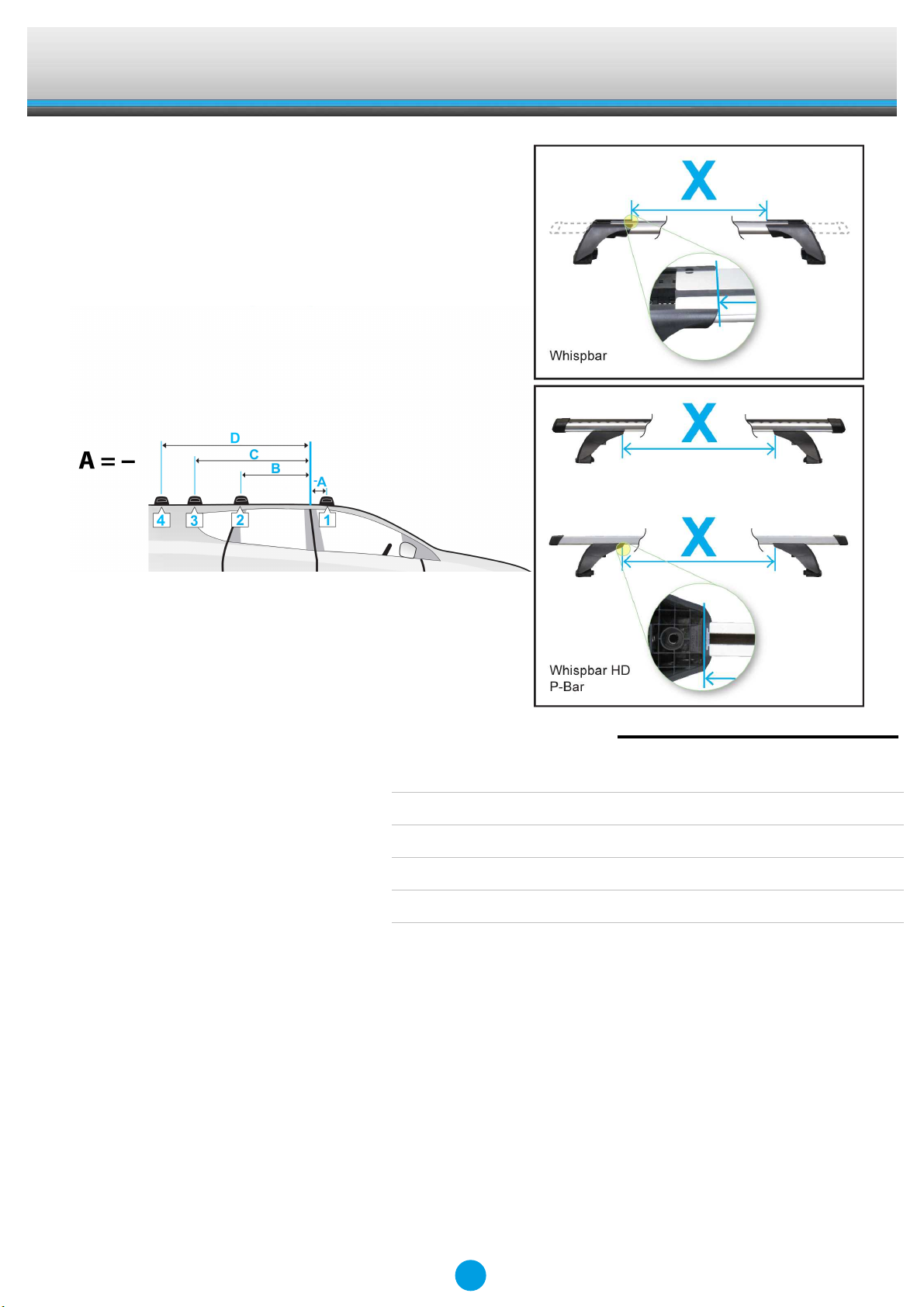

X

A B C 1 2 3

-300mm 1080mm 1990mm 1270mm 1270mm 1270mm

-11 -13/16ths" 42 1/2ths" 78 3/8ths" 50" 50" 50"

-300mm 1080mm 1990mm 1270mm 1270mm 1270mm

-11 -13/16ths" 42 1/2ths" 78 3/8ths" 50" 50" 50"

-300mm 1080mm 1990mm 1270mm 1270mm 1270mm

-11 -13/16ths" 42 1/2ths" 78 3/8ths" 50" 50" 50"

-300mm 1080mm 1990mm 1270mm 1270mm 1270mm

-11 -13/16ths" 42 1/2ths" 78 3/8ths" 50" 50" 50"

-300mm 1080mm 1990mm 1270mm 1270mm 1270mm

-11 -13/16ths" 42 1/2ths" 78 3/8ths" 50" 50" 50"

D

800mm

31 1/2"

800mm

31 1/2"

800mm

31 1/2"

800mm

31 1/2"

800mm

31 1/2"

4

1270mm

50"

1270mm

50"

1270mm

50"

1270mm

50"

1270mm

50"

Fitting Kit EN

K937W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

4

Fitting Kit EN

K937W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Set bars to length (revert to rear of these

instructions).

●Please check the front of this manual for

information relating specifically to your

vehicle.

5

Fitting Kit EN

K937W

●Tighten adjusting screw to 2 Nm (1.5 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

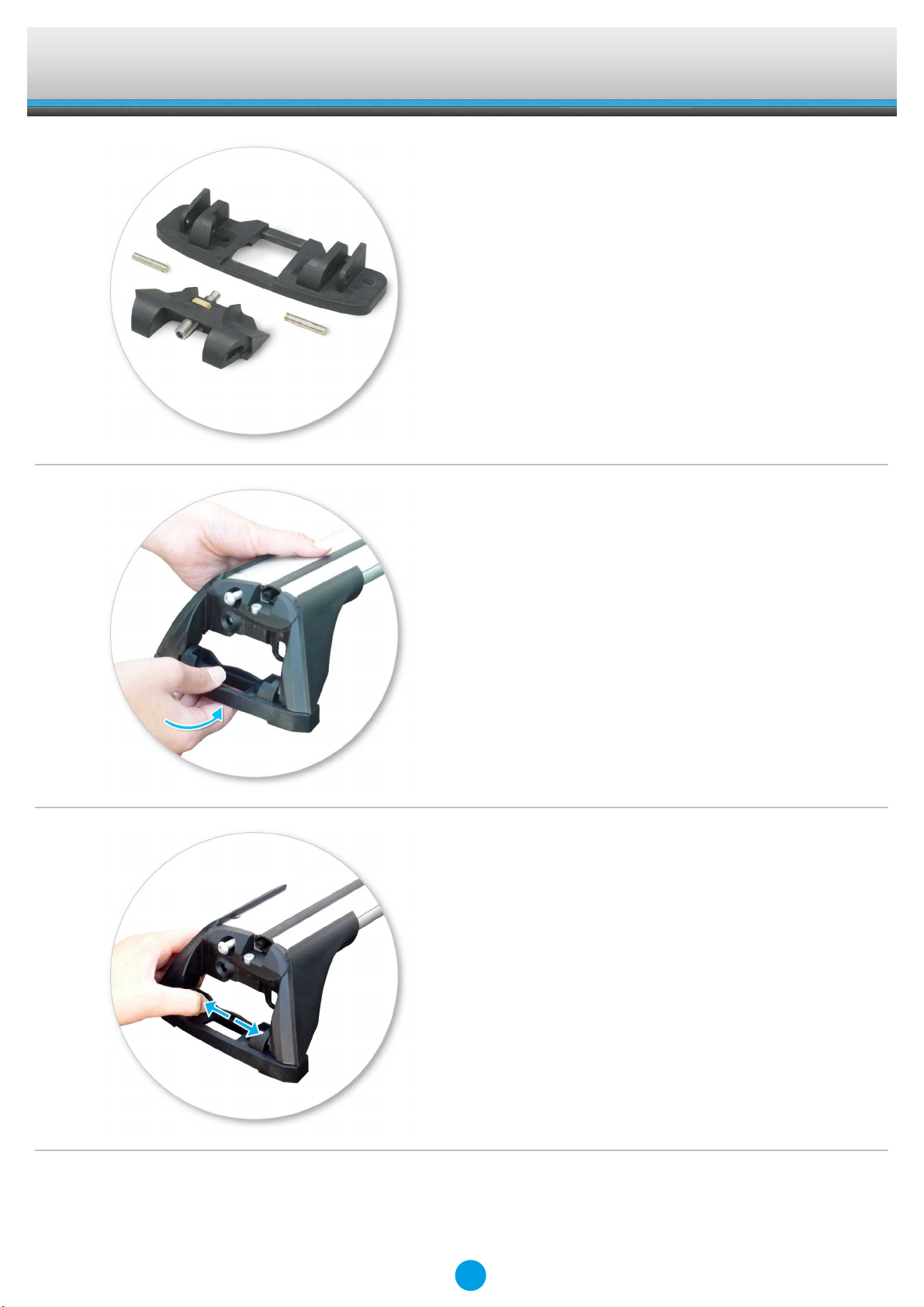

●Remove both pins from each leg. Use

tapered end of spanner located inside left

hand cover to assist.

6

Fitting Kit EN

K937W

●Detach foot from leg. Store loose parts in a

safe place.

●Repeat for all legs.

●Assemble foot from kit into leg.

●Insert pins through foot into leg.

7

Fitting Kit EN

K937W

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

●Refer to the top side of the pad for the part

number.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 244A

B = 245A

8

Fitting Kit EN

K937W

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

Fitment

●Remove sealant as shown.

●Open or remove fixed-point covers.

9

Fitting Kit EN

K937W

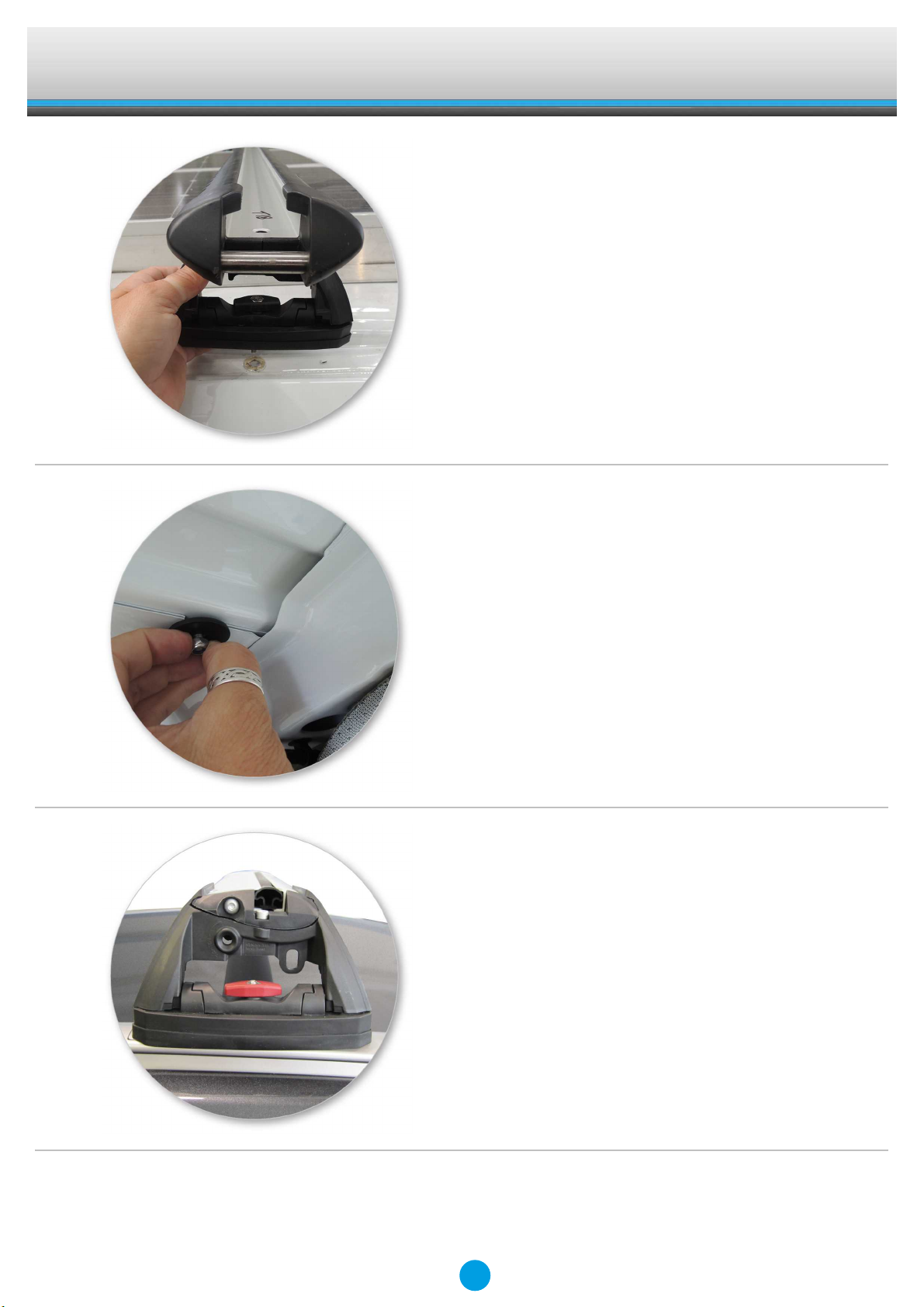

●Place crossbar into gutter of vehicle.

●Place large flat washer onto bolt.

●With assistance, fit washer and nut loosely

onto each of the cap screws from inside the

canopy.

●Tighten with provided 10mm (3/8")

spanner.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all four positions.

10
