White Knight 42AW Manuale utente

Air Vented Tumble Dryer

SERVICE MANUAL

Wiring Diagram

Exploded Views

Parts List

October 2011

White Knight- 42AW

0312 42A 15000

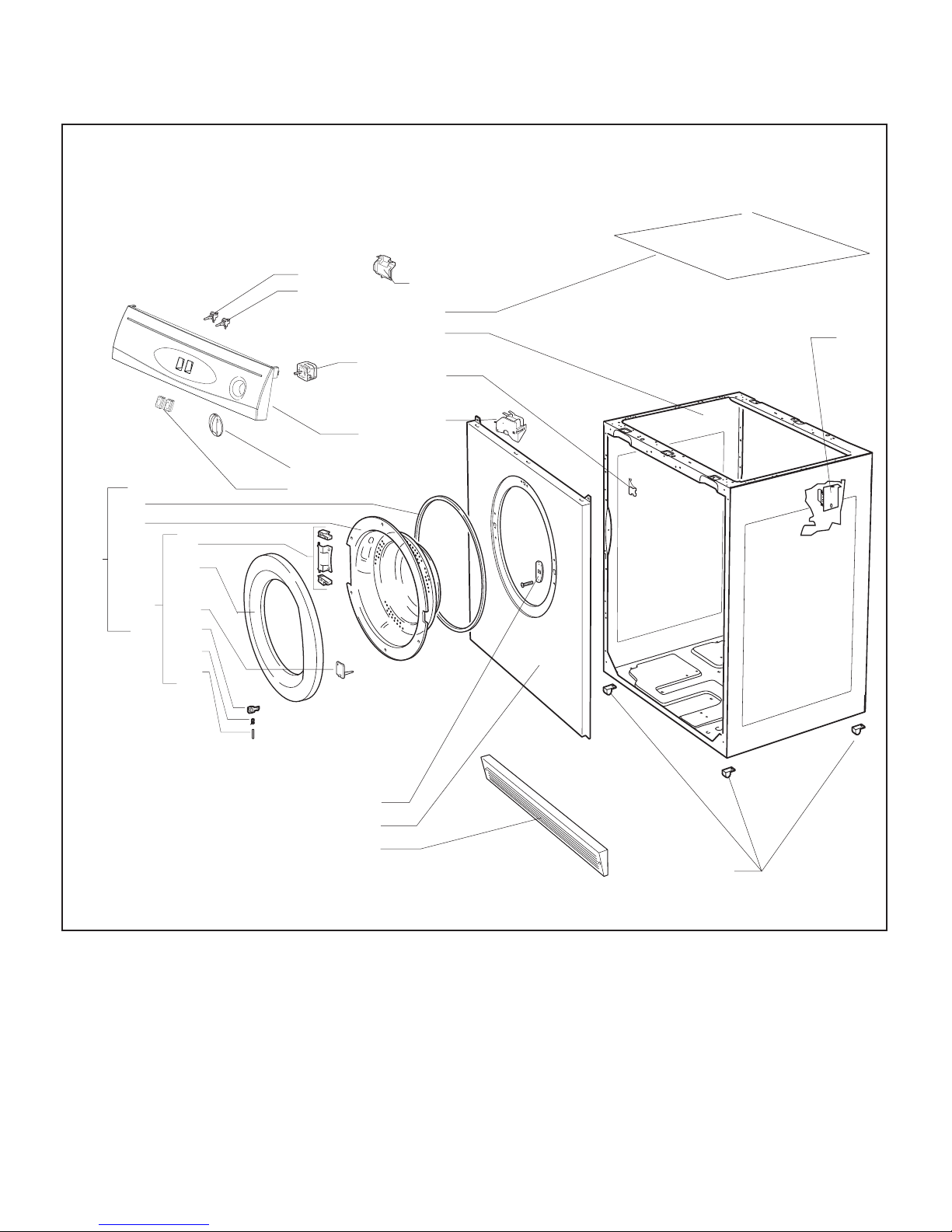

White Knight 42AW - Exploded View 1

352

211

377

235a

235

248

369

196

353

386

370

376

199

201

394

366

365

364

363

359

203a 367

370

362

203

497

248a

144

446 112

447 432 101

402

427 399

400

413

230

390

395

227

125

142

408 228 393

270

141

444

266

437

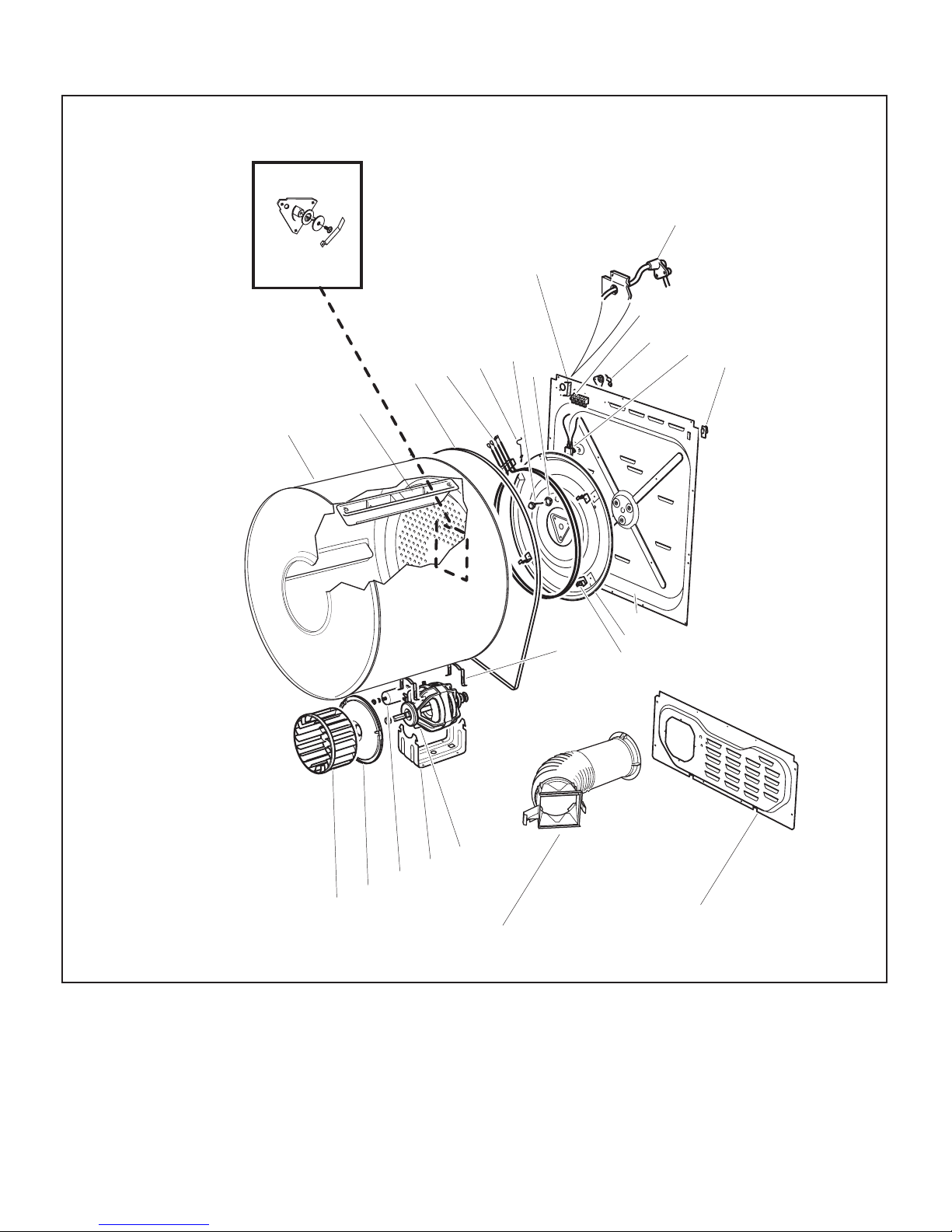

White Knight 42AW - Exploded View 2

440

441

442

248

454

437

445

446

447

229

445a

456

458

459

448

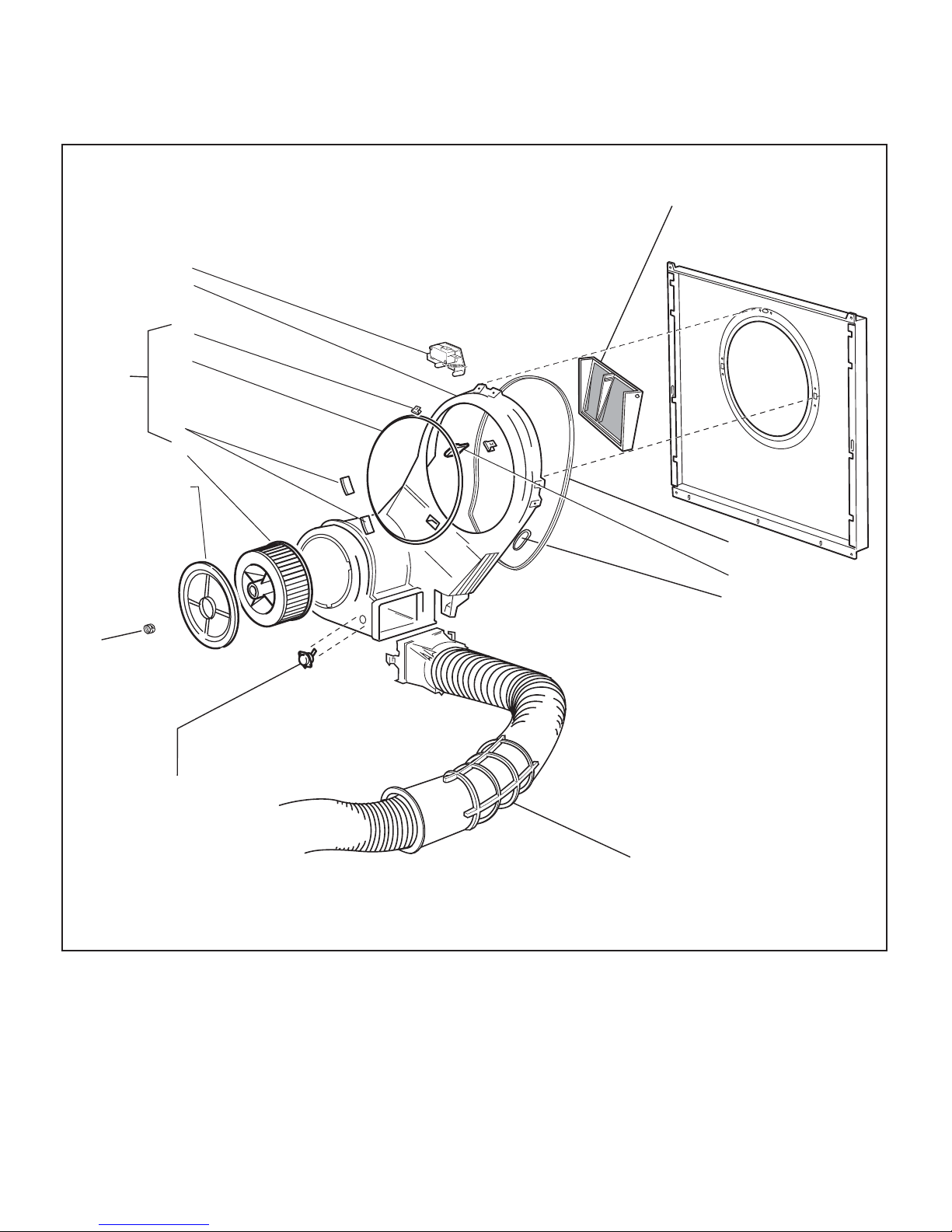

White Knight 42AW - Exploded View 3

Wiring Diagram A

Wiring Diagram B

WHITE KNIGHT 42AW AIR VENTED TUMBLE DRYER - SPARE PARTS LIST

ITEM DESCRIPTION CODE EXPLODED VIEW

101 Motor & 8uf Capacitor Assembly 4213 092 25611 2

112 8uf Capacitor 4213 092 08091 2

125 Drive Belt 4213 092 18601 2

141 Mains Cable & Plug 4213 076 35123 2

142 Terminal Block 4213 078 44613 2

144 Earth Tab Assembly 4213 092 41181 2

196 Cabinet Assembly 4213 092 43481 1

199 Plinth Assembly 4213 092 43491 1

201 Door Seal 4213 077 08344 1

203 Complete Door Assembly 4213 092 45611 1

203a Door Frame Assy 4213 092 45621 1

211 Timer 4213 078 57491 1

227 Heating Element 4213 092 05521 2

228 Heat TOC 4213 078 50161 2

229 Thermostat 4213 078 48373 3

230 Thermostat (inlet) 4213 078 56261 2

235 Heat Switch 4213 078 52401 1

235a Start Switch 4213 078 52762 1

248 Microswitch/Bracket Assembly 4213 092 05251 1 & 3

248a Door Interlock Relay Board 4213 092 51871 1

266 Drum Assembly 4213 092 05531 2

270 Drum Shaft/Bearing Kit 4213 092 05591 2

352 Timer Knob Assembly 4213 092 45741 1

353 Control Panel Assembly 4213 092 49371 1

359 Door Hinge Assembly 4213 092 26071 1

362 Window 4213 077 44095 1

363 Door Frame 4213 092 45671 1

364 Latch Pivot 4213 075 13013 1

365 Latch Spring 4213 075 70833 1

366 Door Latch 4213 077 53413 1

367 Switch Strike 4213 077 83571 1

369 Loom Clip 4213 075 70941 1

370 Latch Guide 4213 077 40993 1

376 Front Panel 4213 092 45681 1 & 3

377 Button Assembly 4213 092 45781 1

386 Top Cover 4213 092 46211 1

390 Gasket 4213 074 50862 2

393 Flex Support Clip 4213 077 40982 2

394 Foot 4213 077 39833 1

395 Heater Wires Clip 4213 075 70971 2

399 Heater Support 4213 080 06619 2

400 Heater Plate 4213 080 14551 2

402 Access Panel 4213 080 06558 2

408 Cable Clamp 4213 077 47303 2

413 Back Panel 4213 092 37601 2

427 Motor Spring Clip 4213 078 45362 2

432 Motor Mount Bracket 4213 080 0675A 2

437 Extendable Rear Vent Assembly (short) 0312 002 02000 2 & 3

440 Banjo Assembly 4213 092 17811 3

441 Front Bearing (short) 4213 077 40952 3

442 Front Seal 4213 077 40942 3

444 Lifter 4213 077 41009 2

445 Front Bearing (long) 4213 077 40962 3

445a Bearing & Seal Kit Assy 4213 092 21171 3

0312 42A 15000

WHITE KNIGHT 42AW AIR VENTED TUMBLE DRYER - SPARE PARTS LIST

446 Fan 4213 077 40896 2 & 3

447 Access Cover Assembly 4213 092 18081 2 & 3

448 Spring Clip (Fan) 4213 075 71162 3

454 Filter 4213 092 17821 3

456 Banjo Seal 4213 077 07992 3

458 Banjo Insert No 2 4213 077 53502 3

459 Banjo Insert No 1 4213 077 53492 3

497 Switch Cover 4213 177 01141 1

NOT SHOWN ON EXPLODED VIEW

INSTRUCTION BOOK 4213 094 5932C

Due to changes to the loom wiring

Dryers built prior to the loom change and including dryers built

with serial No's up to 1002767094 refer to wiring diagram A

Dryers built with serial No's after 1002767095 refer to wiring diagram B

0312 42A 15000
