White Knight 96aw Manuale utente
SERVICE MANUAL
Wiring Diagram
Exploded Views
Parts List
May 2013
Electronic Sensing Condenser
0312 96A 15000 - 96AW
UK
White Knight

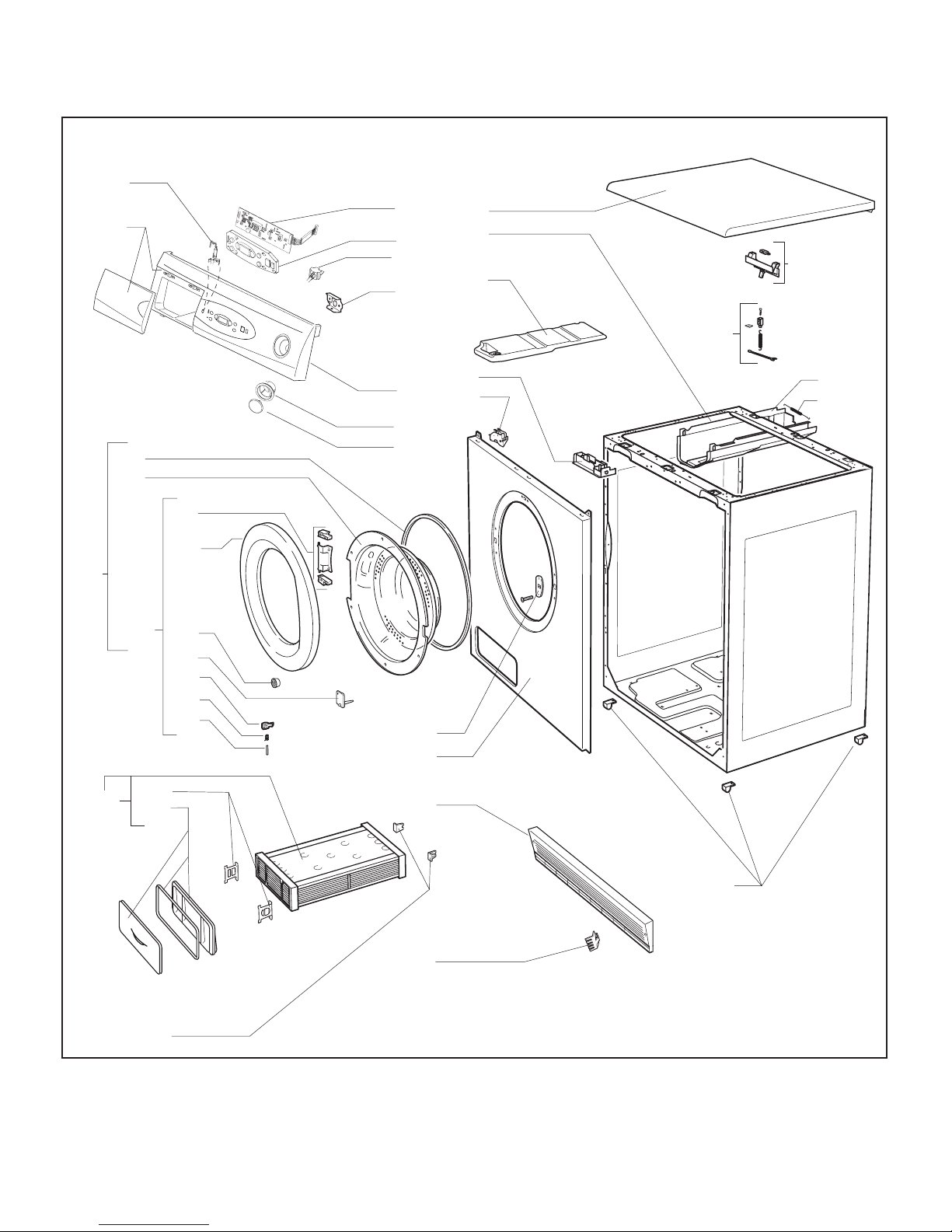

White Knight Electronic Sensing Condenser Dryer - Exploded View 1
559
184 397
416
458
394
461
538
217
180
460
368
196
386
248
370
376
199
366
365
364
359
203a 367
580
362
201
203 363
372
235
350
233
352
553
353
353
215
454
512 445b
442
445a
445
440
229 456
506
475
437
166

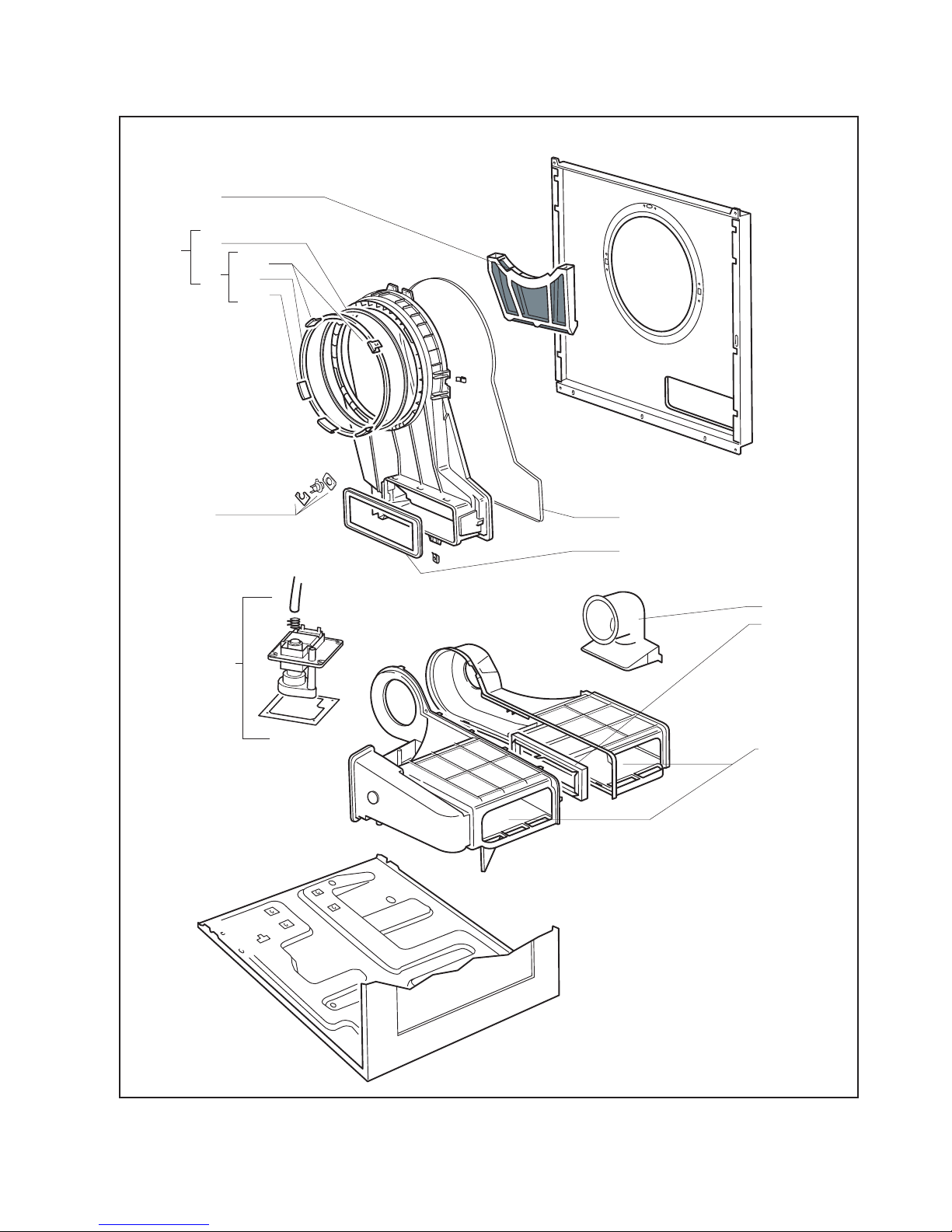

White Knight Electronic Sensing Condenser Dryer - Exploded View 2
505

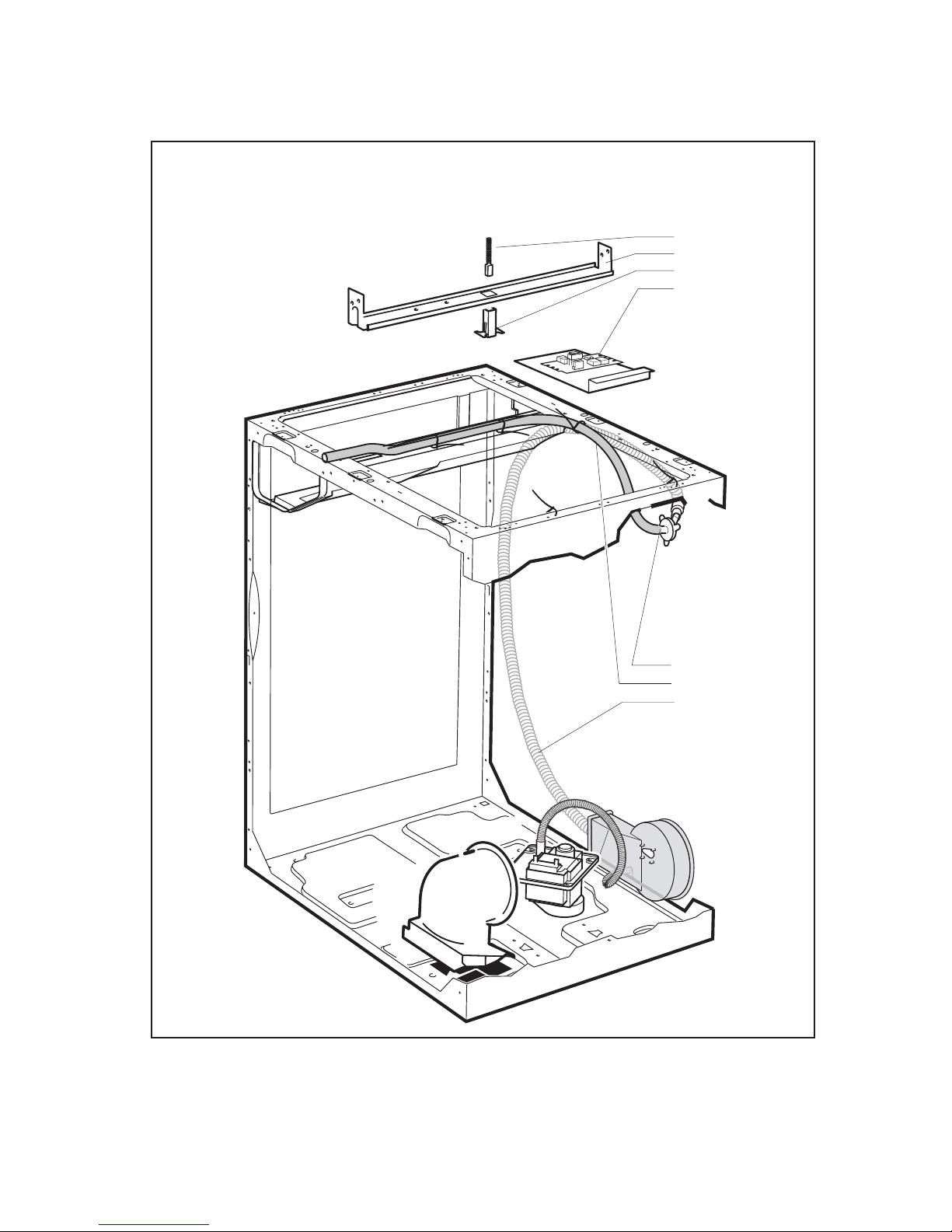

White Knight Condenser Dryer - Exploded View 3
418
417
419
232
169
153
557

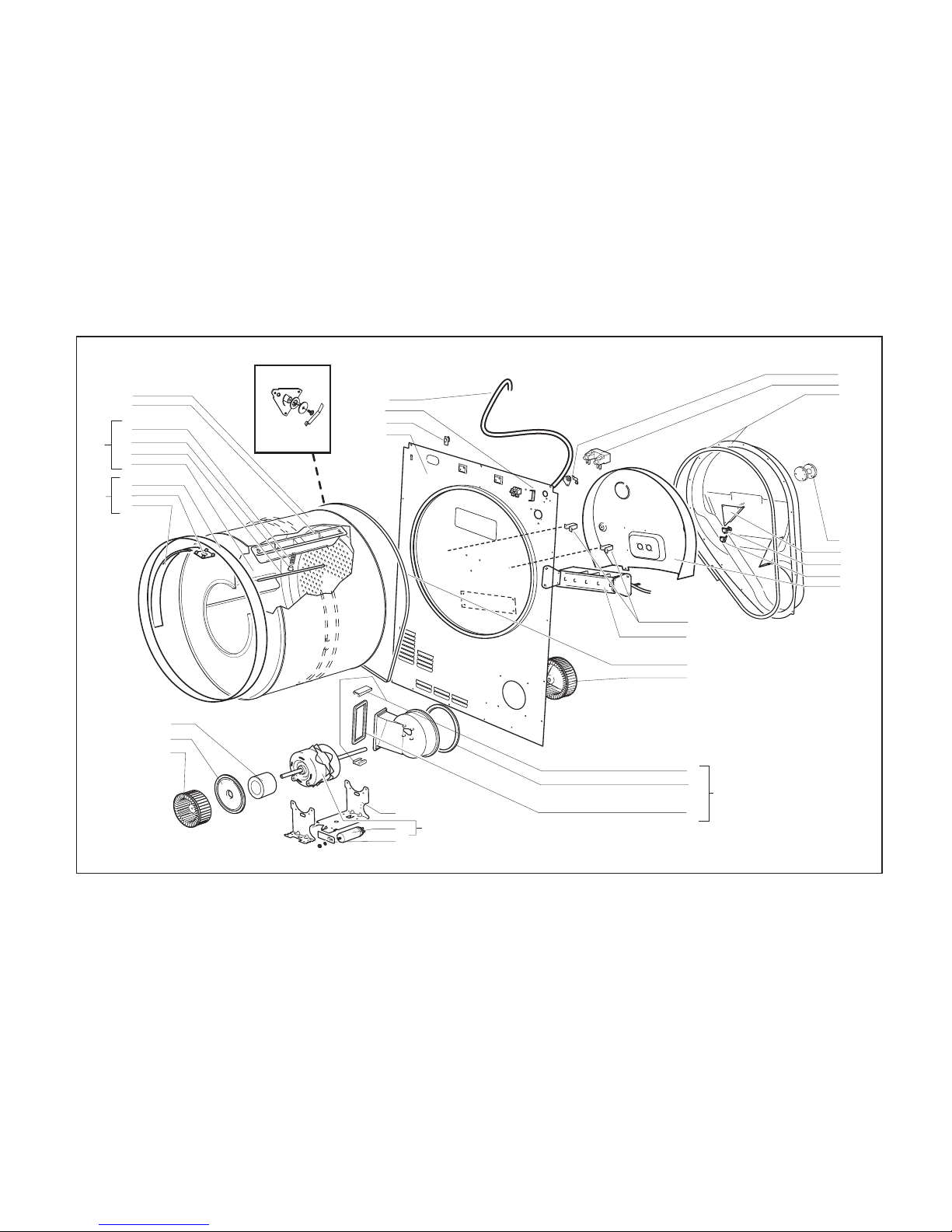

White Knight Electronic Sensing Condenser Dryer - ExplodedView 4
401
550
515
228
400
230
393
141 142
227
447
125
413
478
453
446
448
543
112
432
433
450 449
101
558
518
144
270
466
477
467
465
463
468
464
438
439
444
266

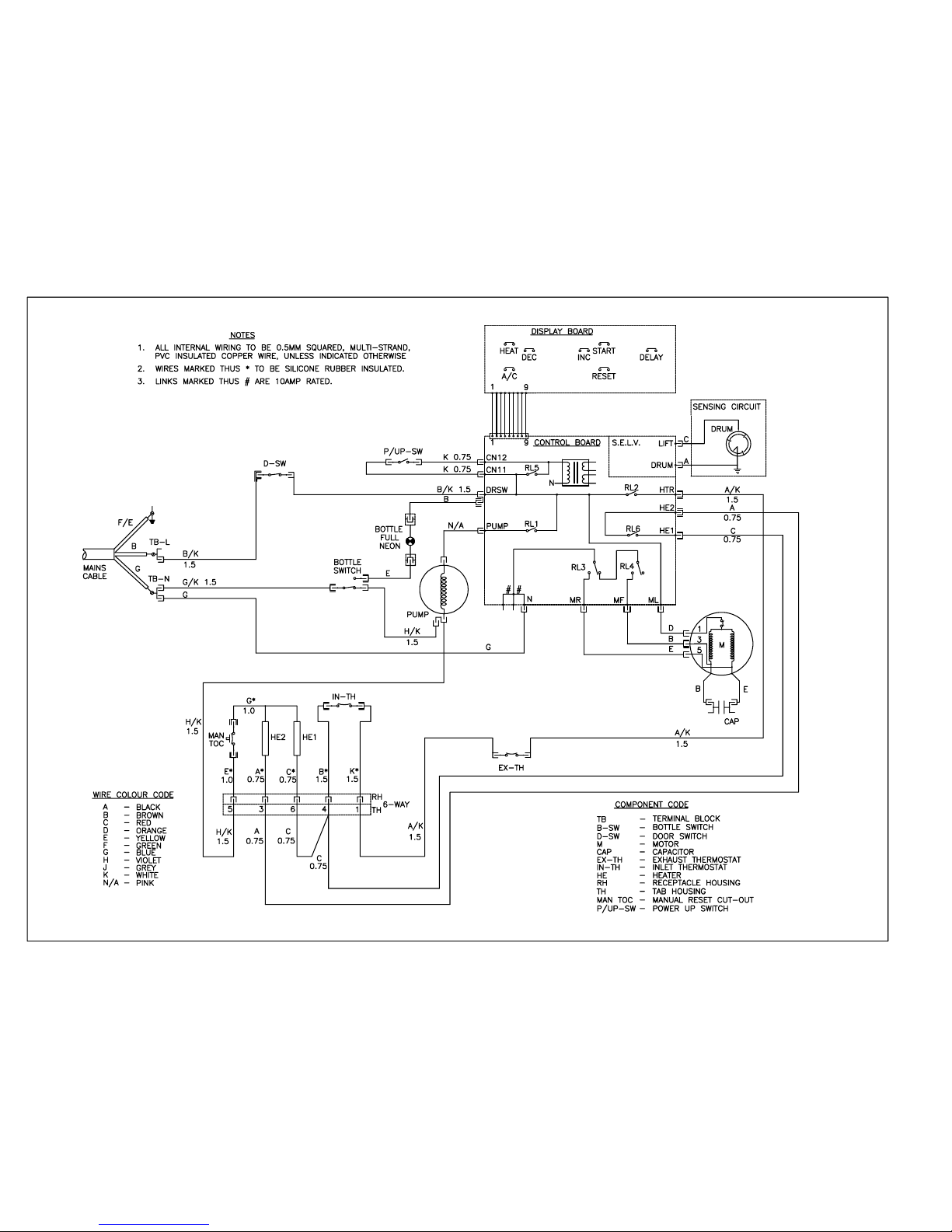

Wiring Diagram
White Knight Electronic Sensing Condenser - Parts List
Item Descri
p
tion Part Number Ex
p
l.View
101 Motor + 8µf Capacitor Assembly 4213 092 21001 4
112 Capacitor Assembly 8µf 4213 092 08091 4
125 Drive Belt 4213 092 19501 4
141 Mains Cable 4213 076 35123 4
142 Terminal Block 4213 078 44621 4
144 Earth Tab Assembly 4213 092 41181 4
153 Water Valve 4213 077 85111 3
166 Pump Assembly 4213 092 25211 2
169 Pipe 4213 092 40391 3
180 Bottle Switch Adjuster Assembly 4213 092 17431 1
184 Condensing Unit/Heat Exchanger 4213 092 45991 1
196 Cabinet Assembly 4213 092 43691 1
199 Plinth Assembly 4213 092 46811 1
201 Door Seal 4213 092 21051 1
203 Full Door/Window Assembly 4213 092 46041 1
203a Door Frame Assembly 4213 092 46051 1
215 Bottle Full Neon Assembly 4213 092 56321 1
217 Bottle Switch Assembly 4213 092 21291 1
227 Heater Assembly 4213 092 44911 4
228 Heater TOC (Manual Reset) Assembly 4213 092 21261 4
229 Exhaust Thermostat 4213 092 21081 2
230 Inlet Thermostat 4213 092 21251 4
232 Programmed PCB 4213 078 57741 3
233 Display Board 4213 078 58111 3
235 Momentary Switch 4213 078 57791 1
248 Door Micro-Switch Assembly 4213 092 05251 1
266 Drum Assembly (includes items 270 & 444) 4213 092 39101 4
270 Drum Shaft/Bearing Kit Assembly 4213 092 05591 4
350 Membrane Assembly 4213 092 56201 1
352 Button Assembly 4213 092 56191 1
353 Control Panel Assembly 4213 092 56331 1
359 Door Hinge Assembly 4213 092 26071 1
362 Window 4213 077 44095 1
363 Door Frame 4213 092 45671 1
364 Latch Pivot 4213 075 13013 1
365 Latch Spring 4213 075 70833 1
366 Door Latch 4213 077 53413 1
367 Switch Strike 4213 077 83571 1
368 Bottle 4213 092 17941 1
370 Latch Guide 4213 077 40992 1
372 Timer Bracket 4213 070 10934 1
376 Front Panel Assembly 4213 092 46021 1
386 Top Cover Assembly 4213 092 46211 1
393 Flex Support Clip 4213 077 40982 4
394 Foot 4213 077 39833 1
397 Condenser Door Assembly 4213 092 43721 1
400 Insulating Plate 4213 092 44951 4
401 Rear Banjo Duct Assembly 4213 092 44941 4
413 Back Panel Assembly 4213 092 40371 4
416 Heat Exchanger Links 4213 092 37481 1
417 Brush Holder Support RH 4213 070 12774 3
418 Brush Assembly 4213 078 45023 3
419 Brush Holder 4213 077 39503 3
432 Motor Bracket Assembly 4213 092 26161 4
0312 96A 15000
White Knight Electronic Sensing Condenser - Parts List
433 Seal Clamp Kit 4213 092 27661 4
437 Condenser Housing Assembly 4213 092 21151 2
438 Slip Ring Assembly 4213 092 05731 4
439 Sensing Strip Assembly 4213 092 05691 4
440 Banjo /Seals/Clips/Beaing Pads Assembly 4213 092 21161 2
442 Front Seal 4213 077 40942 2
444 Lifter 4213 077 41248 4
445 Front Bearings/Drum Seal Assembly 4213 092 21171 2
445a Bearing Pads (long) 4213 077 40962 2
445b Bearing Pads (short) 4213 077 40952 2
446 Cooling Air Fan 4213 077 56173 4
447 Fan Cover Assembly 4213 092 21181 4
448 Seal Fan Access Cover 4213 077 08871 4
449 Inlet Duct Case Assembly 4213 092 21241 4
450 Inlet Duct Panel Seal 4213 077 09041 4
453 Inlet Duct Rear Seal 4213 077 08568 4
454 V Filter 4213 092 18351 2
456 Banjo Seal 4213 077 08487 2
458 Condenser Latch Set 4213 092 21191 1
460 Pivot Bracket 4213 077 51408 1
461 Bottle Housing Assembly 4213 092 17951 1
463 Location Grommet 4213 077 07711 4
464 Slip Ring Insulator 4213 077 41253 4
465 Slip ring 4213 075 13142 4
466 Ring Spring 4213 075 70931 4
467 Sensing Strip 4213 075 13152 4
468 Sensing Strip Clip 4213 077 41176 4
475 Inlet Duct Assembly 4213 092 37531 2
477 Ring Spring Plug 4213 074 81353 4
478 Re-Circulating Fan 4213 092 34011 4
505 Housing Seal 4213 077 09032 2
506 Housing - Banjo Seal 4213 077 60797 2
512 Front Felt 4213 078 55972 2
515 T.O.C. Cover & Seal Unit 4213 092 09491 4
518 Cable Clamp 4213 077 47303 4
538 Housing Drawbar Spring 4213 078 53494 1
543 Capacitor Bracket 4213 070 09324 4
550 Anti-Foul Plate 4213 070 12601 4
553 Adapter 4213 177 04881 1
557 Drain Hose Kit 4213 092 40381 3
558 Heater Mounting Brackets (Top Hats) 4213 070 14471 4
559 Exhaust Deflector 4213 077 83912 1
580 Door Buffer 4213 077 89071 1
User Instruction Booklet 4213 194 12631
Not Shown On Exploded Views
0312 96A 15000
