System Connection Overview

The PPA T45 is an FM Wide-Band transmitter operating in the 72-76MHz bandwidth. Compatible Williams Sound receivers

include PPA R38, PPA R37, PPA R35-8 body packs and the PPA R1600 remote speaker.

Developed for hearing assistance in places of public access, the PPA T45 is designed for those who need help overcoming

background noise, reverberation, or distance from the sound source. It includes a complete audio processor optimized for the

needs of hearing impaired persons and is easily integrated with your existing sound system. The PPA T45 can also be used with a

microphone as a stand-alone system.

Your PPA T45 transmitter operates just like an FM radio station. The transmitter takes audio directly from a microphone or sound

system. This audio is then broadcast over an FM radio signal. FM radios can be worn by listeners or an AC powered amplied

speaker with built in receiver can be utilized as needed. The broadcast can be received up to 1000 ft from the transmitter *. This

allows listeners to sit anywhere in the area and listen to the broadcast at the volume level they need without disturbing others

around them.

Two models are available - one with Ethernet control (PPA T45NET) and one without Ethernet control (PPA T45). Ethernet control

allows the transmitter settings to be changed over a network with hard-wired or wireless devices (Figure 1).

*Range is dependent on the environment.

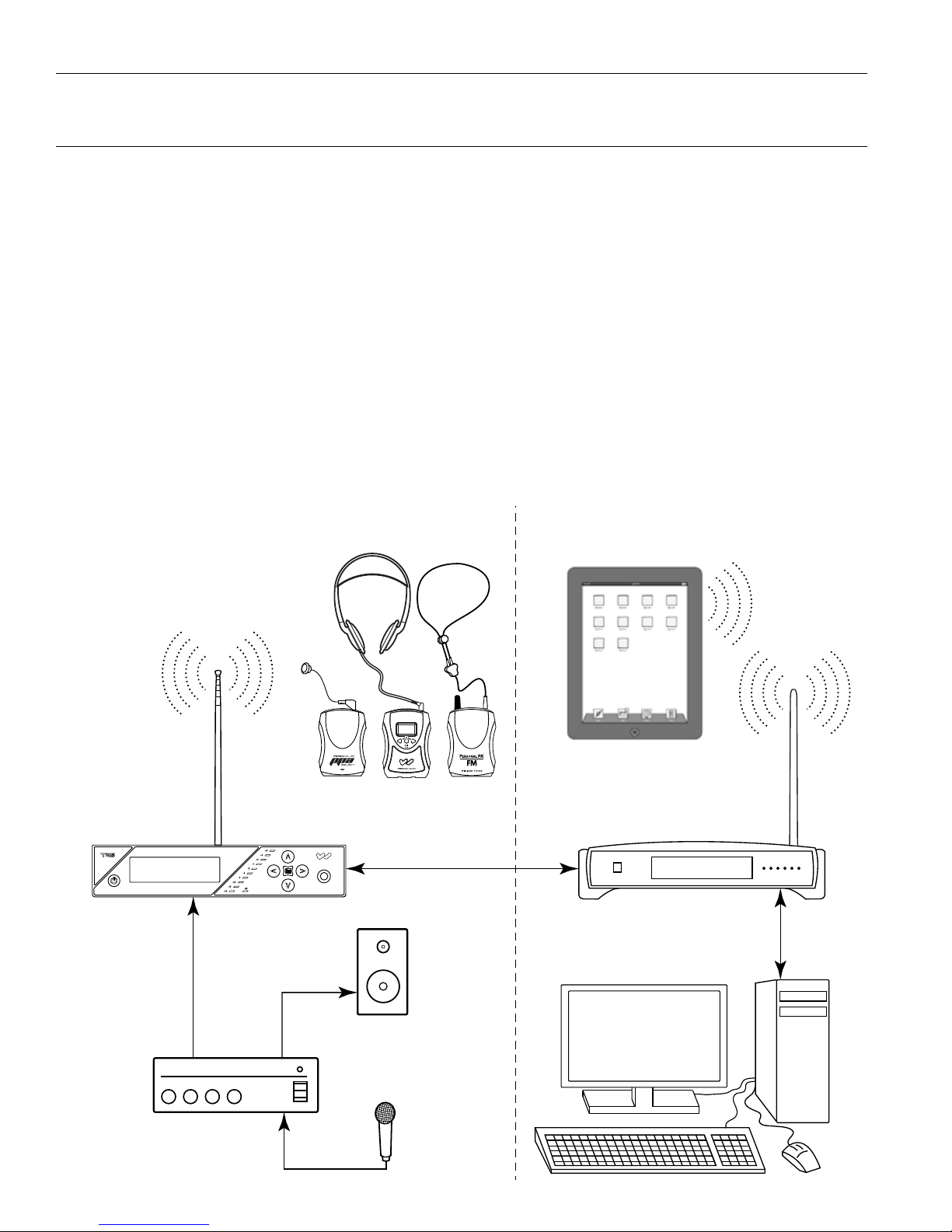

Figure 1: Typical System Example

Personal PA®DSP FM Wideband Transmitter

Wiring and Connections

24VDC 0.75A

williamssound.com

Line / Mic In

Analog

Audio

Digital

Audio

Line Out AES / EBU In S/PDIF In RF 75 Ω Ant Ethernet

bal

—

unbal

—

phantom

T45 Rear

A401

ANALOG

LINE/MIC INPUT

ACCEPTS BALANCED

OR UNBALANCED

1/4” PLUG or XLR

RCA LINE OUTPUT

FOR MONITORING

OR RECORDING

DIGITAL INPUT

ACCEPTS AES

OR EBU DIGITAL

AUDIO XLR PLUG

RCA DIGITAL AUDIO

INPUT FOR

COAXIAL/DIGITAL

AUDIO

RF OUTPUT

FOR REMOTE

ANTENNA

CONNECTION

ETHERNET JACK

WITH LINK AND

ACTIVITY LED’S

(PPA T45NET Only)

POWER SUPPLY

JACK

Power Supply Connection

Connect the TFP 048 power supply to the Power Supply Jack located on the rear of the PPA T45 transmitter (Figure 2).

Ethernet Connection

If connecting to a network, or connecting directly to a PC, a Standard or Crossover Ethernet cable may be used. The PPA

T45NET auto-senses the connection and congures itself for the Ethernet cable type being used.

Audio Source Connections

The T45 transmitter will accept the following audio sources:

1. Balanced Microphone on a 3-pin (XLR) connector without phantom power.

2. Balanced Microphone with 12 volt phantom power (DIN 45596) on a 3-pin (XLR) connector.

3. Balanced/Unbalanced microphone with or without phantom power on 1/4 inch (TRS) jack

4. Balanced/Unbalanced Line on a 3-pin (XLR) connector.

5. Balanced/Unbalanced Line on 1/4 inch (TRS) jack.

6. Digital Audio (AES/EBU) on a 3-pin (XLR) connector.

7. Digital Audio (S/PDIF) on an RCA jack.

WARNING:

The T45 is not designed to accept 70 volt speaker signals! This may result in damage to your system. The

sound source should come directly from the system mixer or digital source as a low-level or unprocessed

signal.

IMPORTANT: When a suitable audio source has been determined, you MUST congure the audio source in the menu

of the T45 before plugging that source in.

NOTE: FCC regulations, section 15.21, requires the user to comply with the rules of transmitter operation. Any

changes or modications made by the user not expressly approved for compliance may result in the loss of all

privileges and authority to operate the equipment.

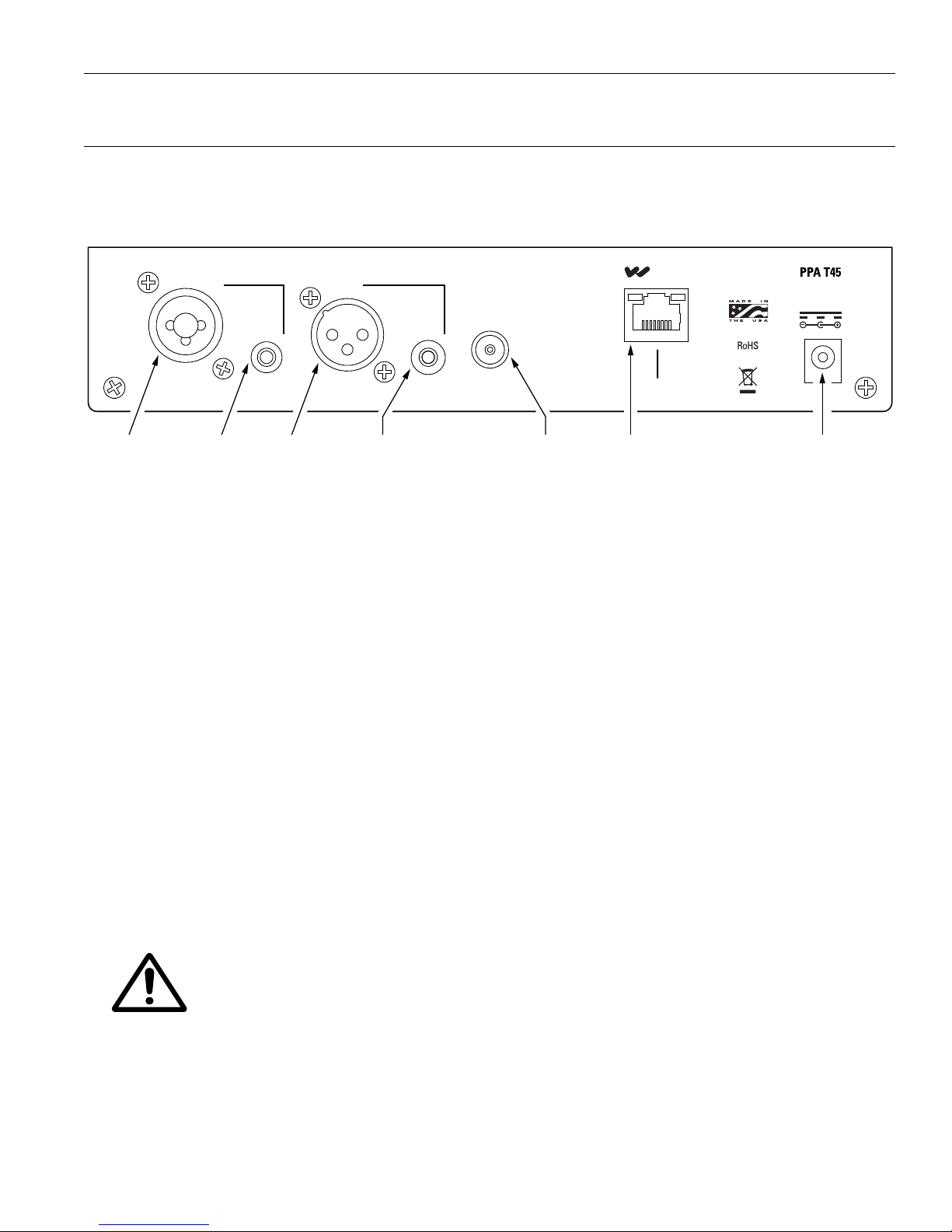

Figure 2: PPA T45NET Rear View

Personal PA®DSP FM Wideband Transmitter

BALANCED LINE USING 1/4" CONNECTOR

IN PHASE

A106

UNBALANCED LINE USING 1/4" CONNECTOR

A107

4.7 K

SOURCE A

SOURCE B

CONNECTING TO A MULTI-CHANNEL OR STEREO SOURCE

A109

BALANCED LINE USING 3–PIN CONNECTOR

IN PHASE

1 2

3 PIN CONNECTOR

A108

IN PHASE

FROM MICROPHONE

1 2

3 PIN CONNECTOR

LOW IMPEDANCE MICROPHONE

A104

UNBALANCED LINE USING 3–PIN CONNECTOR

1 2

3 PIN CONNECTOR

A105

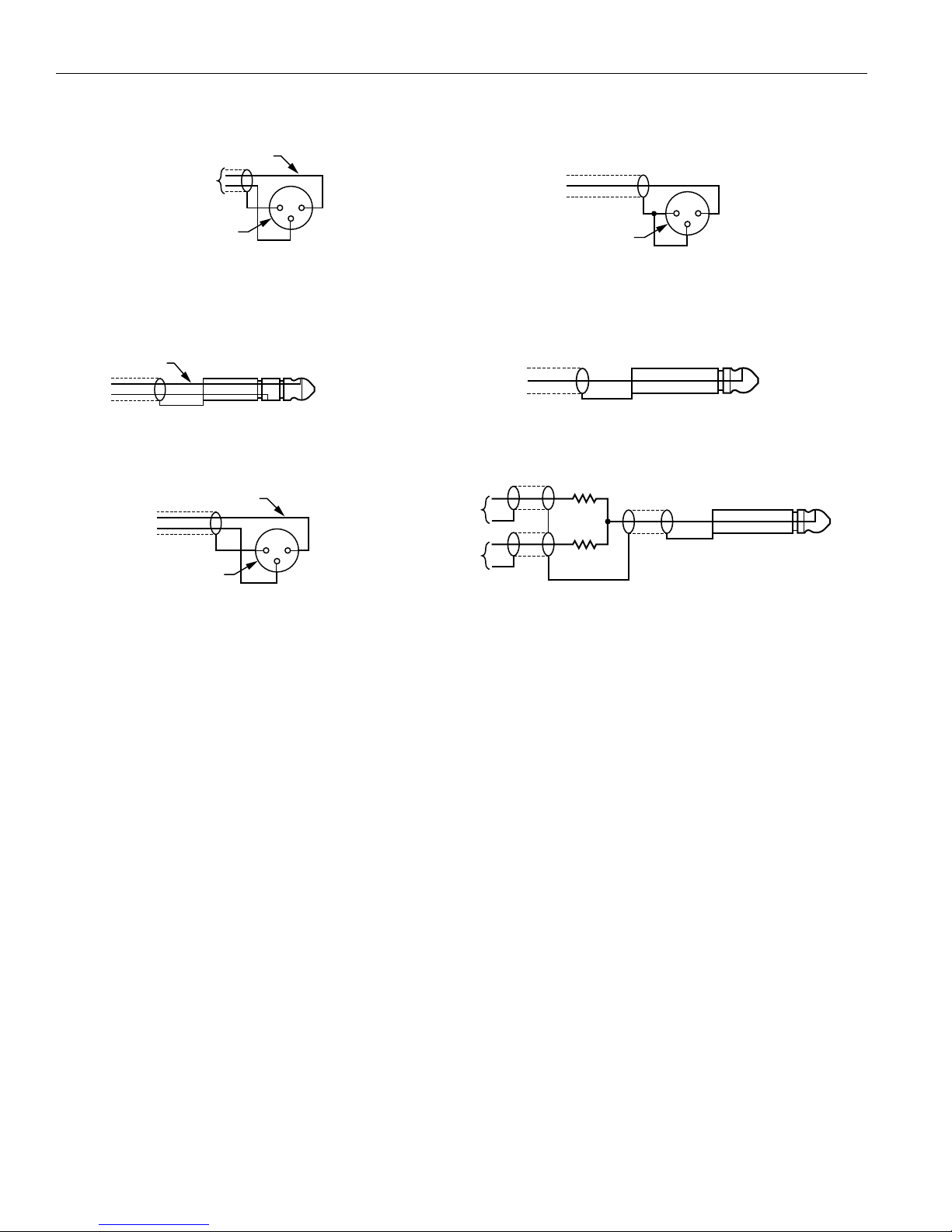

Figure 3: Audio Source Connectors

Multi–Channel Sources

By constructing a simple resistive mixer, stereo (or 3 channel) sources can be connected to the T45. Additional channels can be

accommodated by adding a resistor for each source. Necessary resistors can be obtained from Williams Sound (Part Number

RFC 472) or from any local electronics parts supplier. See Figure 3.

Selecting an Audio source Appropriate for Hearing Impaired Listeners

If the T45 is going to be used specically for the accommodation of hearing impaired listeners, we recommend following these

general guidelines:

The PPA T45 transmits audio with excellent delity. Therefore, the audio source signal should be of the highest audio quality and

not subject to a compressor, limiter, reverberation, or other signal processing equipment. The T45 has a very effective DSP audio

processor. If compression is desired in the audio, refer to the “Compression” section under “Audio Settings - 1a. Audio Presets”

for available settings. Excessive compression is not helpful to the hearing impaired and can contribute to excessive noise in the

receiver outputs.

The T45 audio source signal is usually connected to a mixer’s “line output” signal which is behind the mixer’s parametric equalizers

but ahead of any equalization used for house loudspeakers.

If audio delay is available for use in large auditoriums, it’s usually best to use it. Because radio signals travel faster than sound,

delaying the transmitted audio so that an average listener (in the middle of the listening area) hears the transmitted audio a few

milliseconds after audio from the main sound reinforcement system speaker is helpful. This will also help audience members who

lip read.

Personal PA®DSP FM Wideband Transmitter

Avoiding Hum in the Audio (as a Result of a Ground Loop)

A hum created by a ground loop can often be eliminated by connecting a capacitor in series with the audio line shield to the

transmitter’s ground. This method also maintains good RF shielding. Determining the effectiveness of this method for your

installation usually requires some experimentation. Necessary capacitors can be obtained from Williams Sound or from any

electronic parts supplier. See Figure 4.

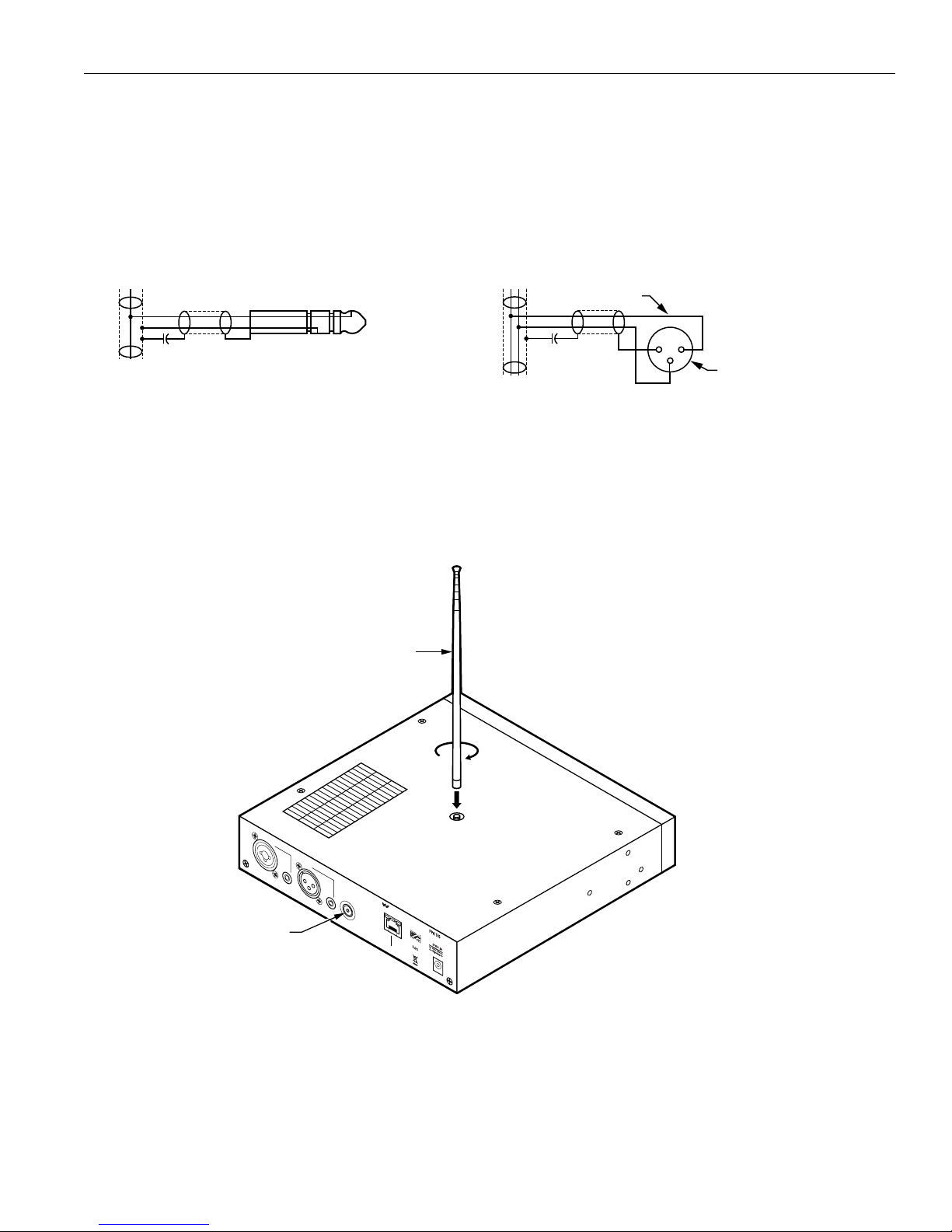

Figure 4: Connecting to a Balance/Unbalanced Line

IN PHASE

1 2

3-PIN

CONNECTOR

BREAKING A GROUND LOOP WHEN

CONNECTING TO A UNBALANCED LINE

BREAKING A GROUND LOOP WHEN

CONNECTING TO A BALANCED LINE

.01 uF CERAMIC DISC

CAPACITOR .01 uF CERAMIC

DISC CAPACITOR

A110

Installing the ANT 025 Whip Antenna

Gently thread the ANT 025 onto the stud recessed in the hole on the top of the transmitter. See Figure 5.

Figure 5: Installing the ANT 025 Antenna (rear view)

ANT 025 ANTENNA

(INCLUDED)

REMOTE ANTENNA

COAXIAL JACK

FOR

75 Ohm ANTENNAS

(See note below)

A410

24VDC0.75A

williamssound.com

Line/ Mic In

Analog

Audio

Digital

Audio

LineOut AES / EBU In S/PDIF In RF 75 Ω Ant Ethernet

bal

—

unbal

—

phantom

NOTE: If the T45 is going to be rack mounted, you will not be able to install the ANT 025 whip antenna. For rack mounting,

consider installing a remote antenna like the ANT 005 or ANT 024 - these antennas require using the Remote Antenna

Coaxial Jack (above) and a long length of terminated coaxial cable. Another option is to mount the antenna on the

rack itself - consider the ANT 029 which includes a 1RU bracket and a 3ft terminated coaxial cable. For a full list of

antenna options, please go to our website www.williamssound.com and view the Antenna Application Guide under

“Products - Accessories - Antennas”.

Personal PA®DSP FM Wideband Transmitter

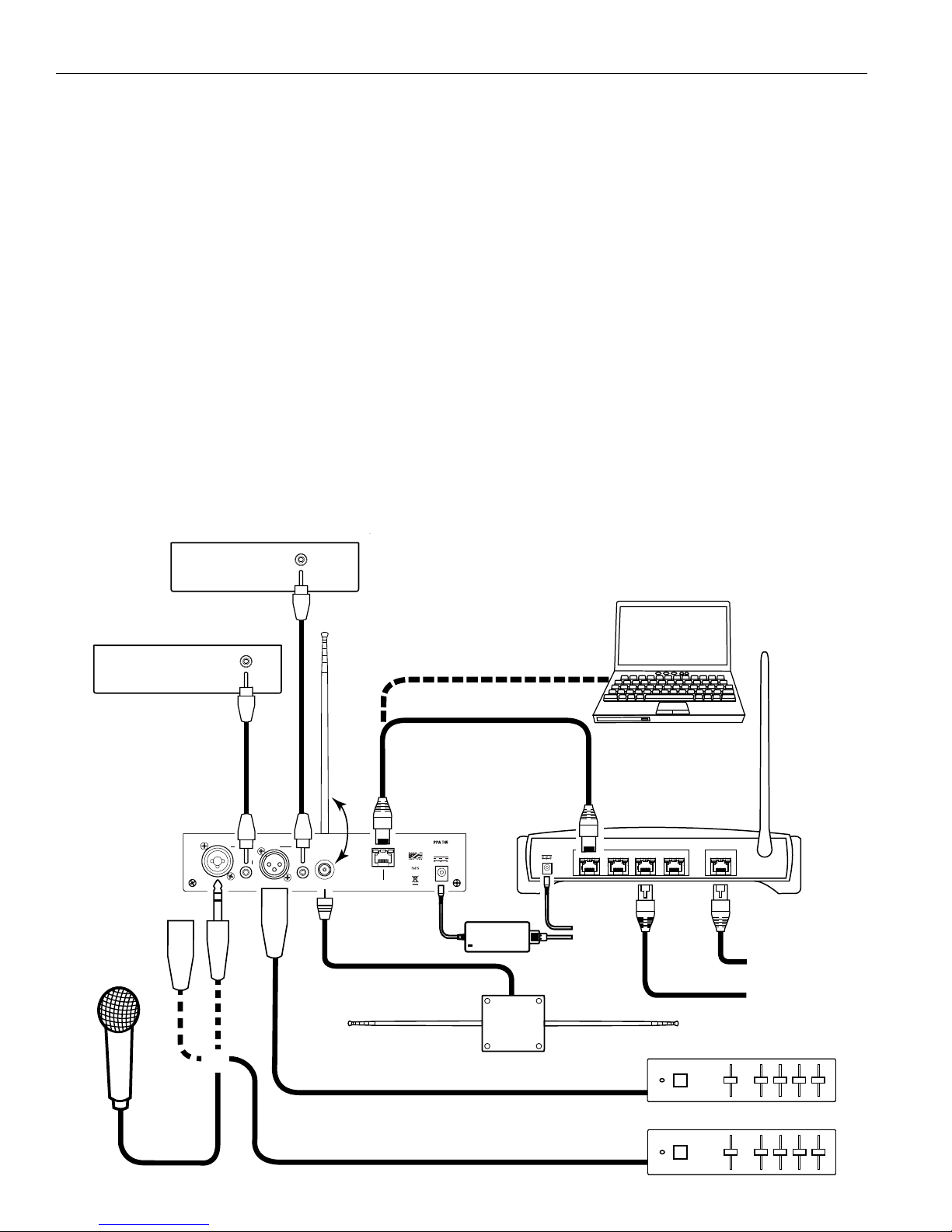

Figure 6: T45 Typical Connections

A407

24VDC 0.75A

williamssound.com

Line / Mic In

Analog

Audio

Digital

Audio

Line Out AES / EBU In S/PDIF I n RF 75 Ω Ant Ethernet

bal

—

unbal

—

phantom

ANALOG AUDIO

LINE OUT (RCA)

ANALOG

LINE/MIC INPUT

(XLR OR 1/4”)

BALANCED,

UNBALANCED,

OR PHANTOM.

DIGITAL

LINE

INPUT

(RCA)

REMOTE

ANTENNA

CONNECTION

(RG-6 QS,F-CONN)

PPA T45

ANALOG MIXER OR AUDIO SYSTEM

AUDIO LINE IN (RCA)

ROUTER

ANALOG LINE

OUTPUT

(1/4” or XLR)

DIGITAL

LINE

INPUT

(XLR)

AES or EBU.

PPA T45NET ONLY

DEVICE OR MIXER WITH S/PDIF OUTPUT

DIGITAL LINE OUT (RCA)

DIGITAL MIXER

REMOTE

ANTENNA

STANDARD CAT5 ETHERNET CABLE (RJ-45)

MICROPHONE

(CONDENSER

OR OTHER)

ANALOG MIXER

DIGITAL LINE

OUTPUT

(XLR)

AES or EBU.

COMPUTER

ETHERNET

SWITCH

INTERNET

MODEM

STANDARD

CAT5

ETHERNET

CABLES

(RJ-45)

TO AC

POWER

SOURCE

STANDARD CAT5 ETHERNET CABLE (RJ-45)

LAPTOP (OR DESKTOP)

COMPUTER

SUPPLIED

ANTENNA

EITHER

BUT

NOT

BOTH

Connecting the T45 to other Devices

The Analog LINE/MIC Input jack can be used with standard pro audio electronics such as standard pro audio line level,

condenser microphones up to 15v or an analog line output from a mixer. The combination jack accepts either XLR or 1/4” (TRS).

This source must be congured in the menu before plugging the source into the jack.

The RCA Audio Line Output jack can be used for monitoring, recording, or routing processed audio to another sound system.

The XLR Digital Line Input can be used with the output of a digital mixer or digital audio source. The processors inside the T45

convert the digital bitstream into usable audio.

The RCA S/PDIF Digital Line Input jack can be used with a device that has an RCA Digital Audio Out (also referred to as “Coaxial

Digital Audio” from consumer electronic devices. The processors inside the T45 convert the digital bitstream into usable audio.

The Remote Antenna Connection can be used to connect a remote antenna to the T45 when the whip antenna won’t be used

(as in the case of rack-mounting). See the Williams Sound Antenna Guide for a full range of antenna and mounting options (see

Figure 5).

The Ethernet Jack (PPA T45NET only) can be used to connect the T45NET to either (1) a local network or (2) directly to a single

computer. Both options can use either a standard Ethernet cable or a crossover cable. A crossover cable can be used, but is not

required to connect the T45 directly to a computer, because an internal MUX senses the device that is connected and crosses the

pins automatically.

Altri manuali per PPA T45NET

Indice

Altri manuali Williams Sound Trasmettitore

Williams Sound

Williams Sound T1-216 Manuale utente

Williams Sound

Williams Sound Hearing Helper T800 Guida

Williams Sound

Williams Sound Whisper T863 Istruzioni per il montaggio

Williams Sound

Williams Sound WIR TX75-S Manuale utente

Williams Sound

Williams Sound WIR TX75/b Manuale utente

Williams Sound

Williams Sound WIR TX90 Manuale utente

Williams Sound

Williams Sound PFM SYS A Manuale utente

Williams Sound

Williams Sound PPA T46 Istruzioni per il montaggio

Williams Sound

Williams Sound Transmitter PFM T31 Istruzioni per il montaggio

Williams Sound

Williams Sound Hearing Helper T800 Manuale utente

Williams Sound

Williams Sound WIR TX90 Guida alla risoluzione dei problemi

Williams Sound

Williams Sound PPA T45NET Manuale utente

Williams Sound

Williams Sound T4 Manuale utente

Williams Sound

Williams Sound SoundPlus WIR TX10 Guida alla risoluzione dei problemi

Williams Sound

Williams Sound IR T2 Manuale utente

Williams Sound

Williams Sound Personal PA PPA T36 Istruzioni per il montaggio

Williams Sound

Williams Sound IR T2 Manuale

Williams Sound

Williams Sound Hearing Helpe T863 Istruzioni per il montaggio

Williams Sound

Williams Sound T2 863 Manuale utente

Williams Sound

Williams Sound PERSONAL PA T35 Guida

Williams Sound

Williams Sound Transmitter T1-173 Istruzioni per il montaggio

Williams Sound

Williams Sound Hearing Helper T800 Guida

Williams Sound

Williams Sound WIR TX90 Manuale utente

Williams Sound

Williams Sound WaveCAST EIGHT Manuale utente

Manuali Trasmettitore popolari di altre marche

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manuale del proprietario

Honeywell

Honeywell 5816WMBR Manuale utente

Kamstrup

Kamstrup READy MTU Istruzioni operative

Omega

Omega ZW Series Manuale utente

ABB

ABB Field 264H Guida

Alinco

Alinco DJ-V17T Manuale utente

Dejero

Dejero EnGo 3x Manuale utente

Rosemount

Rosemount 4600 Manuale utente

Speaka Professional

Speaka Professional 2342740 Manuale utente

trubomat

trubomat GAB 1000 Manuale utente

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manuale utente

Rondish

Rondish UT-11 Manuale utente

MG 10JRE Manuale utente

Burkert

Burkert 8177 Manuale utente

Firetide

Firetide HotPort 3203 Manuale

Tele Radio

Tele Radio T9-02 Manuale utente

Rotronic

Rotronic HygroFlex HF3 Series Manuale utente

Jamara

Jamara FCX6 Pro Tel Manuale utente
