Williams Sound T2 863 Manuale utente
T2 863 Transmitter, R2 863 Receiver
863 MHz Portable FM Listening System - Europe
QUICK SETUP GUIDE
Operating Instructions
1. Open the battery compartment by sliding the
compartment door away from the lanyard slot (Fig. A).
2. Install two AA Alkaline or NiMH batteries in the
transmitter and receiver(s). Be sure to observe proper
polarity (+/-). If using NiMH batteries, recharge with a
USB A to Mini-B cable, using the charging port (Figures
B, D). When the batteries are nearly depleted, the battery
symbol will have no bars (Figures C, E) and the display
backlight will ash; you may continue to use until the unit
quits operating, then replace or recharge the batteries.
FIG. A: Battery Compartment
VOL
CH
LOCK VOL < >
T2 863
LCD DISPLAY
A469
ADJUST BUTTONS
VOLUME SELECT
LOCK BUTTON
CHARGING
CONTACTS
BATTERY DOOR
CHARGING
INDICATOR
POWER SWITCH
MICROPHONE
JACK
LANYARD
SLOT
RF SIGNAL
STRENGTH
LOCK
SYMBOL
BATTERY
LIFE
USB
MINI-B
CHARGING
PORT *
* Requires a standard
USB A to Mini-B Cable
to charge
CHANNEL MICROPHONE
VOLUME
LEVEL
OFF ON
LANYARD SLOT
BELT CLIP
HOLES
BATTERY
COMPARTMENT
DOOR
(PRESS ON ARROW
AND SLIDE
IN DIRECTION
OF ARROW)
3. Plug a Williams Sound microphone into the microphone
jack on the transmitter (Fig. B). Plug a Williams Sound
earphone into the headphone jack on each of the
receivers (Fig. D).

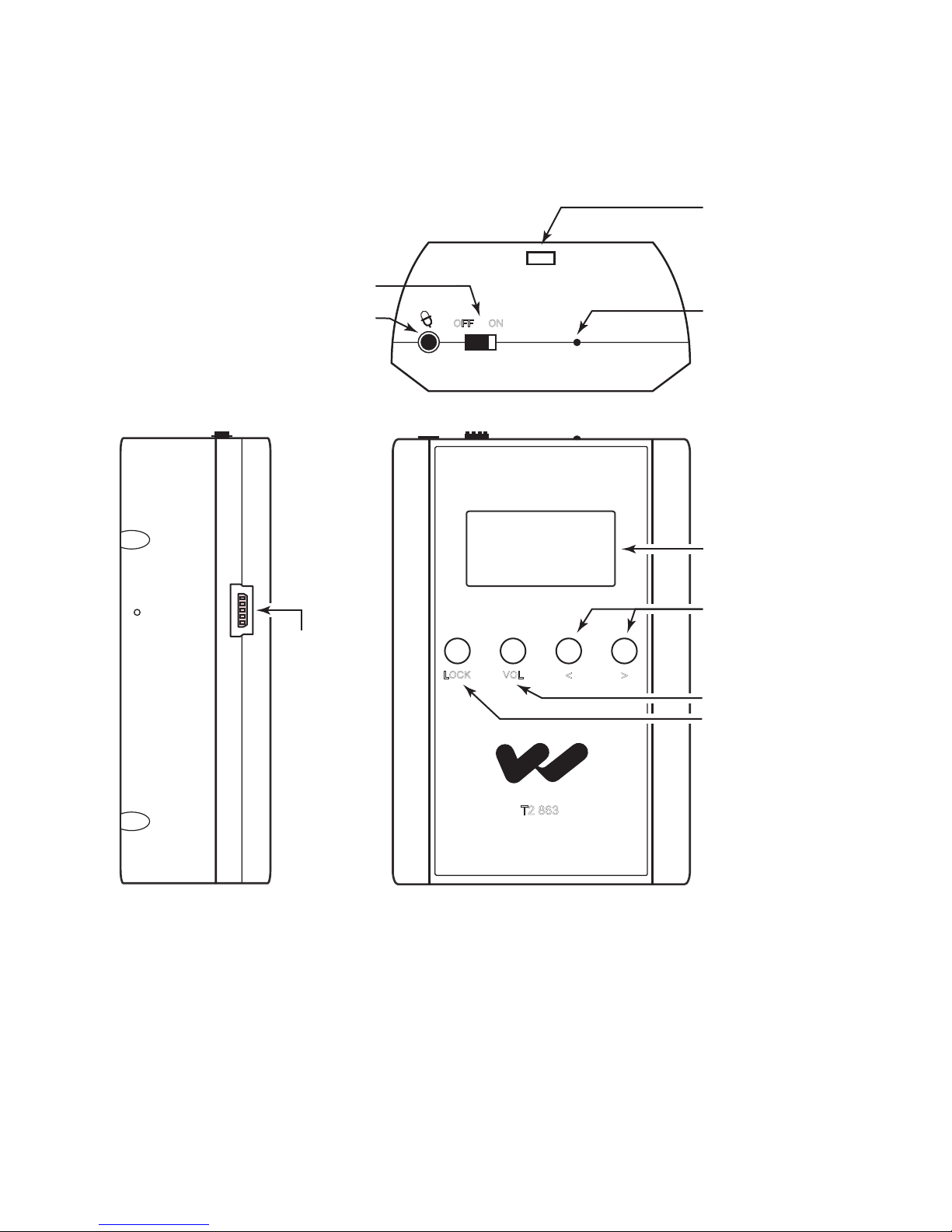

FIG. B: T2 863 Transmitter Top / Front
4. Power on the transmitter by sliding the power switch
from “OFF” to “ON” position (Fig. B).
5. The display will light up and show the current channel,
microphone volume level, transmitted RF signal strength,
VOL
CH
LOCK VOL < >
T2 863
LCD DISPLAY
A469
ADJUST BUTTONS
VOLUME SELECT
LOCK BUTTON
CHARGING
CONTACTS
BATTERY DOOR
CHARGING
INDICATOR
POWER SWITCH
MICROPHONE
JACK
LANYARD
SLOT
RF SIGNAL
STRENGTH
LOCK
SYMBOL
BATTERY
LIFE
USB
MINI-B
CHARGING
PORT *
* Requires a standard
USB A to Mini-B Cable
to charge
CHANNEL MICROPHONE
VOLUME
LEVEL
OFF ON
LANYARD SLOT
BELT CLIP
HOLES
BATTERY
COMPARTMENT
DOOR
(PRESS ON ARROW
AND SLIDE
IN DIRECTION
OF ARROW)
VOL
CH
LOCK VOL
< >
T2 863
LCD DISPLAY
A469
ADJUST BUTTONS
VOLUME SELECT
LOCK BUTTON
CHARGING
CONTACTS
BATTERY DOOR
CHARGING
INDICATOR
POWER SWITCH
MICROPHONE
JACK
LANYARD
SLOT
RF SIGNAL
STRENGTH
LOCK
SYMBOL
BATTERY
LIFE
USB
MINI-B
CHARGING
PORT *
* Requires a standard
USB A to Mini-B Cable
to charge
CHANNEL MICROPHONE
VOLUME
LEVEL
OFF ON
LANYARD SLOT
BELT CLIP
HOLES
BATTERY
COMPARTMENT
DOOR
(PRESS ON ARROW
AND SLIDE
IN DIRECTION
OF ARROW)
FIG. C: T2 863 Transmitter Display
locked status, and battery level. (Fig. C, above)
6. Select the desired operating channel on the transmitter.
Push-and-hold the “LOCK” button until the lock
symbol disappears. Adjust the Channel by pushing
the “<” or “>” buttons. When the desired channel is
reached, push and hold the LOCK button (Fig. B) until
the lock symbol reappears (Fig. C).
7. To adjust the microphone volume on the transmitter,
push and hold the LOCK button (Fig. B) until the
lock symbol disappears, then push the VOL button
repeatedly to adjust the volume between 0-3
(Figure C).
8. More than one transmitter may be used simultaneously,
but must have at least 2 channels of separation, i.e.
channels 1, 3, 5, 8. If interference is experienced, try
VOL
LCD DISPLAY
A470
ADJUST BUTTONS
CHARGING
CONTACTS
BATTERY DOOR
CHARGING
INDICATOR
POWER SWITCH
HEADPHONE
JACK
LANYARD
SLOT
CH
CHANNEL
RF SIGNAL
STRENGTH
LOCK
SYMBOL
BATTERY
LIFE
HEADPHONE
VOLUME
LEVEL
LANYARD SLOT
BELT CLIP
HOLES
BATTERY
COMPARTMENT
DOOR
(PRESS ON ARROW
AND SLIDE
IN DIRECTION
OF ARROW)
LOCK BUTTON
USB
MINI-B
CHARGING
PORT *
* Requires a standard
USB A to Mini-B Cable
to charge
OFF ON
LOCK < >
R2 863
FIG. D: R2 863 Receiver Top/Front
increasing the channel separation between the two
competing transmitters.
9. Power on the receiver(s) by sliding the power switch
from “OFF” to “ON” position (Fig. D). The display will
light up and show the current channel, headphone
volume level, received RF signal strength, locked
status, and battery level (Figure E).
10. Select the desired operating channel on the receiver
(the same channel chosen in step 6). Push and
hold the “LOCK” button until the lock symbol
disappears, then select the channel by pushing the
“<” or “>”arrow buttons. (Fig. D).
11. To adjust the volume on the receiver, at any time,
push the “<” or “>”arrow buttons repeatedly.
(Fig. D).
12. If no buttons are pushed for a period of time on either
the transmitter or receiver, (1) the display backlight will
shut o to conserve battery power, and (2) the unit re-
locks itself, indicated by the lock symbol on the display.
VOL
LCD DISPLAY
A470
ADJUST BUTTONS
CHARGING
CONTACTS
BATTERY DOOR
CHARGING
INDICATOR
POWER SWITCH
HEADPHONE
JACK
LANYARD
SLOT
CH
CHANNEL
RF SIGNAL
STRENGTH
LOCK
SYMBOL
BATTERY
LIFE
HEADPHONE
VOLUME
LEVEL
LANYARD SLOT
BELT CLIP
HOLES
BATTERY
COMPARTMENT
DOOR
(PRESS ON ARROW
AND SLIDE
IN DIRECTION
OF ARROW)
LOCK BUTTON
USB
MINI-B
CHARGING
PORT *
* Requires a standard
USB A to Mini-B Cable
to charge
OFF ON
LOCK < >
R2 863
FIG. E: R2 863 Receiver Display
System Specications
T2 863 Transmitter
Battery Type: Two AA 1.5 V non-rechargeable Alkaline batteries
(BAT 001-2), or
Two AA 1.5 V rechargeable NiMH batteries (BAT
026-2), charge with
USB A to Mini-B cable.
Battery Life: Alkaline: 12 hours
NiMH: 11 hours
Operating
Frequencies:
Selectable, 16 channels, 863 – 865 MHz.
Non-interfering group channels: 1,4,8,11,16.
Output Power: 10 dBm
Distance: Up to 150 m (500 ft) Line of Sight
External
Controls:
Top: Power On/O slide switch.
Front: Momentary push buttons.
Audio Input: 3.5 mm, microphone/audio
Dimensions: 75 mm x 50 mm x 25 mm
Weight: 45 g (without batteries)
Warranty: 2 years
System Specications
R2 863 Receiver
Battery Type: Two AA 1.5 V non-rechargeable Alkaline batteries
(BAT 001-2), or
Two AA 1.5 V rechargeable NiMH batteries (BAT
026-2), charge with
USB A to Mini-B cable.
Battery Life: Alkaline: 30 hours
NiMH: 20 hours
Operating
Frequencies:
Selectable, 16 channels, 863 – 865 MHz.
Non-interfering group channels: 1,4,8,11,16.
Sensitivity: -110 dBm
Distance: Up to 150 m (500 ft) Line of Sight
External
Controls:
Top: Power On/O slide switch.
Front: Momentary push buttons.
Audio Output: 3.5 mm stereo/mono headphone jack
Freq Resp: 20 Hz -16 kHz
Dimensions: 75 mm x 50 mm x 25 mm
Weight: 45 g (without batteries)
Warranty: 2 years
Safety Information
HEARING SAFETY
CAUTION!
This product is designed to amplify sounds to a high
volume. To protect your hearing and the hearing of others:
1. Make sure the unit is OFF or the volume is turned down
before putting on the earphones.
2. Set volume level at the minimum setting you need to hear.
3. Do not allow children or other unauthorized persons to
have access to this product.
BATTERY SAFETY
CAUTION!
Do not attempt to recharge alkaline or other non-
rechargeable batteries, which may explode, release
dangerous chemicals, cause burns, or cause other serious
harm to the user or product. To reduce the risk of re or
burns, do not crush, puncture, short contacts, or expose to
temperatures above 140F (60C). Replace only with battery
types designated for this product. Recycle or dispose of
properly.
MEDICAL DEVICE SAFETY
CAUTION!
Before using this product with a pacemaker or other
implantable medical device, consultant your physician
or the manufacturer of the device to make sure that you
are using this product in accordance with their safety
guidelines.
Recycling Instructions
Help Williams Sound protect the environment!
Please do not dispose of equipment or used batteries in
the household trash. Take the equipment to an electronics
recycling center or return to the factory. Take batteries to a
retail or community recycling location.
Battery Information
The T2 863 and R2 863 each use 2 AA batteries. We
recommend using Williams Sound Alkaline batteries (BAT
001-2) or NiMH rechargeable batteries (BAT 026-2) for
longer battery life than other brand batteries. NiMH
batteries must be charged externally, then placed in the
unit(s).
Accessories
To order accessories including microphones, headphones,
earphones and replacement earpads, batteries, and chargers,
contact Williams Sound at 800-843-3544 or order on-line at:
www.williamssound.com.
