Contents:

Guarantee and Warranty · · · · · · · · · · · · · · · · · · · · · · 1

Antenna Options and Accessories · · · · · · · · · · · · · · · 2

Before Getting Started / How It Works · · · · · · · · · · · · 3

Installation Overview · · · · · · · · · · · · · · · · · · · · · · · · · 4

Installing a Wilson Outside Antenna · · · · · · · · · · · · · · 5

Installing a Wilson Inside Antenna · · · · · · · · · · · · · · · 6

Installing a Wilson Ampliﬁer · · · · · · · · · · · · · · · · · · · · 7

Powering Up a Wilson Ampliﬁer · · · · · · · · · · · · · · · · · 8

Understanding the Ampliﬁer Lights · · · · · · · · · · · · · · · 9

Understanding the Ampliﬁer Lights · · · · · · · · · · · · · · · 10

Understanding the Ampliﬁer Lights · · · · · · · · · · · · · · · 11

Warnings and Recommendations · · · · · · · · · · · · · · · 12

Factor Conversions · · · · · · · · · · · · · · · · · · · · · · · · · · 13

Distance Coverage Chart · · · · · · · · · · · · · · · · · · · · · 14

Ampliﬁer Speciﬁcations · · · · · · · · · · · · · · · · Back Cover

Wilson

Electronics, Inc.

Warning: This manual contains

important safety and operating information.

Please read and follow the instructions

in this manual. Failure to do so could be

hazardous and result in damage to your

ampliﬁer.

30-Day Money-Back Guarantee

All Wilson Electronics products are protected by Wilson’s 30-day money-back

guarantee. If for any reason the performance of any product is not acceptable,

simply return the product directly to the reseller with a dated proof of purchase.

1-Year Warranty

Wilson Electronics ampliﬁers are warranted for one (1) year against defects in

workmanship and / or materials. Warranty cases may be resolved by returning the

product directly to the reseller with a dated proof of purchase.

Ampliﬁers may also be returned directly to the manufacturer at the consumer’s

expense, with a dated proof of purchase and a Returned Material Authorization

(RMA) number supplied by Wilson Electronics. Wilson shall, at its option, either

repair or replace the product. Wilson Electronics will pay for delivery of the repaired

or replaced product back to the original consumer.

This warranty does not apply to any ampliﬁers determined by Wilson Electronics

to have been subjected to misuse, abuse, neglect, or mishandling that alters or

damages physical or electronic properties.

RMA numbers may be obtained by phoning Technical Support at 866-294-1660.

The Manufacturer’s rated output power of this equipment is for single carrier operation.

For situations when multiple carrier signals are present, the rating would have to be

reduced by 3.5 dB, especially where the output signal is re-radiated and can cause

interference to adjacent band users. This power reduction is to be by means of input power

or gain reduction and not by an attenuator at the output of the device.

Operation is subject to the following two conditions: (1) This device may not cause

interference and (2) this device must accept any interference, including interference that

may cause undesired operation of this device.

Disclaimer: The information provided by Wilson Electronics, Inc. is believed to

be complete and accurate. However, no responsibility is assumed by Wilson

Electronics, Inc. for any business or personal losses arising from its use, or for

any infringements of patents or other rights of third parties that may result from

its use.

3301 East Deseret Drive, St. George UT 84790

For additional Technical Support visit

www.wilsonelectronics.com

Phone: 866-294-1660 Fax: 435-656-2432

Wilson

Electronics, Inc.

Installation Instructions for the Following Wilson Ampliﬁers:

In-Building Wireless Cellular Smart Technology™ 50 dB Ampliﬁer

Model # 801105

FCC ID: PWO8011SB IC: 4726A-8011SB

In-Building Wireless Cellular Smart Technology™ 60 dB Ampliﬁer

Model # 801106, Part # 801108, Part # 801110

FCC ID: PWO8011SB IC: 4726A-8011SB

In-Building Wireless PCS Smart Technology™ 60 dB Ampliﬁer

Model # 801306

FCC ID: PWO8013SB IC: 4726A-8013SB

In-Building Wireless iDEN Smart Technology™ 50 dB Ampliﬁer

Model # 804005

FCC ID: PWO8040SB IC: 4726A-8040SB

In-Building Wireless iDEN Smart Technology™ 60 dB Ampliﬁer

Model # 804006

FCC ID: PWO8040SB IC: 4726A-8040SB

In-Building Wireless 900 MHz Smart Technology™ 60 dB Ampliﬁer

Model # 801506, Model # 801606, Model # 801170, Model # 801370

Not for sale in the U.S. and Canada.

The term “IC” before the radio certiﬁcation number only signiﬁes that Industry

Canada technical speciﬁcations were met.

A13 dB 800 MHz Yagi Cellular Antenna (301111)

B1900 MHz Yagi PCS Antenna (301124)

C800 MHz Yagi Cellular Antenna (301129)

DDual-Band Panel Antenna (301135)

EDual-Polarity Dome Antenna (301123)

FDual-Band Dome Antenna (301121)

GSplitters (Multiple splitters available)

HAmpliﬁer Soft Cases

I Omni-Directional Antenna (301201)

J Marine Antenna (301130)

Antenna Options & Accessories

HIJ

Before Getting Started

This guide will help you properly install Wilson’s In-Building Wireless Smart

Technology™Ampliﬁers. It is important to read through all of the installation

steps for your particular application prior to installing any equipment. Read

through the instructions, visualize where all the equipment will need to be installed

and do a soft installation before mounting any equipment. If you do not understand

the instructions in full, seek professional help, or contact Wilson Technical Support at

866-294-1660.

Inside this Package

• In-building wireless ampliﬁer

• AC/DC 110 volt power supply

Additional Required Equipment (sold separately)

• Outside antenna (Yagi recommended)

• Inside dome, panel or low-proﬁle antenna

• Antenna coax cable

How it Works

Wilson ampliﬁers are small, portable, bi-directional devices that deliver service levels

consistent with what would be expected in areas of high cell network coverage. They

amplify a weak or shadowed signal in mobile, marine and in-building applications.

When using a Wilson ampliﬁer in conjunction with Wilson antennas, the outside

antenna will collect the cell tower signal and send it through the cable to the

ampliﬁer. The signal is then ampliﬁed and broadcast from the inside antenna

to the surrounding area. Cell phones and cellular data cards in that area then

communicate with the improved signal. When a cell phone or cellular device

transmits, the signal is received by the inside antenna, ampliﬁed by the ampliﬁer

and broadcast back to the cell tower through the outside antenna.

In-building wireless

ampliﬁer AC/DC plug-in power

supply

Installation Overview

The following steps provide a summary of the ampliﬁer/antenna installation

process. However, they are not a substitute for the complete installation

instructions on the following pages, which you should read thoroughly. Contact

Wilson’s Technical Support Department with any questions at 866-294-1660.

STEP 1 Install the Outside Antenna

Mount the Yagi antenna so that it points toward the cell site and away from where

the inside antenna will be located. Depending on your ampliﬁer model, the two

antennas will need 50-75 feet of separation. (See illustrations on pages 5 and 7.)

STEP 2 Install the Inside Antenna

Select a location in the center of where the signal needs to be ampliﬁed. Refer

to the instructions included with the inside antenna. (See illustration on page 6 to

determine the inside antenna model that best meets your speciﬁc needs.)

STEP 3 Install the Ampliﬁer

Position the ampliﬁer in a well-ventilated location near a power outlet. Attach

the outside and inside antennas to the ampliﬁer using Wilson 400 low loss coax

cable (available from Wilson Electronics).

STEP 4 Power up the Ampliﬁer

IMPORTANT! Before connecting the power supply, ensure

that both the inside and outside antenna cables are

connected. Also ensure that all cell phones and cellular data

cards within 50 feet of the inside antenna are turned off. Plug

in the supplied 6-volt power supply into the ampliﬁer and

then into a wall outlet.

STEP 5 Check the Ampliﬁer Lights

The PWR light should be green, indicating that the ampliﬁer

has power. If all other lights are also green, the ampliﬁer is

operating properly; however, if you do not have the desired

signal coverage area, refer to pages 5, 6, 9 and 10.

Note: if you are using an outdoor Yagi antenna, it must be

adjusted for maximum signal.

Installing a Wilson Outside Antenna

Select a location on the roof of the

building to install the outside antenna,

using a cell phone in test mode to ﬁnd

the strongest signal from the cell tower.

For test mode help, visit www.

wilsonelectronics.com or call Technical

Support at 866-294-1660.

Follow the speciﬁc antenna

installation instructions included with

the outside antenna.

Lightning protection is recommended

for all in-building installations. Take

extreme care to ensure neither you

nor the antenna come in contact with

any electrical power lines.

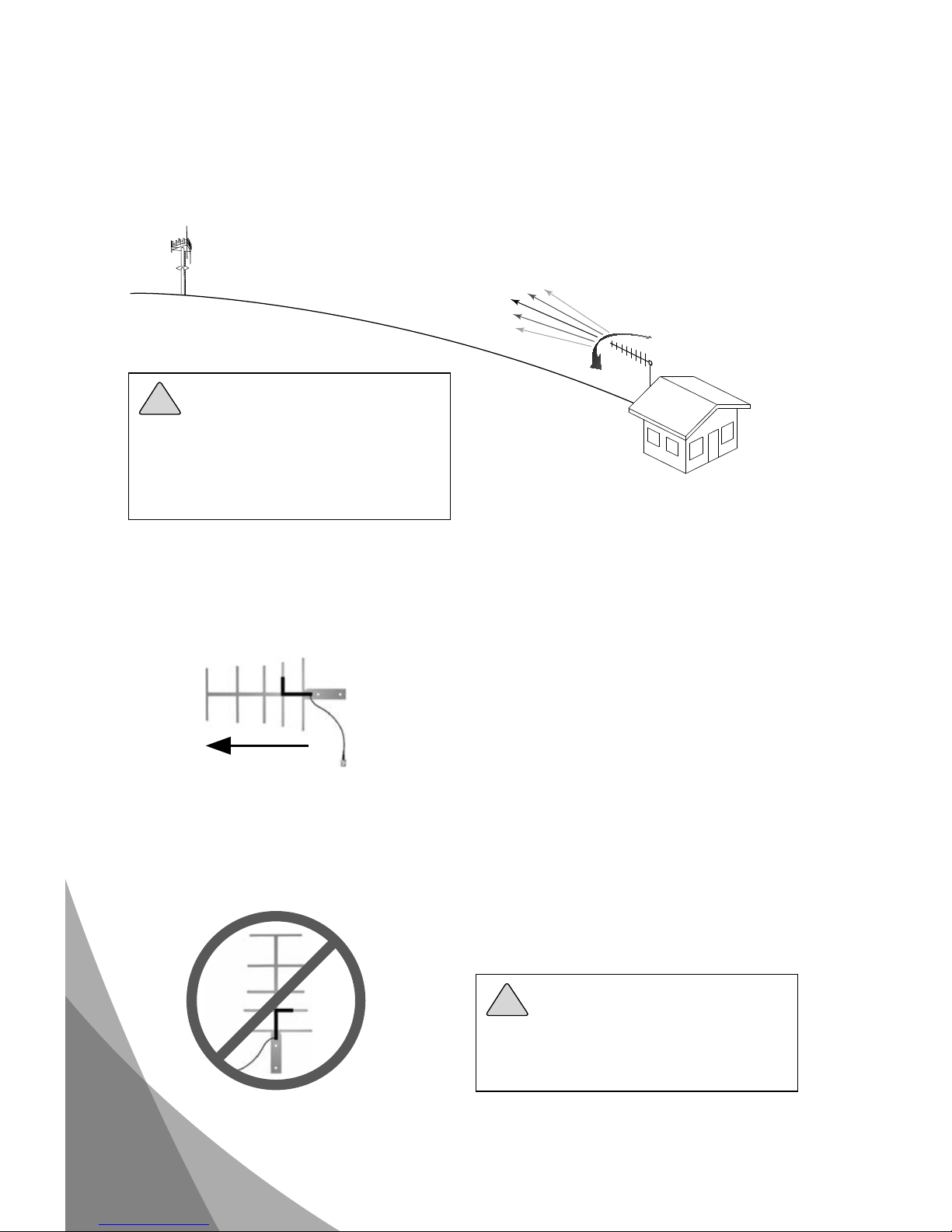

AYagi antenna must be installed

horizontally with the elements vertical

and the drip hole on the bottom.

Ensure there are three feet of

clearance in all directions surrounding

the antenna.

CORRECT

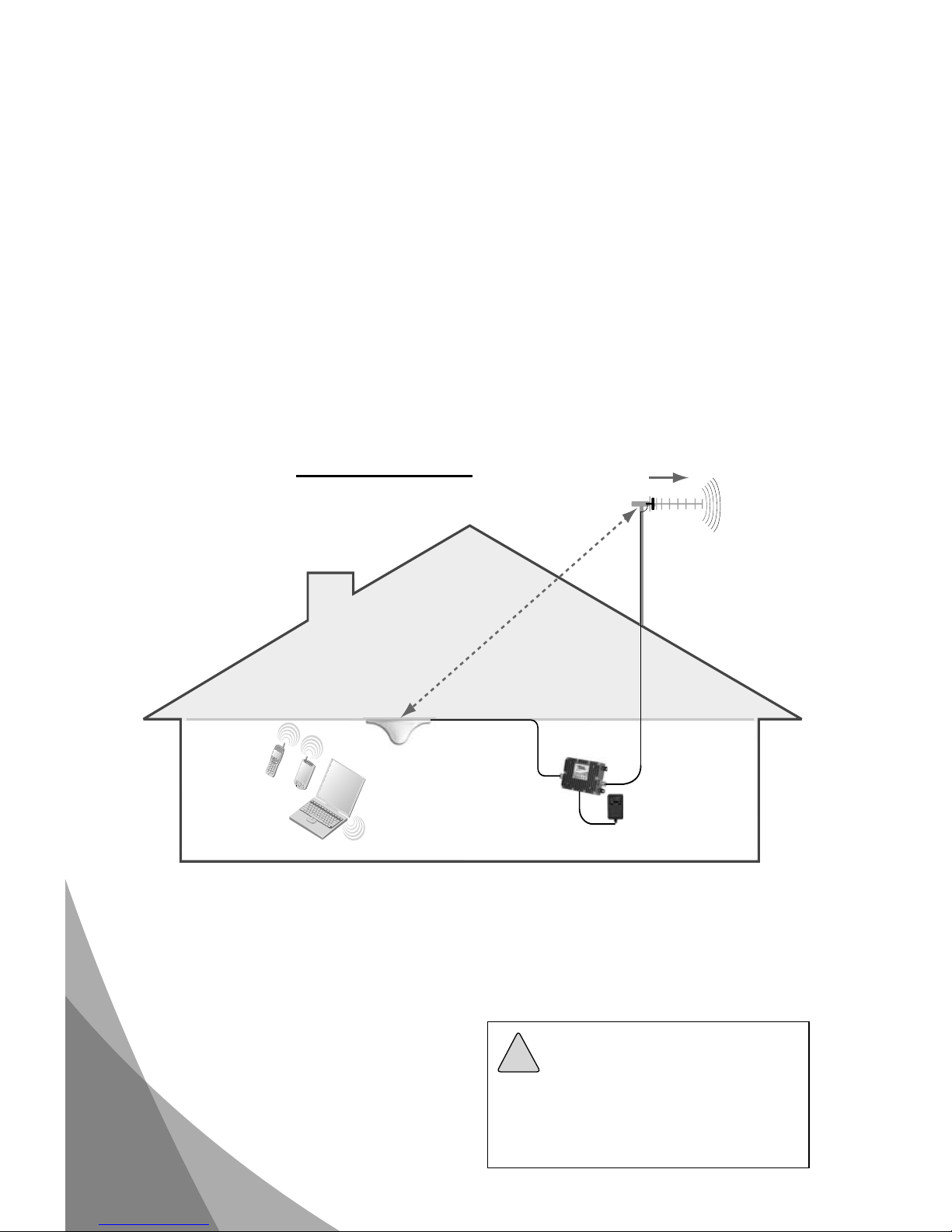

Cell Tower RF Signal

Yagi External Antenna

Warning: The outside antenna must

be installed on an outdoor permanent structure

with a separation of at least 20 feet from all

persons during normal operation.

NOT

CORRECT

Warning: Never point the

front of the Yagi antenna toward

the inside antenna - oscillation will

result, causing amber light and gain

reduction.

Pointing toward

cell tower

Installing a Wilson Inside Antenna

Select a suitable location for the inside antenna, preferably in the center of where

the signal needs to be ampliﬁed. To determine signal strength and coverage

distance, refer to page 12 of this installation guide.

Follow the speciﬁc antenna installation instructions included with the inside antenna.

Wilson has several inside antenna options. The dome and panel antennas are

the most popular for in-building applications.

For a square room, a dome antenna will provide better coverage. (A)

For a rectangular room, a panel antenna will provide better coverage. (B)

In some cases, multiple inside antennas may be required (C & D). A signal may

be “split” by using a splitter. If using more than one inside antenna, a separation

of at least 20 feet is necessary between inside antennas.

= Dome Antenna

= Panel Antenna = Splitter

= Amplifier

Connect the coax cable from the ampliﬁer to the inside antenna. For distances of 20

feet or more, use Wilson 400 low loss coax cable to prevent signiﬁcant signal loss.

Warning: An inside antenna must have

a separation distance from all persons that is at

least 12 inches for the 5.2 dBi dome antenna

and 15 inches for the 7 dBi panel antenna.

Installing a Wilson Ampliﬁer

Select a location to install the ampliﬁer that is away from excessive heat, direct

sunlight, moisture and that has proper ventilation. Do not place the ampliﬁer in

an air-tight enclosure.

Recommended installation locations for in-building ampliﬁers are:

• On a wall

• On the ceiling

• Near a power outlet

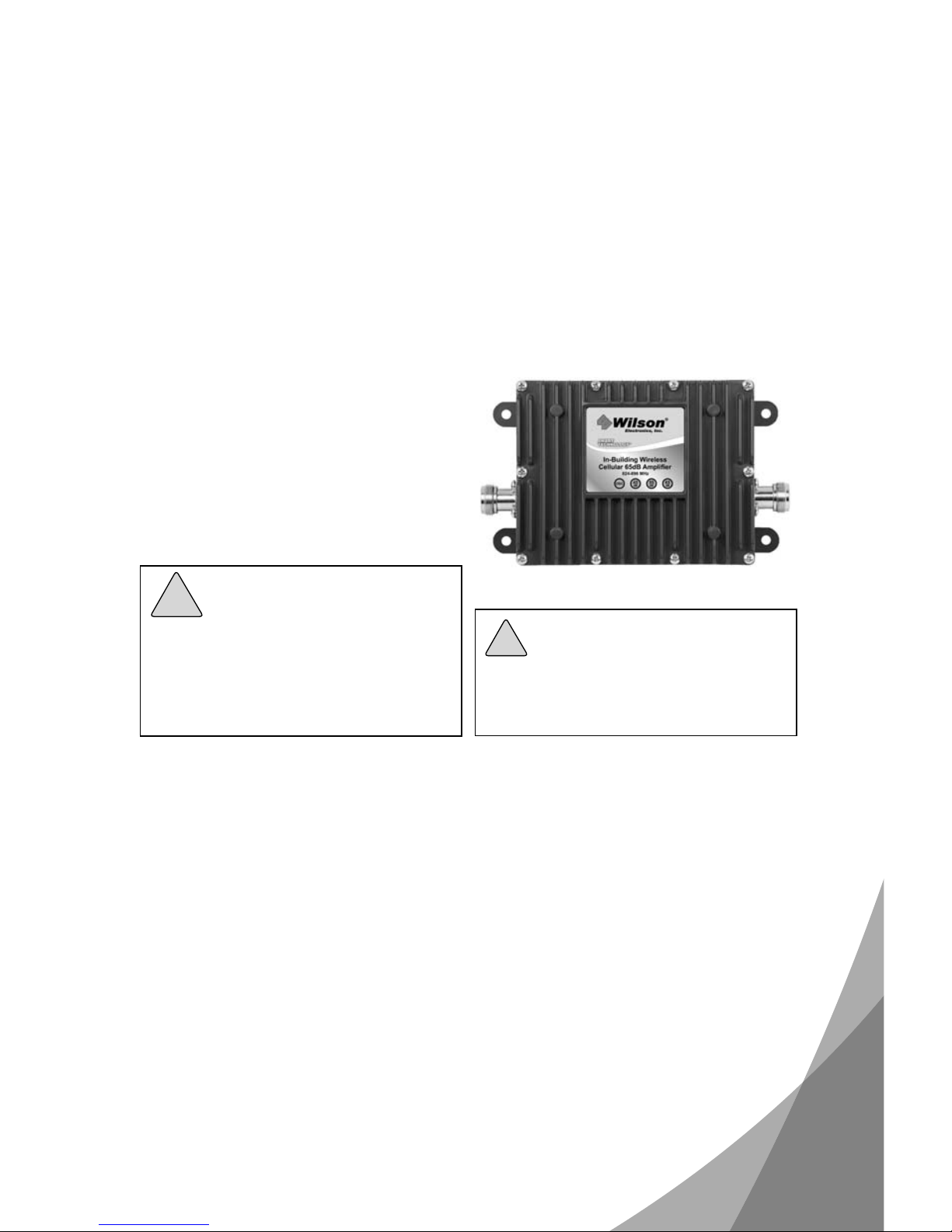

Run the outside antenna cable to the ampliﬁer and attach it to the N-Female

connector labeled “outside antenna” on the ampliﬁer. Run the inside antenna

cable to the ampliﬁer and attach it to the N-Female connector labeled “inside

antenna” on the ampliﬁer.

Note: Be careful when plugging the connector in so as not to damage the center

pins on the connectors.

Connect the outside antenna to the ampliﬁer with Wilson 400 low loss coax cable

(available from Wilson Electronics). Place the inside antenna in the center of

the area needing the ampliﬁed signal. It is important to have at least 50 feet of

separation between the inside and outside antennas for the 50 dB ampliﬁers, 68

feet of separation distance for the 60 dB PCS ampliﬁers and at least 75 feet of

separation distance for the 60 dB cellular ampliﬁers.

AC/DC

Power Supply

Amplifier

Supports

Multiple

Users

Inside Antenna

Optional Dome

Antenna Shown

Point Yagi antenna

away from inside

antenna

Outside

Antenna

1900 MHz Yagi

Antenna Shown

50 feet minimum

separation between inside

and outside antenna for

50 dB cellular amplifier

68 feet for 60 dB PCS amplifier

75 feet for 60 dB cellular

amplifier

Antenna Separation

Warning: Connecting the

ampliﬁer directly to the cell phone

with use of an adapter will damage

the cell phone.

Powering up a Wilson Ampliﬁer

1. IMPORTANT! Ensure that all cell phones and cellular data cards within 50 feet

of the inside antenna are turned off.

2. To verify proper installation of the ampliﬁer and antennas, make sure that the

distance between the inside and outside antennas is a minimum of 50 feet for

the 50 dB ampliﬁer, 68 feet of separation distance for the 60 dB PCS ampliﬁer,

and 75 feet for the 60 dB cellular ampliﬁer.

3. If you are using an outside Yagi antenna, never point the front of the Yagi

toward the inside antenna.

4. Ensure that both the outside antenna coax cable and the inside antenna coax

cable are connected to the ampliﬁer before powering up the ampliﬁer.

5. Plug the 6-volt power supply into the ampliﬁer input marked “power” (carefully,

to avoid damaging the center pin) and then into a wall outlet.

Warning: Verify that both

the outside antenna and the inside

antenna are connected to the

ampliﬁer before powering up the

ampliﬁer.

Warning: Use only the power

supply provided in this package.

Use of a non-Wilson product may

damage your equipment.

NOTE: The aluminum casing of a Wilson ampliﬁer will adjust very quickly to the

ambient temperature of its environment. For example, in the summer, when

the attic of a house can easily exceed 100 degrees Fahrenheit, the ampliﬁer

temperature may be 10 or more degrees higher. The casing will be hot to the

touch. Such high temperatures will not damage the ampliﬁer, nor do they pose

a ﬁre risk. As recommended in these instructions, install the ampliﬁer in a

location with adequate ventilation. Keep the area free of items that could block

air ﬂow to the ampliﬁer.

The ampliﬁer is equipped with sensitive electronics designed to detect ampliﬁer

oscillation or cell phone overload, both of which can hamper ampliﬁer performance.

The ampliﬁer is designed to automatically reduce gain or, if necessary, shut down

to prevent or compensate for these conditions. Oscillation or overload can be

caused by improper equipment installation -- understanding the ampliﬁer lights will

help you identify and solve potential problems.

OSC 40 50 60 When the ampliﬁer is initially powered on, the 60 light

will turn green. This indicates the ampliﬁer is working

at the proper gain level.

If the 50 light is green, the outside signal is too strong

and the ampliﬁer is powering down. Verify that the

outside Yagi antenna is pointed away from the inside

antenna and not across the roof of the building. If need

be, redirect the Yagi antenna so that it is pointing away

from the inside antenna. Then, reset the ampliﬁer by

disconnecting and reconnecting the power supply.

If the 40 light is green, the ampliﬁer is continuing to

power down. Try operating the cell phone farther away

from the inside antenna. If need be, redirect the Yagi

antenna so that it is pointing away from the inside

antenna. Then, reset the ampliﬁer by disconnecting and

reconnecting the power supply.

If the OSC light is red, the ampliﬁer has shut down due

to cell phone overload. Try operating the cell phone

farther away from the inside antenna. Verify that the

outside Yagi antenna is pointed away from the inside

antenna and not across the roof of the building. If need

be, redirect the Yagi antenna so that it is pointing away

from the inside antenna. Then, reset the ampliﬁer by

disconnecting and reconnecting the power supply.

OSC 40 50 60

If your ampliﬁer has this light

conﬁguration refer to the

instructions below.

Understanding the Ampliﬁer Lights

Altri manuali per 801105

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Wilson Electronics Amplificatore

Wilson Electronics

Wilson Electronics SIGNALBOOST C-Booster Manuale utente

Wilson Electronics

Wilson Electronics SIGNALBOOST 811210 Manuale utente

Wilson Electronics

Wilson Electronics WilsonPro ENTERPRISE A8000 Manuale utente

Wilson Electronics

Wilson Electronics 801230 Manuale utente

Wilson Electronics

Wilson Electronics 811101 Manuale utente

Wilson Electronics

Wilson Electronics 801247 Manuale utente

Wilson Electronics

Wilson Electronics WILSONPRO ENTERPRISE 4300 Manuale utente

Wilson Electronics

Wilson Electronics 271220 Manuale utente

Wilson Electronics

Wilson Electronics SignalBoost Manuale utente

Wilson Electronics

Wilson Electronics PRO 710i Manuale utente

Wilson Electronics

Wilson Electronics SignalBoost DT Manuale utente

Wilson Electronics

Wilson Electronics 271245 Manuale utente

Wilson Electronics

Wilson Electronics WILSONPRO ENTERPRISE 4300R Manuale utente

Wilson Electronics

Wilson Electronics 814001 Manuale utente

Wilson Electronics

Wilson Electronics IoT 5-Band Manuale utente

Wilson Electronics

Wilson Electronics 271265 Istruzioni operative e di manutenzione

Wilson Electronics

Wilson Electronics 814001 Manuale utente

Wilson Electronics

Wilson Electronics WILSONPRO PRO 140i Manuale utente

Wilson Electronics

Wilson Electronics 271247-75 Manuale utente

Wilson Electronics

Wilson Electronics 271245 Manuale utente

Wilson Electronics

Wilson Electronics SIGNALBOOST MobilePro Manuale utente

Wilson Electronics

Wilson Electronics 271245 Manuale utente

Wilson Electronics

Wilson Electronics BD800AM Manuale utente

Wilson Electronics

Wilson Electronics 2B1401 Manuale utente

Manuali Amplificatore popolari di altre marche

ASTRO

ASTRO HVO V40 P Manuale utente

Marantz

Marantz SUPERSCOPE BLA-545 Istruzioni per il montaggio

NAD

NAD CI980 Manuale utente

Technics

Technics SE-CH770 Manuale utente

Harman Kardon

Harman Kardon HK6300 Manuale utente

NAD

NAD T975 Manuale utente

McIntosh

McIntosh MA6850 Manuale utente

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuale utente

Viatron

Viatron Autrix Manuale utente

GME

GME GA9800 Manuale utente

Atlas

Atlas CP700 Manuale utente

Roland

Roland KC-1000 Manuale utente

Pyle

Pyle PFMRA350BW Manuale utente

Advantage

Advantage S-250 Manuale utente

IRT Electronics

IRT Electronics DVA-3007 Manuale utente

Dimavery

Dimavery BA-100 Series Manuale utente

Sony

Sony XM-S400D Manuale utente

Schertler

Schertler ROY X Manuale utente
