WINGS PHANTOM 320 Manuale utente
WINGS
PHANTOM
320
USER MANUAL
INTRODUCTION :-
Wings is India’s fastest growing audio, smart watches and accessories brand catering to the
youth. Wings was recognised as the most Prestigious Rising Brand Of Asia 2021-2022 by
BARC Asia in the gaming lifestyle accessories category.
Wings is on a mission to create a pop culture led brand that the youth is proud to own and
Nodwin, a subsidiary of Nazara Technologies, has a strategic investment in alignment with the
long term vision.
Packing contents:
●1N Pair of TWS Earbuds
●1N Charging Case
●1N Type-C Charging Cable
●1N User Manual
●1N Warranty Card
●2N Pairs of extra ear caps (Small & Large)
Product Layout:
1. Charging LED of charging case
2. Type-C Charging Port
3. Touch Control
4. LED Indicator of Earbuds
5. Mic 1
6. Mic 2
HOW TO PAIR:-
Step 1:Make sure your charging case is charged up. Open the lid of the charging case. The earbuds will
turn ON and automatically enter the pairing mode, and the Left earbud LED will flash quickly.
Step 2: Tap “Phantom 320” from the smartphone’s Bluetooth menu. There is a ring prompt after a
successful connection. This indicates earbuds are successfully connected to your device.
Step 3: Congratulations! You are now connected and can start playing media.
Note: If you do not connect to any device within 180 seconds of entering pairing mode, then both
earbuds will automatically turn OFF. Please put the earbuds back into the case and repeat the pairing
process.
Touch Control: -
Basic Function
Left Earbuds
Right Earbuds
Touch controls
Volume Increase
Single Tap on right
earbud’s touch
sensor
Volume Decrease
Single Tap on left
earbud’s touch
sensor
Play/Pause Songs
Double Tap on any
earbud’s touch
sensor
Next Track
Three Tap on the
right earbud’s touch
sensor
Previous Track
Three Tap on the left
earbud’s touch
sensor
Voice Assistant
Long Press for 2
seconds on the left
earbud’s touch
sensor
Game Mode ON/OFF
Long Press for 2
seconds on the right
earbud’s touch
sensor
Call Controls: -
Calling Functions
Left Earbud
Right Earbud
Touch Control
Answer Incoming Call
Double Tap on any
earbud’s touch sensor
Hang up calls
While on call, Double
Tap on any earbud’s
touch sensor
Reject calls
Long Press for 2
seconds on any
earbud’s touch sensor

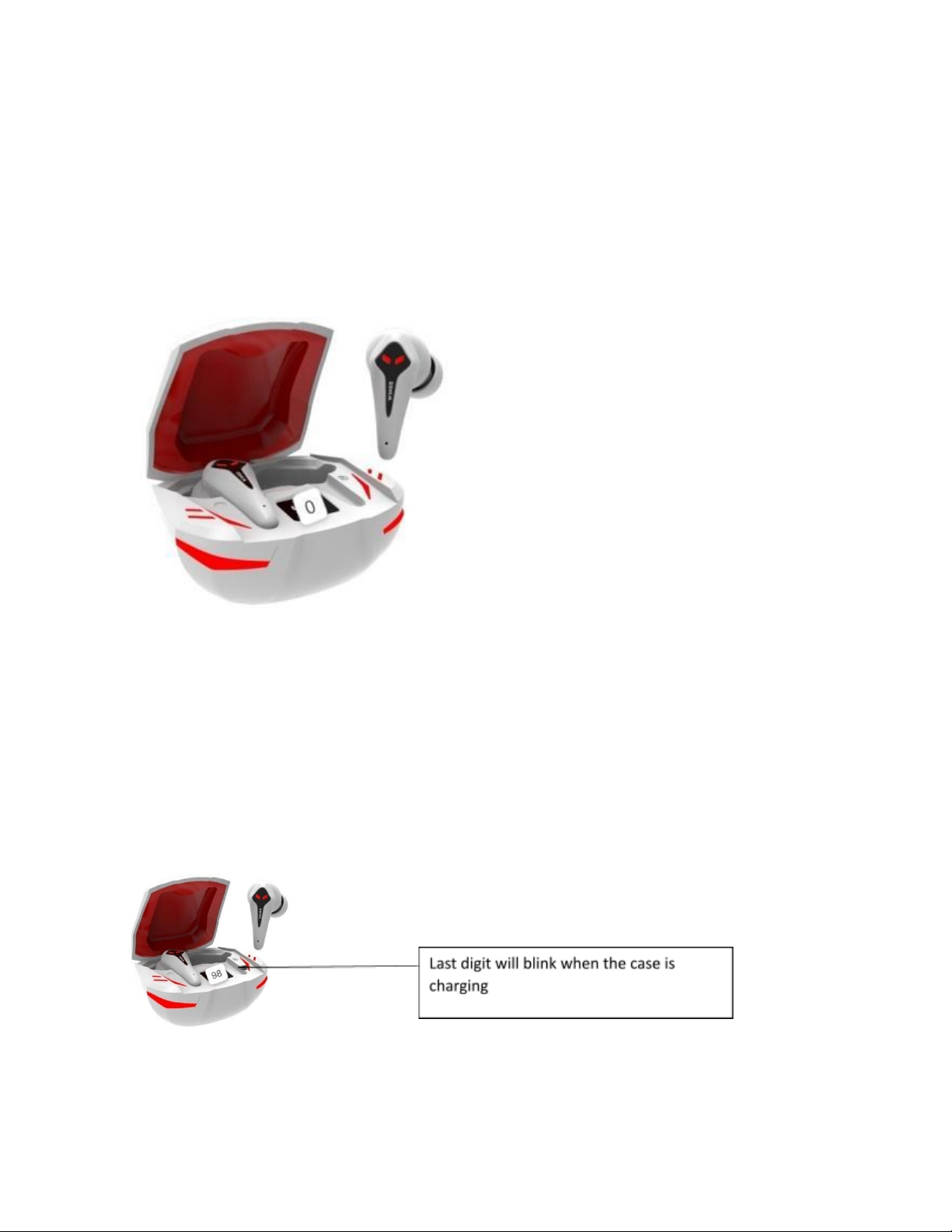

CHARGING THE CASE
Note: Please only use a 5V/1A adapter to charge the case as
higher voltage adapters can destroy the battery of the case and
earbuds.
Low Battery: When the case battery is 0%, the display panel will show 0%.
Charging the Case: The case display will show the battery percentage, and the case display will start to
blink when charging.
Fully Charged: The case display will show 100% once the charging is completed.
CHARGING THE EARBUDS
Note: Please peel off the protective film on the earbuds
charging points before charging the earbuds.
Earbuds Low Battery: - Earbuds will play a jingle.
Earbuds Charging: When earbuds are placed inside the
charging case, the LED light on the earbuds will turn ON
indicating that the earbuds are being charged.
Earbuds Completely Charged: When the earbuds are
completely charged, the LED Light on the earbuds will go OFF.
Wings Sync App Support:-
How to pair the device with the Wings Sync app
For Android
1. Scan the QR code & install the “Wings Sync” app from the play store and sign up for the app.
2. Search and add the device from the “Add device” section of the app
3. While the device is getting paired, the mobile will give a pop-up of “pairing request” to connect the
device with the mobile. Please select “Pair & connect,” and the device will connect successfully with the
“Wings Sync” app
Note- If you skipped this notification, or this didn’t pop up, please pair the device with the Bluetooth of
the mobile manually by following the “How to Pair” section of the user manual.
For IOS
1. Scan the QR code & install the “Wings Sync” app from the App store and sign up for the app.
2. Search and add the device from the “Add device” section of the app. A floating notification will flash in
the app saying, “The device is not connected to the system Bluetooth” click on it and go to the settings.
3. Manually add the device from the Bluetooth menu of the iPhone. The device will connect successfully
with the “Wings Sync” app.
Note: Reset the buds following the steps in “Resetting the device” in case you cannot connect the device
with the app on Android or IOS.
QR Code
Resetting The Device: -
Please follow the below steps when you see "Phantom 320" in your Bluetooth device menu on your
mobile, or you can hear music through only one earbud. This means the left and right earbuds have not
auto-paired with each other:
Step 1: Disconnect the earbuds and remove "Phantom 320" from your mobile list of paired devices.
Step 2:
●Tap 5 times quickly to clear the pairing data on either of the earbuds
●The LED light on both earbuds will blink 3 times simultaneously to show that the process is
completed.
●
Step 3: Put them back into the charging case, and "Phantom 320" is ready to use. They will automatically
switch on and pair instantly as well.
TECHNICAL SPECIFICATIONS
PARAMETERS
VALUES
Bluetooth Version:
V5.3
Effective Distance:
15M
Impedance:
32 Ohm
Product Weight:
42g
Speaker Size:
13mm
Total Play Time:
Upto 40 Hours
Earbuds Play Time:
Upto 8 Hours
Talk Time:
Upto 45 Hours
Standby Time:
Upto 300 Hours
Complete Charging Time:
1.5 Hours
Earbuds Charging Time:
1 Hours
Rated Input:
5V/1A
Frequency:
20Hz~20KHz
Water and Sweat Resistant:
IPX5
Charging Port:
Type C
