WorkPro SL 101 Manuale utente
Ver. 14.05.05
User Manual / Manual de Uso
Line Array System
Sistema Line Array
Thank you for buying this product. Read this manual first as it will help you operate the system properly. Please keep this manual
for future reference.
- 1 - SL 101 / SL 212B Line Array System
EN
SL 101
SL 101 is a set of medium/high speakers in the ARION
SL 101 is a set of medium/high speakers
Array Series. It is composed of one 10" neodymium
in the ARIONArray Series. It is composed of
LF transducer and two 1.7" HF transducers.
one 10" neodymium LF transducer and two
1.7" HF transducers.
Dispersion 120º x 30º at 1 kHz
4x SL 101 and 1x SL 212B make up an excellent point
source system.
SL 101.
SL 101 SL 101
The LF transducer of SL 101 is made from 65 mm big power flat
The cabinet of SL 101 is made from 15 mm plywood. The
Thanks to the powder spraying techniques, the grille of SL 101 has
high resistance. The inner side of the grille is padded with cotton
to protect it from rain.
The HF transducer of SL 101 is made from 44 mm flat aluminum
voice coil, titanium diaphragm. The sound performance is
estraordinary.
SL 101 is mainly applied in meeting rooms, large multifiction
hall, auditorium, churches and mobile performances.
- 2 - SL 101 / SL 212B Line Array System
EN
Power Output: 400W + 150W (MID+HIGH)
SL 212B
1800W
Special designed connection accessories and hang to
combinethe application of SL 101 and SL 212B. easy
assembling.
SL 212B is a low frequency speaker with brand new shape
and short term peak power reach 1800W.
The cabinet of SL 212B is made of 18 mm thick plywood with
which provides best sound quality is used in SL 212B. Also the
Thanks to the powder spraying techniques, the grille of
SL 212B has high resistance. The inner side of the grille is
padded with cotton to protect it from rain.
SL 212B is mainly applied in meeting rooms, large
multifunction hall, auditorium, churches and mobile
performances.
- 3 - SL 101 / SL 212B Line Array System
EN

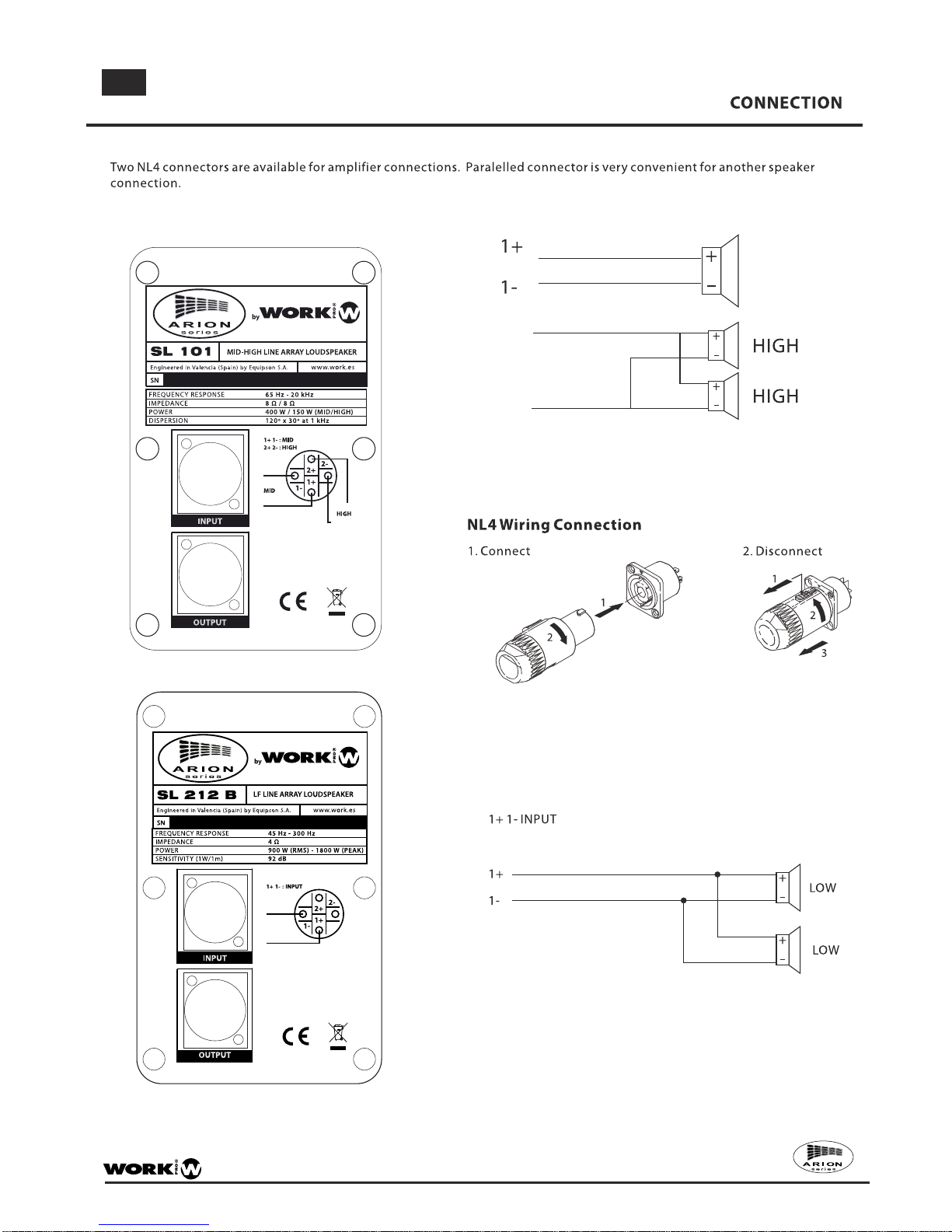

2 +
2 -
MID
Rear panel
- 4 - SL 101 / SL 212B Line Array System
EN
The number rear hanging plate indicates the current angle.
E.g. "1" means that the angle between 2 SL 101 is 1.
SL 101 Front
Hanging Plate
Safety Steel Wire
Lockpin
SL 101 Angle
Adjusting Plate
SL 101 Rear panel
Hanging Plate
Hanging Frame
SL 212B
(1) SL 101 & SL 212B have customized hanging wares for convenient and
easy hanging and installation.
(2) SL 101 can be used individually, an d can also be used with
SL 212B to form a line array system.
(3) The hanging wares include SL 212B hanging bracket, SL 101
cabinet front and rear hanging ware and the lockpins.
(4) The rear hanging ware is fixed on the cabinet for easy and
fast field vertical angle adjustment between the speakers.
(5) The hanging frame of SL 212B is welding steel frame,
which can hang multiple SL 101.
- 5 - SL 101 / SL 212B Line Array System
EN
- 6 - SL 101 / SL 212B Line Array System
EN
SL 101 Specifications SL 212B Specifications
65 Hz - 20 kHz
Passive Paint wooden 2-way
Range Speaker
2 x T44 HF Compression driver
1 x 10" LF Driver
45 Hz - 20 kHz
95 dB
118 dB/ 124 dB (PEAK)
400W + 150W
120º x 30º
8 ohm
3 kHz
Trapez. cabinet, 15 mm Plywood
Specialized hardware
Black Polyurethane (cabinet)
Black powder coated grille
NL4 x 2
538.5 x 262 x 434.5 mm
(21.2 x 10.3 x 17.1 in)
630 x 595 x 380 mm
(24.8 x 23.4 x 15 in)
17 kg ( 37.4 lb)
18.5 kg (40.7 lb)
Flight frame
- 7 - SL 101 / SL 212B Line Array System
EN
- 8 - SL 101 / SL 212B Line Array System
EN
