Xerox Document WorkCentre 450c Manuale utente

qCheck off the box after each Step is completed.

1. qRemove all paper and the clear plastic Printer

Output Tray in front of the paper tray. (See Figure 1)

2. qInsert approximately a ¼ inch thick stack of

20 lb. paper (measure it) into the Paper Tray.

3. qInsert the Feed Roll Cleaning Pad (provided in

Kit) in front of the paper stack (Long-Edge-Down) with

the green side (coarse side) facing out.

Page 1 of 2

NOTE: Good lighting is required in order to

see inside the WorkCentre 450c / 450cp

CUSTOMER SELF SERVICE

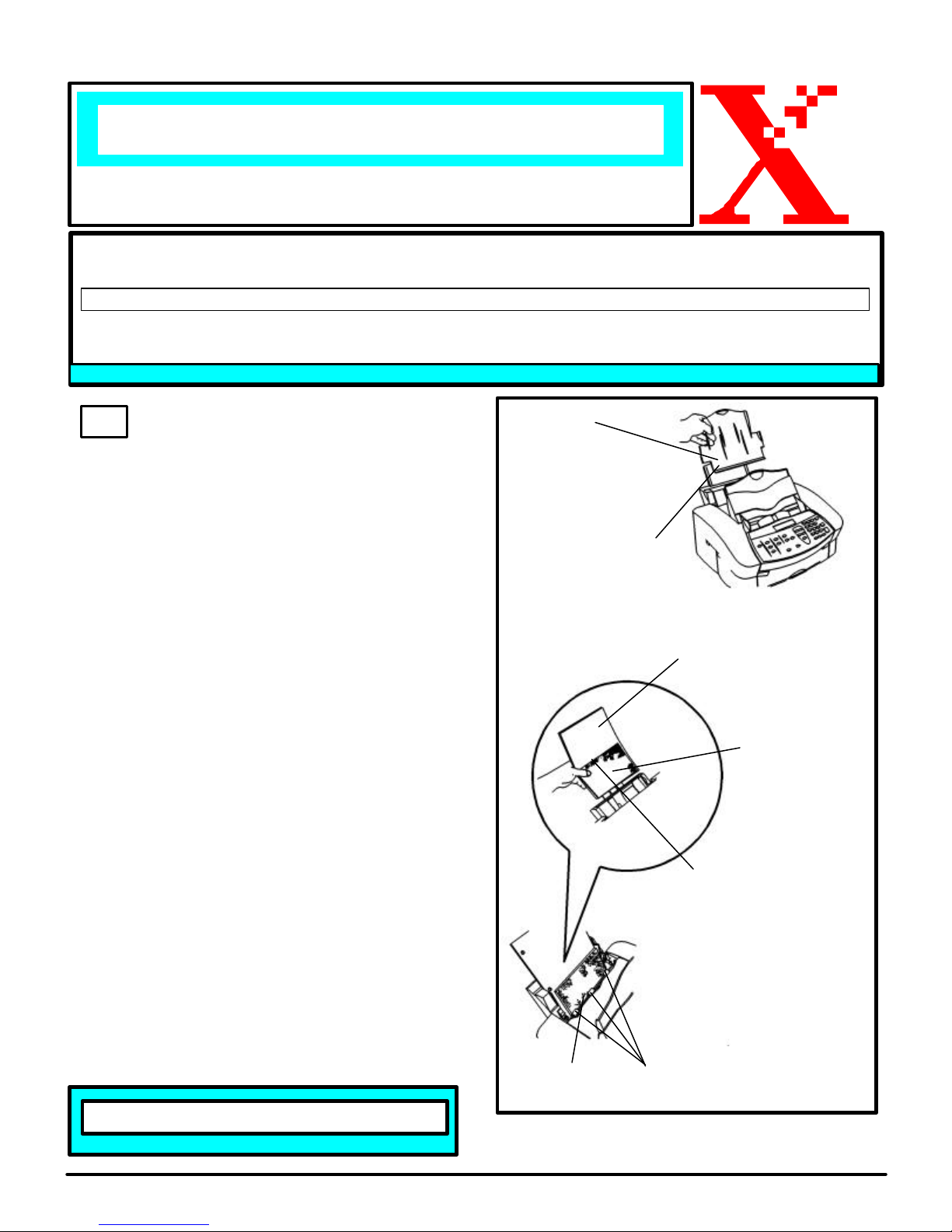

Figure 1. Inserting the Feed Roll Cleaning Pad

into the Paper Tray

Step 1:

Remove all

paper and the

clear plastic

Printer Output

Tray

Bottom of

Paper Tray

Printer Output

Tray

Step 2:

Insert approximately a ¼

inch thick stack of paper

into the Paper Tray and

insert the Feed Roll

Cleaning Pad in front of the

paper stack with the green

side facing out

¼ inch Paper

Stack

Feed Roll

Cleaning Pad

with the green

side facing out

3 Feed Rolls are in

front of the Pad

(continued)

Xerox - DOCUMENT WorkCentre 450c/ 450cp

Feed Roll Cleaning Kit

The purpose of the instructions is to provide a step by step procedure to correct a paper feed problem. Read all

the instructions before performing this procedure.

CUSTOMER PREPARATION:

•Unpack the repair kit and read the Repair Instructions.

Contents of kit:

•

Feed Roll Cleaning

Pad

•

Repair Instructions

DRB-FILE

709P00850 Rev A March 2000

4. qPress the Feed button for approximately one

second and release (See Figure 2). This will engage

the feed rollers for a short period of time and allow the

Feed Roll Cleaning Pad to clean and restore the

surface texture of the feed rollers. Repeat this

process approximately 10 times.

6. qReverse the Feed Roll Cleaning Pad in the

paper Tray (long edge down) with the white side facing

out.

7. qPress the Feed button for approximately one

second and release. This will allow the Feed Roll

Cleaning Pad to clean off the residue. Repeat this

process approximately 5 times.

8. qRemove the Feed Roll Cleaning Pad with the

¼ inch stack of paper and insert fresh 20 lb. paper.

Insert the Printer Output Tray and make a print.

•This completes the Instructions. Thank You for choosing

The Document Company

XEROX

Page 2 of 2

Feed Roll Cleaning Kit

SCAN

COPY

FAX

Scan

Mode

Feed

Cartridge

copy

Size

JobStatus

CoverPage

Confirm

Contrast


Darken

Normal

Lighten

Resolution

Standard

Superfax

Fax

Ext/Clear

Enter

Figure 2. Pressing the Feed Button

Control Panel

Step 1:

Press the Feed button for approximately one

second and release.

Xerox Corporation

Global Knowledge & Language Services

800 Phillips Road - Bldg. 845-17S

Webster, New York 14580-9791

USA

Printed in the United States of America

XEROX®, The Document Company ®,

the stylized X and the identifying product

names and numbers herein are trademarks

of XEROX CORPORATION.

Any Questions? Call:

1 - 800 - TEAM XRX

(1 - 800 - 832 - 6979)

HINT: It would be a good idea to save the

contents of this kit for future use if the Feed Rolls

become contaminated again.

DRB-FILE

709P00850 Rev A March 2000
