yama_5_5637_1.pke IP Link

Device Interface

Communication Sheet Revision: 3/23/2012

Page 1 of 4

This document provides additional assistance with wiring your Extron IP Link enabled product to your device.

Different components may require a different wiring scheme than those listed below.

For complete operating instructions, refer to the user's manual for the specific Extron IP Link enabled product or

the controlled device manufacturer supplied documentation.

Version History:

Device Specifications:

Device Type: CD

Manufacturer: Yamaha

Firmware Version: N/A

Model(s): CD-C600

Driver

Version

Date

IP Link

Compiler

Version

Notes

1 2/23/2012 1.5.1 3.3.1 Initial version.

Driver Notes:

yama_5_5637_1.pke IP Link

Device Interface

Communication Sheet Revision: 3/23/2012

Page 2 of 4

Control Commands & States:

Audio Type CD USB

Disc 1 to 5

Function Clear Program Random

Keypad 0 to 9 Enter

Power Control On Off

Repeat Mode Off Single All

Folder

Transport Play Pause Stop

Search + Search - Skip -

Skip + Open Close

Scan

Status Available:

Device Status No Disc Open³ Closed³

Stop Play Pause

Scan³ Forward¹ Reverse¹

Reading² Status Unavailable

Connection Status Connected Disconnected

Power Control On Off

Transport Play Pause Stop

Search + Search - Open

1 - Not available on iPod mode

2 - Only available for USB/iPod

3 - Only available for CD mode

yama_5_5637_1.pke IP Link

Device Interface

Communication Sheet Revision: 3/23/2012

Page 3 of 4

MLC60 Series Supported Commands:

Audio Type CD USB

Disc 1 to 5

Function Clear Program Random

Keypad 0 to 9 Enter

Power Control On Off

Repeat Mode Off Single All

Folder

Transport Play Pause Stop

Search + Search - Skip -

Skip + Open Close

Scan

yama_5_5637_1.pke IP Link

Device Interface

Communication Sheet Revision: 3/23/2012

Page 4 of 4

Cable and Adapter Requirements:

F/M RS-232 Straight serial cable

Notes for the Device:

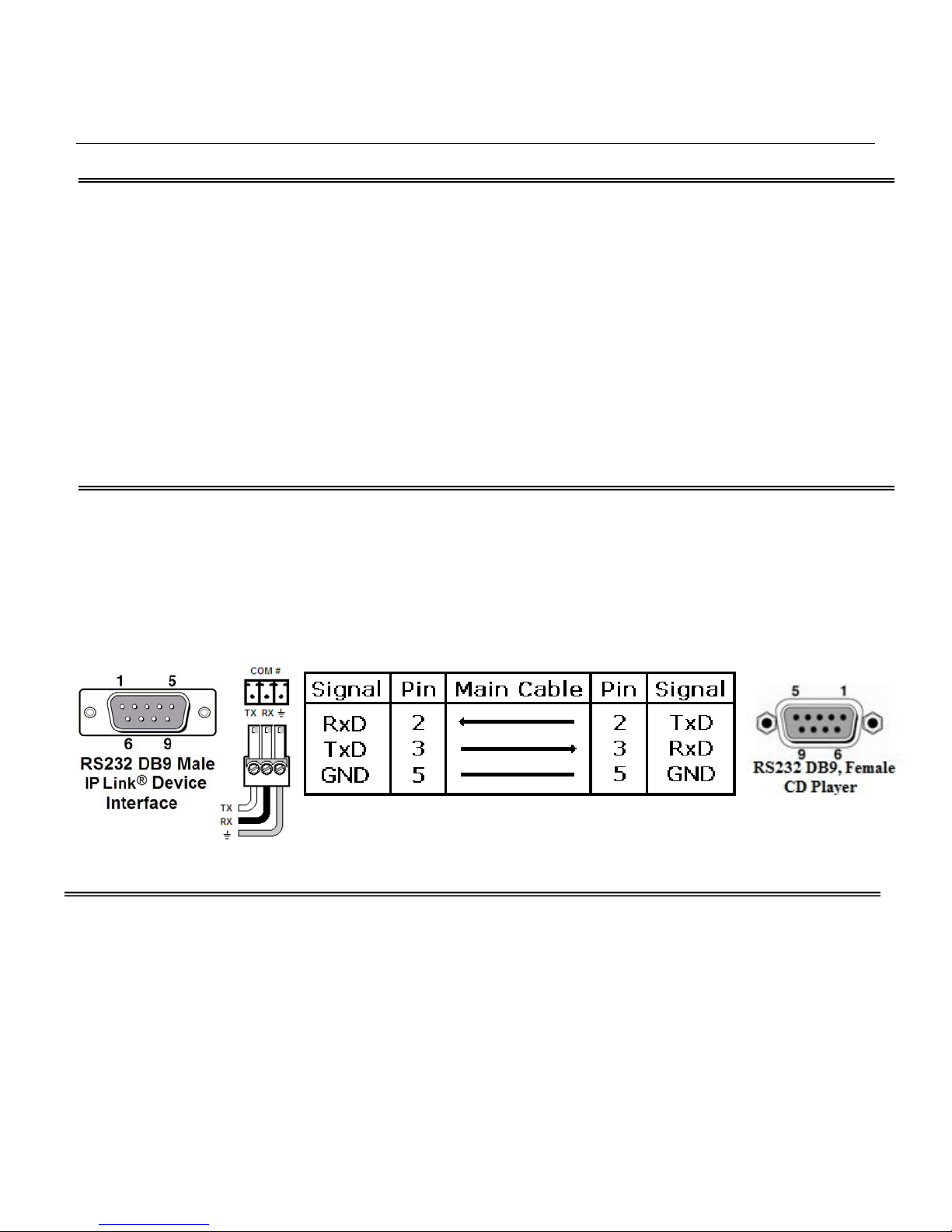

Pin Assignments Diagram:

Note: Captive screw connector may also be used as a serial connection.

General Notes:

Serial communication:

Port Type: RS-232 Parity: None

Baud Rate: 9600 Stop Bits: 1

Data Bits: 8 Flow Control: None
