Yamaha GT80F 1979 Manuale utente

1979

MOTORCYCLE / MOTOCYCLETTE

OWNER'S MANUAL / MANUEL DU PROPRIÉTAIRE

Model : GT80F

2G9281997100 *2G9281997100*

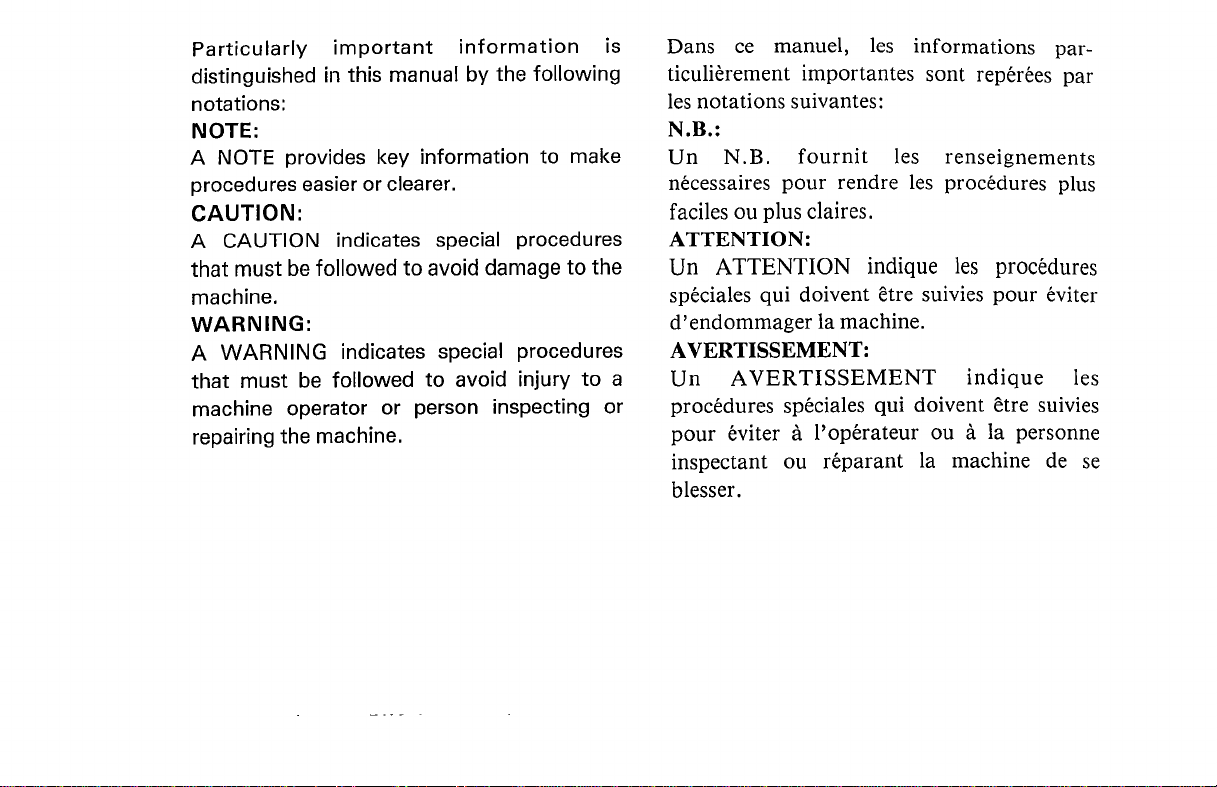

Particularly important information is Dans ce manuel, les informations par-

distinguished in this manual by the following ticuli_rement importantes sont rep_r_es par

notations: lesnotationssuivantes:

NOTE: N.B.:

A NOTE provides key information to make Un N.B. fournit les renseignements

procedures easier or clearer, n_cessaires pour rendre les procedures plus

CAUTION: facilesouplusclaires.

A CAUTION indicates special procedures ATTENTION:

that must be followed to avoid damage to the Un ATTENTION indique les procedures

machine, sp_cialesqui doivent_tre suiviespour _viter

WARNING: d'end ommager la machine.

A WARNINGindicates specialprocedures AVERTISSEMENT:

that must be followed to avoid injury to a Un AVERTISSEMENT indique les

machine operator or person inspecting or procedures spdciales qui doivent 6tre suivies

repairing the machine, pour 6viter /_ l'opdrateur ou & la personne

inspectant ou r_parant la machine de se

blesser.

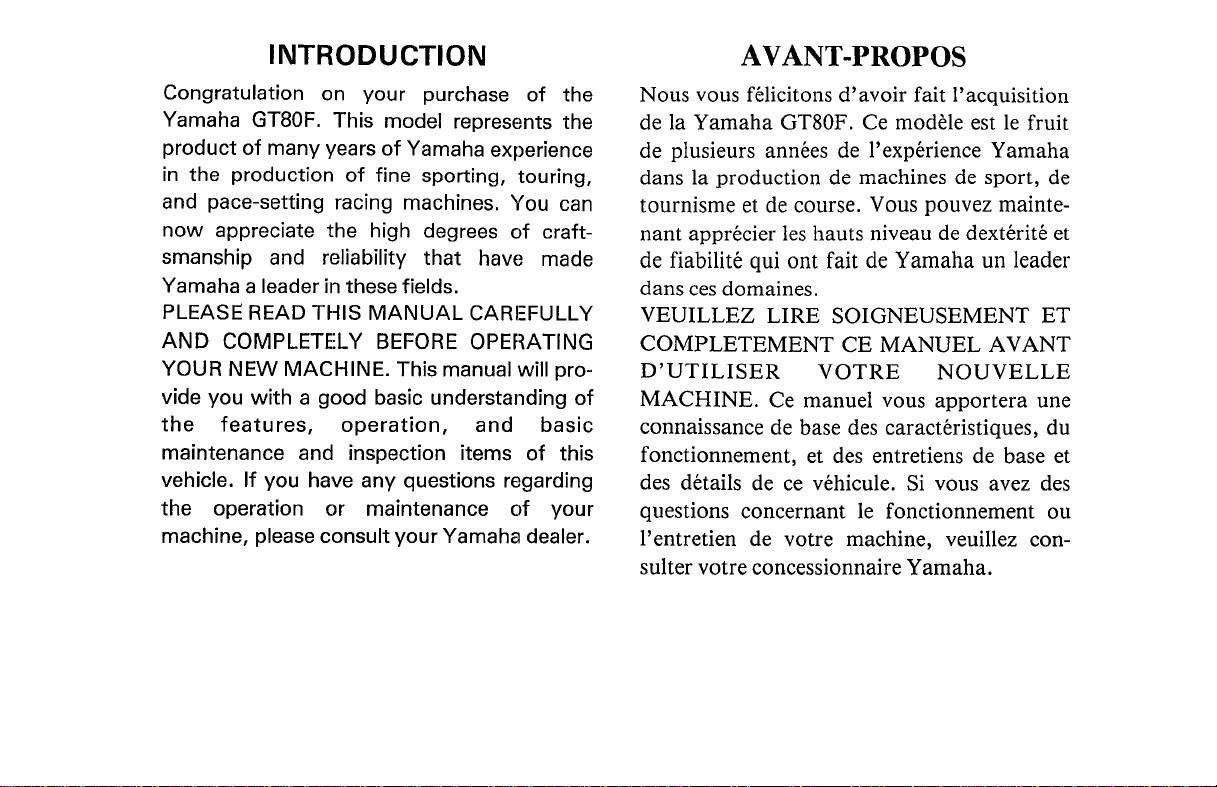

INTRODUCTION AVANT-PROPOS

Congratulation on your purchase of the Nous vous f_licitons d'avoir fait l'acquisition

Yamaha GT80F. This model represents the de la Yamaha GT80F. Ce module est le fruit

product of many years of Yamaha experience de ptusieurs anndes de l'exp_rience Yamaha

in the production of fine sporting,touring,dans la production de machines de sport,de

and pace-setting racing machines. You can tournisme et de course. Vous pouvez mainte-

now appreciate the high degrees of craft- nant appr_cier les hauts niveau de dext_rit_ et

smanship and reliability that have made de fiabilit_ qui ont fair de Yamaha un leader

Yamaha a leader in these fields, dans ces domaines.

PLEASE READ THIS MANUAL CARl--FULLY VEUILLEZ LIRE SOIGNEUSEMENT ET

AND COMPLETELY BEFORE OPERATING COMPLETEMENT CE MANUEL AVANT

YOUR NEW MACHINE.This manual will pro- D'UTILISER VOTRE NOUVELLE

vide you with a good basic understanding of MACHINE. Ce manuel vous apportera une

the features,operation,and basic connaissance de base des caract_ristiques,du

maintenance and inspection items of this fonctionnement,et des entretiens de base et

vehicle. If you have any questions regarding des d_tails de ce v_hicule. Si vous avez des

the operation or maintenance of your questions concernant le fonctionnement ou

machine,please consult yourYamaha dealer, l'entretien de votre machine,veuillez con-

sulter votre concessionnaire Yamaha.

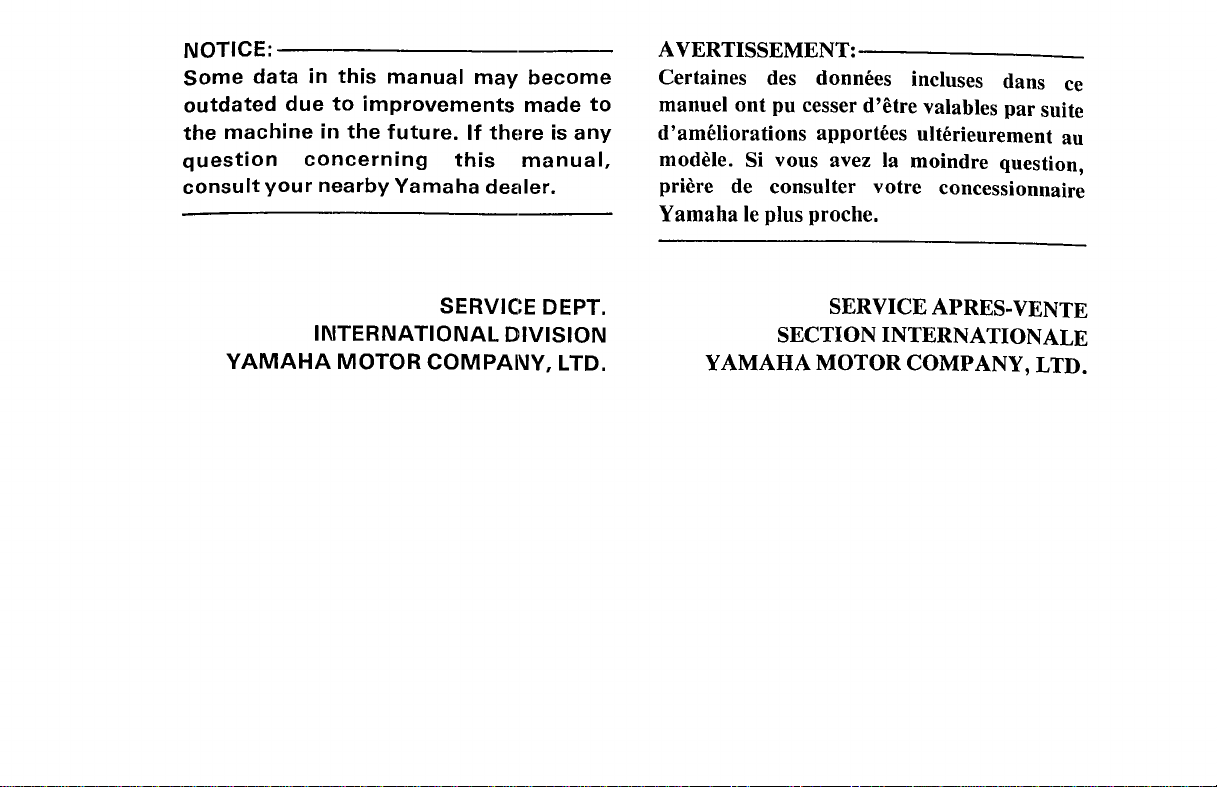

NOTI CE: AVERTISSEMENT:

Some data in this manualmay becomeCertainesdesdonn6es inclusesdans ce

outdated dueto improvements made to manuel ontpu cesser d'6tre valables par suite

themachinein the future. If there is anyd'am61iorations apport6es ult6rieurementan

question concerningthis manual, mod61e. Si vous avez la moindre question,

consult yournearbyYamahadealer, pri6re de consulter votre concessionnaire

Yamaha leplus proche.

SERVI CE DEPT. SERVICEAPRES-VENTE

INTERNATIONAL DIVISION SECTION INTERNATIONALE

YAMAHA MOTOR COMPANY, LTD. YAMAHA MOTOR COMPANY, LTD.

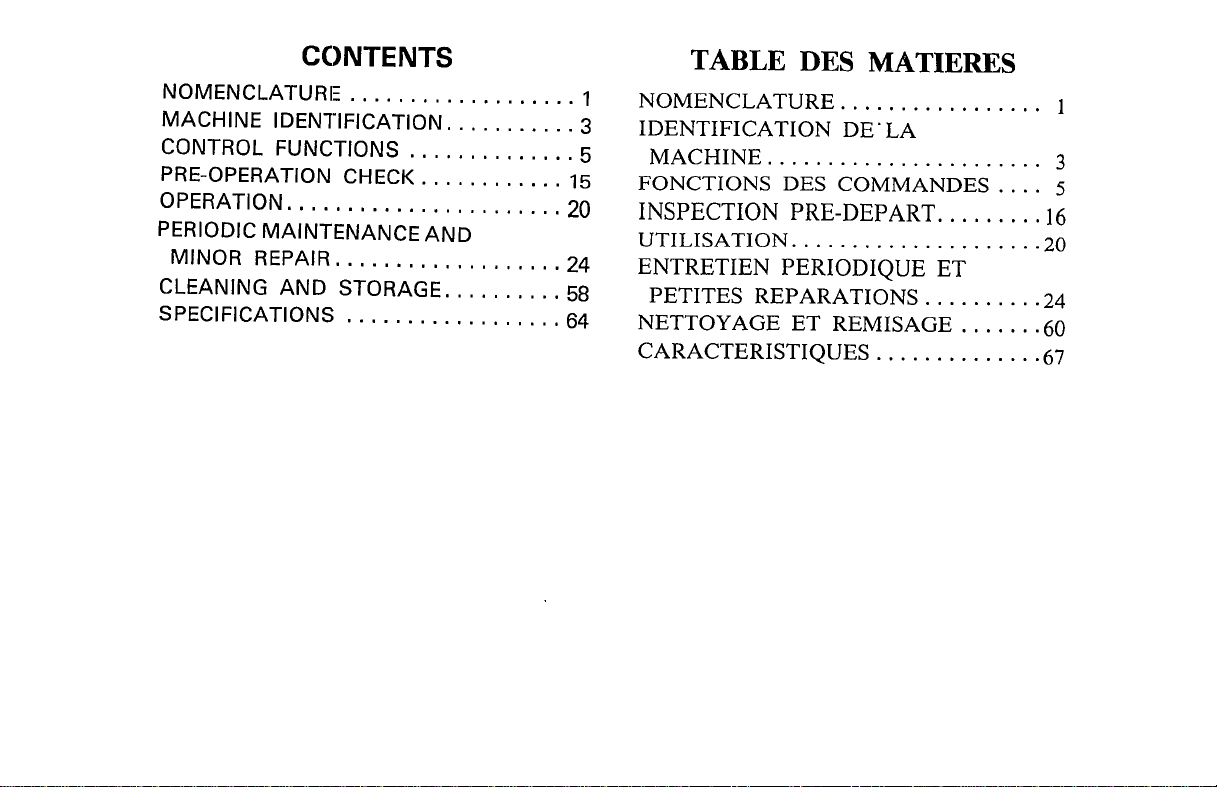

CONTENTS TABLE DES MATIERES

NOMENCLATURF ................... 1 NOMENCLATURE................. 1

MACHINE IDENTIFICATION ........... 3 IDENTIFICATIONDE'LA

CONTROL FUNCTIONS .............. $ MACHINE ....................... 3

PRE-OPERATIONCHECK............ 15 FONCTIONS DESCOMMANDES .... 5

OPERATION ....................... 20 INSPECTION PRE-DEPART ......... 16

PERIODIC MAINTENANCE AND UTILISATION ..................... 20

MINOR REPAIR ................... 24 ENTRETIEN PERIODIQUE ET

CLEANING AND STORAGE .......... 58 PETITES REPARATIONS .......... 24

SPECIFICATIONS .................. 64 NETTOYAGE ET REMISAGE ....... 60

CARACTERISTIQUES .............. 67

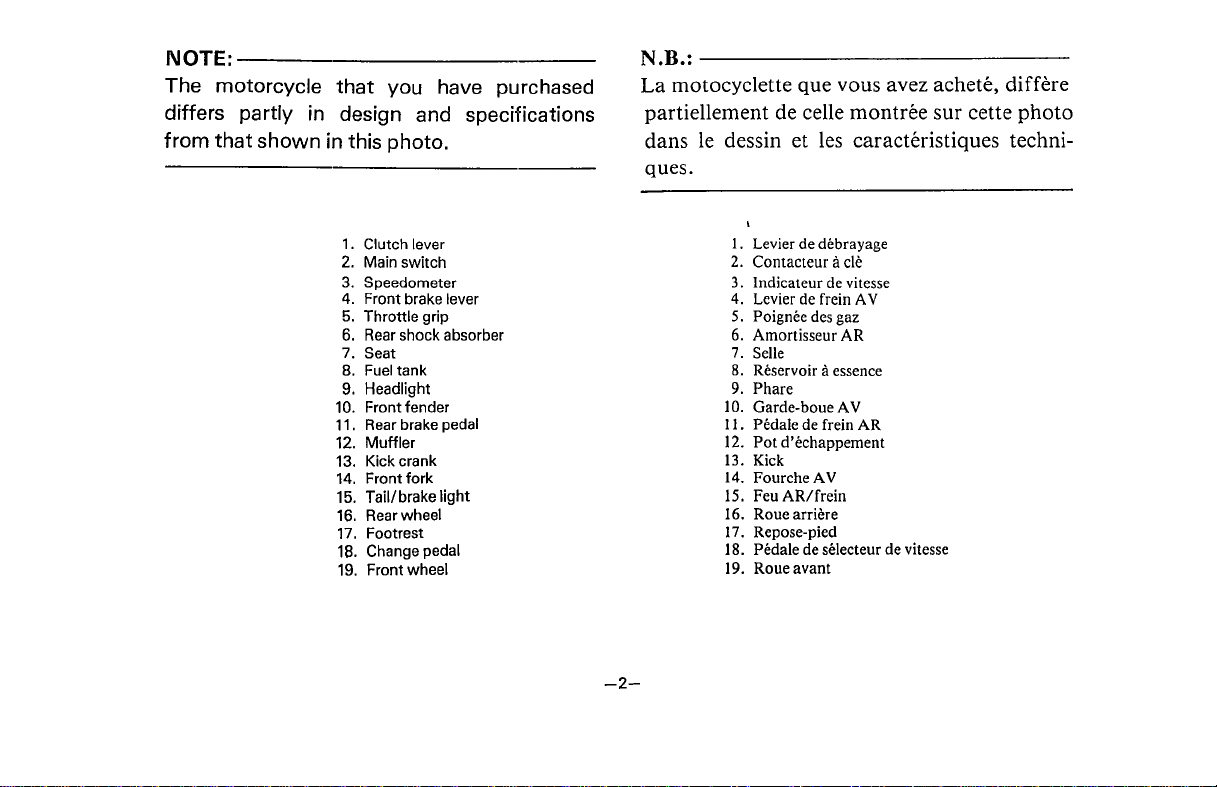

NOTE:N.B.:

The motorcycle that you have purchased La motocyclette que vous avez achet6,diff_re

differs partly in design and specifications partiellement de celle montr6e sur cette photo

from that shown in this photo, dens le dessin et les caract_ristiques techni-

ques.

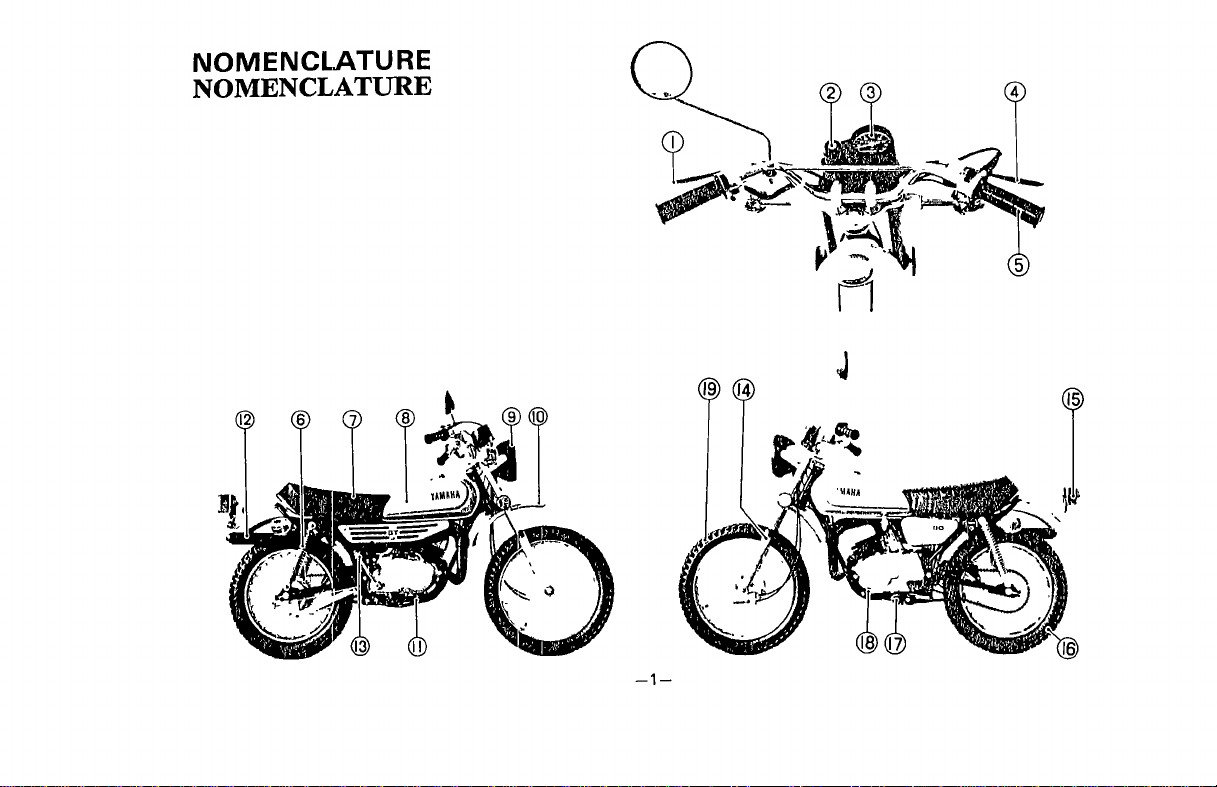

1. Clutchlever 1. Levierded_brayage

2. Main switch 2. Contacteur b.cl_

3. Speedometer 3.Indicateur de vitesse

4. Front brake lever 4. Levier de frein AV

5. Throttlegrip 5. Poign_edesgaz

6. Rearshock absorber 6. AmortisseurAR

7. Seat 7.Selle

8. Fuel tank 8. R_servoir b.essence

9. Headlight 9. Phare

10. Frontfender 10. Garde-boueAV

11. Rear brake pedal1I. P_dale de frein AR

12. Muffler 12. Potd'_chappement

13.Kickcrank13. Kick

14.Front fork 14. Fourche AV

15. Tail/brake light t5. FeuAR/frein

16. Rearwheel 16. Rouearri_re

17. Footrest 17. Repose-pied

18. Change pedal 18. P_dale de s_lecteur de vitesse

19. Front wheel 19. Roue event

--2--

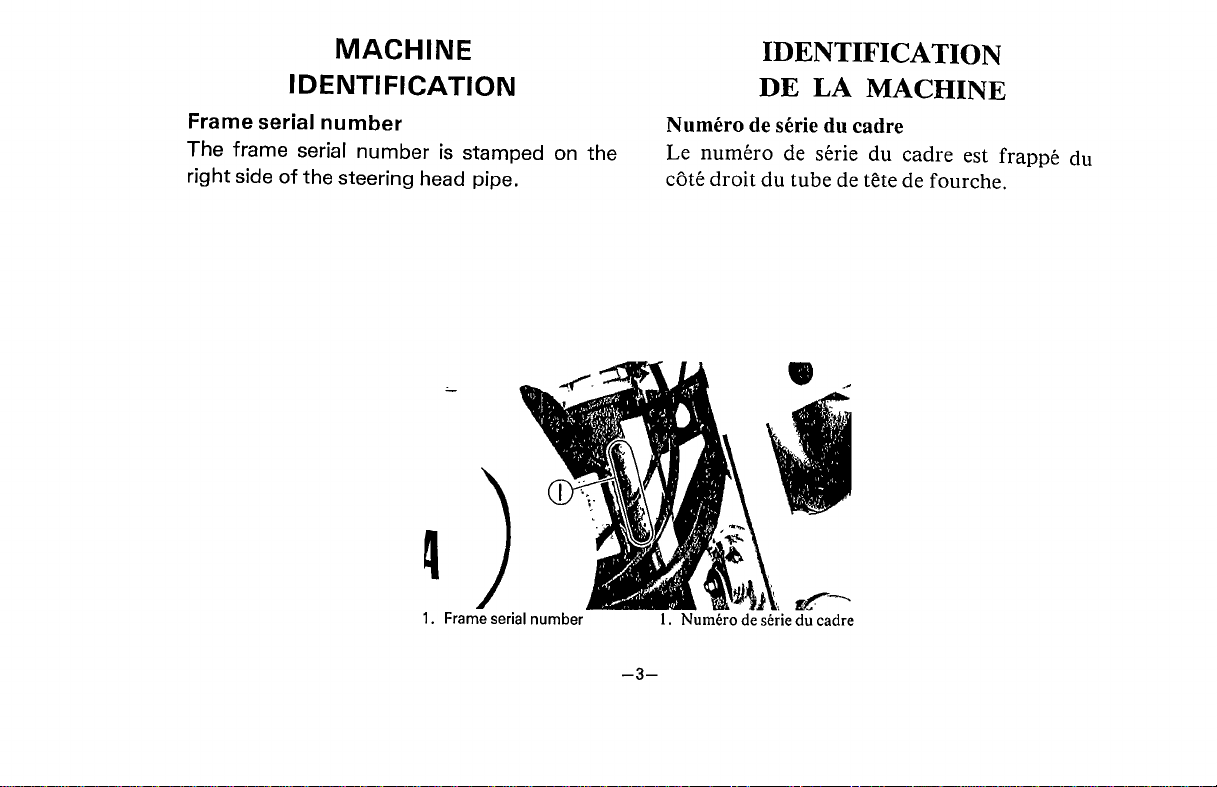

MA CHINE IDENTIFICATION

IDENTIFICATION DE LA MACHINE

Frame serial number Num6ro de s6rie du cadre

The frame serial number is stamped on the Le num_ro de s_rie du cadre est frapp6 du

right side of the steering head pipe. c6t6droitdutube detete de fourche.

1. Frameserialnumber1. Num6ro de s6rie du cadre

--3--
