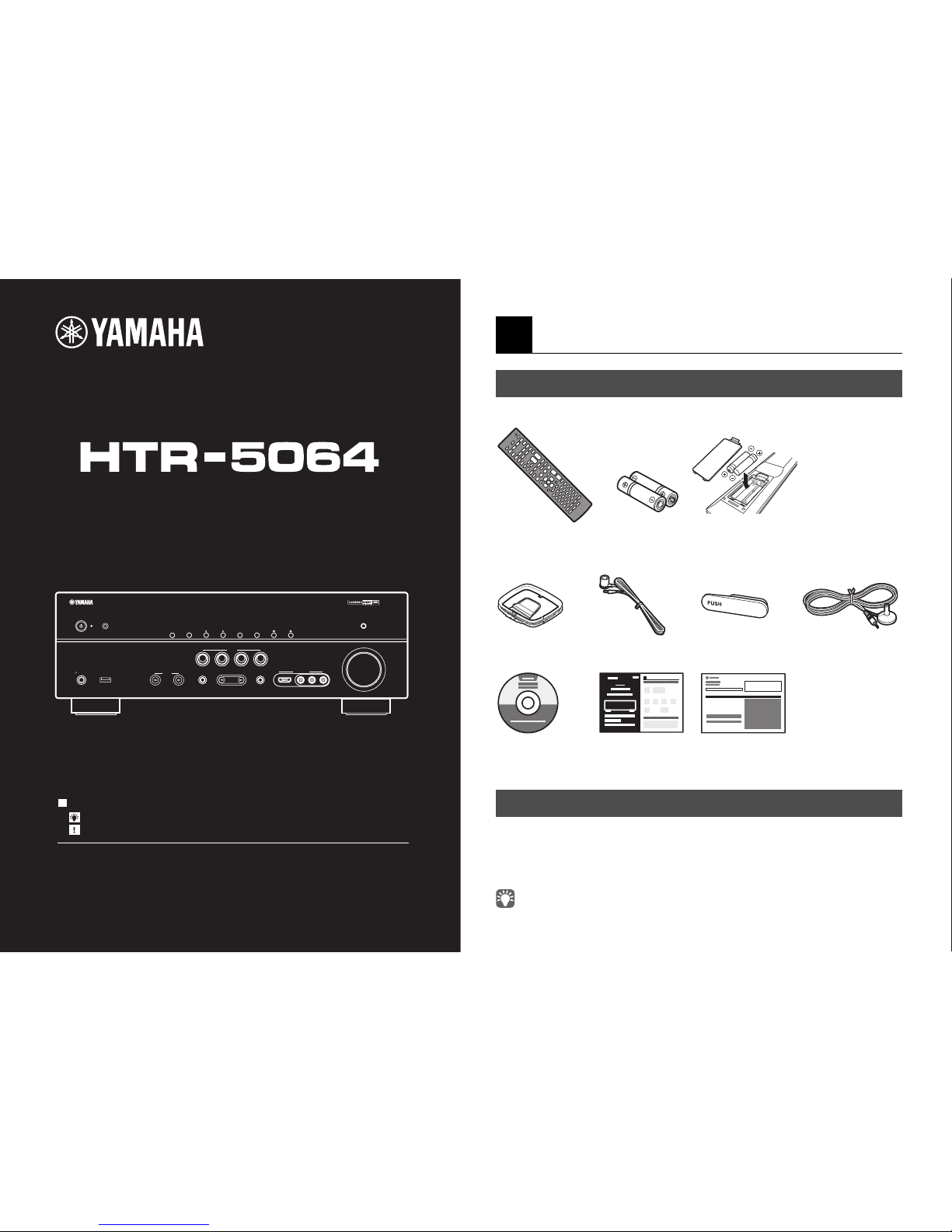

Check that the following accessories are supplied with the unit.

* The supplied FM antenna will differ depending on your country or region.

Prepare the following cables (not supplied) for connection according to the instructions

in this guide.

• A digital optical cable is not required when your TV supports the Audio Return Channel (ARC)

function.

1Preparation

Accessories

Remote control Batteries (AAA, R03, UM-4) x 2

Insert the batteries into the battery case in correct directions

(+ and -).

AM antenna FM antenna* VIDEO AUX input

cover

YPAO microphone

CD-ROM

(Owner’s Manual)

Easy Setup Guide

(this manual)

Safety Brochure

Preparing cables

Speaker cable (for each speaker) HDMI cable x 2

Monaural pin cable x 1 Digital optical cable x 1

AV Receiver

Easy Setup Guide

The Easy Setup Guide explains the general procedures for setting up the 5.1 or

7.1-channel system and how to produce surround sounds from BD/DVD.

For more details, please refer to the “Owner’s Manual” contained in the CD-ROM.

About the symbols in this manual.

•“ ” indicates the explanations for better use.

•“ ” indicates the cautions concerning operations or setup of the unit.

A PDF format of this guide and the “Owner’s Manual” can be downloaded from

the following website.

http://download.yamaha.com/

Some features are not available in certain regions.

English

Place the speakers in as shown below. Other layouts (except for 5.1-channel speaker layout and 7.1-channel speaker layout) are shown in the “Owner’s Manual.”

2Placing speakers

5.1-channel system 7.1-channel system

60° 60°

80° 80°

60° 60°

80° 80°

SBL

SBR

Front speaker (L)

Front speaker (R)

Center speaker

Surround speaker (L)

Surround speaker (R)

Surround back speaker (L)

Surround back speaker (R)

Subwoofer

30 cm (1 ft.) or more

Connecting speaker cables

Speaker cables have two wires. One is for connecting the

negative (-) terminal of the unit and the speaker, and the

other is for the positive (+) terminal. If the wires are color-

coded to prevent confusion, you should connect the black

side to the negative terminal and the other wire to the

positive terminal.

1Remove approximately

10 mm (0.4 in.) of insulation

from the end of the speaker

cable and twist the bare wire

firmly.

2Loosen the speaker terminal.

3Insert the bare wire into the

gap on the side of the terminal.

When it is difficult to insert the wire into the gap on the

side, insert it into the gap downside of terminal.

4Tighten the terminal.

Connecting banana plugs

(Except U.K., Europe, Asia and Korea models)

Tighten the knob, and then

insert the banana plug into the

end of the terminal.

1Connect the front speakers ( / ) to

the FRONT ( / ) terminals.

2Connect the center speaker ( ) to the

CENTER terminal.

3Connecting speakers

• (U.S.A. and Canada models only) The unit is configured to

8Ωspeakers as the factory setting. 6Ωspeakers can be also

connected.

• (Except for U.S.A. and Canada models) Use the speakers

with an impedance of at least 6Ω.

• Use a subwoofer with a built-in amplifier.

• Disconnect the power plug before connecting the speakers.

• Be careful that the core of the speaker cable does not touch

anything or come into contact with the metal areas of the unit.

If this happens, it may damage the unit or the speakers. If the

speaker cables short circuit, “CHECK SP WIRES!” will appear

on the front panel display when the unit is switched on.

FRONT

+ (Red)

- (Black)

FRONT

Banana plug

FRONT CENTER SURROUND

SINGLE

SUBWOOFER

R L R RL L

SURROUND BACK/

BI-AMP

SPEAKERS

The unit (rear)

FRONT CENTER SURROUND

SINGLE

SUBWOOFER

R L R RL L

SURROUND BACK/

BI-AMP

SPEAKERS

The unit (rear)

3Connect the surround speakers ( / )

to the SURROUND ( / ) terminals.

4Connect the subwoofer ( ) to the

SUBWOOFER jack.

Before connecting the subwoofer, turn off the

subwoofer.

Use a monaural pin

cable to connect the

subwoofer.

Connect the surround back speakers

( / ) to the SURROUND BACK

( / ) terminals.

FRONT CENTER SURROUND

SINGLE

SUBWOOFER

R L R RL L

SURROUND BACK/

BI-AMP

SPEAKERS

The unit (rear)

FRONT CENTER SURROUND

SINGLE

SUBWOOFER

R L R RL L

SURROUND BACK/

BI-AMP

SPEAKERS

The unit (rear)

Monaural

pin cable

For the 7.1-channel system

FRONT CENTER SURROUND

SINGLE

SUBWOOFER

R L R RL L

SURROUND BACK/

BI-AMP

SPEAKERS

The unit (rear)

4Connecting external devices

DOCK

HDMI 1

(BD/DVD)

HDMI 2

HDMI 3

HDMI 4

HDMI 5

75Ω

MONITOR OUT

AM FM

ANTENNA

SURROUND BACK/

BI-AMP

SINGLE

VIDEO

AV 1

OPTICAL

AV 2 AV 3 AV 4 AV 5 AV 6

OUT

AUDIO

COAXIAL COAXIAL

(CD) (TV)

OPTICAL

COMPONENT

VIDEO

FRONT CENTER SURROUND

SUBWOOFER

HDMI OUT

SPEAKERS

MONITOR OUT

ARC

AV 2AV 1

COAXIALOPTICAL

HDMI HDMI

OPTICAL

HDMI

HDMI OUT

ARC

HDMI

HDMI 1

(BD/DVD)

HDMI1

HDMI

AV 4

(TV)

OPTICAL

INFO MEMORY PRESET FM AM TUNING

DIRECT

VOLUME

VIDEOHDMI IN L AUDIO R

VIDEO AUX

STRAIGHTTONE CONTROL

DVD TV CD RADIO

PHONES

SILENT CINEMA iPod/iPhone

USB

PROGRAM

SCENE

INPUT

YPAO MIC

NATURAL SOUND AVRECEIVER HTR-5064

SURROUNDBACK/

BI-AMP

SINGLE

SUBWOOFER

110V-

120V

220V-

240V

VOLTAGE

SELECTOR

(General model only)

Set the switch position of the

VOLTAGE SELECTOR according to

your local voltage using a straight slot

screwdriver. Voltages are AC 110-120/

220-240 V, 50/60 Hz.

VOLTAGE

SELECTOR

Plug into an

electric outlet

BD/DVD player

HDMI input HDMI output

Audio output

(Digital optical)

HDMI1 jackHDMI OUT jack

AV4 (OPTICAL)

jack

Turn on the

unit

The unit (rear)

The unit (front)

1Connect external devices to the unit.

1Connect a BD/DVD player to the unit with an HDMI

cable.

If the BD/DVD player are connected to a TV directly

with an HDMI cable, disconnect the cable from the

TV and connect it to the unit.

2Connect the TV to the unit with an HDMI cable.

3Connect the TV to the unit with an optical cable.

This connection enables the TV audio to be played

through the unit. If your TV supports the Audio

Return Channel function (ARC), this connection is

unnecessary.

4Connect the power cable to an electric outlet.

•(General model only) The VOLTAGE SELECTOR on the

rear panel of this unit must be set for your local voltage

BEFORE plugging the power cable into the AC wall outlet.

Improper setting of the VOLTAGE SELECTOR may cause

damage to this unit and create a potential fire hazard.

• For connecting other devices, such as a radio antenna,

refer to “SETUP” in the “Owner’s Manual.”

2Turn on the TV, BD/DVD player and the unit.

3Confirm that the video images input from

BD/DVD player is displayed on the TV

screen.

aChange video input source for the TV to the unit.

bPress HDMI1 to select “HDMI1” as the input source.

If the video image input from BD/DVD player is

displayed on the TV screen, all settings have been

completed.

Go to the next page, and refer to “Optimizing the

speaker settings automatically (YPAO).”

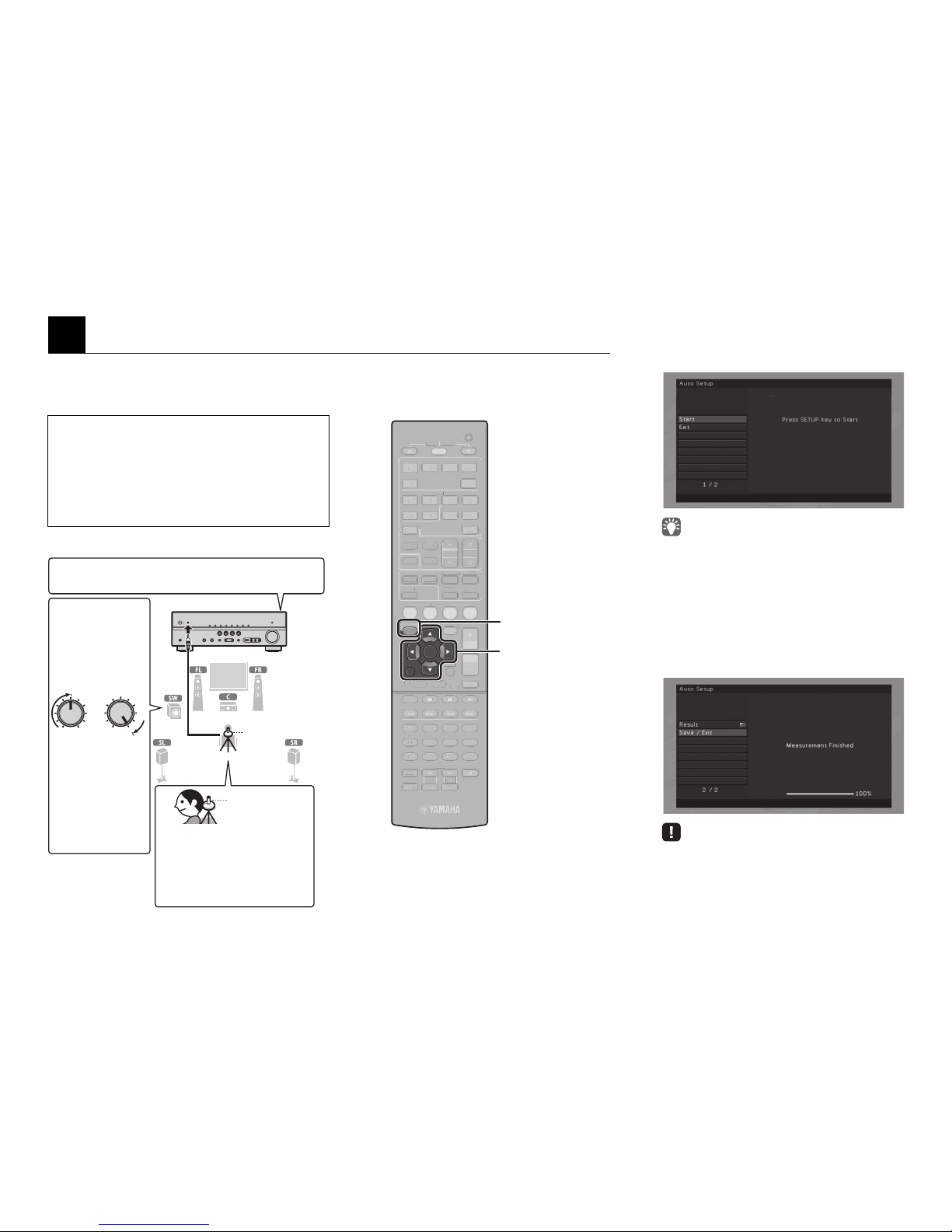

The YPAO microphone (supplied) detects the status of speaker connections and the distance between the speakers and

the listening position, and adjusts the volume balance and the tone settings automatically (YPAO: Yamaha Parametric

room Acoustic Optimizer).

Preparation before using YPAO

Optimizing the speaker settings automatically (YPAO)

• The volume level is fixed to 0 dB while measuring.

• The test tone is output at a high volume while measuring. Be

careful that the test tone does not frighten any small children.

• The room must be quiet while measuring.

• Do not connect headphones to the unit.

• YPAO measurement does not work correctly if any obstacles are

in the room. Move everything out of the room or place it in the

corners while measuring. It takes approximately three minutes

to finish this measurement.

VOLUME HIGH CUT

CROSSOVER/

MIN MAXMIN MAX

• Turn on the subwoofer

and set its volume to

approximately half.

And, set the cross-

over frequency (if

available) to

maximum.

• When a subwoofer

with the automatic

standby function (turn

off automatically

during no signals

input) is used, disable

the function before

going to the next step.

Set the YPAO microphone at the height

of your ears. We recommend that you

use equipment that allows you to adjust

the height (such as a tripod) as a

microphone stand. If you are using a

tripod, use the tripod screws to fix the

microphone in place.

The unit (front)

YPAO microphone

listening position

The height of

your ears

(If necessary) Select the language displayed on the TV screen with

“Language” in the “Setup” menu referring to “Owner’s Manual” (p.75).

SCENE

RETURN

VOLUME

ENHANCER

SLEEP DIRECT

HDMI

1234

V-AUX

INFO

MEMORY

PRESET

MOVIE MUSIC

DVD TV

RADIO

MUTE

ENTER

7856

1234

MODE

ENT

TV VOL TV CH

TOP

POP-UP

DISPLAY

SOURCE

RECEIVER

CODE SET

INPUT

MUTE

DOCK

USB

AUDIO

OPTION

SETUP

1234

TUNER

TUNING

STRAIGHT

SUR. DECODE

ENT

L TV C

INPUT

MUTE

SCENE

ENHANCE

LEEP

IRE

HDMI

VIE

MUS

ADI

MUTE

P-

EIVER

DOCK

UDI

MEM

PRE

INF

PTI

TUNER

TUNIN

TRAI

R. DE

ENTER

RETURN

SETUP

Cursor keys

1Connect YPAO microphone to the YPAO

MIC jack on the front panel.

The following image is displayed on the TV screen.

• To cancel the measurement, disconnect the YPAO

microphone before measuring starts.

2Confirm that “Start” is selected, and then

press SETUP.

The measurement starts in ten seconds.

After the measurement is complete, the following

image is displayed on the TV screen.

• When “W-1:Out of Phase” appears, refer to ‘When “W-1:

Out of Phase” appears’ on the next page.

• If a message such as an error message and warning

appears, refer to “Error messages” and “Warning

messages” in the “Owner’s Manual.”

3Confirm that “Save / Exit” is selected, and

then press ENTER.

4Confirm that “SAVE” is selected, and then

press ENTER.

5Remove the YPAO microphone from the

unit.

All the settings for the speakers are complete.

Use the following procedure to check the speaker

connections.

Warning messages may appear depending on the types

of speakers or the place where you set them even if they

are connected correctly.

aPress the cursor key to select “Result,” and then press

ENTER.

bConfirm that “Wiring” is selected.

cCheck the cable connection (+ and -) of the speaker

indicated as red-boxed “Reverse.”

If the speakers are connected correctly:

Save the results of the measurement.

Press RETURN, and go to step 3 on the left column.

If the speakers are connected incorrectly:

Turn off the unit and connect the speaker cables again,

and then try YPAO measurement again.

• The YPAO microphone is sensitive to heat. Protect the YPAO

microphone from high temperatures (such as from AV

equipment) and direct sunlight.

When “W-1: Out of Phase” appears

Let’s play a BD/DVD disc. We recommend playing back a disc recorded with multi-channel sound (at least 5.1ch) to enjoy

the surround sound effects enough.

1Press HDMI1 to select “HDMI1” as the input

source.

2Play a BD/DVD with a BD/DVD player.

3Press VOLUME to adjust the volume.

The 5.1 or 7.1-channel system is installed and the

procedures to play a BD/DVD are complete.

• “STRAIGHT” is set to the sound program as the initial

settings. “STRAIGHT” (straight decoding) is the sound

program which output recorded sound from each channel

directly from each speaker. Therefore, surround back

speakers have no sound when 5.1-channels are played

back on a 7.1-channel system.

Sound is only output from front speakers even when

playing multi-channel source

Confirm the digital audio output settings of the BD/DVD

player.

Signals may be set to normally output on 2 channels (such as

PCM).

No sound is output from a specific speaker

Refer to “Troubleshooting” in the “Owner’s Manual.”

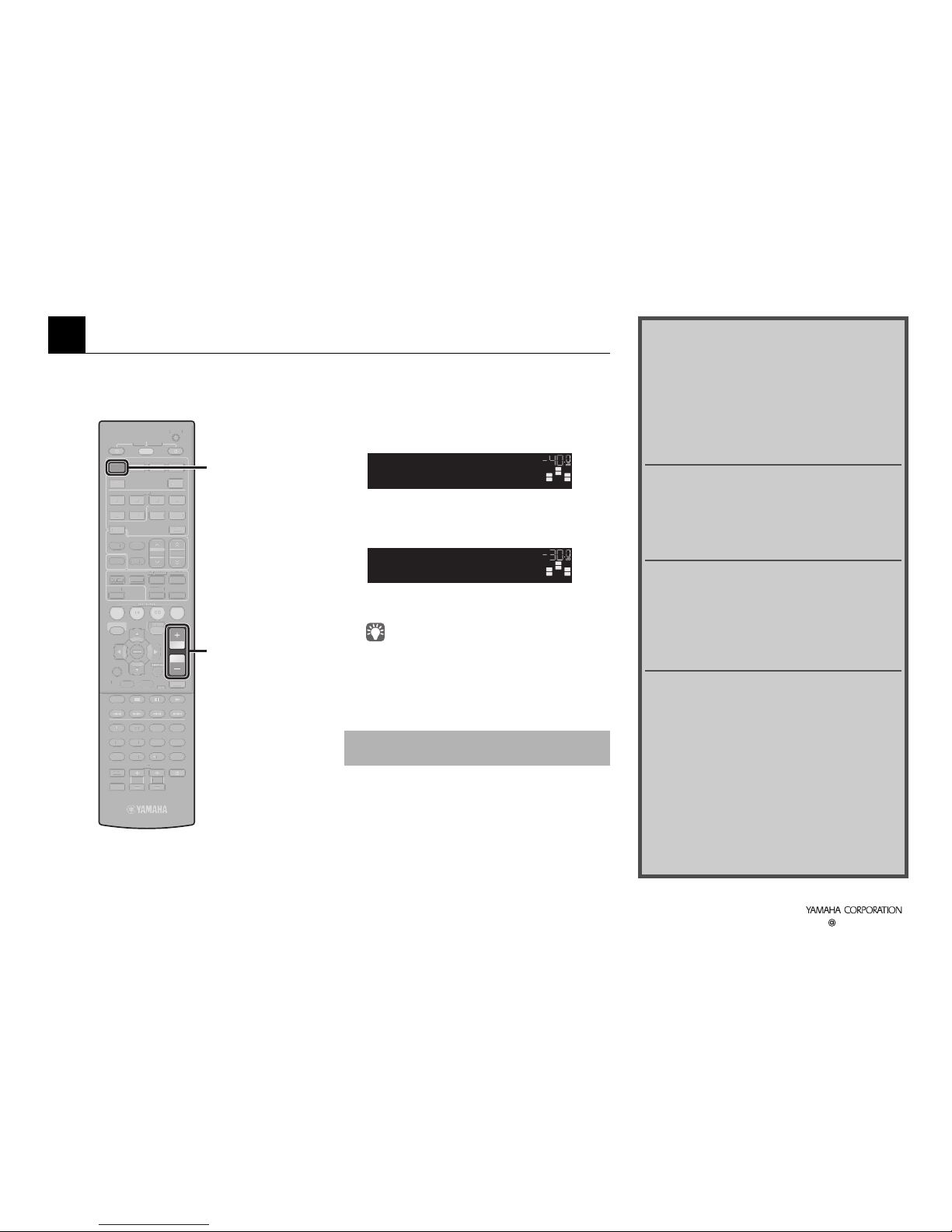

6Playing back a BD/DVD

RETURN

VOLUME

ENHANCER

SLEEP DIRECT

HDMI

1234

V-AUX

INFO

MEMORY

PRESET

MOVIE MUSIC

DVD

RADIO

MUTE

7856

1234

MODE

ENT

TV VOL TV CH

TOP

POP-UP

SOURCE

RECEIVER

CODE SET

INPUT

MUTE

DOCK

USB

AUDIO

SETUP

1234

TUNER

TUNING

STRAIGHT

SUR. DECODE

ENT

V CH

INPUT

MUTE

RETUR

NHANCER

LEE

IRE

HDMI

VIE

RADI

MUTE

P-

EIVE

USB

AUDI

ETUP

1 2

TUNER

TUNIN

TRAI

HDMI1

VOLUME

When no sound is output from surround

speakers

SL SR

HDMI1

VOL.

SL SR

Volume -30.0dB

VOL.

More various features!

More various functions are available with the unit.

Refer to the “Owner’s Manual” for details on

effective use of the unit.

Connecting external devices

other than BD/DVD players

(p.23)

Various devices, audio players, such as CD players,

video games, camcorders, etc. can be connected to

the unit.

Selecting the favorite sound

programs (p.36)

You can select various sound programs (CINEMA

DSP) and sound decoders in many different

categories suitable for movies, music, video games,

sports programs, and so on.

Playing songs with your iPod

(p.46)

You can play an iPod with the unit using a USB cable

supplied with the iPod, the Yamaha iPod universal

dock (optional) or an iPod wireless system (optional).

zListening to FM/AM (p.41)

zPlaying back songs with Bluetooth devices

(p.53)

zPlaying back songs with USB storage devices

(p.55)

zChanging input settings with a single key

(SCENE function) (p.35)

For more detail, see “What you can do with the

unit” (p.5).

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Yamaha Ricevitore

Yamaha

Yamaha RX-V459 - AV Receiver - 6.1 Channel Manuale utente

Yamaha

Yamaha RX-V385 Manuale utente

Yamaha

Yamaha RX-A1030 Manuale utente

Yamaha

Yamaha RX-V795a Manuale utente

Yamaha

Yamaha HTR-N5060 Manuale utente

Yamaha

Yamaha V665 - RX AV Receiver Manuale utente

Yamaha

Yamaha RX-V3800 - AV Receiver Manuale utente

Yamaha

Yamaha RX-V2065 - AV Network Receiver Manuale utente

Yamaha

Yamaha HTR-4065 Manuale utente

Yamaha

Yamaha HTR-6040 Manuale utente

Yamaha

Yamaha AVENTAGE RX-A740 Manuale utente

Yamaha

Yamaha HTR-5935 Manuale utente

Yamaha

Yamaha RX-V371BL Manuale utente

Yamaha

Yamaha AVENTAGE RX-A3080 Manuale utente

Yamaha

Yamaha RXV559 - AV Receiver Manuale utente

Yamaha

Yamaha RX-V10MKII Manuale utente

Yamaha

Yamaha RX-V395RDS Manuale utente

Yamaha

Yamaha RX-V479 Manuale utente

Yamaha

Yamaha RX RX-Z7 Manuale utente

Yamaha

Yamaha HTR-5250 Manuale utente

Yamaha

Yamaha RXV1065 - RX AV Receiver Manuale utente

Yamaha

Yamaha RX-V1900 Manuale utente

Yamaha

Yamaha HTR-5990 Manuale utente

Yamaha

Yamaha R-N402 Manuale utente

Manuali Ricevitore popolari di altre marche

Garmin

Garmin GA 23 Manuale utente

Aiphone

Aiphone PS-12F Manuale utente

IMES

IMES TCS-01CA-PMI Manuale utente

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuale

AMIMON

AMIMON AMN12310 WHDI Manuale utente

Dual

Dual DMCPA79BT Istruzioni operative

Sound Associates

Sound Associates SA652P Manuale utente

Sherwood

Sherwood NewCastle R-772 Manuale utente

Audio

Audio A10-RX Series Manuale utente

AllSee

AllSee PushShare PSRV1.1 Manuale utente

DEMAG

DEMAG DRC-DR D2 Manuale utente

Teleco

Teleco TVRCL868A02 Manuale utente

Bosch

Bosch RF3222E Manuale utente

Kramer

Kramer 631R Manuale utente

Xpress

Xpress xmc10 Manuale utente

JVC

JVC KD-MR1BTS Manuale utente

Omega Engineering

Omega Engineering UWTC-REC3 Manuale utente

e-survey

e-survey E300 Pro Manuale utente
