Yamaha ESB-1090 Manuale utente

Quick Start Guide

Guide de démarrage rapide

Schnellstartanleitung

Guida introduttiva

Guía de inicio rápida

Краткое руководство по началу работы

Front Surround System

Système Surround Frontal

Фронтальная система окружающего звучания

Quick Start Guide .................................................................4 English

Guide de démarrage rapide..........................................10 Français

Schnellstartanleitung ......................................................16 Deutsch

Guida introduttiva ............................................................22 Italiano

Guía de inicio rápida........................................................28 Español

Краткое руководство по началу работы.............. 34 Русский

4 En

Contents

Accessories ............................................... 5

Remote control ......................................... 6

Installation ................................................ 7

Connections .............................................. 7

About this Quick Start Guide

• This document explains connection of this unit to a computer, AV

device, or TV that supports Audio Return Channel (ARC). See the

Owner’s Manual for instructions on operating the unit. The Owner’s

Manual is available from the following websites:

U.S.A. and Canada

https://uc.yamaha.com/support/

Other countries

https://download.yamaha.com/

• The illustrations in this document are for instructional purposes only.

For any information on devices other than this unit, refer to each

device’s respective documentation.

• The terms HDMI, the HDMI Logo, and High-Definition Multimedia

Interface are trademarks or registered trademarks of HDMI

Licensing LLC in the United States and other countries.

En 5

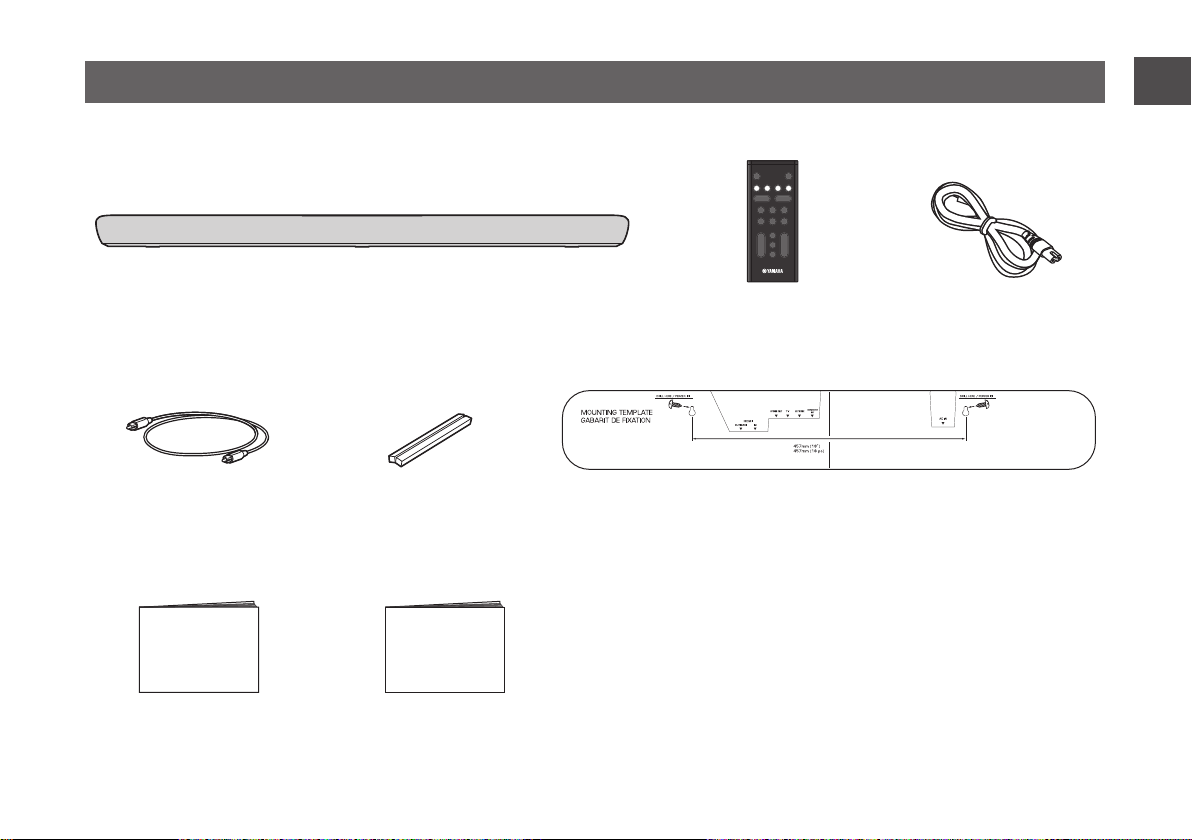

Make sure you have received all of the following accessories.

Accessories

The unit (ESB-1090)

Remote control

A CR2025 Lithium battery has already

been inserted into the remote control.

Optical digital audio cable

Use when connecting the unit to

a TV that does not support ARC.

Power cord

Mounting template

Use when mounting the unit on a wall.

Spacers (x 2/sheet)

Use when mounting the unit on a wall.

NOTE

HDMI cables are not supplied with the unit. Use the HDMI cables

purchased separately.

Quick Start Guide (this booklet) Safety Brochure

6 En

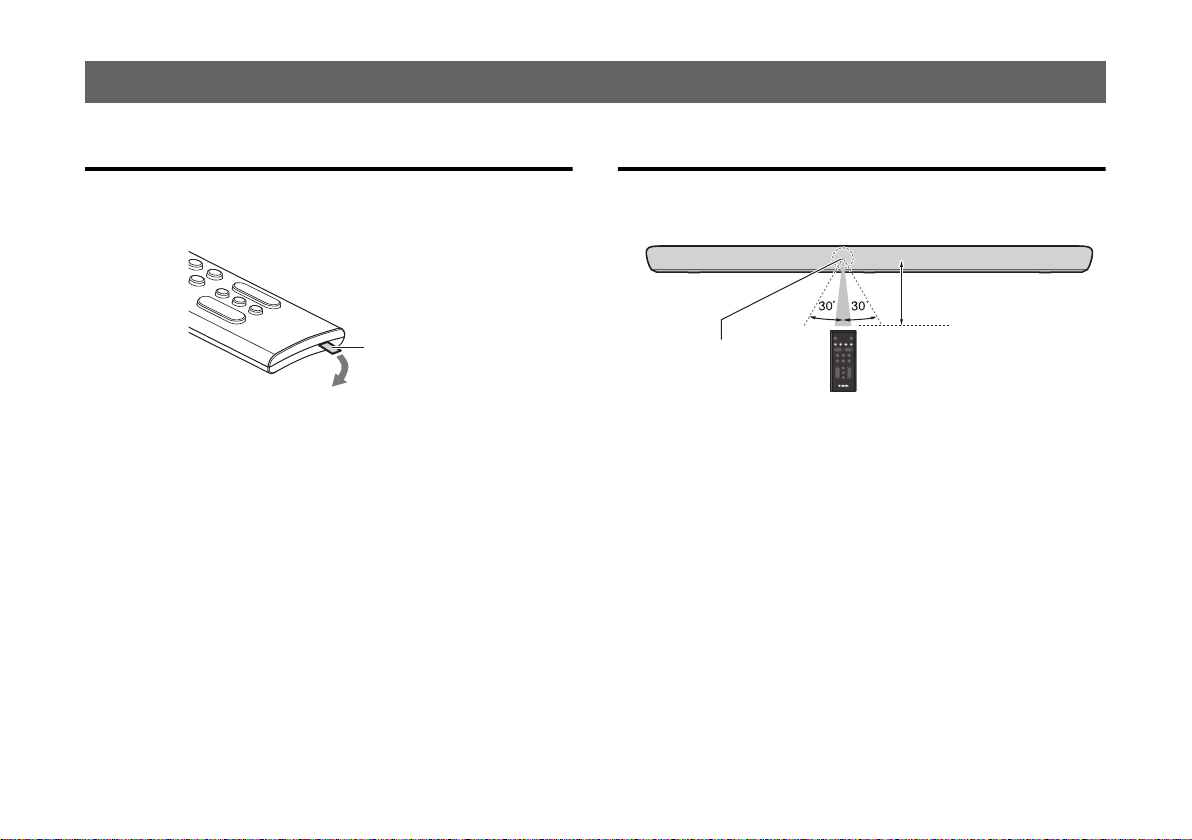

Preparing the remote control

Remove the battery insulating strip before attempting to use the

remote control.

Operating range of the remote control

Operate the remote control within the range as shown below.

Remote control

Battery insulating strip

Within 6 m (20 ft)

Remote control sensor

En 7

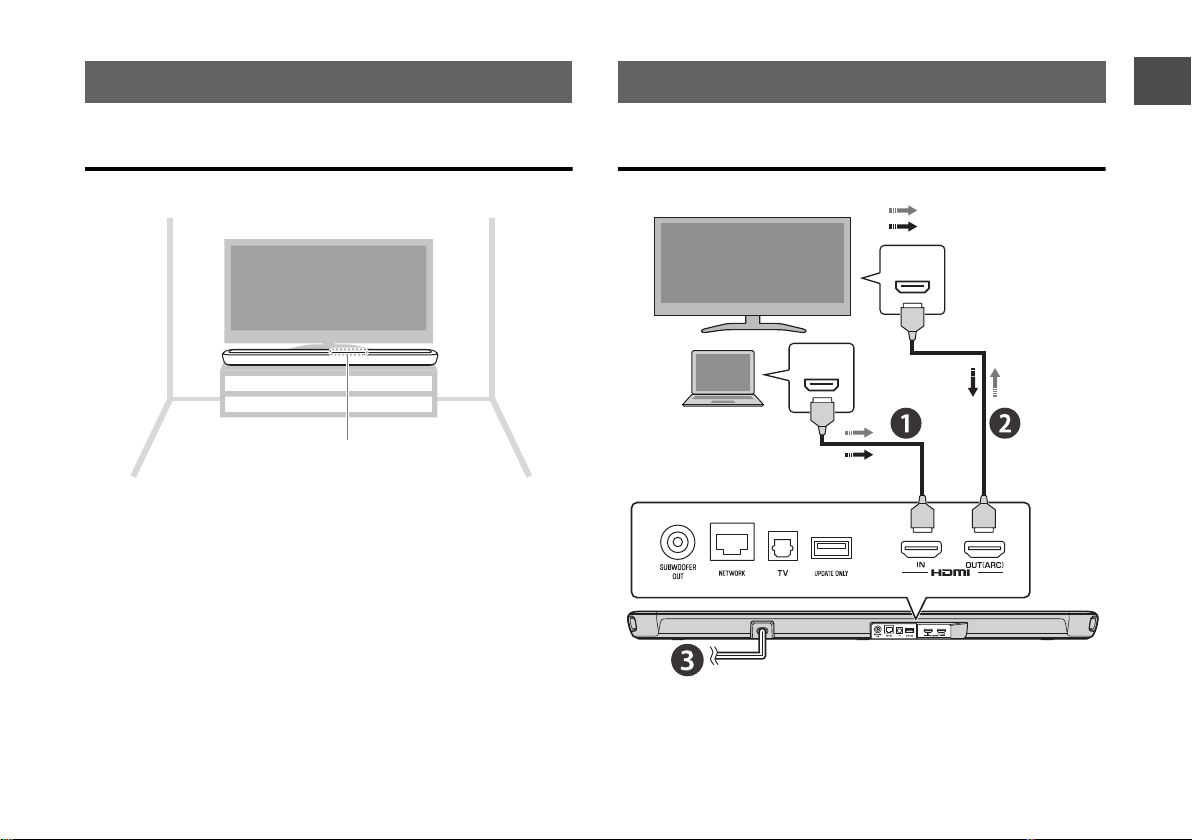

Installing the unit on a TV stand

Install the unit as shown below.

Overview

Installation

Touch panel

Connections

HDMI

(ARC)

HDMI

ARC-compatible TV

Computer or

AV device

To an AC wall outlet

Video signals

Audio signals

To HDMI IN To HDMI OUT

(ARC)

8 En

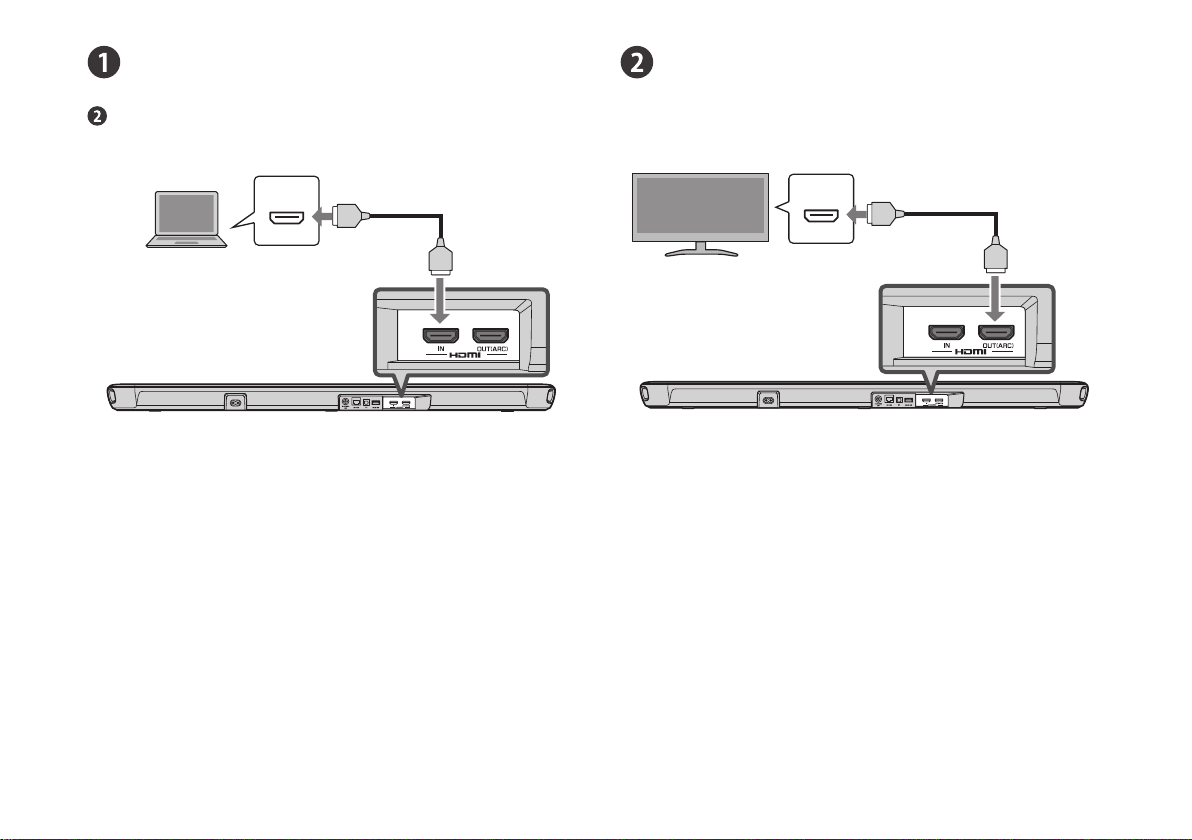

Connecting a computer or AV device

If only a TV will be connected, skip this step and proceed to step

Connecting an Audio Return Channel (ARC)

compatible TV

HDMI

The unit (rear)

HDMI output jack

HDMI IN jack

Computer or

AV device

HDMI cable (sold separately) HDMI

(ARC)

HDMI

The unit (rear)

ARC-compatible

HDMI input jack

HDMI OUT

(ARC) jack

ARC-compatible TV

HDMI cable (sold separately)

En 9

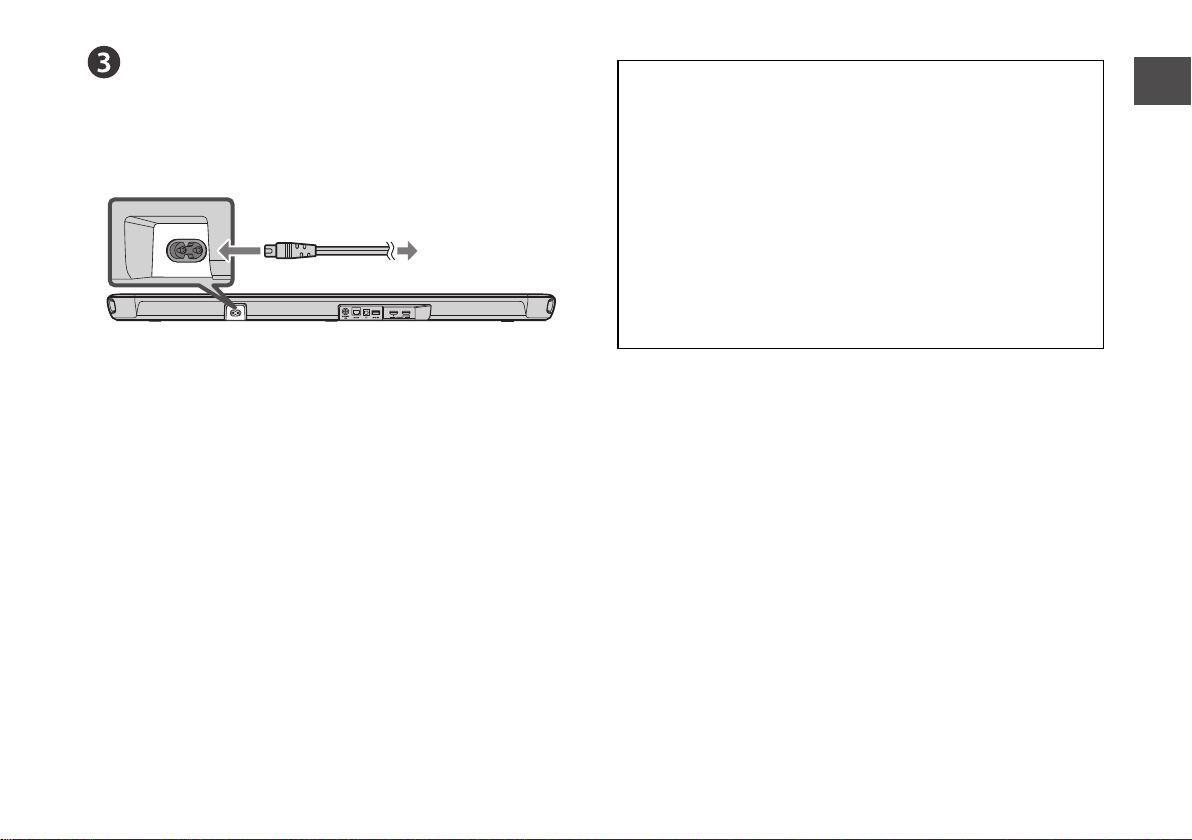

Connecting the power cord

After all connections are complete, connect the supplied power cord

to the power connector on the unit and then plug the power cord into

an AC wall outlet.

When the power cord is plugged into an outlet, the unit automatically

turns on.

The unit (rear)

To an AC wall outlet

Power connector

IMPORTANT

• This unit is set to Conference mode (mode for using the unit as a

speaker for remote conferencing) by default. To prevent

accidental operation during a remote conference, the unit’s

z(power) button cannot be operated in Conference mode (the

remote control can be used to turn the unit on/off).

• See the Owner’s Manual for instructions on operating the unit,

including operating and canceling Conference mode. The

Owner’s Manual is available from the following websites:

U.S.A. and Canada

https://uc.yamaha.com/support/

Other countries

https://download.yamaha.com/

10 Fr

Table des matières

Accessoires .............................................. 11

Télécommande ....................................... 12

Installation .............................................. 13

Raccordements ....................................... 13

À propos de ce Guide de démarrage rapide

• Ce document explique comment connecter cette unité à un

ordinateur, un appareil audio-vidéo ou un téléviseur prenant en

charge Audio Return Channel (ARC). Reportez-vous au Mode

d’emploi pour obtenir des instructions sur l’utilisation de l’unité. Le

Mode d’emploi est disponible sur les sites Web suivants :

États-Unis et Canada

https://uc.yamaha.com/support/

Autres pays

https://download.yamaha.com/

• Les illustrations figurant dans ce document servent uniquement à

expliciter les instructions. Pour toute information sur les appareils

autres que cette unité, reportez-vous à la documentation respective

de chaque appareil.

• Les termes HDMI, le logo HDMI et High-Definition Multimedia

Interface sont des marques commerciales ou déposées de HDMI

Licensing LLC aux États-Unis et dans d’autres pays.
