Yard force HM A30 Manuale utente
Hotline:1300 418 640
Monday/Friday: 9.00am to 4.30pm
Saturday: 9.00am to 3.00pm
Email: [email protected]
Model HM A30
1
Hand Push Mower
Instruction Manual
IMPORTANT:
Read instruction manual carefully before use.
Keep for future reference
TABLE OF CONTENTS
DESCRIPTION OF PRODUCT PARTS 1
TECHNICAL SPECIFICATIONS 2
INTENDED USE 2
SAFETY INFORMATION 2
ASSEMBLY 4
OPERATION 6
7
TROUBLESHOOTING 8
WARRANTY 9
HM A30 Instruction Manual
CLEANING, MAINTENANCE AND STORAGE
DISPOSAL 8
1

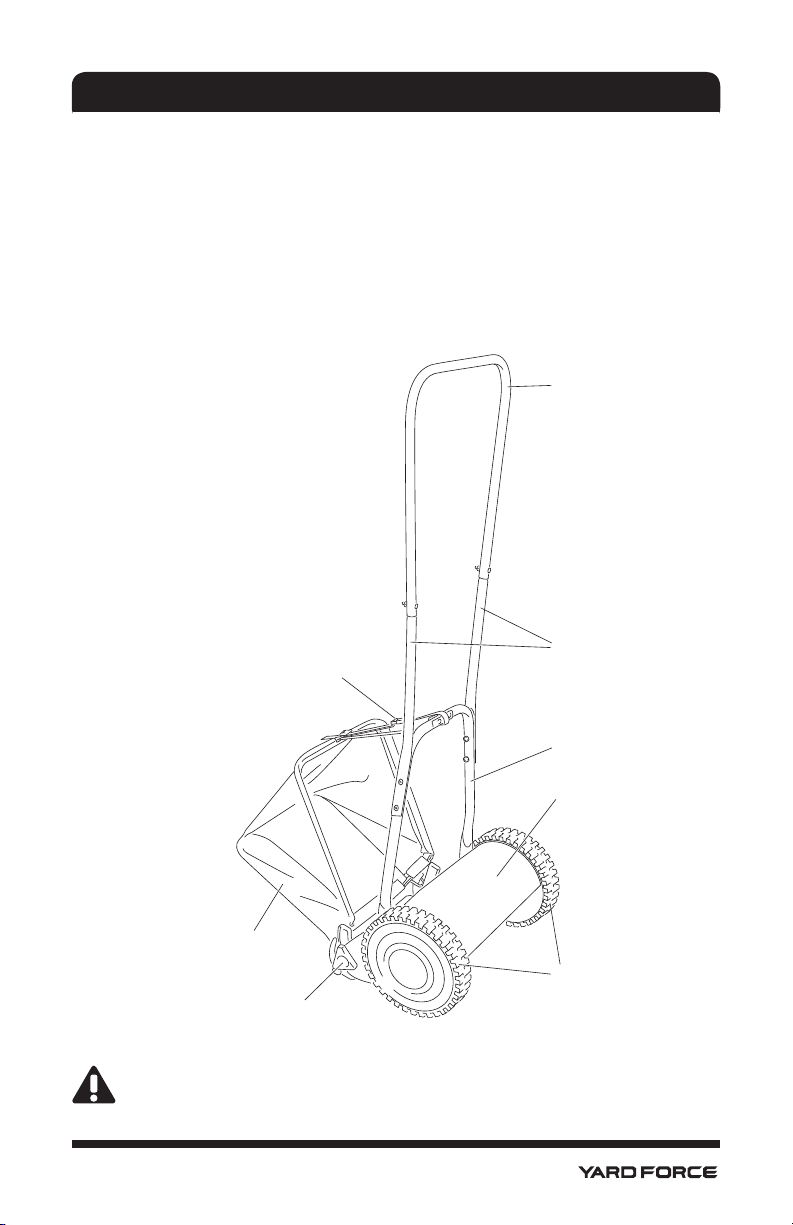

DESCRIPTION OF PRODUCT PARTS
As shown in Fig. 1
2
5
1
3
4
8
7
6
Fig. 1
1. Upper handle
2. Handle extension
3. Lower handle
4. Blade guard
5. Wheels
6. Height adjustment lock
7. Grass collection catcher
8. Grass collection catcher strap
WARNING: If any parts are damaged or missing, please contact Action
Spares 1300 418 640. Do not operate this mower until the parts are
replaced.
2
TECHNICAL SPECIFICATIONS
Model HM A30
Cutting Width 300 mm
Grass Catcher Capacity 20 L
Net Weight 6.5 kg
Cutting Height 15-42 mm
INTENDED USE
This hand push mower is designed for lawn mowing. It is for domestic use only, not for
commercial, trade or industrial use.SAFET INFORMATION
Description of Symbols
Symbols are used in this manual to attract your attention to possible risks. These safety
symbols and their explanations must be fully understood. The warning themselves do not
prevent the risks and can not be a substitute for proper methods of avoiding accidents.
SAFETY INFOTMATION
2
d
a
g
f
c
c
b
h
i
e
j
a. Hand mower (ready-assembled)
b. Upper handle
c. Handle extension (2x)
d. Lower handle A
e. Lower handle B
Scope of delivery
DESCRIPTION OF PRODUCT PARTS
f. Grass collection catcher frame
g. Grass collection catcher bag
h. Screw M6 x 30 (4x)
i. Screw M6 x 25 (4x)
j. Hex nut M6 (8x)
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Read instruction manual carefully before use this mower.
Never allow children or people unfamiliar with the instruction manual to use the mower.
Never mow while people, especially children or pets are nearby.
Keep in mind that the operator or user is responsible for accidents or hazards occurring
to other people or their property.
While mowing, always wear safety footwear and long trousers. Do not operate the
mower when barefoot, or wearing open sandals.
Thoroughly inspect the area where the mower is to be used and remove all objects
which can be thrown by the mower.
Mow only in daylight or in good artificial light.
Avoid mowing in wet grass.
Always be sure of your footing on slopes.
Walk, never run.
Do not mow excessively steel slopes.
Do not put hands or feet near or under rotating parts.
Keep all nuts, bolts and screws tight to be sure the mower is in safe working condition.
Replace worn or damaged parts for safety.
Safety instructions
3
SAFETY INFORMATION
Risk of injury from the cutting blades. Keep hands and feet clear.
Do not open or remove safety shields while using the mower
Debris can be thrown by the cutting blades
Keep bystanders away
WARNING!
WARNING! Read instruction manual
Warning symbols
Dispose of mower according to the regulation and requirement of
local council
4
SAFETY INFORMATION
Stay alert, watch what you are doing and use common sense when operating this
mower. Do not use this mower while you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention while operating this mower may result
in serious personal injury.
Assembling the handle (Fig. 2-3)
c
b
e
Fig. 2
9d
Fig. 3
1. Insert the handle extensions (c) into the upper handle (b). Fasten the handle extensions
(c) and upper handle (b) together using two screws (i) and nuts (j).
2. Join the two lower handle sections (d and e) together using two screws (i) and nuts (j).
3. Join the handle extensions (c) and lower handle (3) together using four screws (h) and
nuts (j).
4. Locate the two metal lugs (9) on the mower. Insert the large hole in the lower handle
over the lug, then repeat the same process on the other side. It may be necessary to
squeeze the two lower handle arms together for mounting the other side.
Assembling the grass collection catcher (Fig. 4-6)
1. Insert the grass collection catcher frame (f) onto the metal frame (10) of the grass
collection catcher bag (g).
2. Fix the grass collection catcher frame (f) to the grass collection catcher bag (g) with the
plastic clips (11) on the grass collection catcher bag (g).
ASSEMBLY
15.
d
5
ASSEMBLY
10
g
f
10
g
11
Fig. 4Fig. 5
Fig. 6
Attaching the grass collection catcher to the mower (Fig. 7-8)
1. Insert the hook (13) of the grass collection catcher frame (f) to the slots (14).
2. Use the strap (8) to tie the grass collection catcher to the lower handle (4)
13
14
f
78
3
Fig. 7Fig. 8
Adjusting the cutting height
6
6
15
NOTE The support roller (15) must be parallel to the lower cutting blade (18).
Fig. 9
OPERATION
1. Loosen the height adjustment locks (6) on both sides of the mower.
2. Move the support roller (15) to different height level as desired.
3. Re-tighten the height adjustment locks (6) and make sure the support roller (15) is
secured in position.
1718
16
Fig. 10
Mowing
WARNING! Check and make sure the handle is assembled and installed properly
and there is no damaged part before mowing.
Push the mower at steady pace. The rotation of the wheels turns the blades.
The mower is hard to push when the grass is too tall. It is recommended to mower
the lawn regularly
1.
2.
7
CLEANING, MAINTENANCE AND STORAGE
WARNING! Blades are sharp, always wear protective gloves when cleaning and
maintenance of the mower
Cleaning
1. Remove the grass from the grass collection catcher after mowing.
2. Use a brush and plastic scraper (if required) to remove the grass on the mower.
3. Wipe the mower with a damp cloth to remove the dirt.
4. Never use water or high pressure water jet to clean the mower.
Maintenance
1. Keep all nuts and bolts tight to ensure the mower is in a safe working condition.
2. Replace worn or damage parts if necessary.
3. Be careful during adjustments of the mower to prevent entrapment of the fingers
between the moving blade and the mower.
Adjusting the lower cutting blade to the blades (Fig. 10)
The lower cutting blade (18) should be as close to the blades (17) as possible,
when the blades (17) are rotated manually, they should make slight contact with
the lower cutting blade.
If the contact between the blades (17) and lower cutting blade (18) is too loose,
the cutting is rough and uneven.
If the contact between the blades (17) and lower cutting blade (18) is too tight, the
mower will be difficult to push and noisy.
The lower cutting blade (18) is pre-set at the factory. However, it may need to be
adjusted after using for a period of time.
Turn the adjustment nuts (16) on both sides clockwise to move the lower cutting
blade (18) towards the blades (17).
Turn the adjustment nuts (16) on both sides anti-clockwise to move the lower
cutting blade (18) away from the blades (17).
1.
2.
3.
4.
5.
6.
Turn the mower upside down.
Hold a piece of paper between the lower blade (18) and the blades (1).
Turn the blades carefully by hand, all the blades should cut the paper evenly along the
entire length of the lower blade (18) and the CMBEFT can turn freely.
1.
2.
3.
Cutting test
8
DISPOSAL
Dispose of the mower according to the regulations and requirements of your local
council.
TROUBLESHOOTING
Fault/malfunction Cause Remedy
Strange noise.
Poor cutting
Screws/parts come loose
Foreign objects in the blades
Blade damaged
Blade set incorrectly
Tighten screws.
Remove foreign objects.
Sharpen the blades
Adjust the lower blade
Adjust the lower blade
Blade set incorrectly
Blade is blunt Sharpen the blades
1. Clean the mower before storage.
2. Grease the blades lightly if the mower is not be used for a long period of time.
3. Store the mower in a dry place, out of reach of children.
CLEANING, MAINTENANCE AND STORAGE
Storage
