Yard force YF60VRX18-LT Manuale utente

Fig. 1

DE C

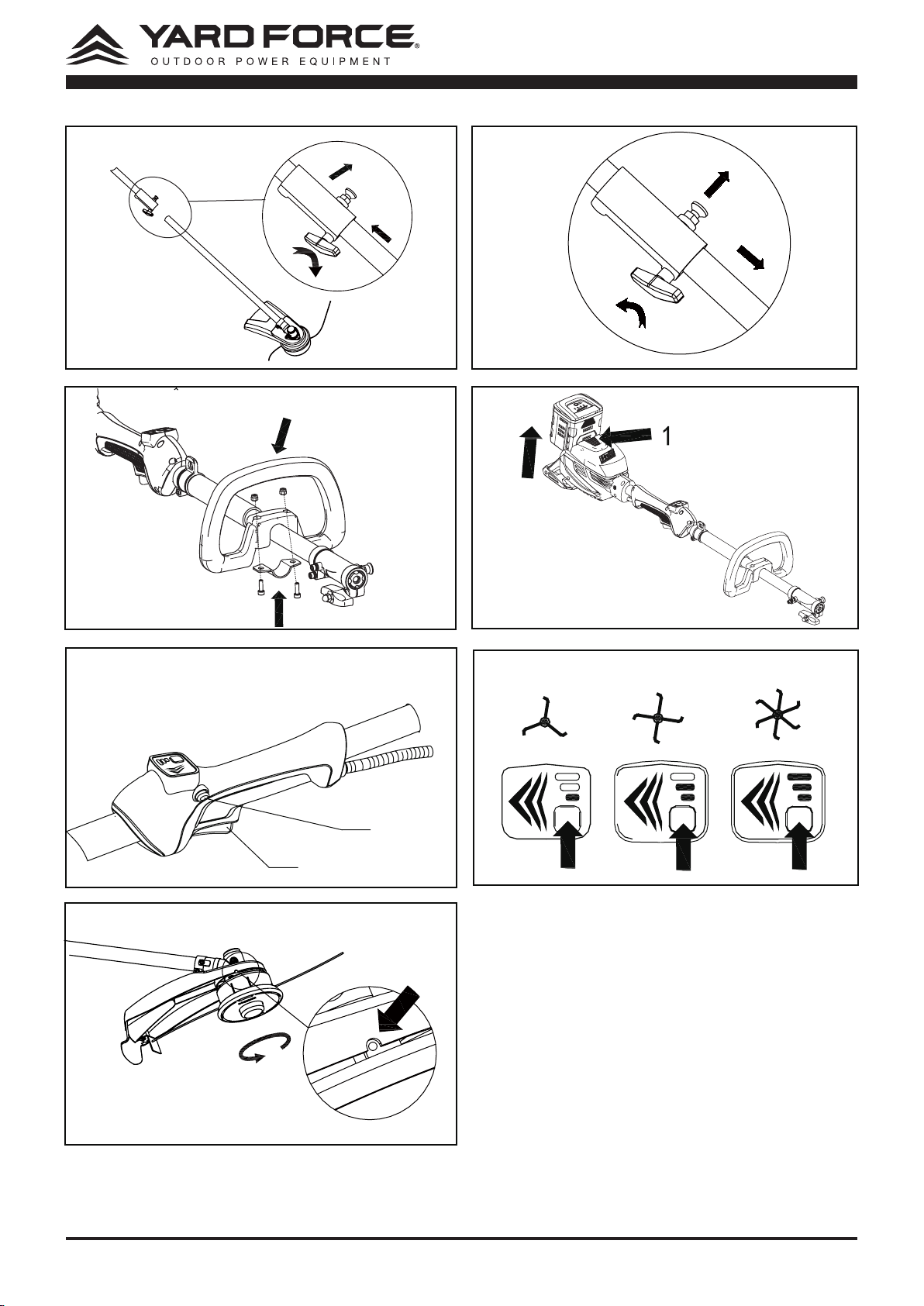

Fig. 3 Fig. 4

Fig. 5

Fig. 7

Fig. 9

Fig. 6

Fig. 8

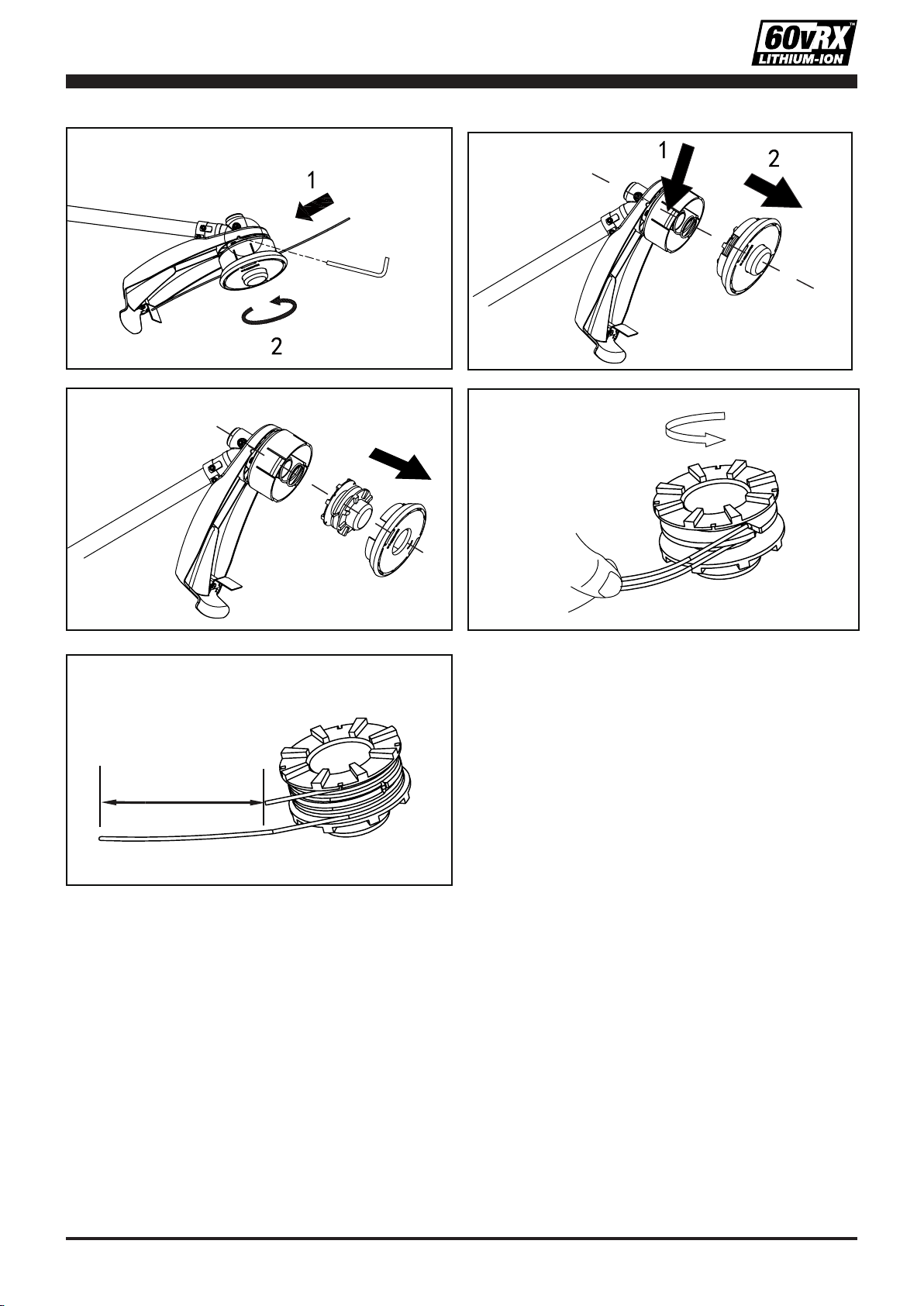

Fig. 10

Fig. 12

Fig. 14

Fig. 11

Fig. 13

16 ft.

DESCRIPTION OF PRODUCT PARTS

Parts list (See Fig. 1)

1. Power head

2. Auxiliary handle

3. Shaft connector

4. Safety guard

5. Cutting head

6. Speed adjustment button

Delivery list (See Fig. 2)

A. Power head assy. x 1

B. Line trimmer attachment x 1

C. Auxiliary handle x 1

D. Battery pack x 1

E. Manual x 1

F. Charger x 1

Carefully remove the machine and parts from

its packaging. Identify all the parts packaged in

the carton against the parts list. Please contact

our customer service center (Monday - Friday

8:30AM - 5:00PM ET) at (866) 902-9690 if

anything is missing.

WARNING! If any parts are damaged or

missing, do not operate this tool until the missing

parts are replaced. Failure to heed this warning

could result in serious personal injury.

NOTE! Always recycle the packaging in

accordance with local recycling schemes.

WARNING! This item requires a two person

lift to remove from the packaging. Make sure that

you have su󰀩cient space to put the lawn mower

down. Keep your feet apart so that you have a

stable position, bend at the knees and keep your

back straight.

TECHNICAL SPECIFICATIONS

Item No. YF60VRX18-LT

Voltage/Capacity 60 v d.c. / 2.5 Ah Li-ion

Cutting Width 16"

Cutting Line Dia. 0.095"(0.080" Compatible)

Line Feed Dual Line, Tap-Feed

Running Speed 3 Speeds, 4500/5000/

5500 RPM

Motor Brushless

Charger Input: 100~240 V, 50/60 Hz,

Output: 63 v d.c. 2.5 A

Charging Time 60 minutes

Weight 20.2 lbs

Battery Pack Type YF60VRX2.5-BAT

Adapter Type YF60VRX2A-CHG

INTENDED USE

The product is intended for cutting weed, grass

or similar soft vegetation in areas that are hard to

reach, e.g. under bushes, on slopes and edges. It

may not be used to work on unusual thick, dry or

wet grass, e.g. pasture grass, or to shred leaves.

For safety reasons it is essential to read the

entire instruction manual before rst operation

and to observe all the instructions therein.

SAFETY SYMBOLS

The purpose of safety symbols is to attract your

attention to possible dangers. The safety symbols

and the explanations with Vthem deserve your

careful attention and understanding. The symbol

warnings do not, by themselves, eliminate any

danger. The instructions and warnings they give

are no substitutes for proper accident prevention

measures.

WARNING: Be sure to read and understand

all safety instructions in this Operator’s Manual,

including all safety alert symbols such as

“DANGER,” “WARNING,” and “CAUTION” before

using this tool. Failure to follow all instructions

listed below may result in electric shock, re, and/

or serious personal injury.

SAFETY INSTRUCTIONS

This page depicts and describes safety symbols

that may appear on this product. Read,

understand, and follow all instructions on the

machine before attempting to assemble and

operate.

Fig. 1

Fig. 2 Fig. 3

Fig. 4

11 12 13 14 15

G F

Fig. 5

Fig. 7

Fig. 9

Fig. 11

Fig. 6

Fig. 8

Fig. 10

Fig. 12

Fig. 14

Fig. 16

Fig. 18 1

Fig. 20

Fig. 15

Fig. 19

Fig. 17

Fig. 13

Fig. 22

Fig. 23

Fig. 21

DESCRIPTION OF PRODUCT PARTS

Parts list (See Fig. 1, Fig. 2 & Fig. 3)

1. Self-propelled switch lever

2. Safety lock button

3. Grass bag

4. Height adjustment knob

5. Side discharge guard

6. Front bumper handle

7. Power head

8. Cable clip

9. Handle quick-release knob

10. Operator presence control bar

11. Mulching plug

12. Side discharge deector

13. Safety key

14. Battery pack

15. Battery charger

NOTICE!

1. Remove everything from carton except the

cordless Lawn Mower.

2. Open carton completely by cutting each corner

from top to bottom.

3. Remove the lawn mower from carton.

Delivery list (See Fig.4)

A. Main machine x 1

B. Lower handle x 2

C. Grass bag x 1

D. Battery pack x 1

E. Charger x 1

F. Manual x 1

G. Cable clip x 2

H. Lower handle xing knob x 2

I. Mulching plug

J. Side discharge deector x 1

K. Handle quick-release knob x 2

Carefully remove the machine and parts from its

packaging. Identify all the parts packaged in the

carton against the parts list. Please contact our

customer service center (Monday - Friday 8:30AM

- 5:00PM ET) at (866) 902-9690 if anything is

missing.

WARNING! If any parts are damaged or

missing, do not operate this tool until the missing

parts are replaced. Failure to heed this warning

could result in serious personal injury.

NOTE! Always recycle the packaging in

accordance with local recycling schemes.

TECHNICAL SPECIFICATIONS

Item No. YF60VXR21-SP

Voltage/Capacity 60 V d.c. / 4.0 Ah Li-ion

Deck Size 21 "

Cutting Size 20 "

Cutting Height 7 positions: 1.25 "- 3.75"

Self-Propelled Yes

Grass Bag Capacity 2.0 Bushels/ 65L

No-load Speed 3100 RPM

Booster Function Yes (3500 RPM)

Wheel Size 8 " Front/ 12 " Rear

Charger Input: 100~240 V, 50/60 Hz,

Output: 63 V d.c., 4.0 A

Charging Time 60 Minutes

Weight 86 lbs

Battery Pack Type YF60VRX4.0-BAT

Charger Type YF60VRX4A-CHG

INTENDED USE

This cordless lawn mower has been designed for

cutting lawn areas in private house and hobby

gardens.

The machine is to be used only for its prescribed

purpose, any other use is deemed to be a

case of misuse. The user/operator and not the

manuafacturer will be liable for any damage or

injuries of any kind caused as a result of this.

Please note that our equipment has not been

designed for use in commercial, trade or industrial

applications. Our warranty will be voided if the

machine is used in commercial, trade or industrial

businesses or for equivalent purposes.
