Yard force YF-SC600ECO Manuale utente

> 1 m

> 2 m

Quick start of Robot mower

Place the charging station

Make sure that the garden ground is even and

free of obstacles such as stones, branches.

Remove them if there is.

Select S1 or S2 with the

signal button. It is to

prevent disturbance

with your neighbor

who runs a same robot.

On your mowing robot,

the same setting must

be selected both on the

robot itself and charging

station (S1 or S2).

5Programming the mowing robot

Begin with the

maximum cutting

height and gradually

reduce it to the

desired cut height.

Main switch

On/Off switch

Cutting height adjust

＜100 m2

10 Ω

Set the boundary wire

with pegs.

Close the cover

For a lawn area less than

100 m2 or the boundary total

length is less than 40m.

You need a 10 Ω/20 W

cement resistor in boundary.

Stripping pliers

10 - 15 mm

Possible position of the

charging station

End point of the

boundary wire

1 meter of wire reserved for

possible adjustments

Start point of

the boundary

wire

The pegs and the boundary wire

should be as close as possible to

the ground to prevent tripping.

In front of the loading station, a

straight wire length of 2 m is required.

Beside the charging station

there should be 1m wide

Flat area.

To unlock, press 4 times

this “lock” button Please press “Start”

Select the mowing hours that the

robot should work

The boundary wire must never cross.

> 2m

> 10 cm

< 5 mm

< 27°

> 40 cm

Boundary wire

< 8m

>2m

> 10 m

40 cm

80 cm

S1 S2

> 0.5 m

Buffer zone

If you prefer mowing robot to

travel over the two parallel

boundary wires, the gap distance

of wires above showed must be

less than 5 mm. If the mowing

robot only runs in a circle in

the home mode, please put

a post or obstacle at position A.

If the mowing robot is not to cross the

boundary wire, the distance between

the two wires must be at least 10 cm.

Please note the installation

DVD in the box.

> 10 m

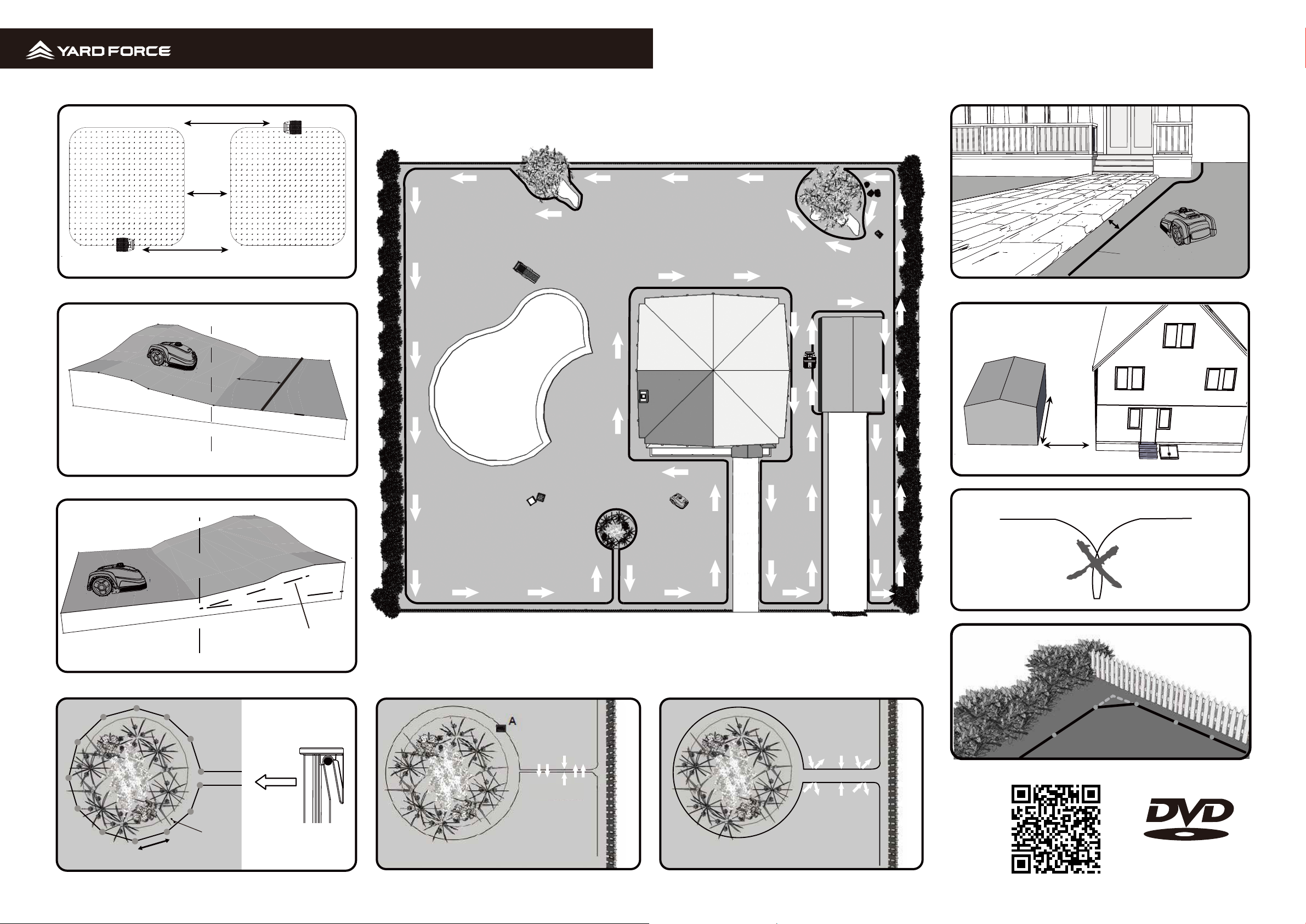

Setting of boundary wire
