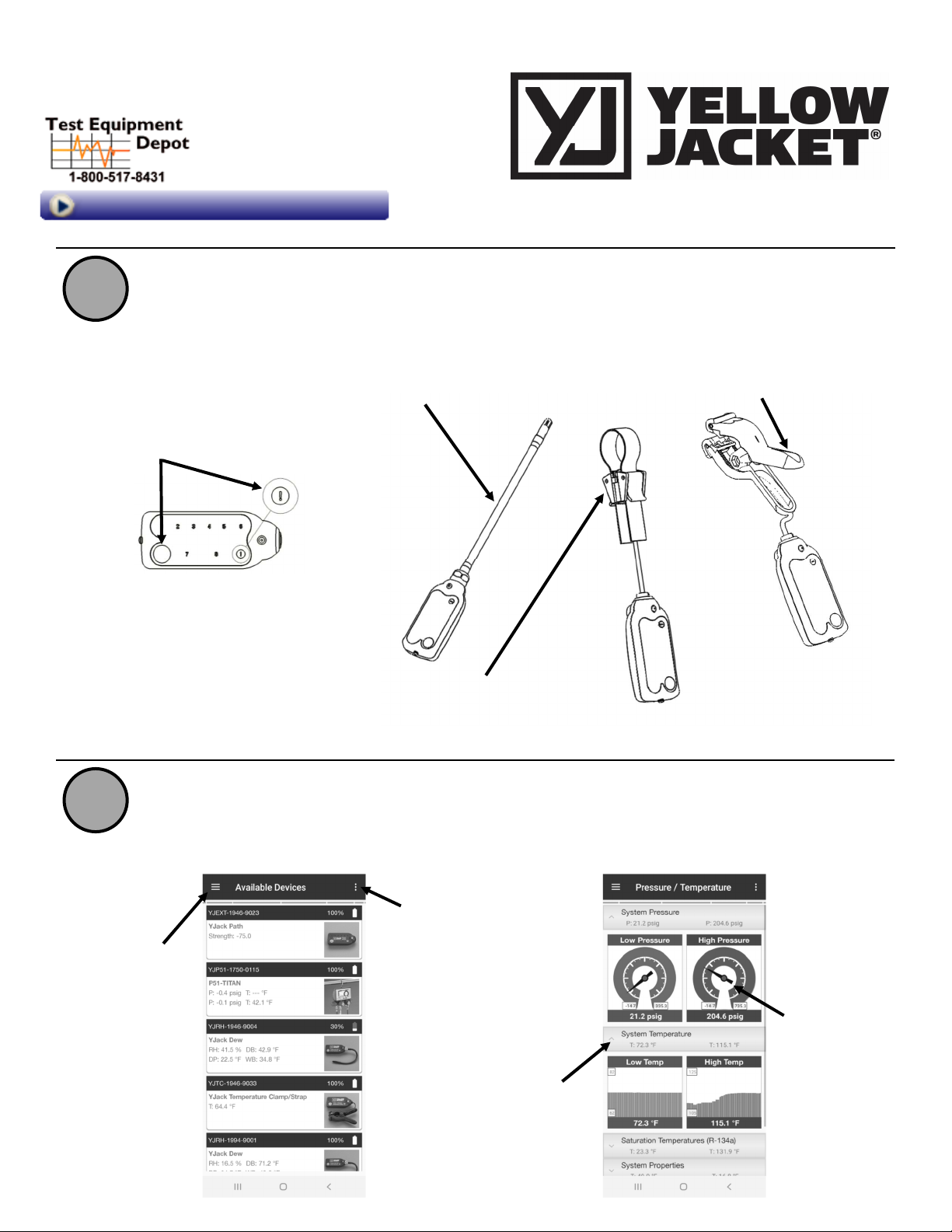

1. Power on YJACK™ devices and place in desired locations throughout

jobsite.

Press and hold the power button

to power the YJACK™ devices

on. Release the power button

when the status indicator L D

illuminates.

Utilize ﬂexible strap to tightly secure

strap clamp to pipe surface where

temperature measurements are desired.

Depress clamp handle to open clamp

jaws and attach clamp to pipe surface

where temperature measurements are

desired.

Remove black vinyl cap covering sensing

element. Form wand to desired shape and

place within ventilation system or wherever

psychrometric data is desired.

*YJACK PATH™ numeric L Ds 1-8 will

illuminate to indicate the number of YJACK™

and P51-870 TITAN® devices within range.

2. Launch the YJACK VI W™ app and select the devices you would like to

display within the app. There is no Bluetooth® pairing required.

Utilize the app settings

menu to easily change

general settings, select

refrigerants, set elevation,

and create datalogs.

Utilize the session

menu to quickly

navigate between

different session

types.

Tap the grey banners to

expand or collapse data

sets.

Tap on each data

view to select

device to be

displayed and

desired view type.

YJACK™ Series - Bluetooth® Sensing Technology

67060, 67061, 67062, 6706 , 67070, 67071, 40877

Quick Start Guide

99 Washington Street

Melrose, MA 02176

Phone 781-665-1400

Toll Free 1-800-517-8431

Visit us at www.TestEquipmentDepot.com

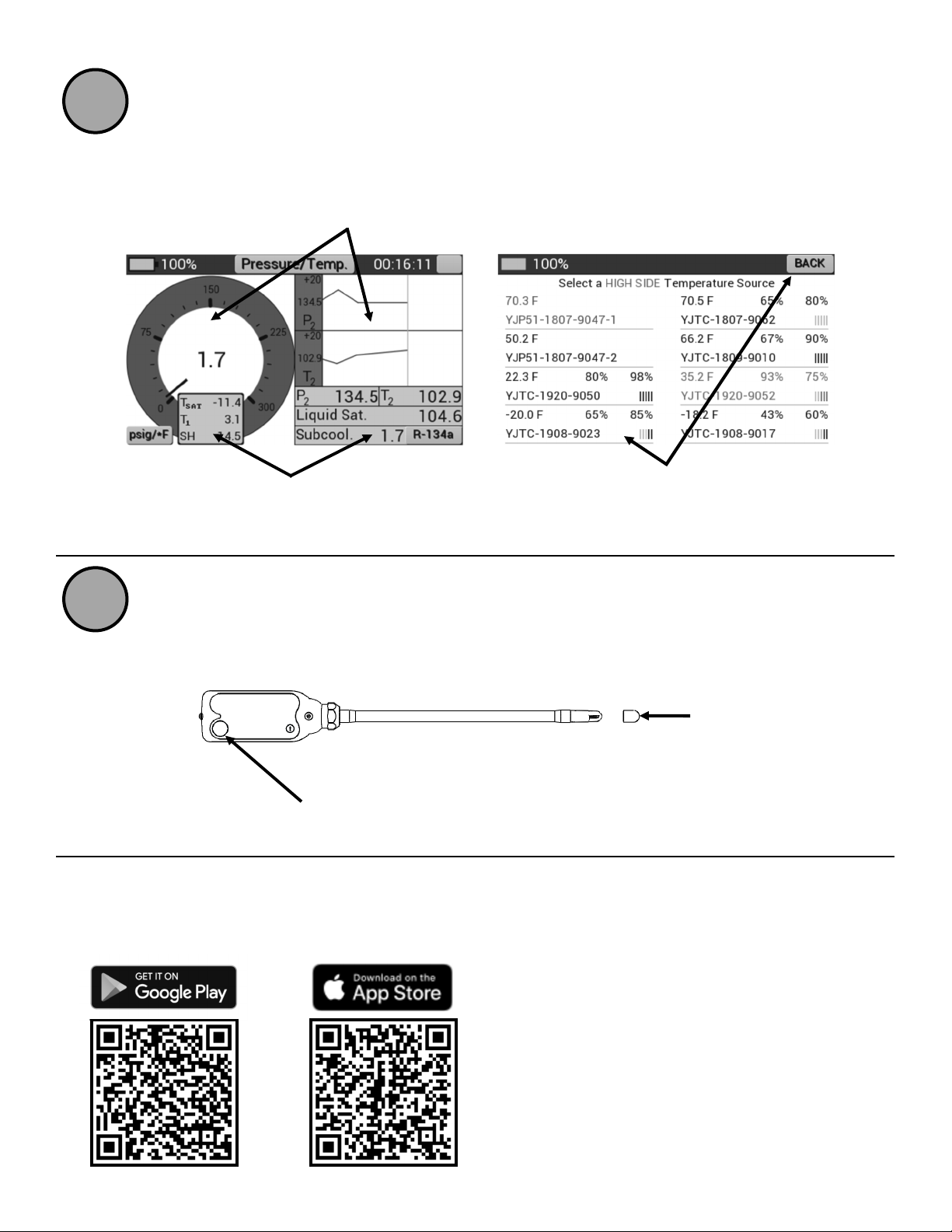

Power on your P51-870 TITAN® digital manifold and select from any available

YJACK™ devices to be displayed on screen (requires P51-870 TITAN®

ﬁrmware update v2.0 or later). There is no Bluetooth® pairing required.

Tap within the grey box to assign a

measurement device.

Tap at the center of the gauge or graph

to switch between pressure,

temperature, & psychrometric data.

Tap a speciﬁc local or YJACK™

measurement device within the list for

assignment and tap the BACK button

to return to the previous screen.

4. When ﬁnished, power devices off and store in a dry, temperature controlled

area.

For additional information, please see the digital YJACK™ user manual located

at www.yellowjacket.com. Visit the app store or follow the QR codes below to

download the YJACK VI W™ app.

Always replace the vinyl cap

on your YJACK D W™ to

prevent moisture ingression

and potential damage to the

sensing element.

To power off a YJACK™ device, press and

hold the power button until the status indicator

L D is no longer illuminated.

*Storing your YJACK™ device in extreme cold or heat

can severely limit the battery life. xcessive exposure

to high humidity may cause damage over time.
