ZALMAN CNPS6000-Al Manuale utente
User
’’
s Manual
Zalman Tech Co., Ltd.
CNPS6000-Al
CNPS6000-AlCu
CNPS6000-Cu
http://www.zalman.co.kr E-mail:[email protected]
User
’’
s Manual
Zalman’s CNPS6000-Al / 6000-AlCu / 6000-Cu coolers include a new fan assembly
(FB123) with an adjustable bracket and a bigger fan for better cooling performance.
The new fan assembly can be positioned to provide optimal cooling in almost any
motherboard/standard case configuration and allows an additional fan to be installed
for cooling a NP VGA Card.
1. Features
1) Zalman’s CPU Coolers do not generate noise and vibration in Silent Mode.
2) The heat dissipating material of the Flower HeatSink (FHS) is Pure Aluminum or Copper.
3) Separation of the FHS from the CPU fan prevents transfer of the fan's vibration to the CPU.
4) By utilizing a 92mm fan, both the CPU and the motherboard chipset are cooled.
5) The cooling fan can be mounted at any desired location, making it compatible with virtually all
computer cases and motherboards (Note: computer cases that have the power supply covering
the CPU cannot be used).
6) With the included adjustable fan speed connector, the user can freely adjust the CPU fan's RPM.
7) CPU can be cooled to a temperature sufficiently below the temperature required by the CPU
manufacturer in Silent Mode.
8) Zalman’s CPU Coolers enable very stable operation of a CPU in an OVERCLOCKED environment.
* If you try OVERCLOCKING, please make sure that the fan is in Normal Mode.
* Zalman Tech. Co., Ltd. is not responsible for any damage to a system or a CPU caused by CPU
OVERCLOCKING.
2. Components
1) FHS : ZM6558BC-XXXX 2) NP FAN & Bracket : FB123
3) Thermal Grease 4) Screw bolts (Inch-sized/mm-sized bolts)
5) Clip 6)One Adjustable Fan Speed Connector (FAN MATE 1)
7) Heatsink Installation Tool (Clip Mate)
3. Specifications
1) FHS
- 1 -
The specifications of any product may change without prior notice to improve the performance thereof.
CNPS6000-Al, CNPS6000-AlCu, CNPS6000-Cu
CNPS6000-Al
ZM6558BC-Al ZM6558BC-AlCu ZM6558BC-Cu
CNPS6000-AlCu CNPS6000-Cu
105~110(L) ×63(W) ×65(H)
2600
Model
Spec.
Part No.
Dimensions (mm)
Dissipating Area (
㎠㎠
)
Base Material
Weight (g)
Thermal
Resistance
(℃/W)
Silent Mode
Normal Mode
Pure Aluminum
Pure Aluminum
+ Pure Copper
Pure Copper
170 270 462
0.37 0.33 0.31
0.29 0.25 0.23
Note 1) The maximum weight for a heatsink is specified as 180 g by Intel(Pentium III) and as 300 g by AMD.
Should a heatsink which exceeds the relevant weight limit be installed in a computer , special care
should be taken when the computer is moved. Zalman Tech. Co., Ltd. is not responsible for any
damage to a system or a CPU occurring when moving a computer with an overweight heatsink.
(1)
- 2 -
The specifications of any product may change without prior notice to improve the performance thereof.
2) Fan
①Dimensions : 92(L) X 92(H) X 25(W)mm ②Weight : 85g
③Speed : Silent mode :1300 RPM±10% ④Noise : Silent mode : 20.0dB±10%
Normal mode : 2500 RPM±10% Normal mode : 32.0dB±10%
⑤Bearing Type : 2-Ball
2) FAN MATE 1
①Dimensions : 200(L) X 23(W) X 21(H) mm ②Weight : 20 g
③Speed : Output Voltage : 5V ~ 11 V±2% ④Allowable Wattage : 6W or lower
4. Compatibility of CPU :
Socket 462 - AMD Duron, AMD Athlon, AMD Athlon XP
Socket 370 - INTEL Pentium III, VIA C3
5. Please keep the following in mind for a noiseless computer
1) For a noiseless computer, a Noise Prevention (NP) Power Supply, a NP HDD, a NP CD-ROM and
a NP VGA Card should be used together with this cooler.
2) Zalman affixes a Computer Noise Prevention System (CNPS) Mark to each of its parts and
components used for noiseless computers.
3) For a high-performance NP VGA Card, it is preferable to use a VGA FHS.
4) When buying a new VGA Card, it is recommended to buy a VGA Card without a fan.
6. Patent Applications
◇Korean Patent Application No. 01-11056
◇Patent Applications Pending in over 20 nations around the world, including the U.S., EU, and Japan
Duron Athlon Athlon XP Athlon XP
(T-Bird)
AMD
Up to 1.4
㎓
(1600+)
Up to 1.67
㎓
(2000+)
Up to 1.67
㎓
(2000+)
Up to 2.13
㎓
(2600+)
Over 2.13㎓
(2600+)
Over 2.13㎓
(2600+)
Over 2.13㎓
(2600+)
Up to 1.33㎓
1.4㎓
CPU Type
Model
Supports all
current CPU
Clock speeds
Supports all
current CPU
Clock speeds
Silent mode
Normal mode
Silent mode
Normal mode
Silent mode
Normal mode
CNPS6000-Al
CNPS6000-Cu
CNPS6000-AlCu
INTEL,VIA
Pentium
III,
C3
- 3 -
The specifications of any product may change without prior notice to improve the performance thereof.
Installation of FHS
1. Spread the thermal grease thinly onto the CPU core’s
surface that comes in contact with the FHS as shown
in Figure 2.
2. Install the clip across the FHS as shown in Figure 2
3. Hook the short leg of the clip onto the socket first,
then hook the long leg on by pushing the hole in the
leg with the heatsink installation tool or an ordinary
screw driver as shown in Figure 3.
4. If you need to reinstall the FHS, remove the clip by
inserting the heatsink installation tool into the clip’s
hole and pushing outward, as shown in Figure 4.
< Figure 3 > < Figure 4 >
< Figure 2 >
< Figure 1 >
Thermal Grease
Exploded drawing of the product
CPU & Socket
FHS
Clip
Fan
Br123
Fan Fix 1
FB123
}
- 4 -
The specifications of any product may change without prior notice to improve the performance thereof.

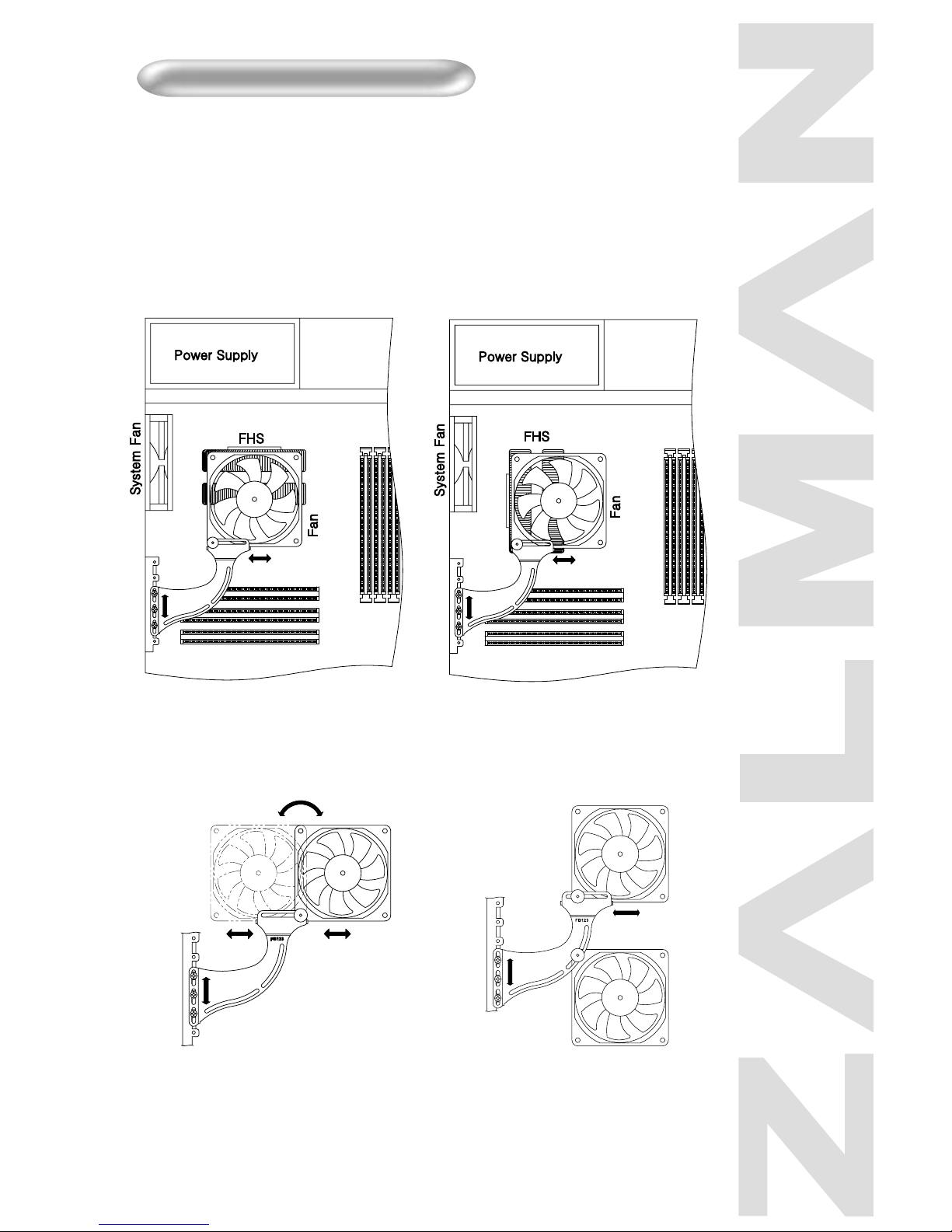

< Figure 5 >
< Figure 6 > < Figure 7 >
1. As shown in Figure 6, you can freely place the fan and the bracket in any desired location with
the FB123. Therefore, place the fan in an ideal location as shown in Figure 5. You can also place
an additional fan on the FB123 to maximize the cooling of the VGA Card as shown in Figure 7.
2. Screw on the FB123 firmly at the VGA Card slot hole and the expansion slot hole next to it with
the included bolts. (Caution! The included bolts are of two types: inch-sized and mm-sized.
Use the appropriate type for the slot holes.)
Installation of fan bracket
- 5 -
The specifications of any product may change without prior notice to improve the performance thereof.
For more information on this product, visit our homepage at www.zalman.co.kr.
1. Connect FAN MATE 1 (adjustable fan speed connector) to the 3-pin connector of a fan as shown
in Figure 8.
2. Connect FAN MATE 1 to the 3-pin CPU fan connector of the mainboard.
3. Turn on the computer after assembly is finished.
4. When booting a computer in which FAN MATE 1 is used, an alarm sound may be generated by
a system monitoring program to indicate that the rotation of the CPU fan is slow. If this happens,
you may turn the speed control knob fully clockwise to increase the fan speed, set “CPU Fan
Detected” to “Disabled” in the BIOS settings, or set the slowest rotation of the CPU fan in the
system monitoring program to less than or equal to 1500RPM.
Note 1) Some mainboards do not boot if the rotation of the CPU fan is below a certain number of
RPM. If the BIOS settings are updated, Silent Mode can be used. For more information on
updating BIOS , please refer to your mainboard manufacturer’s web site.
5. First check what CPU you are using, then check the CPU compatibility list on page 2. When the
speed control knob is turned fully counter-clockwise, the fan speed is minimum and the fan operates
in silent mode. You can select the desired fan speed by turning the knob.
Note 2) FAN MATE 1 has been specifically designed for the fan of this product. Zalman Tech.
Co., Ltd. is not responsible for any damage to systems or CPUs caused by using it with other
types of fans.
Adjusting Fan Speed
3-Pin CPUFan Connector
3-Pin Connector of the Fan
Mainboard
FAN MATE 1
Speed Control Knob
< Figure 8 >
