ZALMAN CNPS8700 NT Manuale utente

User’s Manual

CNPS8700 LED

www.ZALMAN.com

V 2.4

Intel Socket 1155/1156/775 CPUs

Core i7

Core i5

Core i3

Core 2 Quad

Core 2 Duo

Pentium Dual Core

Pentium D

Pentium 4

Celeron D

AMD Socket AM3/AM2+/AM2/754/939/940 CPUs

Phenom II

Phenom

Athlon II

Athlon X2

Athlon FX

Athlon

Opteron

Dual-Core Opteron

Sempron

To ensure safe and easy installation,

please read the following precautions.

.COM

2. Specifications

Model

Spec. CNPS8700 LED

Material Pure Copper

Weight 475g

Dimensions 120(L) Ⅹ123(W) Ⅹ67(H)㎜

Fan

Bearing-Type 2 Ball-Bearing

RPM 1,150 ~ 2,300rpm ±10%

Noise Level 17.5 ~ 33dBA ±10%

Input Voltage 12V

Fan

Mate 2

Output Voltage 5 ~ 11V ±2%

Maximum Capacity Up to 6W

1. Precautions

1) Use and keep product away from reach of children and pets.

2) Do not ingest the Thermal Grease, and avoid its contact with skin and

eyes. If contact is made with skin, wash off with water. If ingested or

irritation persists, seek medical attention.

3) To prevent possible injuries, gloves must be worn while handling this

product.

4) Excessive force exerted on the fan may cause damage to the fan and/

or system.

5) Avoid inserting objects or hands into the fan while it is in operation to

prevent product damage and injuries.

6) Check the components list and condition of the product before

installation. If any problem is found, contact the retailer to obtain a

replacement.

7) Zalman Tech Co., Ltd. is not responsible for any damages due to

overclocking.

8) During transportation of the system, the cooler must be removed.

Zalman is not responsible for any damages that occur during the

transport of a system.

9) Product design and specifications may be revised to improve quality

and performance.

Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due

to external causes, including but not limited to, improper use,

problems with electrical power, accident, neglect, alteration,

repair, improper installation, or improper testing.

.COM

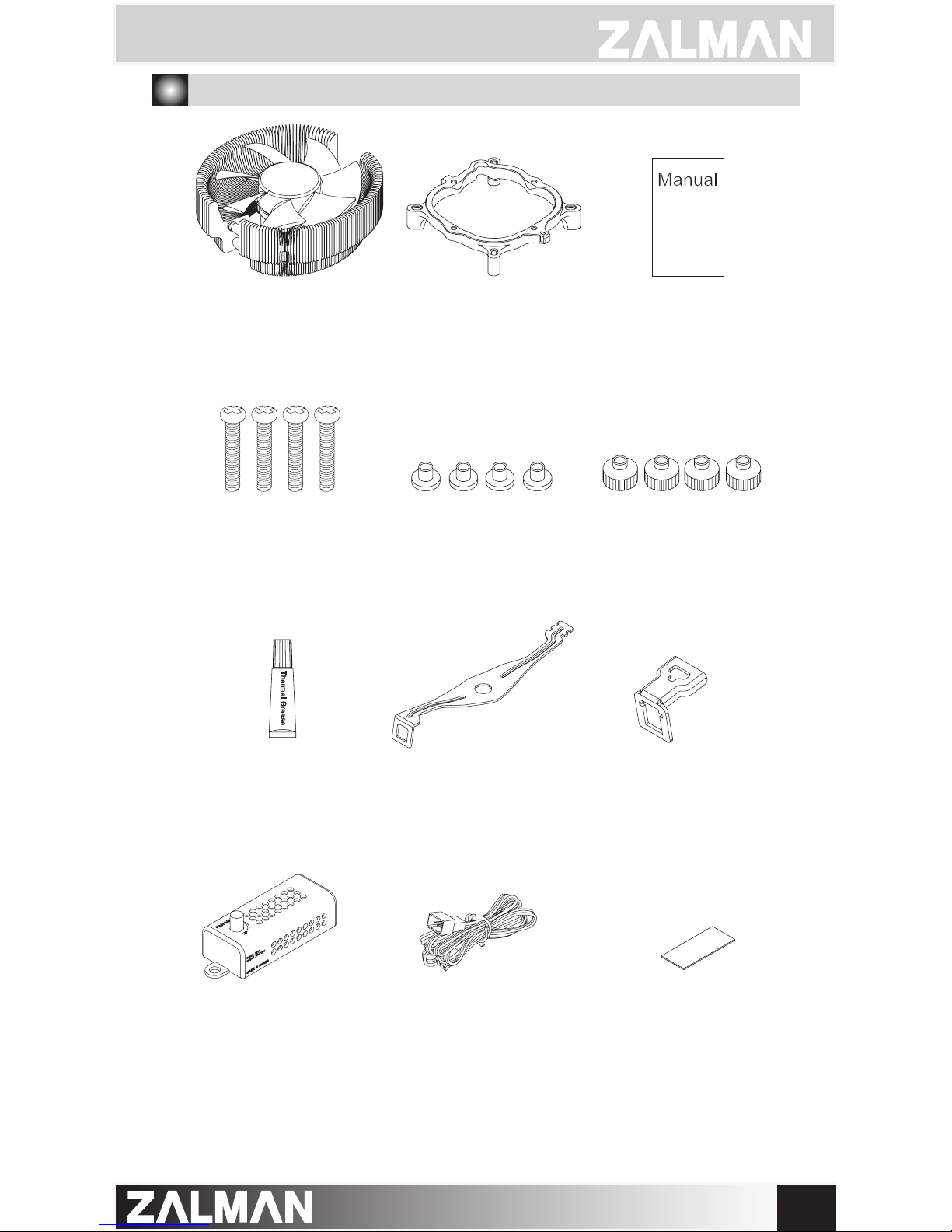

3. Components

Clip Support

Cooler

Clip Clip Lever

User’s Manual

Thermal Grease

Clip Support Fixing Bolts Washers Nuts

Fan Mate 2 CableFan Mate 2 Double-Sided Tape

.COM

4. Installation Requirements

1) Space Requirements

The cooler’s installation requires unobstructed space with dimensions of

123㎜(width), 126㎜(height), 70㎜(depth), and the CPU as a central

reference point. Please check if components such as ODDs and PSU protrude

into the required space.

2) Compatible CPUs

①Intel Socket 1155 / 1156 / 775 CPUs

②AMD Socket AM3 / AM2+ / AM2 / 754 / 939 / 940 CPUs

123㎜

70㎜

126㎜

1) Intel Socket Installation

①Install the Clip Support to the motherboard according to the socket-type.

5. Installation

Nut

Washer

Bolt(silver)

Clip Support

M/B

Socket 1155 / 1156

Socket 775

3) (For heatsink-installed RAM users) Check for physical

interference between the RAM and CPU

For users of Intel and AMD motherboards, please check the RAM’s height before

installation. If the RAM’s height exceeds 36mm (1.42”), interference between CPU

cooler and RAM may prevent the use of Dual/Full-Channel Mode.

.COM

②Clear off any particles or residue from the CPU’s surface then spread

a thorough layer of Thermal Grease on the CPU and the base of the

cooler.

③Insert the Intel Clip tilted on its side, then align the center hole and the

base cover protrusion.

▶Please make note of the Lever Slot’s direction when

installing the Clip Support.

Caution

Lever

Slot

.COM

④Align and insert the Clip Lever onto the Clip’s Intel slot.

⑥Refer to section ‘6. Fan Mate 2 Installation and Usage’for instructions

on power connection.

①Clear off any particles or residue from the CPU’s surface then spread

a thorough layer of Thermal Grease on the CPU and the base of the

cooler.

2) AMD Socket AM3 / AM2+ / AM2 / 754 / 939 / 940 Installation

Intel slot

AMD slot

⑤Hook the opposite end of the Clip to the Lug first, then press down on

the Clip Lever and hook the Clip Lever onto the Lug to secure the cooler.

.COM

②Insert the AMD Clip tilted on its side, then align the center hole and the

base cover protrusion.

⑥Refer to section ‘6. Fan Mate 2 Installation and Usage’for instructions

on power connection.

③Align and insert the Clip Lever onto the Clip’s AMD slot.

Intel slot

AMD slot

⑤Hook the opposite end of the Clip to the Lug first, then press down on

the Clip Lever and hook the Clip Lever onto the Lug to secure the cooler.

.COM

①Connect Fan Mate 2 between the

Fan Cable and the motherboard

as shown in the diagram below.

②Fan Mate 2 can be installed to the

side of the case using Double-Sided

Tape.

M/B

Fan Connector (Cooler)

Double-Sided Tape

6. Fan Mate 2 Installation and Usage

1) Fan Mate 2 Installation

2) Fan Mate 2 Operation

Adjust the Fan Speed Control

Knob for RPM control.

Fan Speed Control Knob

In the case that you get a BIOS error beep:

①Rotate the Fan Speed Control Knob clockwise to the maximum setting.

②Disable CPU Fan Detected in BIOS setting or set the system monitoring

program’s CPU Fan RPM to the lowest setting.

※Certain motherboards will not boot if the CPU fan’s RPM is not detected. In this

case inquire to the motherboard’s manufacturer for additional details.

BIOS Booting Error

.COM

GS1000 / GS1000SE

•E-ATX / Standard ATX / microATX Compatible

* Supports Intel Dual Xeon server motherboards

•UP to 6 Hot Swap HDD Bays

* GS1000(3 Standard / 3 Optional)

* GS1000 SE(Optional)

•Tool-Free HDD Installation

•Airflow Optimized Design

•Vibration Absorbing HDD Dampers and Feet

•The World’s First Roller Rails for Smooth

& Easy PSU Installation

•Cable Compartment Behind the Motherboard

for Cable Management

•Dedicated Fan Compartment for Fanless PSU Users

•Up to a Total of 8 HDD Bays

* 2 Adaptors & Bezels included for use of two 5.25”bays as 3.5”Internal(HDD)/

External(FDD) Bays

GT1000

•High-End Gaming Enclosure Built with Sturdy

All Aluminum Panels

•Three Tool-Free Hinged Magnetic Panels

(2 Left, 1 Right) for Easy Installation and

Access to Components

•Tool-Free Installation of Disk Drives,

Fan Controlles, Audio Interfaces etc.

•Accommodates up to 6 Hard Drives

•Luxurious and Cool Aesthetics.

•Color Option: Black (Red LED Fans),

Titanium (Blue LED Panel).

For more information, please visit our website.
