ZALMAN CNPS8700 NT Manuale utente
User’s Manual
CNPS8700 NT
www.ZALMAN.com
V 2.4
To ensure safe and easy installation,
please read the following precautions.
Intel Socket 1155 / 1156 / 775 CPU
Core i7
Core i5
Core i3
Core 2 Quad
Core 2 Duo
Pentium Dual Core
Pentium D
Pentium 4
Celeron D
AMD Socket AM3/AM2+/AM2/754/939/940 CPU
Phenom II
Phenom
Athlon II
Athlon X2
Athlon FX
Athlon
Opteron
Dual-Core Opteron
Sempron
1
.COM
2. Specifications
Model
Spec. CNPS8700 NT
Material Pure Copper
Weight 475g
Dimensions 120(L) Ⅹ123(W) Ⅹ67(H)㎜
Fan
Bearing-Type 2 Ball-Bearing
RPM 1,150 ~ 2,100rpm ±10%
Noise Level 17.5 ~ 30.0dBA ±10%
Input Voltage 12V
Fan Function PWM Control, Auto Restart
1. Precautions
1) Use and keep product away from reach of children and pets.
2) Do not ingest the Thermal Grease, and avoid its contact with skin and
eyes. If contact is made with skin, wash off with water. If ingested or
irritation persists, seek medical attention.
3) To prevent possible injuries, gloves must be worn while handling this
product.
4) Excessive force exerted on the fan may cause damage to the fan and/
or system.
5) Avoid inserting objects or hands into the fan while it is in operation to
prevent product damage and injuries.
6) Check the components list and condition of the product before
installation. If any problem is found, contact the retailer to obtain a
replacement.
7) Zalman Tech Co., Ltd. is not responsible for any damages due to
overclocking.
8) During transportation of the system, the cooler must be removed.
Zalman is not responsible for any damages that occur during the
transport of a system.
9) Product design and specifications may be revised to improve quality
and performance.
Disclaimer) Zalman Tech Co., Ltd. is not responsible for any damages due
to external causes, including but not limited to, improper use,
problems with electrical power, accident, neglect, alteration,
repair, improper installation, or improper testing.
2
.COM
3. Components
Clip Support
Cooler
Clip Clip Lever
User’s Manual
Thermal Grease
Clip Support Fixing Bolts Washers Nuts
4. Installation Requirements
1) Space Requirements
The cooler’s installation requires
unobstructed space with dimensions
of 123㎜(width), 126㎜(height),
70㎜(depth), and the CPU as a
central reference point. Please check
if components such as ODDs and
PSU protrude into the required space.
2) Compatible CPU’s
①Intel Socket 1155 / 1156 / 775 CPUs
②AMD Socket AM3 / AM2+ / AM2 / 754 / 939 / 940 CPUs
123㎜
70㎜
126㎜
3) (For heatsink-installed RAM users) Check for physical
interference between the RAM and CPU
For users of Intel and AMD motherboards, please check the RAM’s height before
installation. If the RAM’s height exceeds 36mm (1.42”), interference between CPU
cooler and RAM may prevent the use of Dual/Full-Channel Mode.
3
.COM
1) Intel Socket Installation
①Install the Clip Support to the motherboard according to the socket-type.
5. Installation
②Clear off any particles or residue from the CPU’s surface then spread
a thorough layer of Thermal Grease on the CPU and the base of the
cooler.
Nut
Washer
Bolt(silver)
Clip Support
M/B
Socket 1155 / 1156
Socket 775
▶Please make note of the Lever Slot’s direction when
installing the Clip Support.
Caution
Lever
Slot
4
.COM
④Align and insert the Clip Lever onto the Clip’s Intel slot.
⑤Hook the opposite end of the Clip to the Lug first, then press down on
the Clip Lever and hook the Clip Lever onto the Lug to secure the cooler.
③Insert the Clip tilted on its side, then align the center hole and the base
cover protrusion.
Intel slot
AMD slot
5
.COM

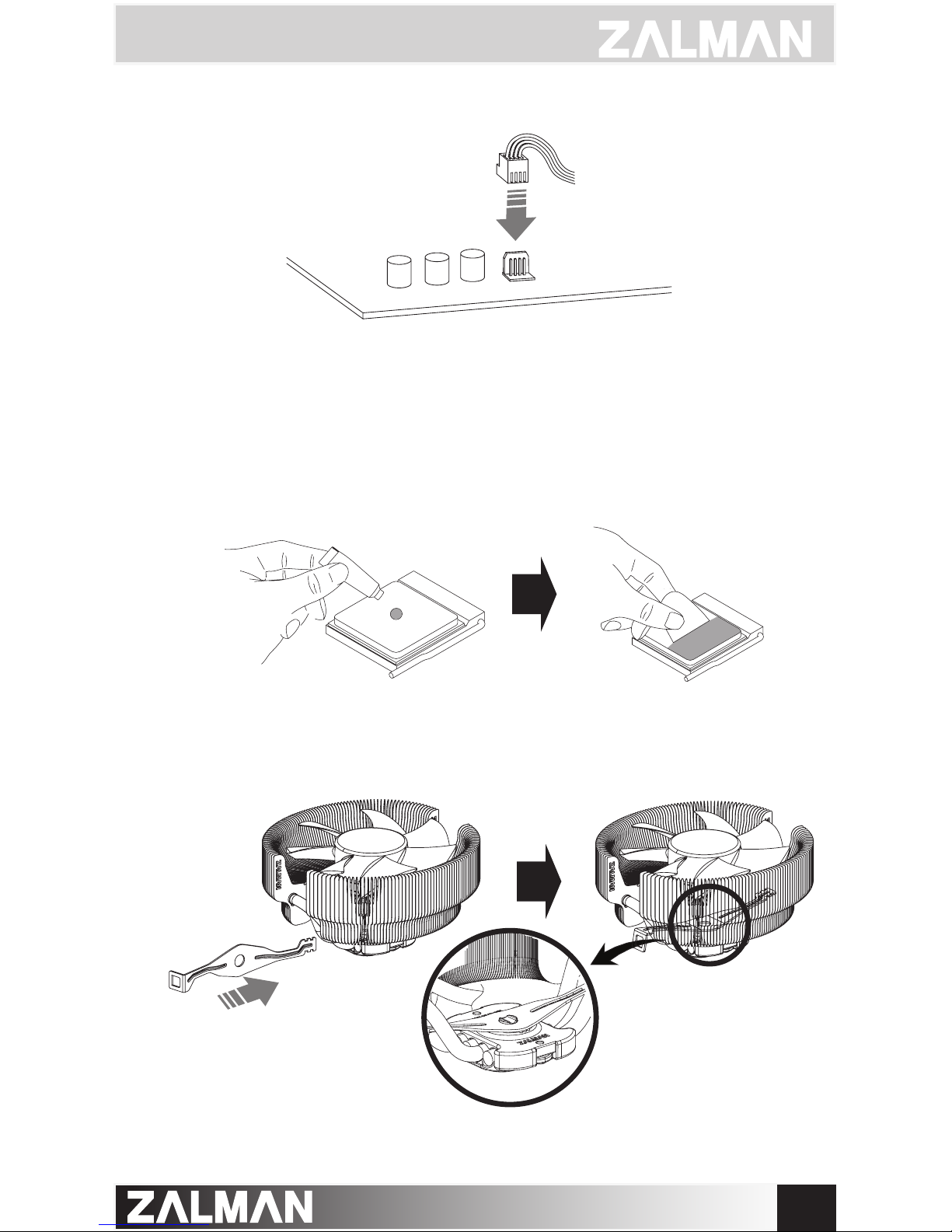

⑥Connect the 4-Pin PWM fan connector to the motherboard’s CPU Fan
header.
M/B
①Clear off any particles or residue from the CPU’s surface then spread
a thorough layer of Thermal Grease on the CPU and the base of the
cooler.
2) AMD Socket AM3 / AM2+ / AM2 / 754 / 939 / 940 Installation
②Insert the Clip tilted on its side, then align the center hole and the base
cover protrusion.
6
.COM
③Align and insert the Clip Lever onto the Clip’s AMD slot.
⑤Hook the opposite end of the Clip to the Lug first, then press down on
the Clip Lever and hook the Clip Lever onto the Lug to secure the cooler.
⑥Connect the 4-Pin PWM fan connector to the motherboard’s CPU Fan
header.
M/B
Intel slot
AMD slot
7
.COM
GS1000 / GS1000SE
•E-ATX / Standard ATX / microATX Compatible
* Supports Intel Dual Xeon server motherboards
•UP to 6 Hot Swap HDD Bays
* GS1000(3 Standard / 3 Optional)
* GS1000 SE(Optional)
•Tool-Free HDD Installation
•Airflow Optimized Design
•Vibration Absorbing HDD Dampers and Feet
•The World’s First Roller Rails for Smooth
& Easy PSU Installation
•Cable Compartment Behind the Motherboard
for Cable Management
•Dedicated Fan Compartment for Fanless PSU Users
•Up to a Total of 8 HDD Bays
* 2 Adaptors & Bezels included for use of two 5.25”bays as 3.5”Internal(HDD)/
External(FDD) Bays
GT1000
•High-End Gaming Enclosure Built with Sturdy
All Aluminum Panels
•Three Tool-Free Hinged Magnetic Panels
(2 Left, 1 Right) for Easy Installation and
Access to Components
•Tool-Free Installation of Disk Drives,
Fan Controlles, Audio Interfaces etc.
•Accommodates up to 6 Hard Drives
•Luxurious and Cool Aesthetics.
•Color Option: Black (Red LED Fans),
Titanium (Blue LED Panel).
For more information, please visit our website.
