Zavio F1100 Manuale utente

Content

Safety Instruction.............................................................................................................................................................. 2

Minimum System Requirement & Product Feature.......................................................................................................... 4

Main Page ......................................................................................................................................................................... 6

Information ....................................................................................................................................................................... 7

Basic Setup........................................................................................................................................................................ 8

Account......................................................................................................................................................................... 8

Network......................................................................................................................................................................... 9

Image Setting.............................................................................................................................................................. 14

Video........................................................................................................................................................................... 14

Audio...........................................................................................................................................................................15

Camera Setting............................................................................................................................................................ 15

Events..........................................................................................................................................................................16

System............................................................................................................................................................................. 20

Maintenance................................................................................................................................................................ 20

Date Time.................................................................................................................................................................... 21

Language......................................................................................................................................................................... 23

User Manual

Safety Instruction

Before you use this product

This product has been designed with safety in mind. However, the electrical products can cause fires which

may lead to serious body injury if it is not used properly. To avoid such accidents, be sure to heed the

following.

Legal Caution

Video and audio surveillance can be forbidden by laws that vary from country to country. Check the laws in

your local region before using this product for surveillance purposes.

Don't open the housing of the product

Don't try to open the housing or remove the covers which may expose yourself to dangerous voltage or other

hazards.

Don't use the accessories not recommend by the manufacturer

Heed the safety precautions

Be sure to follow the general safety precautions and the “Operation Notice.”

Operation Notice - Operating or storage location

Avoid operating or storing the camera in the following locations:

Extremely hot or cold places

(Operating temperature: 0 °C to + 40 °C [32 °F to 104°F] )

Exposed to direct sunlight for a long time, or close to heating equipment (e.g., near heaters)

Close to water (e.g.,near a bathtub, kitchen sink, laundry tub)

Close to sources of strong magnetism

Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters

Locations subject to strong vibration or shock

In case of a breakdown

In case of system breakdown, discontinue use and contact your authorized dealer.

In case of abnormal operation

If the unit emits smoke or an unusual smell,

If water or other foreign objects enter the cabinet.

If you drop the unit or damage the cabinet:1 Disconnect the cable and the connecting cables. 2 Contact

your authorized dealer or the store where you purchased the product.

Transportation

When transporting the camera, repack it as originally packed at the factory or in materials of equal quality.

Ventilation

To prevent heat buildup, do not block air circulation around the device.

Cleaning

Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be removed using

a soft cloth dampened with a small quantity of detergent solution, then wipe dry.

Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the surface.

Minimum System Requirement & Product Feature

System Requirement

For normal operation and viewing of the network camera, it’s recommended that your

system meet these minimum requirements for proper operation:

Item

Requirements

CPU

Pentium 4 2.8GHz (or equivalent AMD)

Graphic Card

256 MB RAM graphic cards

(or equivalent on-board graphic cards)

RAM

2 GB RAM

Operating

System

Window 2000, 2003, XP, Vista or Windows 7

Mac OS Leopard 10.5

Web Browser

Internet Explorer 8 or later

Note:

1. If using Windows 98 orWindows ME, please install IP Installer before using WEB UI to ensure the system

runs normally.

2. If not able to view the recorded video file, please install Xvid codec while installing Intelligent IP Installer.

(For Windows 98, ME or 2000 server, the codec might not work properly. Please download Xvid codec 1.0

from the internet.)

3. Please keep updating the latest Windows software and service package. (Ex: Net Framework, Windows

Media Player, EnhanceActiveX Security)

Product Features

SYSTEM

Resolutions

4 resolutions from 1280x720 to 160x120 via API,

4 selections via configuration web page

Screen Resolution

Higher than 1024 * 720 pixels

Compressing format

Motion JPEG

Frame Rate

Up to 10 fps at 1280x720; Up to 30 fps at 640x480; Up to 30 fps at

320x240; Up to 30 fps at 160x120

Image settings

Brightness / Contrast / Saturation / Sharpness

Backlight compensation

White balance: Fluorescent / Incandescent / Sunny / Cloudy

Image snapshot

Yes

Video Recording

Yes

Full Screen Viewing

Yes

Digital Zoom

10x digital

Audio

One-way with built-in microphone

Audio compression: G.711 μ law

Mobile Phone Live View

Through CamZaview mobile app

Event & Alarm Sending

Motion dection / FTP Client / SMTP

Security

Password Protection / HTTPS encryption

Supported protocols

TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS,

NTP, UPnP, RTSP, RTP, RTCP, HTTP, TCP, UDP, RTSP

Simultaneous Connection

Up to 5 users

Operating conditions

0℃~ 40℃(32℉~ 104℉)

HARDWARE

Lens

F2.4 fixed lens , 1.7 mm

Power

5V DC, 1A

NETWORK

Ethernet

10 / 100 Base T

Wireless

802.11b/g/n with WEP/WPA/WPA2 (F1105)

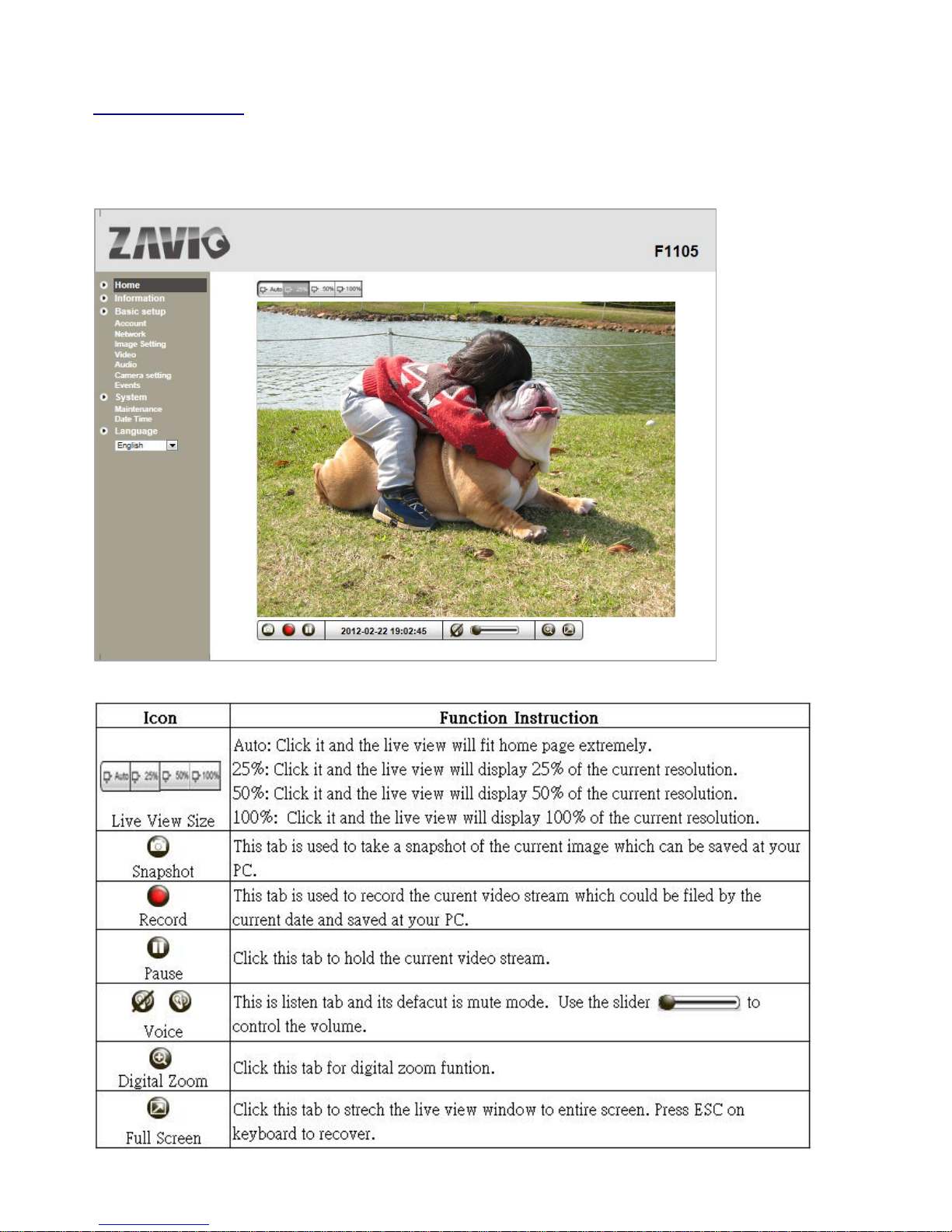

Main Page

Toolbar of Main Page

Information

The Information page provides the basic information of the product which includes Product

Name, Firmware Version, Image Setting, Video Information, and Network Information.

Basic Setup

Account

The device default account and password setting is “admin / admin”. That means everyone who knows IP

address can access the device including all configuration. It is necessary to create a new password if the device

is intended to be accessed by specific ones.

Click “Add”to create the accounts to the specific users. There are 1 default account and 9 accounts that you

may assign 3 different viewer modes as you wish. The instruction of 3 viewer modes listed as below:

Account Setting

There is a drop-down menu for selecting Anonymous Viewer enable or disable.

Viewer

Operator

Administrator

It only allows the user to access to the Live View page.

It allows to view the Live View page, create and modify events, and adjust certain other settings.

It allows the user to watch the live view and access all configurations.

Network

TCP/IP

Internet Protocol Version 4 (TCP/IPv4)

Obtain an IPaddress automatically (DHCP): If a DHCP server is installed on the network, to select this

while the IP address is assigned by the DHCP server.

Obtain DNS server address automatically: Select this to obtain the address of DNS server

automatically.

Use the following IP address: Select this option when the fixed IP address is set.

IP address: Enter the IP address of the device.

Subnet mask: Enter the subnet mask.

Default gateway: Enter the default gateway.

Use the following DNS server address: Select this when you set the fixed address as the IP address of

DNS server.

Primary DNS server: Enter the IP address of the primary DNS server.

Secondary DNS server: Enter the IP address of the secondary DNS server, if necessary.

HTTP

HTTPport number: Select 80 in general situations. If you want to use a port number other than 80,

select the text box and enter a port number between 1024 and 65535.

When you have set the HTTP port number to a number other than 80 on the Network Setting screen
