F312A IP Camera
Hardware User Manual
-Contents-
CHAPTER 1. SAFETY I STRUCTIO ........................................................................................2
CHAPTER 2. I TRODUCTIO .....................................................................................................4
CHAPTER 3. PACKAGE CO TE TS ..........................................................................................5
CHAPTER 4. PHYSICAL DESCRIPTIO ....................................................................................6
4.1
F
RO T
V
IEW
............................................................................................................................................................ 6
4.2
B
OTTOM
V
IEW
......................................................................................................................................................... 7
CHAPTER 5. BASIC CO ECTIO ............................................................................................8
5.1
W
IRE
C
O ECTIO
................................................................................................................................................. 8
5.2
W
IRELESS CO ECTIO
.......................................................................................................................................... 8
CHAPTER 6. APPLICATIO ..........................................................................................................9
F312A User Manual
2
Hardware User Manual
Chapter 1. Safety Instruction
Before you use this product
This product has been designed with sa ety in mind. However, the electrical products can cause
ires which may lead to serious body injury i not used properly. To avoid such accidents, be sure to
heed the ollowing.
Legal Caution
Video and audio surveillance can be orbidden by laws that vary rom country to country. Check the
laws in your local region be ore using this product or surveillance purposes.
Don't open the housing of the product
Don't try to open the housing or remove the covers which may expose yoursel to dangerous voltage
or other hazards.
Don't use the accessories not recommend by the manufacturer
Heed the safety precautions
Be sure to ollow the general sa ety precautions and the “Operation Notice.”
Operation otice - Operating or storage location
Avoid operating or storing the camera in the ollowing locations:
•
Extremely hot or cold places
(Operating temperature: 0 °C to + 50 °C [32 °F to 122°F] )
•
Exposed to direct sunlight or a long time, or close to heating equipment (e.g., near heaters)
•
Close to water (e.g.,near a bathtub, kitchen sink, laundry tub)
•
Close to sources o strong magnetism
•
Close to sources o power ul electromagnetic radiation, such as radios or TV transmitters
•
Locations subject to strong vibration or shock
F312A User Manual
3
In case of a breakdown
In case o system breakdown, discontinue use and contact your authorized dealer.
In case of abnormal operation
•
I the unit emits smoke or an unusual smell,
•
I water or other oreign objects enter the cabinet, or
•
I you drop the unit or damage the cabinet:1 Disconnect the cable and the connecting cables. 2
Contact your authorized dealer or the store where you purchased the product.
Transportation
When transporting the camera, repack it as originally packed at the actory or in materials o equal
quality.
Ventilation
To prevent heat buildup, do not block air circulation around the device.
Cleaning
•
Use a so t, dry cloth to clean the external sur aces o the device. Stubborn stains can be
removed using a so t cloth dampened with a small quantity o detergent solution, then wipe dry.
•
Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the
sur ace.
F312A User Manual
4
Chapter 2. Introduction
The ZAVIO F312A is an ultra-compact IP Camera equipped with a high sensitivity progressive
scan CMOS sensor, achieving high image quality and superior low-light per ormance. F312A also
supports 802.11b/g wireless connection and night-vision capability even in complete darkness
through 6 high power LEDs.
Key Features:
•
Maximum Resolution 640x480 (VGA) provides superior image quality
•
Simultaneous MPEG-4 and Motion JPEG video stream
•
Excellent Image Quality up to lexible 30 ps in all resolution or optimum bandwidth use
•
Superior Low-Light Per ormance with 6 Night-Vision LEDs down to 0 Lux
•
Wireless( IEEE 802.11g/b) Networks Connection
•
Two-way Audio with Built-In Microphone
•
Optimal Synchronization o Audio and Video
•
Support Live Video Viewing on Microso t Live Messenger (MSN Messenger)
•
Mobile Phone Streaming Live Video through 3GPP / ISMA / RTSP
•
Mobile Phone Live Image through 2.5 WAP
•
Multi-level Password Protection or Restricting Camera Access
•
Built-In Multi-Window Motion Detection (3 detection areas)
•
Video Bu er makes the Streaming Smoother
•
UPnP or Fast and Easy Installation
•
DDNS Supported
•
Bundled 16 Channel Surveillance So tware
•
User- riendly & Multi-lingual UI
F312A User Manual
5
Chapter 3. Package Contents
Camera
- F312A Network Camera
Quick Installation Guide
- To provide brie product in ormation and quick installation and
wireless setting
Software CD
- To provide IP Surveillance So tware, IP Surveillance So tware Pro Trial,
Intelligence IP Installer, User Manuals, and Language Packs
Mounting Bracket
– There are three components including lock ring, brace, and base plate to
compose a bracket and three applied screws to ix the base plate to a lat sur ace (horizontal or
vertical)
Antenna
- For connection o IEEE 802.11 b / g wireless network
Adaptor
- 5V DC, max 4.5W
F312A User Manual
6
Chapter 4. Physical Description
4.1 Front View

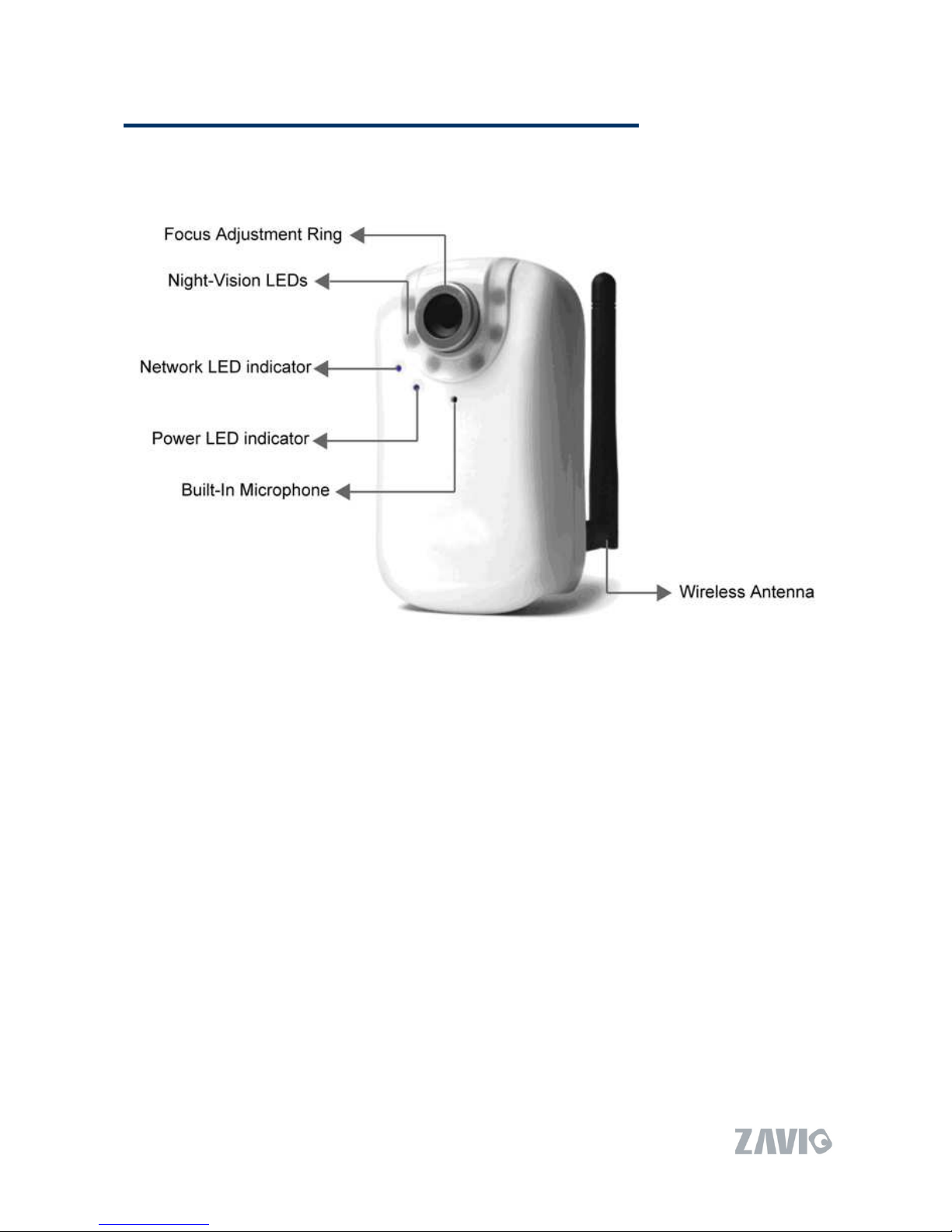

Focus Adjustment Ring - Adjust ocus manually to achieve the best image quality
ight-Vision White LEDs - LEDs will light up when the environment is too dark.
Power LED indicator - Power LED will light up a ter the IP Camera completed the boot
process
etwork LED indicator - Network LED will light up a ter the IP Camera connected with
network.
Built-In Microphone - Built-In Microphone or Two-way Audio
Wireless Antenna - For connection o IEEE 802.11 b / g wireless network.
F312A User Manual
7
4.2 Bottom View

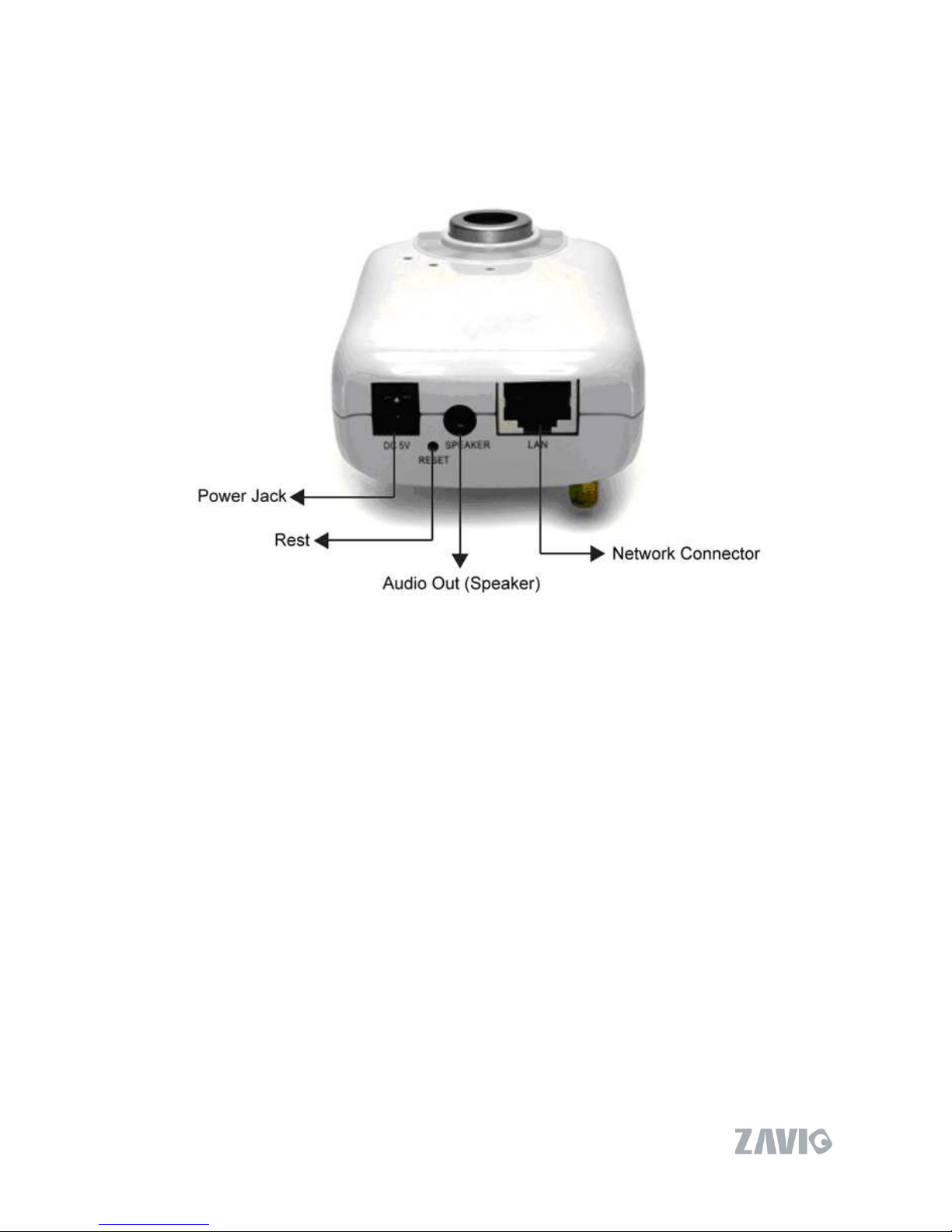

Power Connector - For connection o 5V DC input.
Reset – When the device is empowered, press the Reset Button to reboot the device, or
hold the Reset Button or 10 seconds to set the device settings back to actory de ault
Audio Out (Speaker) - To support audio out with earphones or speakers
etwork Connector - For connection to the Ethernet via RJ-45 standard
F312A User Manual
8
Chapter 5. Basic Connection

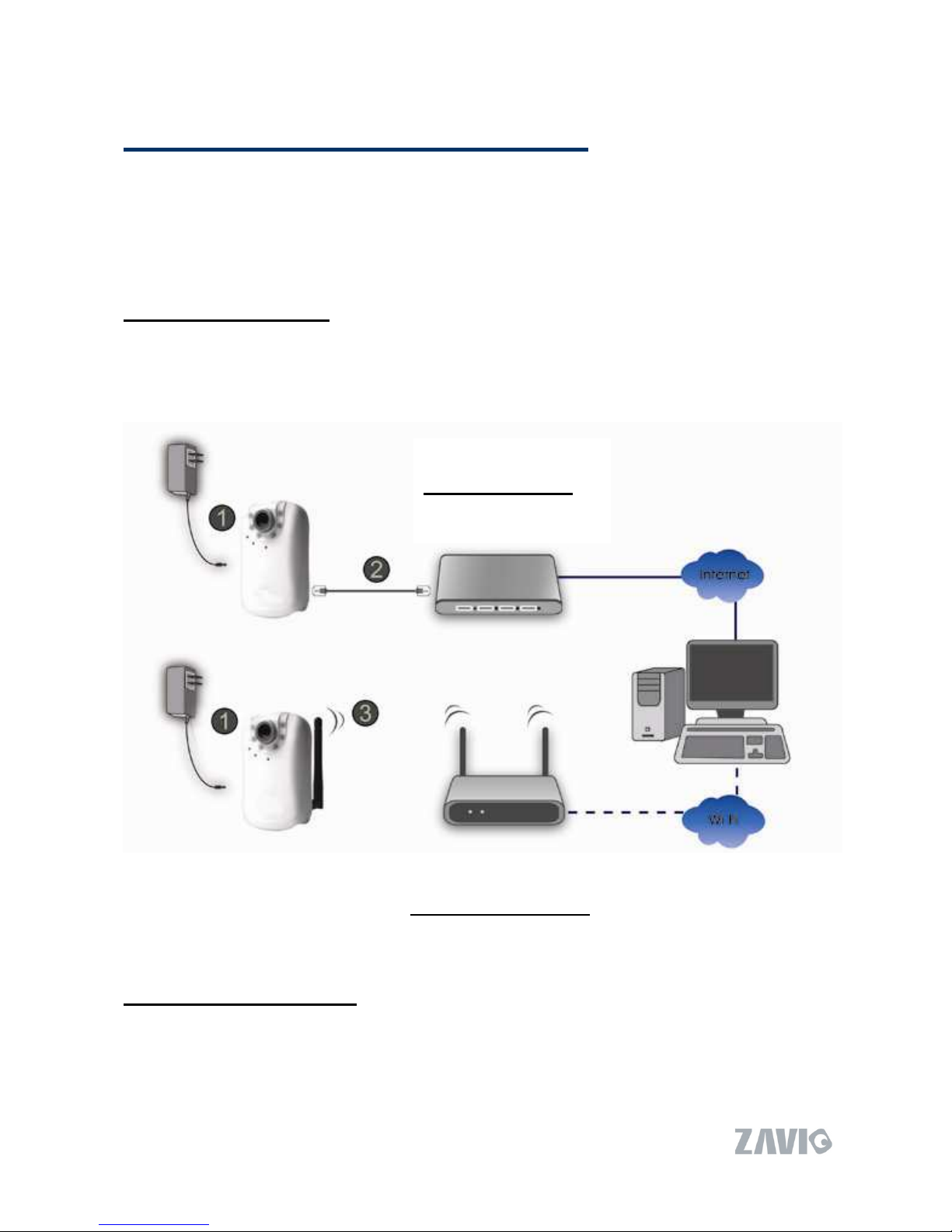

F312A is or both wire and wireless connection. You can ollow the procedure below to connect the
IP Camera with power and Ethernet or both wire and wireless connection.
5.1 Wire Connection
1. Connect the power adaptor to IP Camera.
2. Connect IP Camera’ Ethernet port to your Hub/ Switch / Router
5.2 Wireless connection
1. Connect the power adaptor to IP Camera.
3. Connect to Wi-Fi
Wire Connection
Wireless Connection
F312A User Manual
9
Chapter 6. Application
