Zavio F7210 Quick Installation Guide

Please follow the installation steps below to set up your F7210 Box IP Camera.

Check the package contents against the list below. See P.1

Physical overview. See P.1

I/O Terminal Block Pin Definition. See P.2

I/O Terminal Block Circuit. See P.3

LED Indicator Definition. See P.3

Install the hardware and connect all cables. See P.4

Microsoft OS: Use the software CD to install Intelligent IP Installer. See P.5

Access the IP Camera using Intelligent IP Installer.P.5

Mac OS using Safari Browser.P.7

Change light environment setting. P.7

Change the Web Interface into your preferred language. P.8

Wireless Setting P.8

Application of IP Camera P.9

For more information, please check the User Manual available in the Software CD or you can download the latest

software from http://www.zavio.com

Package Contents

Camera F7210 IP Camera

Quick Installation Guide Brief product information and quick installation

Software CD

IP Surveillance Software

Intelligent IP Installer

User Manual

Language Packs

Mounting Bracket Three screw, Lock ring, and one bracket

Accessory BNC female to RCA male adapter

8 pin terminal block for DI/DO and RS-485

Adaptor 12V DC, max 12W

Physical overview

Analog Video Out

Auto Iris

Reset: When the device is powered, press the Reset Button to reboot the device, or hold the Reset Button for 5

seconds to set the settings back to factory default.

I/O Terminal Block Pin Definition

PIN Definition Description Max. V/A

1 Ground -

2 + 12V DC 12V DC

1.2W

3 RS-485 - -

4 RS-485 + -

5 Digital Output 1

Uses an NPN transistor with the emitter connected to the GND

pin. If used with an external relay, a diode must be connected in

parallel with the load for protection against voltage transients.

100 mA

24V

6 Digital Output 2

Uses an NPN transistor with the emitter connected to the GND

pin. If used with an external relay, a diode must be connected in

parallel with the load for protection against voltage transients.

100mA

24V

7 Digital Input 1 Connected to GND to activate, or leave floating (or unconnected)

to deactivate. 30V DC

8 Digital Input 2 Connected to GND to activate, or

leave floating (or unconnected) to deactivate. 30V DC

SD Card LED Indicator

Power LED Indicator

87654321

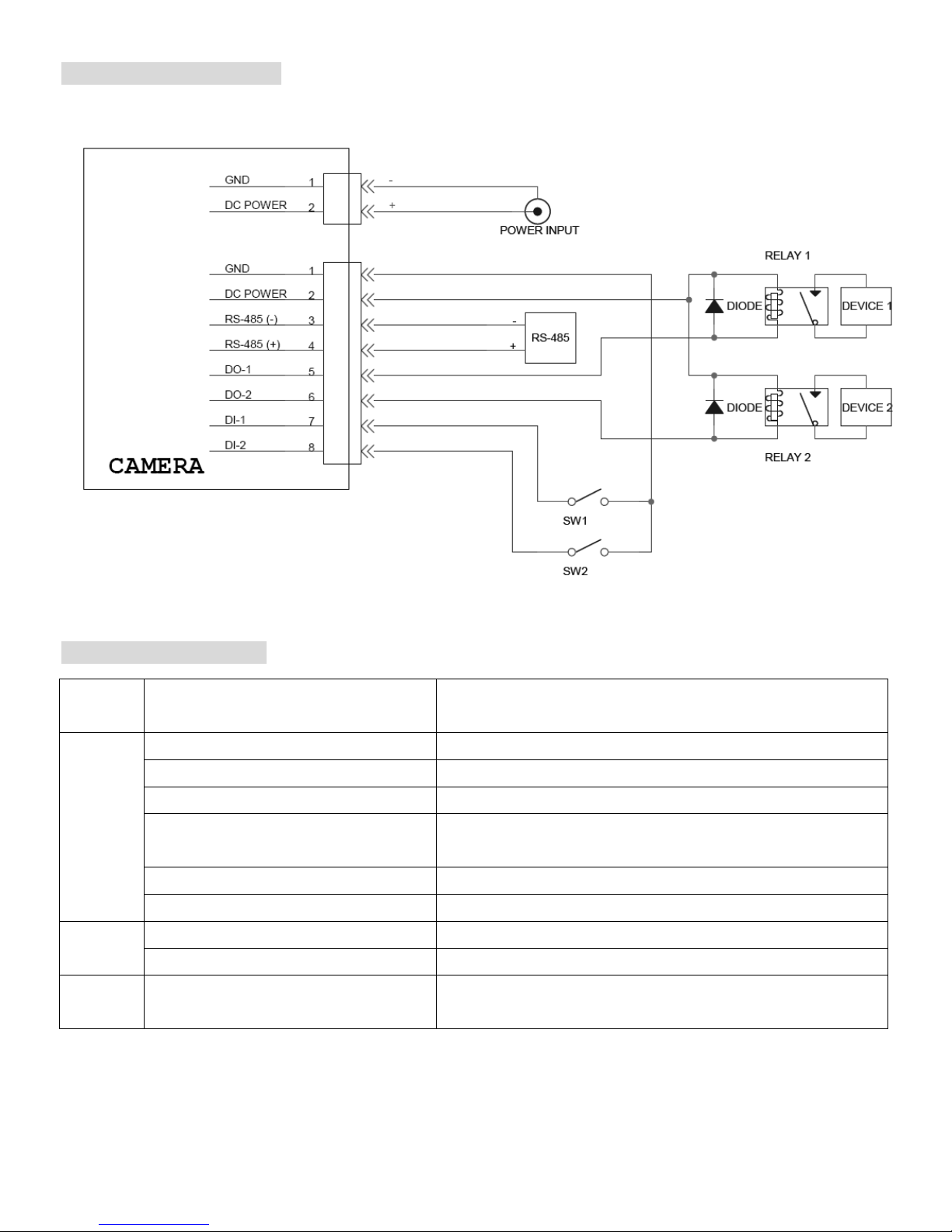

I/O Terminal Block Circuit

LED Indicator Definition

LED

Color

Indication

Power

Steady Red Power on

Steady Green Start up completed

Steady Green-->Unlit Push reset button: reset to reboot

Steady Green-->Unlit-->Steady

Green Push reset button for at least 5 secs: reset to factory

default

Steady Green-->Flash Amber Firmware upgrading

Flash Amber-->Flash Red Firmware failed upgrade

Ethernet Flash Amber Wired packet transmission

Steady Green Network activity

MicroSD

Card Steady Green Accessing the MicroSD card

Install the hardware and connect all cables

1. Mount the lens by turning it clockwise on the camera until it stops.

a. Mounting the Lens to the Camera

2. Unscrew the focus controller to adjust to the desired focus.

3. Tighten the focus controller when completing.

1. Use the 3 supplied screws to fix the base plate to a flat surface.

b. Wall mounting and Ceiling mounting

2. Loosen the lock ring to adjust the desired angle of the camera.

3. Tighten the lock ring.

c1. Without Power over Ethernet (PoE) connection

1. Connect the power adaptor to the IP Camera.

2. Using a standard RJ-45 network cable, connect the IP Camera

to a normal Hub / Switch / Router.

c. Connect all cables

c2. Power over Ethernet (PoE)

1. Using a standard RJ-45 network cable, connect the IP Camera

to a PoE-enabled Hub / Switch / Router.

c3. Wireless connection

1. Connect the power adaptor to IP Camera.

2. Insert the Wi-Fi dongle.

3. Connect to Wi-Fi

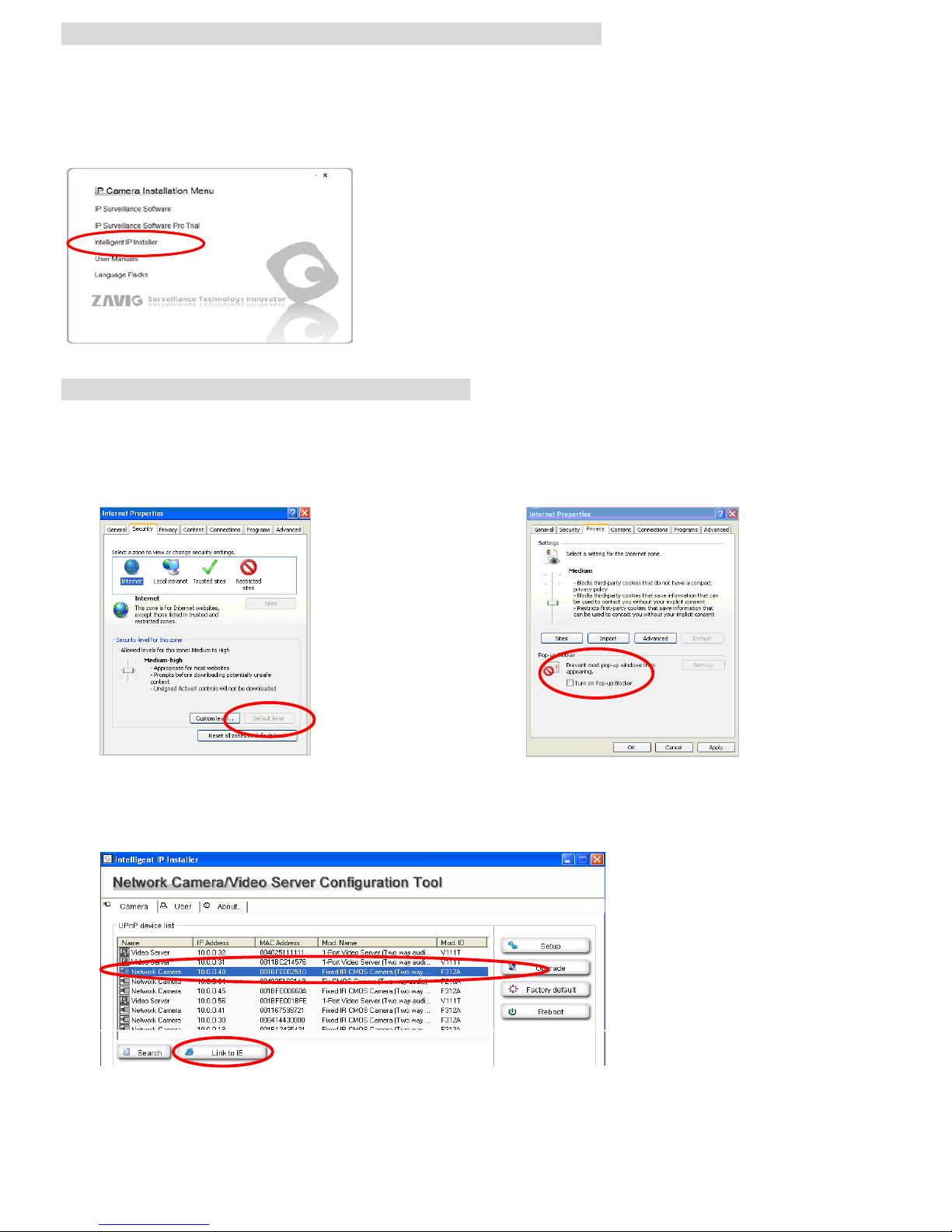

Microsoft OS:Use the software CD to install Intelligent IP Installer

Power on your PC and insert the CD-ROM. The setup page will show up automatically. Please follow these steps to

install the firmware.

Access the IP Camera using Intelligent IP Installer

1. Please check two settings before using Intelligent IP Installer .

Select “Intelligent IPInstaller” and follow the installation process to complete the installation.

b. Browser’s Internet Properties →Privacy

→Uncheck Pop-up Blocker

a. Browser’s Internet Properties →Security

→Default Level

2. Click the Intelligent IP Installer Icon on your desktop. The main page will show up listing all active

camera and video server devices. Select the relevant IP camera from the list and click Link to IE.

3. Enter your Username and Password

to login to the IP Camera.

(Default is admin / admin)

4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar:

This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’.

5. Click the information bar, and select Install ActiveX control.

6. Click Install.

7. Live video displays in the centre of your web browser.

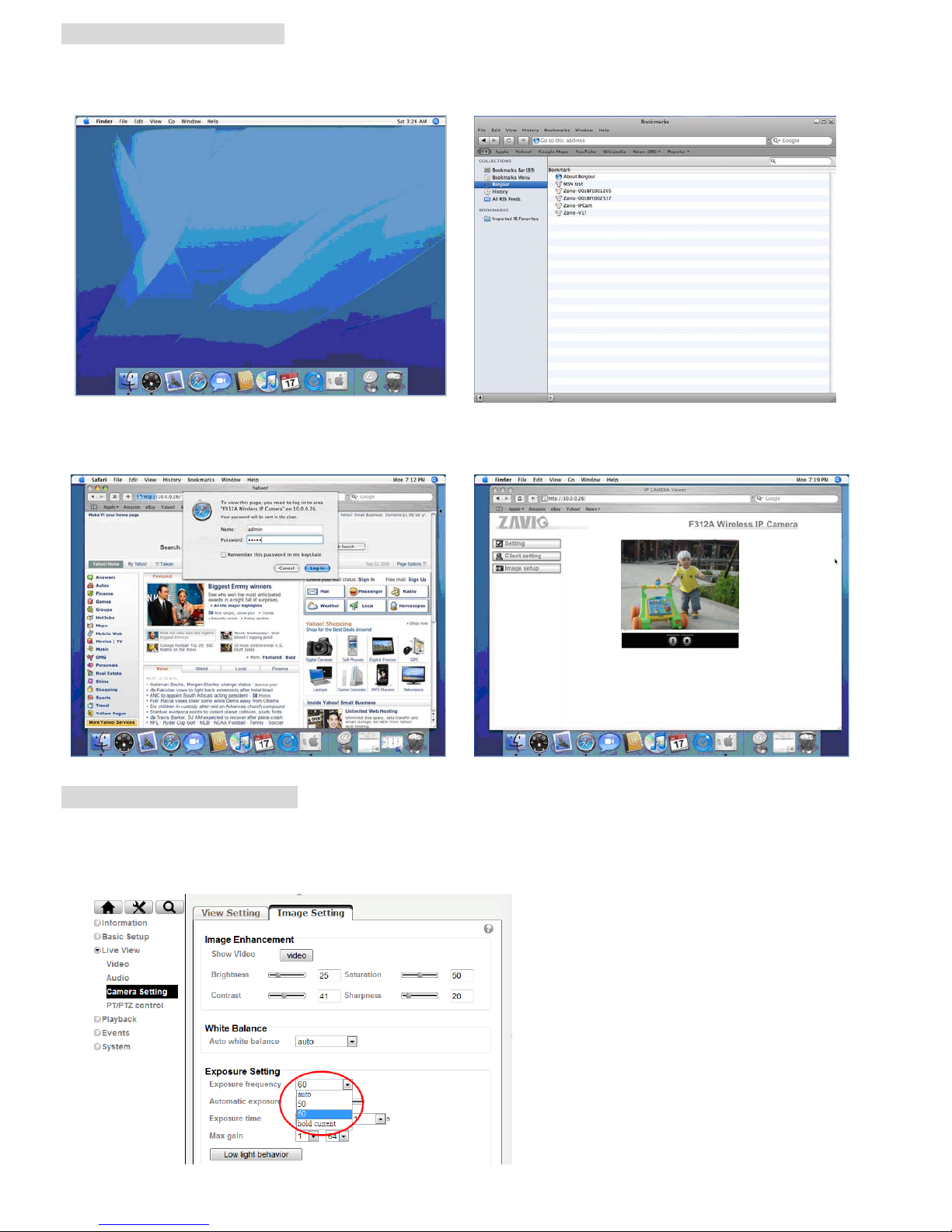

Mac OS using Safari Browser

Lighting environment setting

The default setting of lighting environment is Auto. However, you may also select 50 or 60 Hz upon the lighting

environment of your country.

Go to “Setting > Live View > Camera Setting > Image Setting”, select the environment setting you wish.

1. Select Safari icon

2. Click Bonjour function and select the camera

you wish to access.

3. Enter name and password to login to the IP

camera. (Default is admin / admin)

4. The monitor image will be displayed in your browser.

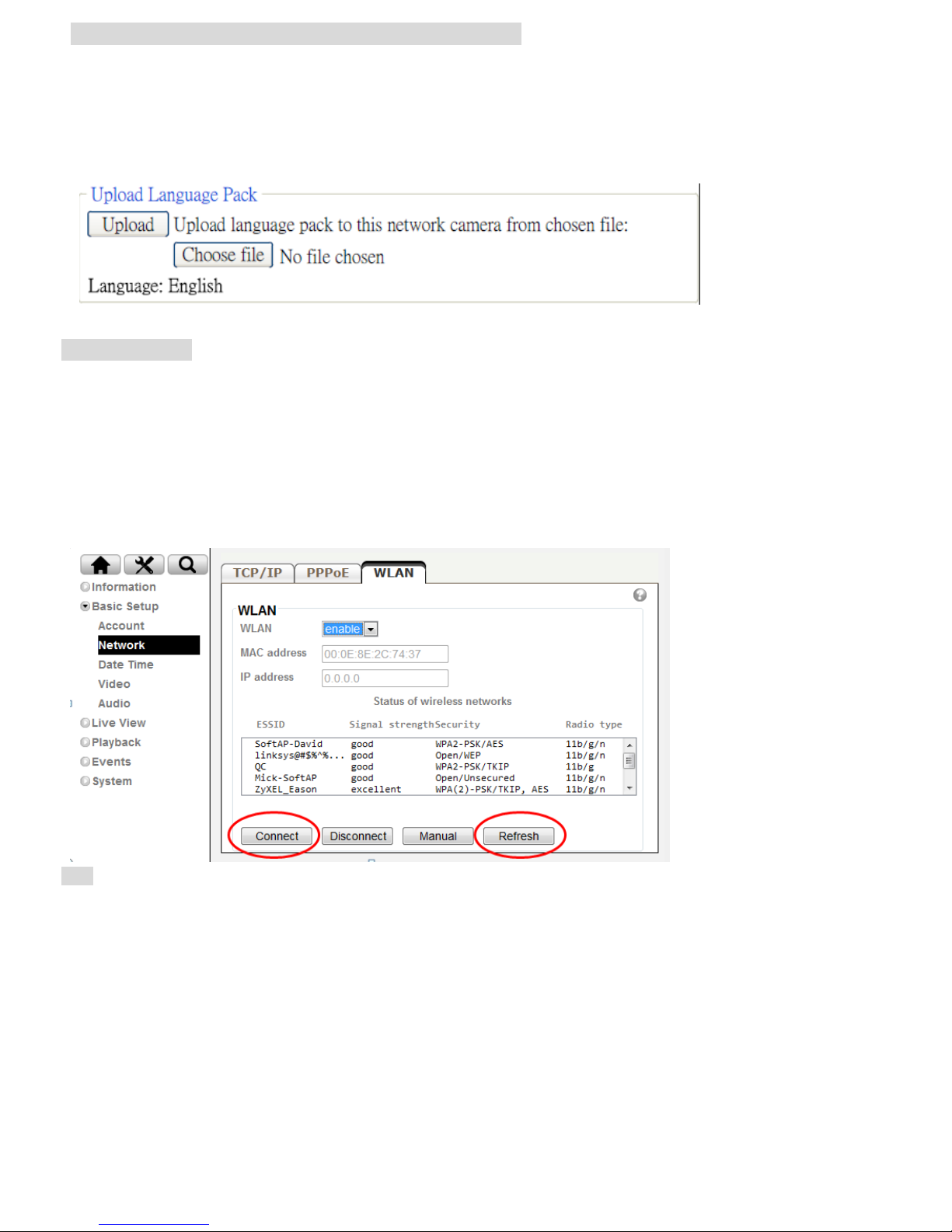

Change the Web Interface into your preferred language

Use the settings screen to set the language of the Web Interface.

Go to “Setting > System > Maintenance ”.

1. Insert Software CD into your CD-ROM.

2. Browse and select the preferred language from language pack in the Software CD and then click OK.

3. The web interface will change into your preferred language.

Wireless Setting

Power the IP Camera and connect an Ethernet network cable to the IP Camera’s LAN port, then insert the USB

Wi-Fi dongle at the rear. Using Intelligent IP Installer and entering the camera’s setting page.

Please go to “Setting > Basic Setup > Network > WLAN”, set the wireless option to “Enable”

1. Click Refresh and choose the AP you wish to connect and click Connect.

2. Enter the password within the Active transmit key field if required.

3. Choose the option of Obtain an IP address automatically (DHCP) and Obtain DNS server address automatically.

4. Click “Save” to apply settings. The Wireless IP address appears in the IP address field.

Note: The wireless private IP address can be found in Intelligent IPInstaller

Application of IP Camera
