F210A User Manual

F210A IP Camera

Hardware User Manual

-Contents-

CHAPTER 1. SAFETY INSTRUCTION........................................................................................2

CHAPTER 2. INTRODUCTION.....................................................................................................4

CHAPTER 3. PACKAGE CONTENTS ..........................................................................................5

CHAPTER 4. PHYSICAL DESCRIPTION....................................................................................6

4.1 FRONT VIEW............................................................................................................................................................6

4.2 BOTTOM VIEW.........................................................................................................................................................7

CHAPTER 5. BASIC CONNECTION ............................................................................................8

CHAPTER 6. APPLICATION..........................................................................................................9

F210A User Manual

Hardware User Manual

Chapter 1. Safety Instruction

Before you use this product

This product has been designed with safety in mind. However, the electrical products can cause

fires which may lead to serious body injury if not used properly. To avoid such accidents, be sure to

heed the following.

Legal Caution

Video and audio surveillance can be forbidden by laws that vary from country to country. Check the

laws in your local region before using this product for surveillance purposes.

Don't open the housing of the product

Don't try to open the housing or remove the covers which may expose yourself to dangerous voltage

or other hazards.

Don't use the accessories not recommend by the manufacturer

Heed the safety precautions

Be sure to follow the general safety precautions and the “Operation Notice.”

Operation Notice - Operating or storage location

Avoid operating or storing the camera in the following locations:

Extremely hot or cold places

(Operating temperature: 0 °C to + 50 °C [32 °F to 122°F] )

Exposed to direct sunlight for a long time, or close to heating equipment (e.g., near heaters)

Close to water (e.g.,near a bathtub, kitchen sink, laundry tub)

Close to sources of strong magnetism

Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters

Locations subject to strong vibration or shock

F210A User Manual

In case of a breakdown

In case of system breakdown, discontinue use and contact your authorized dealer.

In case of abnormal operation

If the unit emits smoke or an unusual smell,

If water or other foreign objects enter the cabinet, or

If you drop the unit or damage the cabinet:1 Disconnect the cable and the connecting cables. 2

Contact your authorized dealer or the store where you purchased the product.

Transportation

When transporting the camera, repack it as originally packed at the factory or in materials of equal

quality.

Ventilation

To prevent heat buildup, do not block air circulation around the device.

Cleaning

Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be

removed using a soft cloth dampened with a small quantity of detergent solution, then wipe dry.

Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the

surface.

F210A User Manual

Chapter 2. Introduction

The Zavio F210A is an ultra-compact IP Camera equipped with a high sensitivity progressive scan

CMOS sensor, achieving high image quality and low-light performance. Although it is one of the

world's smallest IP Cameras, it still provides all the powerful features and great quality.

Key Features:

Ultra-compact size

Maximum Resolution 640x480 (VGA) provides superior image quality

Simultaneous MPEG-4 and Motion JPEG video stream

Excellent Image Quality up to flexible 30 fps in all resolution for optimum bandwidth use

Superior Low-Light Performance with Automatic Night-mode

Two-way Audio with Built-In Microphone

Optimal Synchronization of Audio and Video

Support Live Video Viewing on Windows Live Messenger (WLM )

Control panel add-in, i.e. snapshot and image setup

Support Mac OS Browser

Support iPhone through Safari Browser

Mobile Phone Streaming Live Video through 3GPP/ ISMA/ RTSP

Mobile Phone Live Image through 2.5 WAP

Multi-level Password Protection for Restricting Camera Access

Built-In Multi-Window Motion Detection (3 detection areas)

Video Buffer makes the Streaming Smoother

UPnP and Bonjour for Fast and Easy Installation

DDNS Supported

Bundled 16 Channel Surveillance Software

User-friendly & Multi-lingual UI

F210A User Manual

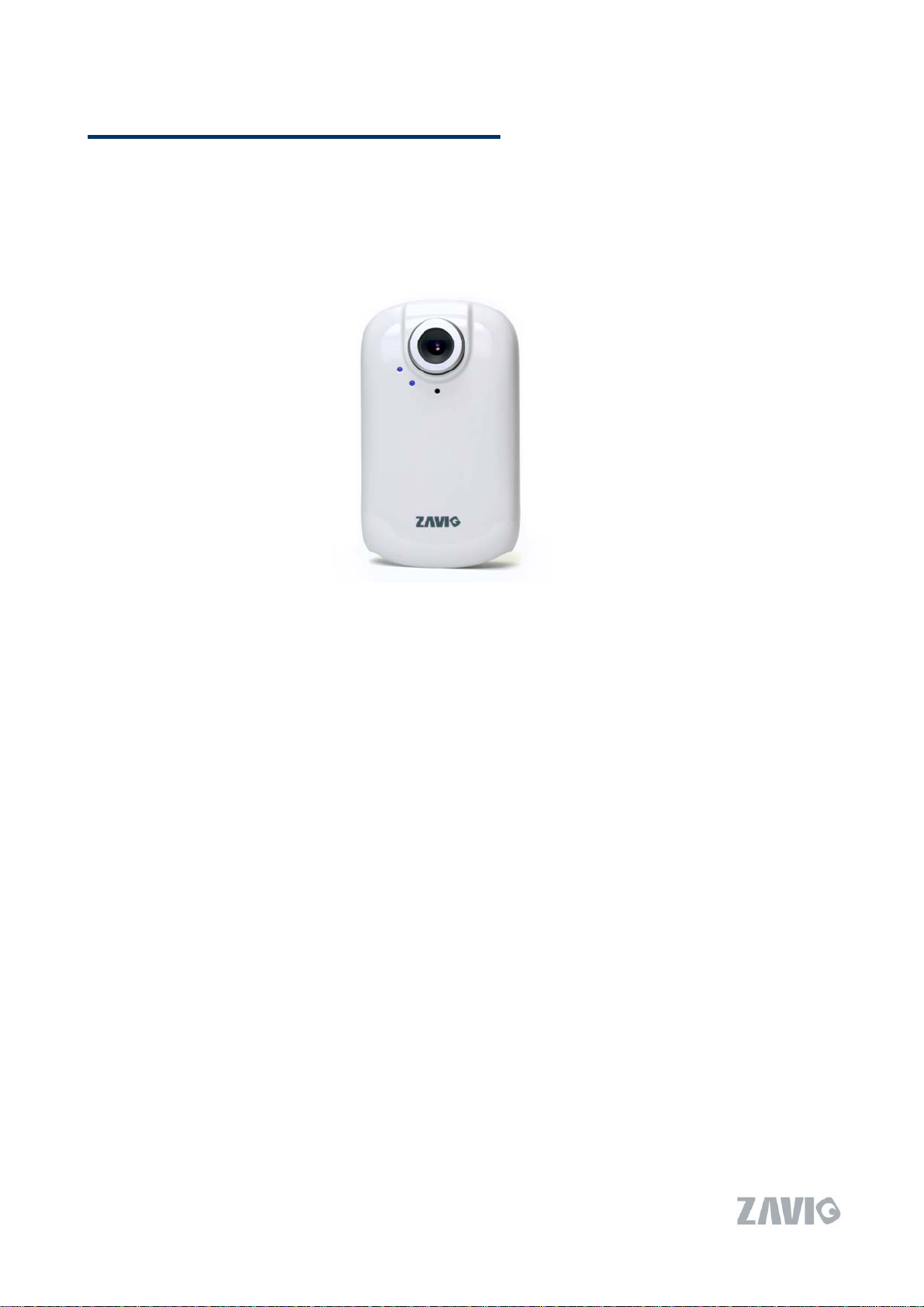

Chapter 3. Package Contents

Camera - F210A Network Camera

Quick Installation Guide -To provide brief product information and quick installation and

wireless setting

Software CD - To provide IP Surveillance Software, Intelligence IP Installer, User Manuals, and

Language Packs

Mounting Bracket - There are three components including lock ring, brace, and base plate to

compose a bracket and three applied screws to fix the base plate to a flat surface (horizontal or

vertical)

Adaptor - 5V DC, max 3.5W

F210A User Manual

Chapter 4. Physical Description

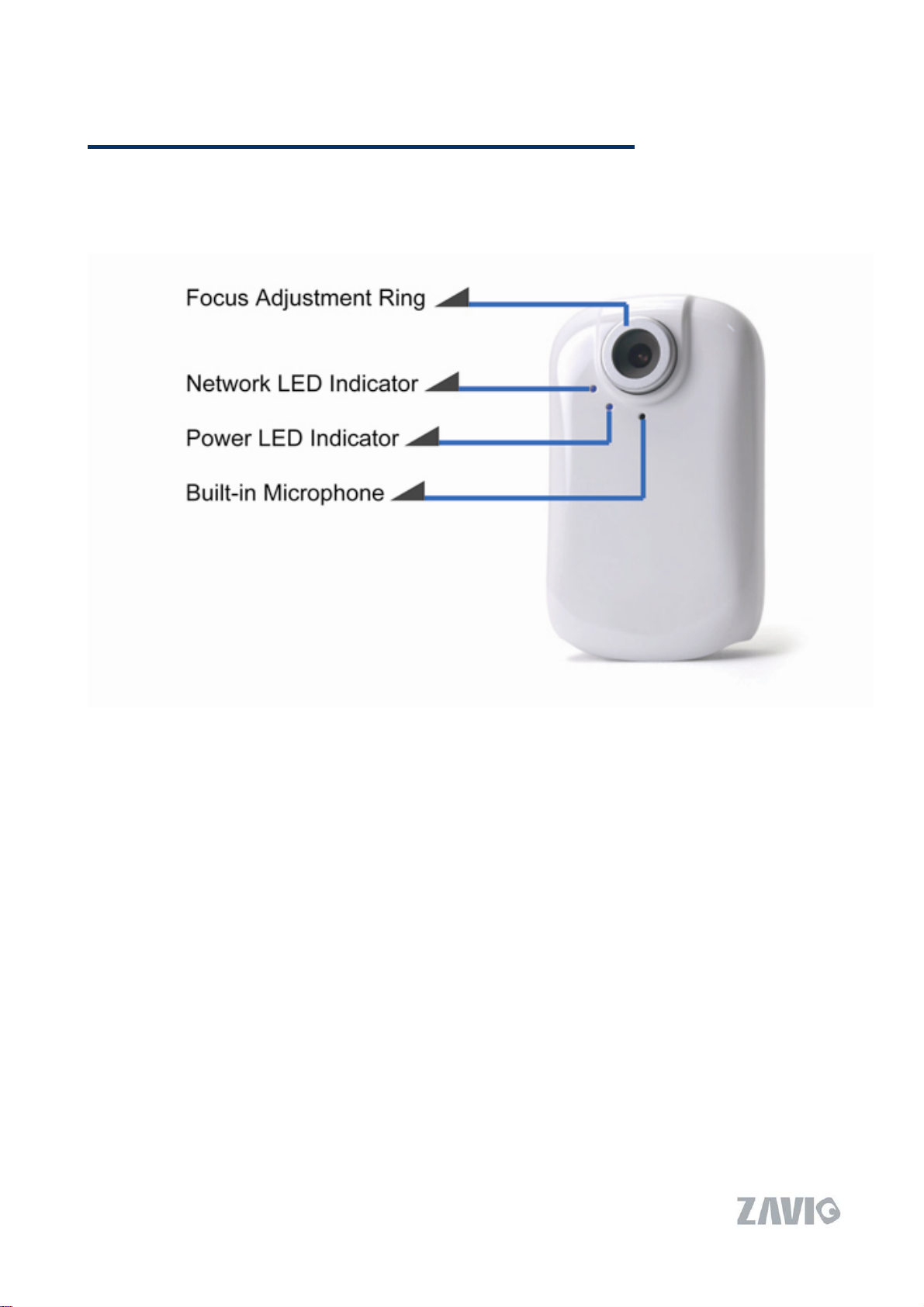

4.1 Front View

Focus Adjustment Ring - Adjust focus manually to achieve the best image quality

Network LED Indicator - Network LED will light up after the IP Camera connected with

network

Power LED Indicator - Power LED will light up after the IP Camera completed the boot

process

Built-In Microphone - Built-In Microphone for Two-way Audio

F210A User Manual

4.2 Bottom View

Power Connector - For connection of 5V DC input

Network Connector - For connection to the Ethernet via RJ-45 standard

Reset - When the device is empowered, press the Reset Button to reboot the device, or

hold the Reset Button for 10 seconds to set the device settings back to factory default

Audio Out (Speaker) - To support audio out with earphones or speakers

F210A User Manual

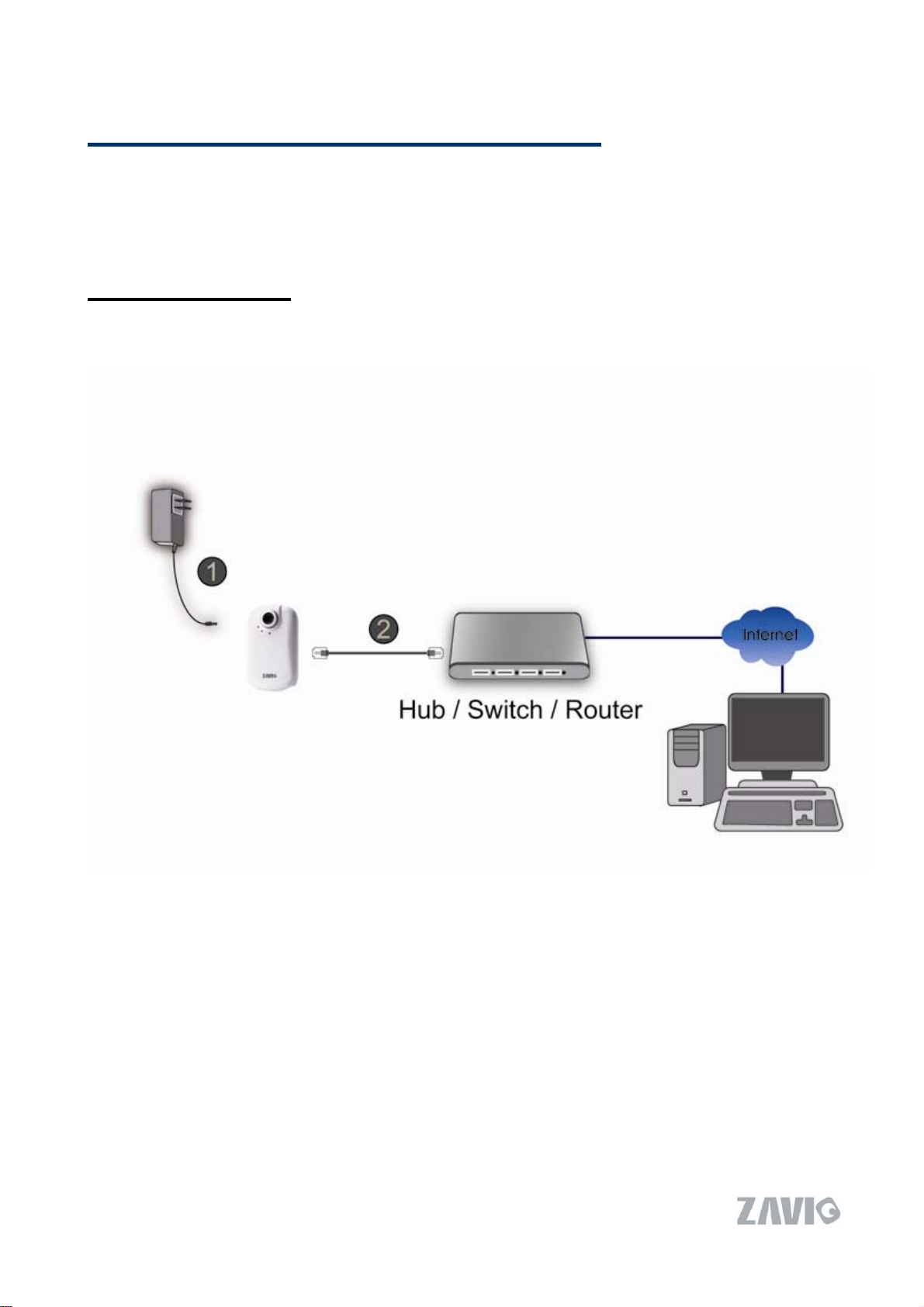

Chapter 5. Basic Connection

F210A is for wire connection. You can follow the procedure below to connect the IP Camera with

power and Ethernet for wire connection.

Wire Connection

1. Connect the power adaptor to IP Camera.

2. Connect IP Camera’ Ethernet port to your Hub/ Switch/ Router

F210A User Manual

Chapter 6. Application
