Zavio D7210 Quick Installation Guide
Please follow the installation steps below to set up your D7210 Dome IP Camera.
Check the package contents against the list below. See P.1
Physical overview. See P.1
LED Indicator Definition. See P.2
I/O Terminal Block Circuit. See P.2
Install the hardware and connect all cables. See P.3
Microsoft OS: Use the software CD to install Intelligent IP Installer.See P.6
Access the IP Camera using Intelligent IP Installer. P.6
Mac OS using Safari Browser. P.8
Change light environment setting. P.8
Change the Web Interface into your preferred language. P.9
Wireless Setting P.9
Application of IP Camera P.10
For more information, please check the User Manual available in the Software CD or you can download the latest
software from http://www.zavio.com
Package Contents
Camera
D7210 IP Camera
Quick Installation Guide
Brief product information and quick installation
Software CD
IP Surveillance Software
Intelligent IP Installer
User Manual
Language Packs
Accessory
Three plastic anchors and screws
Alignment sticker
4pin, 2pin I/O terminal block
Adaptor
12V DC, max 7.2W
Physical overview
2
LED Indicator Definition
DI/DO Diagram
3
4
c. Connect all cables
c1. Without Power over Ethernet (PoE) connection
1. Connect the power adaptor to the IP Camera.
2. Using a standard RJ-45 network cable, connect the IP Camera
to a normal Hub / Switch / Router.
c2. Power over Ethernet (PoE)
1. Using a standard RJ-45 network cable, connect the IP Camera
to a PoE-enabled Hub / Switch / Router.
5

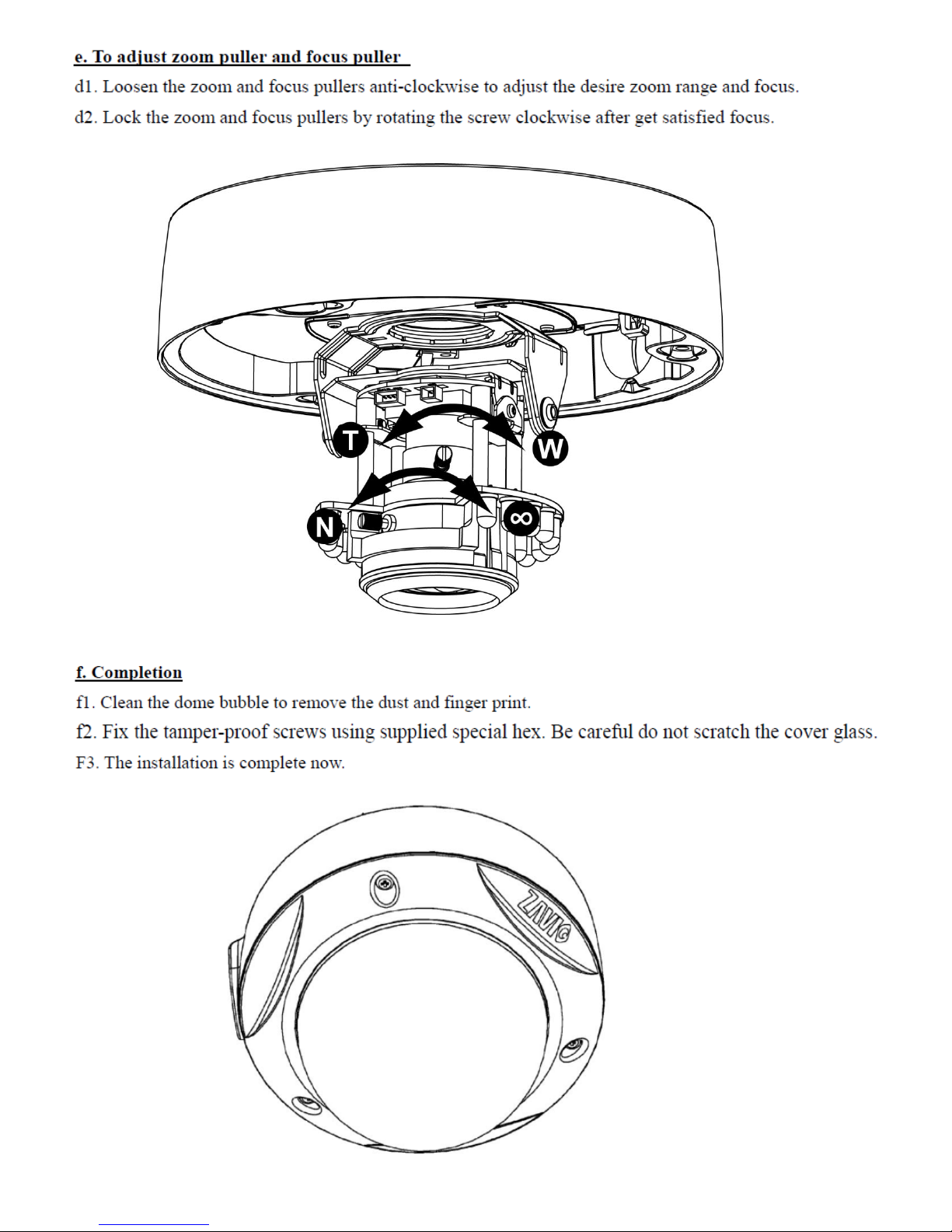

6
Microsoft OS:Use the software CD to install Intelligent IP Installer
Power on your PC and insert the CD-ROM. The setup page will show up automatically. Please follow these steps to
install the firmware.
Access the IP Camera using Intelligent IP Installer
1. Please check two settings before using Intelligent IP Installer .
Select “Intelligent IPInstaller”and follow the installation process to complete the installation.
b. Browser’s Internet Properties →Privacy
→Uncheck Pop-up Blocker
a. Browser’s Internet Properties →Security
→Default Level
2. Click the Intelligent IP Installer Icon on your desktop. The main page will show up listing all active
camera and video server devices. Select the relevant IP camera from the list and click Link to IE.
7

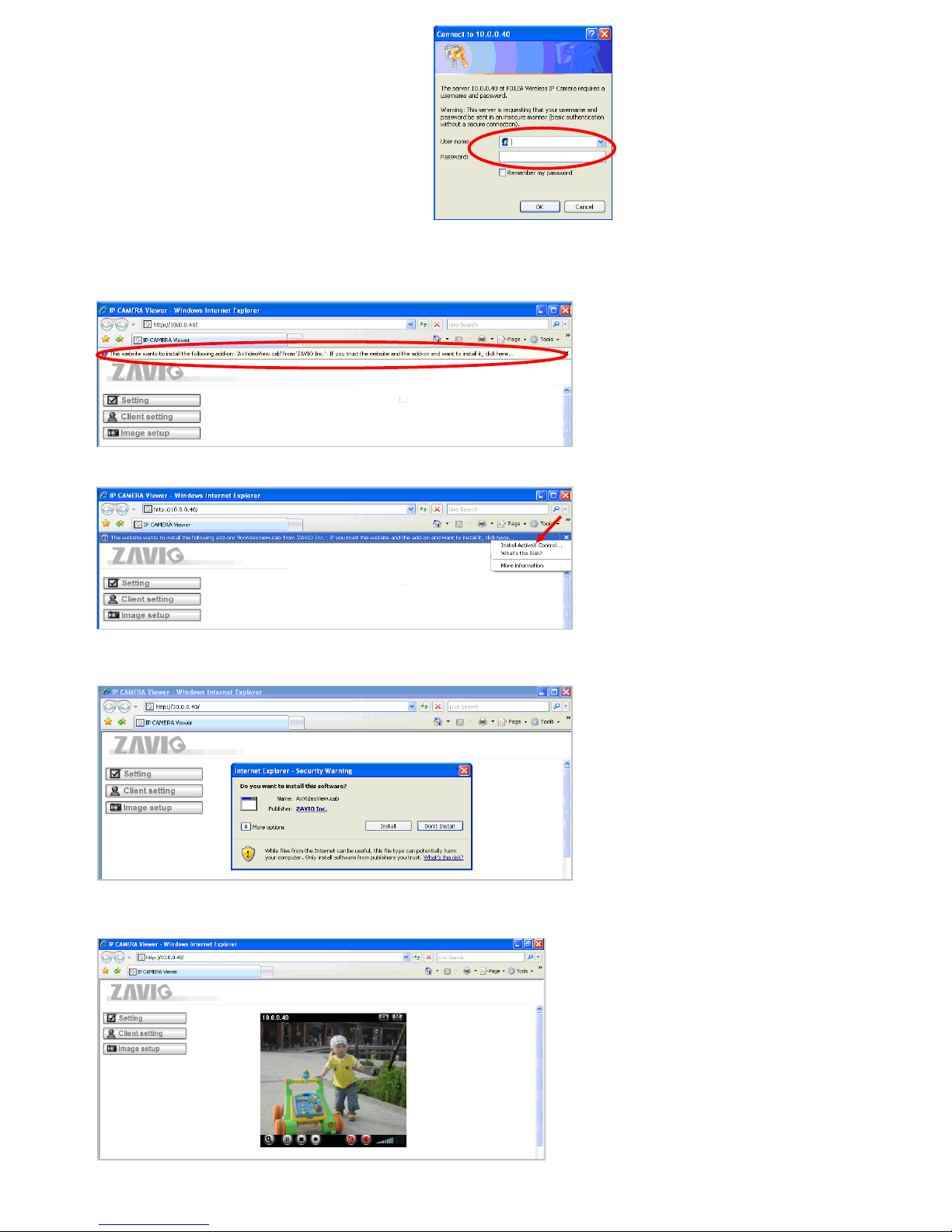

3. Enter your Username and Password
to login to the IP Camera.
(Default is admin / admin)
4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar:
This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’.
5. Click the information bar, and select Install ActiveX control.
6. Click Install.
7. Live video displays in the centre of your web browser.
8
Mac OS using Safari Browser
Lighting environment setting
The default setting of lighting environment is Auto. However, you may also select 50 or 60 Hz upon the lighting
environment of your country.
Go to “Setting > Live View > Camera Setting > Image Setting”, select the environment setting you wish.
1. Select Safari icon
2. Click Bonjour function and select the camera
you wish to access.
3. Enter name and password to login to the IP
camera. (Default is admin / admin)
4. The monitor image will be displayed in your browser.
9
Change the Web Interface into your preferred language
Use the settings screen to set the language of the Web Interface.
Go to “Setting > System > Maintenance ”.
1. Insert Software CD into your CD-ROM.
2. Browse and select the preferred language from language pack in the Software CD and then click OK.
3. The web interface will change into your preferred language.
Wireless Setting
Power the IP Camera and connect an Ethernet network cable to the IP Camera’s LAN port, then insert the USB
Wi-Fi dongle at the rear. Using Intelligent IP Installer and entering the camera’s setting page.
Please go to “Setting > Basic Setup > Network > WLAN”, set the wireless option to “Enable”
1. Click Refresh and choose theAP you wish to connect and click Connect.
2. Enter the password within the Active transmit key field if required.
3. Choose the option of Obtain an IP address automatically (DHCP) and Obtain DNS server address automatically.
4. Click “Save”to apply settings. The Wireless IP address appears in the IPaddress field.
Note: The wireless private IP address can be found in Intelligent IP Installer
