Dual-Laser Omnidirectional Scanner

Importance

This equipment generates, uses and can radiate radio frequency energy. If not installed and used

in accordance with the instructions in this manual, it may cause interference to radio

communications. The equipment has been tested and found to comply with the limits for a Class

A computing device pursuant to EN55022 and 47 CFR, Part 2 and Part 15 of FCC Rules. These

specifications are designed to provide reasonable protection against interference when

operated in a commercial environment.

For CE-countries:

It is in conformity with the CE standards. Please note that a CE-Marked power supply unit should

be used to conform to these standards.

Radio and television interference

Operation of this equipment in a residential area can cause interference to radio or television

reception. This can be determined by turning the equipment off and on. The user is encouraged

to try to correct the interference by one or more of the following measures:

Re-orientate the receiving antenna

Relocate the device with respect to the receiver

Move the device away from the receiver

Plug the device into a different outlet so that the device and the receiver are on

different branch circuits

If necessary, the user should consult the manufacturer, an authorized dealer or experienced

radio/television technician for additional suggestion. The user may find the following booklet

prepared by the Federal Communications Commission helpful:

“How to ldentify and Resolve Radio-TV Interference Problems”. This booklet is available from

the U.S. Government Printing Office,

Washington, DC 20402, Stock No. 004000003454.

Dual-Laser Omnidirectional Scanner ii

Important Notice

No warranty of any kind is made in regard to this material, including, but not limited to, implied

warranties of merchantability or fitness for a particular purpose. We are not liable for any

errors contained herein nor incidental or consequential damages in connection with furnishing,

performance or use of this material.

No part of this document may be reproduced, transmitted, stored in a retrieval system,

transcribed, or translated into any language or computer language in any form or by any means

electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without express

written consent and authorization.

We reserve the right to make changes in product design without reservation and without

notification. The material in this guide is for information only and is subject to change without

notice.

All trademarks mentioned herein, registered or otherwise, are the properties of their various

respective owners.

Guidance for Printing

This manual is in A5 size. Please double check your printer setting before printing it out.

Dual-Laser Omnidirectional Scanner

iii

TABLE OF CONTENTS

Importance ...................................................................................................................... i

Important Notice .............................................................................................................ii

Introduction .................................................................................................................... 1

Unpacking.............................................................................................................. 2

Scanner Outline and Indicator............................................................................... 3

Power Connection ................................................................................................. 4

Verify the Scanning Operation .............................................................................. 5

Template Installation (if required)......................................................................... 6

Connecting the Scanner ........................................................................................ 7

Replacing the Interface Cable.............................................................................. 10

How to Scan .................................................................................................................. 11

Single-Line Mode .......................................................................................................... 13

Sleep mode.......................................................................................................... 14

LED and Beeper Indications................................................................................. 15

Changing Beeper Volume Using Push Button ............................................................... 16

Maintaining the Scanner............................................................................................... 16

Controlling Scanner from the POS System.................................................................... 16

Laser Safety................................................................................................................... 17

Appendix A: Connector and Pin out .......................................................................... 19

Appendix B: Specifications......................................................................................... 20

Appendix C: Trouble-shooting ................................................................................... 22

Dual-Laser Omnidirectional Scanner

USER’S MANUAL

Introduction

It is the first dual-laser presentation scanner in the world with numerous record-breaking key

features. Its pioneered application of dual laser diodes drastically enhance scanning power by

doubling up scan lines, broadening scan angle and intensifying scan pattern across scan field.

With this state-of-art technology, it is able to deliver the most comprehensive 32-line scan

pattern empowering 2400 scans per second, In addition, it is equipped with Z-SCAN+

technology, which is an innovative ASIC hardware decode technology to provide real-time

decode capability to effectively shorten customer transaction time.

Its broad scan field could effectively facilitate scanning barcodes on products in all kinds of

shapes. Moreover, it is designed for both hands-free and handheld applications. To scan large

merchandise that cannot be placed on the counter, sales clerks could easily pick up from its

stand to perform the product scan. While scanning multiple barcodes on one object, sales clerks

could switch it to single line scan option simply by pressing one button. The adjustable stand

design grants users the flexibility to set the easiest angle of scan. Furthermore, it is programmed

with multiple beeper tones and barcode data edition function for different applications.

Dual-Laser Omnidirectional Scanner 2

USER’S MANUAL

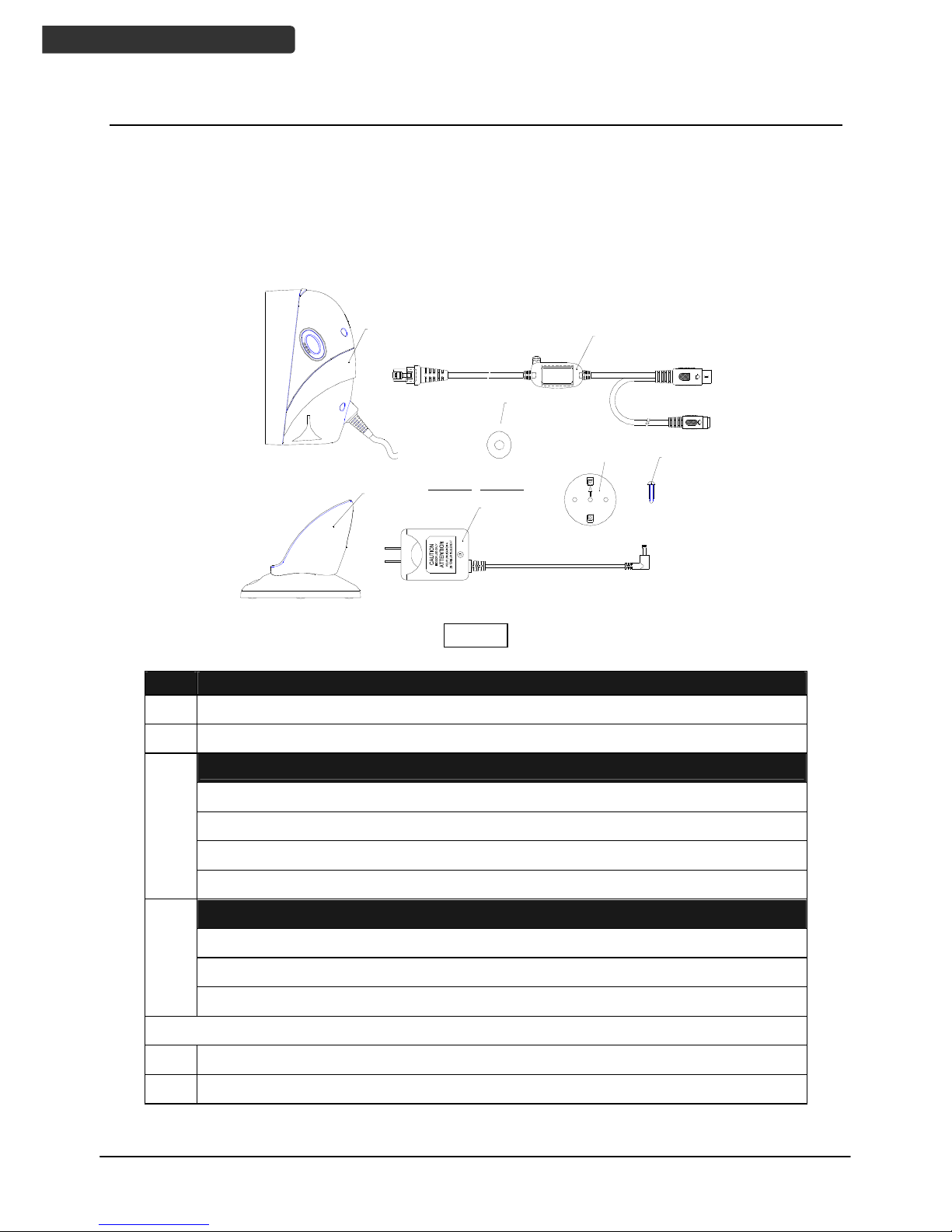

Unpacking

When you open the containing box, please check to make sure everything you ordered is

present and check if there is any damage during shipment. If you find any damaged or missing

components, please report immediately to your sales representative.

Open the box, in it should contain:

G G

Figure 1

Item Description

A Hands-free scanner

B Adjustable stand (optional)

Communication and power link Cable (according to order)

Keyboard wedge cable for PC/AT/PS2

DB-9 female connector RS232 cable DTE pin-out

DB-9 female connector RS232 cable DCE pin-out

Low speed USB cable

AC to DC power adaptor---Regulate 5V@600mA (Optional by order)

120V: North America, Japan, Taiwan

230V: Continental Europe, Middle East, South East, Asia, South America

100~240V: Apply to all regions

For special power requirement, please contact your dealer or distributor.

E User’s manual/Programming Guide CD

F Base template/Screw (optional)

Dual-Laser Omnidirectional Scanner

USER’S MANUAL

Scanner Outline and Indicator

Figure 2

Wake up

scanner

When the scanner enters into the sleep mode, pressing this

switch can wake the scanner up. The sleep mode feature can be

programmed by using the menu labels from the Programming

Guide.

The default time-out setting for the sleep mode is

to switch off laser after 10 minutes, and switch off

motor after 30 minutes.

When the scanner is in sleep mode, the LED is

intermittently flashing red.

Single -line

pattern

Pick up the scanner, press and release the trigger to activate the

single line scan mode

Button

Beeper tone

selection

When the scanner is sitting in the adjustable stand, press down

this button for 5 seconds, and it will automatically change the

beeper volume.

LED A red LED indicates the scanner is ready to read a barcode while a green LED

indicates a good read.

Good Read

Buzzer

If the data is captured correctly, the buzzer will be heard. Both the volume and

frequency are programmable by using the menu labels from the Programming

Guide.

Adjustable

stand

This stand allows you to direct the scan pattern in a way that is the best for your

application by adjusting the scanner window forward or backward.

Power Link

interface

cable

Connect the external AC/DC power adaptor into the power jack on the power

link cable. And the interface connector provides the communication between the

scanner and host terminal
