ZKTeco SpeedFace V4LTI Manuale utente

Installation Guide

Version: 1.0

Due to regular upgrades of systems and products, ZKTeco could not guarantee exact consistency between the

actual product and the written information in this manual.

4-inch Thermal Imaging Product

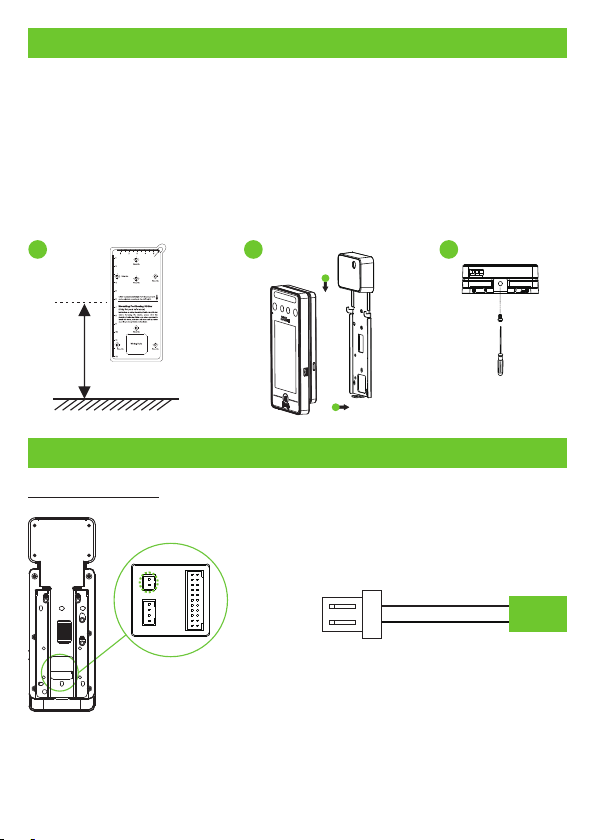

How to Install the Device?

Attach the mounting template sticker to the wall, and drill holes according

to the mounting paper. Fix the backplate on the wall using wall mounting

screws.

Attach the device to the backplate, and plug the USB cable into the USB port.

Fasten the device to the backplate with a security screw.

Please pass the wire through the backplate before installation.

1.50m

1 2 3



Wiring Diagram

Power Connection:

12V DC

GND

12V

Recommended AС Adapter

1) 12V ± 10%, at least 3000mA.

2) To share the power with other devices, use an AС Adapter with higher current

ratings.

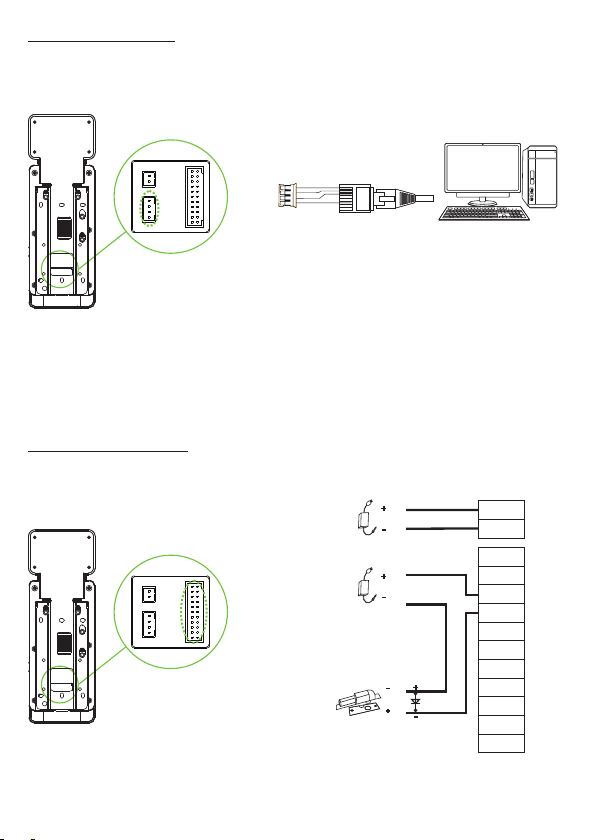

Ethernet Connection:

Connect the device and computer software over an Ethernet cable. As shown in the

example below:

Lock Relay Connection:

1) Device not sharing power with the lock

Default IP address: 192.168.1.201

Subnet mask: 255.255.255.0

Click [COMM.] > [Ethernet] > [IP Address] , input the IP address and click [OK].

Note: In LAN, the IP addresses of the server (PC) and the device must be in the

same network segment when connecting to ZKBioAccess IVS software.

IP address: 192.168.1.130

Subnet mask: 255.255.255.0

6RJ 45

TX+

TX-

RX+

RX-

ZKBioAccess IVS

DC12V

AL+

485A

IWD1

+12V

GND

IWD0

485B

COM

GND

+12V

GND

FR107

Normally Closed Lock

DC12V

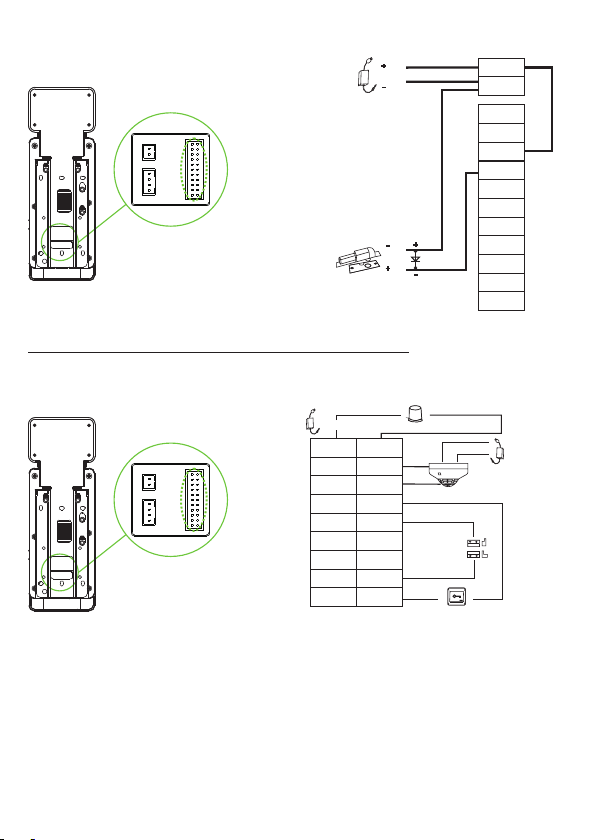

Door Sensor, Exit Button & Auxiliary Input Connection:

2) Device sharing power with the lock

Normally Closed Lock

AL+

485A

IWD1

+12V

GND

IWD0

485B

COM

GND

+12V

GND

FR107

DC12V

AL+

COM

GND

AL-

BUT

AUX

SEN

GND

485A

IWD1

IWD0

485B BELL+

BELL-

GND

Door

Sensor

ExitButton

Smoke

Detector

Alarm's Power

Switch

Alarm

COM

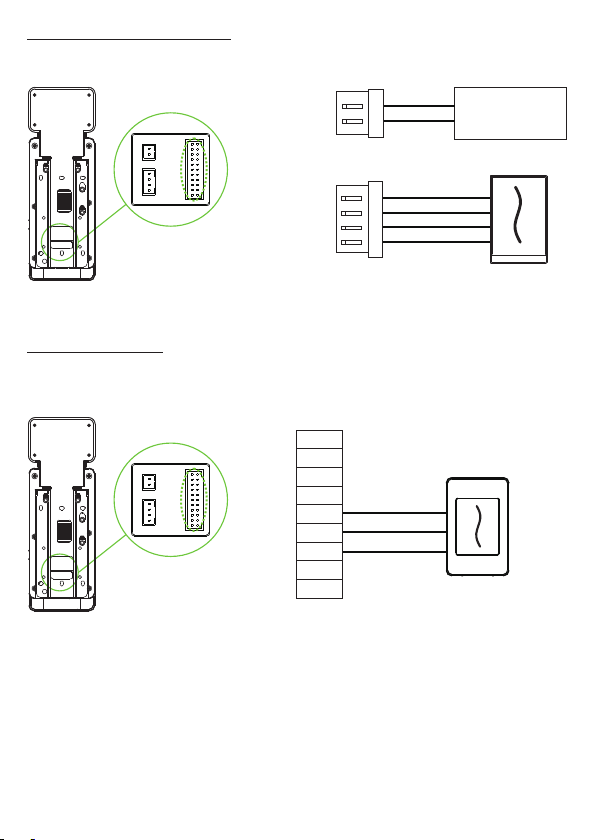

RS485 Connection:

Wiegand Reader Connection:

Wiegand Reader

+12V

IWD1

IWD0

GND

+12V

GND

WD0

WD1

Access Controller

WD0

WD1

AL+

485A

IWD1

IWD0

485B

COM

GND GND

485+

485-

RS485 Reader

Download Center

Scan the QR Code to download the User Manual, Installation Guide and Quick Start

Guide.

QR Code (Download Center)

ZKTeco Industrial Park, No. 32, Industrial Road,

Tangxia Town, Dongguan, China.

Phone : +86 769 - 82109991

Fax : +86 755 - 89602394

www.zkteco.com
