Zonet ZEW2547 Manuale utente
Copyright Statement
is the registered trademark of Zonet Technology Inc. All the
products and product names mentioned herein are the trademarks or registered
trademarks of their respective holders. Copyright of the whole product as
integration, including its accessories and software, belongs to Zonet Technology
Inc. ithout the permission of Zonet Technology Inc., any individual or party is
not allowed to copy, plagiarize, imitate or translate it into other languages.
802.11n ireless Nano USB Adapter
1
Table of Content
Chapter 1. Introduction……………………………………………………………2
1.1 Welcome…………………………………………………………………………2
1.2 Product Feature…………………………………………………………………2
1.3 Content of Package……………………………………………………………2
1.4 efore You egin………………………………………………………………3
1.4 Know Your ZEW2547…………………………………………………………3
Chapter 2. Installation…………………………………………………………………4
2.1 Windows 7………………………………………………………………………4
2.2 Windows 2000/XP/Vista……………………………………………………7
Chapter 3. Configuration……………………………………………………………10
3.1 Station Mode…………………………………………………………………10
3.1.1 Site Survey………………………………………………………………11
3.1.2 Profile……………………………………………………………………13
3.1.2.1 Add/Edit Profile…………………………………………………14
3.1.2.2 Add WPS Profile…………………………………………………15
3.1.3 Link Information………………………………………………………17
3.1.4 Advanced…………………………………………………………………19
3.1.5 About………………………………………………………………………21
3.2 AP Mode…………………………………………………………………………22
3.2.1 Windows 7………………………………………………………………23
3.2.1.1 Configuration……………………………………………………24
3.2.1.2 Switch to Working Station Mode……………………………25
3.2.2 Windows 2000/XP/Vista……………………………………………26
3.2.2.1 Config AP…………………………………………………………27
3.2.2.2 Advanced…………………………………………………………29
3.2.2.3
Access Control List
………………………………………………30
3.2.2.4
Associate List
……………………………………………………31
3.2.2.5 Switch to Working Station Mode……………………………32
3.3 Use Zero Configuration……………………………………………………33
Chapter 4. How to connect with PSP……………………………………………36
4.1 Configure PSP with Ad-Hoc mode………………………………………36
4.2 Configure XLink Kai…………………………………………………………38
Chapter 5. Product Specifications………………………………………………39
Chapter 6. TroubleShooting………………………………………………………40
802.11n ireless Nano USB Adapter
2
Chapter 1 Introduction
1.1 Welcome
ZE 2547- 802.11n Nano USB Adapter delivers an incredible speed to your
desktop/laptop PC without running wires. It complies with the IEEE 802.11n
standard, making it backward compatible with 802.11b/g networks for assured
compatibility. Advanced 64/128-bit EP, PA/ PA2 encryption is supported to
provide secure access for your data. Once you’re connected, you can stay in
touch with your email, access to the internet and send large files across the
network at greater distances than ever before.
1.2 Product Feature
Complies with IEEE 802.11g and IEEE 802.11b standards
Compliant with USB 2.0 Standard
Provides up to 150Mbps transmission rate and up to 300 meters
transmission distance
Auto-detects and changes the network transmission rate
Provides two work modes: Infrastructure and Ad-Hoc
Supports Soft AP to establish your wireless LAN networking
supports PS3, PSP, ii and Nintendo DS connecting with Internet and
XLink Kai to enjoy on-line gaming
Supports 64/128-bit EP, PA, PA2 encryption methods and 802.1x
security authentication standard
Supports ireless Roaming function
PS ( i-Fi Protected Setup) simplify the security setup and management
of i-Fi networks.
Supports MM for Multimedia Applications with Quality of Service in
i-Fi® Networks
Supports indows 2000 / XP / Vista / 7, Macintosh, and Linux
1.3 Contents of Package
One ZE 2547
One Installation CD w/User Manual
One Quick Installation Guide
Contact your local authorized reseller or the store purchased from for any items
damaged and/or missing.
802.11n ireless Nano USB Adapter
3
1.4 efore You egin
You must have the following:
A laptop computer/desktop PC with an available USB 2.0 slot
Minimum 300MHz processor and 32MB memory
indows 2000, XP, Vista, 7; Macintosh; Linux
A CD-ROM Drive
USB controller properly installed and working in the computer
802.11n or 802.11b/g Access Point (for infrastructure Mode) or another
802.11n or 802.11b/g wireless adapter (for Ad-Hoc; Peer-to-Peer
networking mode.)
1.5 Know Your ZEW2547
Location
Item Description
ON ZE 2547 is switched on and correctly powered
FRONT LED Indicator Flashing
ZE 2547 is transmitting or receiving data
REAR PS Button Press this button for 1 second to start PS function
802.11n ireless Nano USB Adapter
4
Chapter 2 Installation
NOTE:
For future driver upgrading, please visit our website at www.zonetusa.com
2.1 Windows 7
1. Power on your PC, let the
operating system boot up
completely, and log in as
needed.

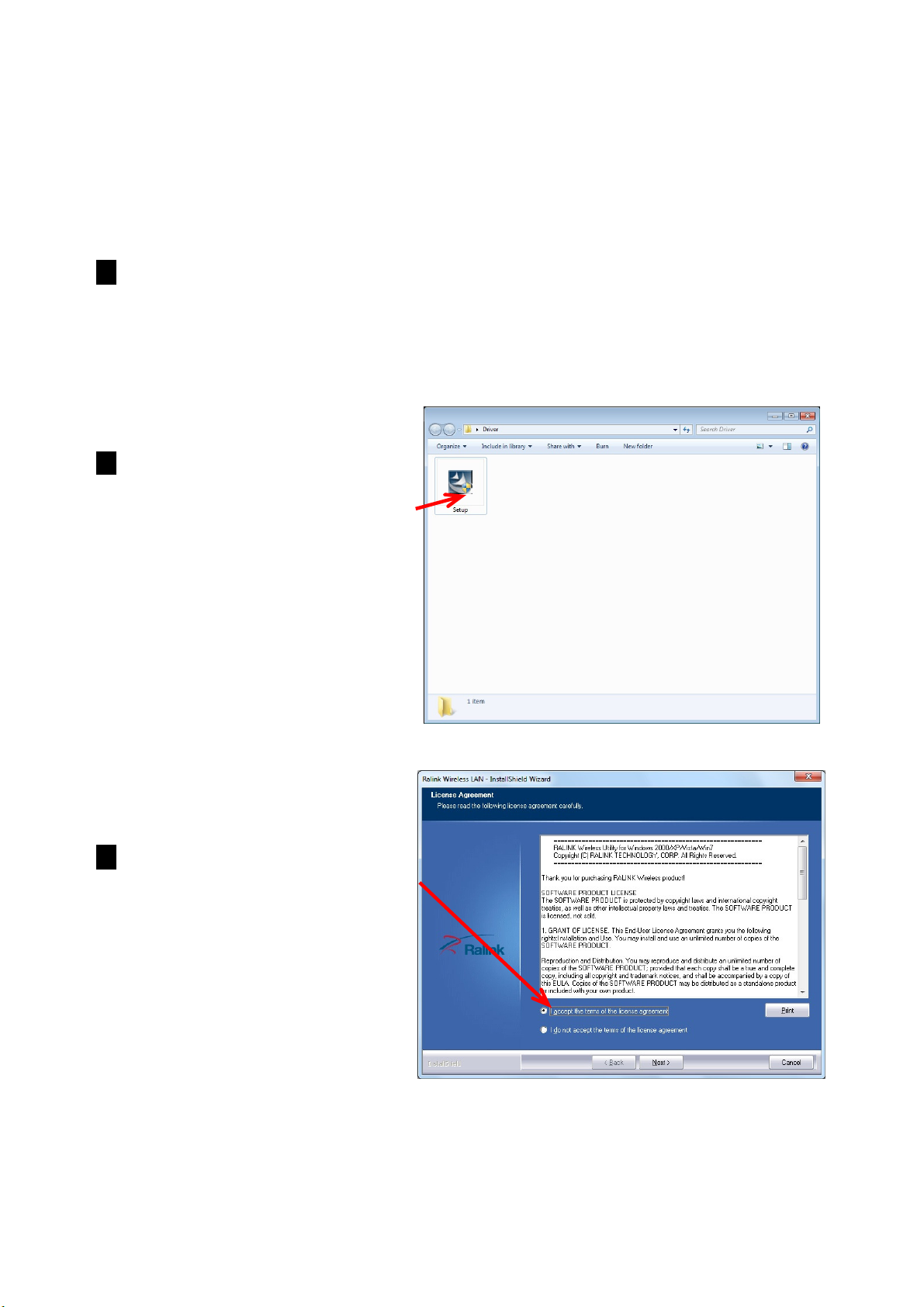

2.
Insert Installation CD to your
CD-ROM drive. B
r
owse CD
and double-click
Setup.exe
in Driver folder to execute it.
The wizard will run and
install all necessary files to
your computer
automatically.
3. C
lick
Next
to accept the
Agreement. Or click
Cancel
to cancel the installation
.
802.11n ireless Nano USB Adapter
5
4.
Select
Install driver and
Ralink WLAN Utility
or
Install driver nly
then
click
Next
.
5.
Click
Install
to start
installation. Or click
Cancel
to cancel the installation
.
6. Click Finish to complete the
software installation.
802.11n ireless Nano USB Adapter
6

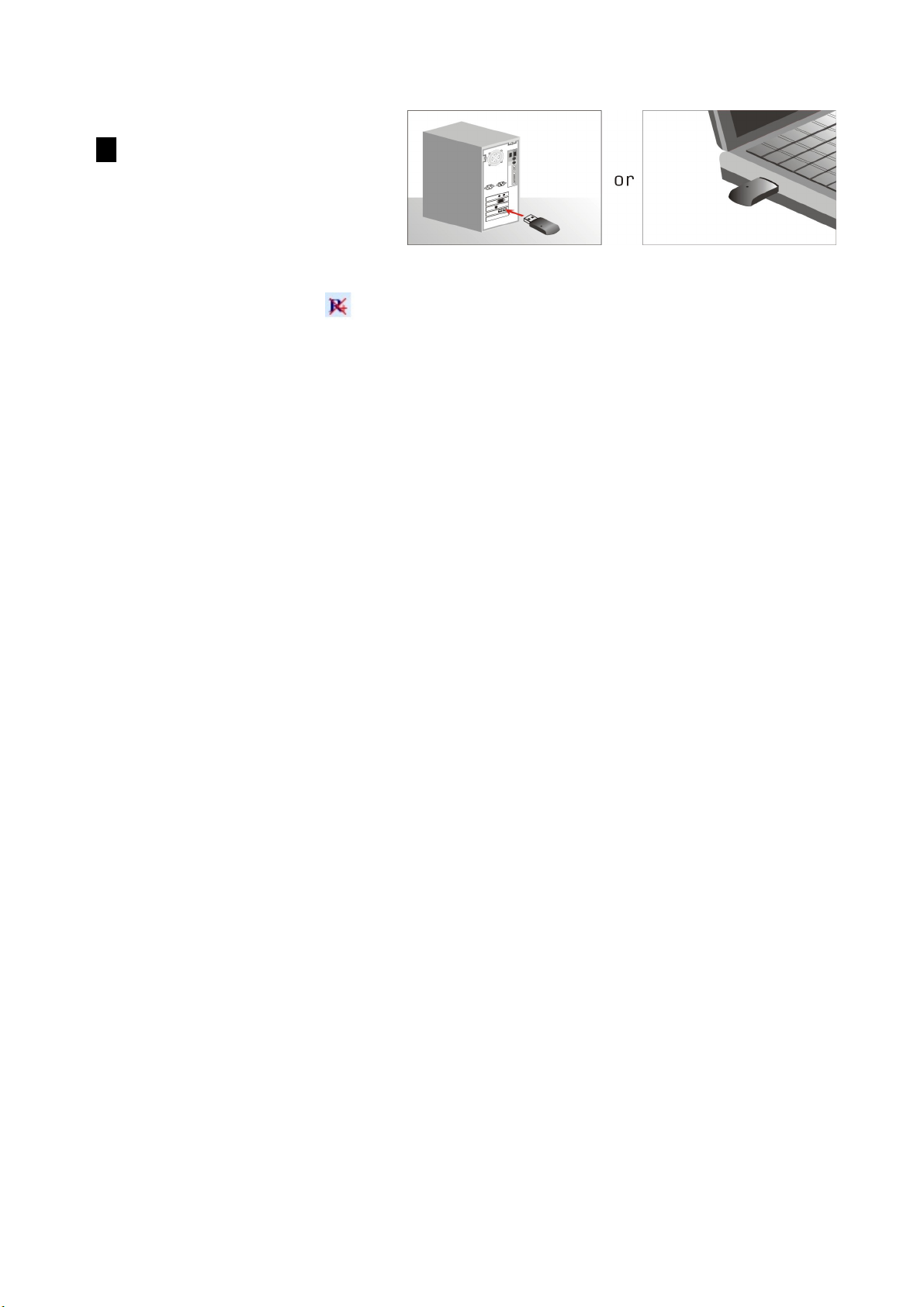

7. Then insert ZE 2547 into a
USB slot of your computer
You will see a tray icon appear in your system tray at the bottom of the
screen after the software and hardware installation completed successfully.
802.11n ireless Nano USB Adapter
7
2.2 Windows 2000/XP/Vista
NOTE:
Snap-shot screens of the following installation procedure are based on Windows XP.
Installation procedures will be similar for other windows operating s stems.
1. Power on your PC, let the
operating system boot up
completely, and log in as
needed.
2. Attach the external antenna to
ZE 2547’s antenna port.
Then insert ZE 2547 into a
USB slot of your computer
3. Select Cancel when F und
New Hardware window
appears.
4.
Insert Installation CD to your
CD-ROM drive. B
r
owse CD and
double-click
Setup.exe
in
Driver folder to execute it. The
wizard will run and install all
necessary files to your
computer automatically.
802.11n ireless Nano USB Adapter
8
5. C
lick
Next
to accept the
Agreement. Or click
Cancel
to
cancel the installation
.
6.
Select
Install driver and
Ralink WLAN Utility
or
Install driver nly
then click
Next
.
7.
Select
Ralink
C nfigurati n
T l
or
Micr s ft Zer
C nfigurati n T l
then click
Next
.
a.
It’s recommended to select
Ralink Configuration Tool,
which provides fully access to
all function of ZE 2547.
b. If you prefer to use the
wireless configuration tool
provided by indows XP or
Vista, please select
Microsoft
Zero Configuration Tool.
