Zonet ZRC2011 Manuale utente

ZRC2011

Product Contents & manual

◎Travel Adapter

INPUT：AC 100~240V 50/60Hz 0.1A

DC 9~32V 0.5A

OUTPUT：6.0V ＝300mA

◎Car charger to USB adapter

◎USB A type male to female compressor

INPUT：DC5.0V 700mA

OUTPUT：7V/ 300±50mA

◎USB 2.0 A type male to female retractable cable

◎USB 2.0 A type male to iPod male retractable cable

◎Mini Fan

◎Clip

◎USB to various type cell phone adapters

Features

◎Regardless where you are, as long as you can find power outlet, then you will be able to charge the cell

phone battery conveniently.

◎When power outlet is not available such as power outages, hiking, camping, or traveling, you can use the

9V battery to charge the cell phone battery.

◎While driving a car, you can use the car charger to charge the cell phone battery.

◎While on Notebook PC or Desktop PC, you can use the USB retractable cable to charge the cell phone

battery or transmit data.

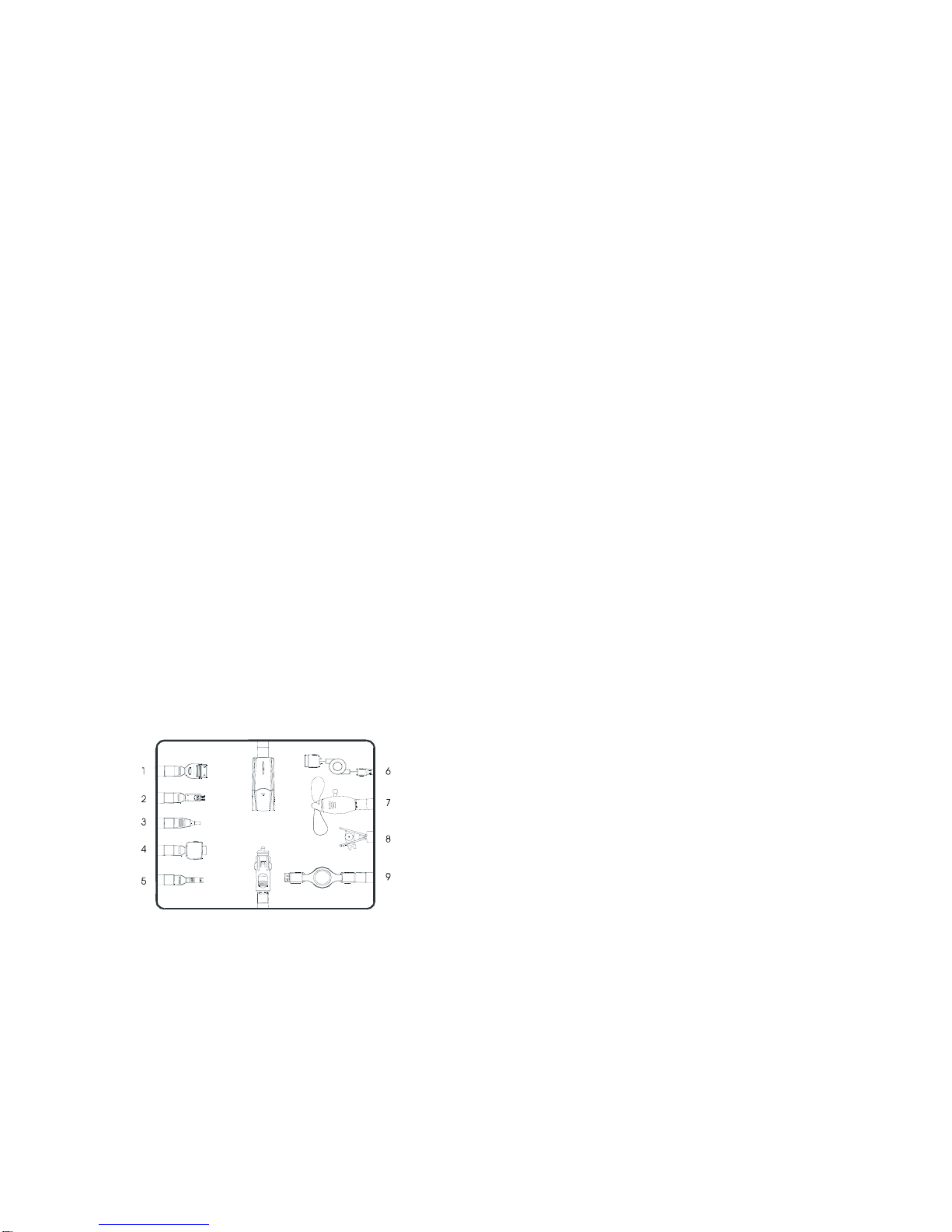

Accessories Introduction

1. USB to MOTOROLA (MOT01KU)

2. USB to MOTOROLA (MOT04KU)

3. USB to NOKIA (NOK01KU)

4. USB to SAMSUNG (SAM01KU)

5. USB to ERICCSSON(ERI01KU)

6. USB Atype male to i-Pod male retractable cable

7. Mini Fan

8. Clip

9. USB Atype male to female retractable cable

10. TravelAdapter

11. Car Charger to USB Slot

Multi-Functional Installation

A. Various ways of charging:

1. Using power outlet to charge the cell phone battery:

By using travel adapter with USB AType Male to Female retractable cable with USB to various assorted type of cell phone adapter.

※While charging, the LED light on the charger cable will change to green when the charge is complete.

Please also check the cell phone screen to see if charging is completed or not.

2. Using PC to charge the cell phone battery

By using travel adapter with USB AType Male to female retractable cable, with USB to various assorted type of cell phone adapter.

※Make sure that the PC is boot up and confirm with the cell phone screen that the battery is fully charged.

3. Using car charger to charge the cell phone battery

Using the 12V car charger with USBAType Male to Female retractable cable, and with USB to various assorted type of cell phone

adapter to recharge.

※Make sure the engine is running, and plug in the car lighter charger.

4. Using 9V lithium battery to recharge the cell phone battery.

By using 9V battery attached with travel charger. Connect USB to various assorted type of cell phone adapter to recharge the

battery.

※Our product is designed to recharge the phone with the battery installed on the cell phone. Do not charge

the battery by ways other than instructed, or the battery will be damaged or cause accident.

B. How to use the fan and USB 2.0 retractable extension cable

1. USB A type male to female retractable cable：

Using USBA type male to female connected to USB accessories to transmit data purposes.

2. USB A type male to i-Pod male retractable cable

Using USBA type male to i-Pod male connected to USB accessories to transmit data purposes.

C. How to use mini fan

Using the USBAtype male to female retractable cable attached to PC, Car Charger, or battery to power the fan.

Important notice

※Always make sure that the connector to the phone is connected securely, if the direction is incorrect , it

might damage the cell phone. Never force the connector into the cell phone if it doesn’t fit.

※Do not use the 9V power supply to charge for a long time. Use the Lithium battery for charging on

emergency cases only.

※Do not modify the power plugs in any way.

※Normal power usage for USB is 5V/0.5A, if the cell phone requires less than 7V or more than 5V, please

connect with USB A male to A female adapter .

※Please use only the mentioned power supply indicated in the manual.

※During charging, if the cell phone battery become extraordinary hot, please stop charging and check the

cable.

※Cell phones adapters can vary. Always use the correct connector and do not plug in by force, or you can

cause damage to the phone or battery.

※Always make sure the cell phone battery is installed correctly before recharging. If not , it might damage

the internal body of the cell phone.

Troubleshooting：

※Some cell phones needs more voltage than the USB slot of the 9V battery can support.

※Very old PC or Notebook that doesn’t supply enough power through the USB port.

※Some CardBus USB1.1 or 2.0 can only support up to 3.3V, unless the card is supplied with additional

power.

Supported cellphone models and types:

Motorola | Nokia | Samsung | Ericsson (Sony Ericsson)

MOTOROLA

MOTO01KU 308/2188/3188/3281/6188/7089/8050/

ACCMOPLI007/008/009/A338/A6188/

C289/CD920/CD928/CD938/CD998/L2000

LF2000/M338/M388/M6088/P1088/7689/

P7389I/STARTAC/T180/T181/T189/

TIMEPORTL7086/L7089/P7382/P7389/P7689

P8090/P8097P8160/P8167/P8767

T250/T260/T388/T8090/T8097/T8160/T8167T8197T8367/V50/V100/V250/V260/V998

V2088/V2288/V3620/V3688/V3690/V8088/V8162

VPHONE/VSERIES

V3620/V3682/V3690/V8160/V8162

MOTO04KU 120T/120X/3097/8097/A760/A820/A830/A835

A920/C331/C332/C333/I30/I35/I50/55/I80/I85/I90/I859

N120/TIMEPORT240250C/270/T280/T720

T720I/T721/T721I/T722I/T730/T731/V60/V60C

V60G/V60I/V60P/V60T/V60X/V66/V70/V120

V120C/V200/V300/V500/V525/V600

SAMSUNG

SAM01KU 199/268/350/628I/1318/2018/2019/2106/2108

2109/3016/3018/3408/3409/6898/6988/A200

A205/A250/A288/A300/A308/A310/A350/A388

A399/A400/A408/A505/A508/A539/A563/A599

A600/A620/A790/A2100/A3000/A3406/A4000

A8200/A8800/K98/N191//N260/N288/N299/N400

N620/N625/N628/N1016/N2000/N2600/Q208

R208/R210/R220/R225/S120/S308/S508/S628

SGHN200/SGH108/SGH628/T100/T130

T208/T408/T508/U06/V200/X199/X319

NOKIA

NOK01KU 3210/3310/3320/3330/6210/6250/8210/8250/8890/9110/9210/6100/6610/7210/7250/36

50/3300/3100/8910

SONY ERICSSON

ERI01KU P100/P800/P908/R310/R320/R600/T102/T200

T202/T226/ T238/T300/T312/T316/T800/Z608

ERICSSON

ERI01KU 2218/A2218/A2618/A2638/A3618/P800/P802/T20

T28/T29/T38/T39/T60/T61G/T62U/T65/T66/T68

T205/TA3618/R300LX/R310/R320/R380/R510

R520/R600/R602
