Zonet ZEW1502 Manuale utente
WirelessNetworkAdapter Usermanual
Wireless Network Adapter
User Manual
Page 1
WirelessNetworkAdapter Usermanual
Table of Contents
Chapter 1 Introduction...................................................................... 3
1.1 Welcome ..............................................................................................................................3
1.2 About This Guide..............................................................................................................3
1.3 Copyright statement........................................................................................................3
1.4 Contents of Package........................................................................................................4
1.5 Before you begin...............................................................................................................4
Chapter 2 Designing Your Wireless Network ..................................... 4
2.1 Cardbus adapter ...............................................................................................................4
2.2 PCI adapter.........................................................................................................................5
2.3 USB adapter .......................................................................................................................5
Chapter 3 Install Wireless Adapter.................................................... 6
3.1 Install Driver and Utility.................................................................................................6
3.2 Install Adapter...................................................................................................................8
3.3 Configuration your wireless adapter....................................................................... 11
Chapter 4 Using the Wireless Client Configuration Utility................ 12
4.1 Network Status................................................................................................................13
4.2 Site Survey .......................................................................................................................14
4.3 Admin..................................................................................................................................15
4.4 Profile Manager................................................................................................................18
Chapter 5 Troubleshooting .............................................................. 22
APPENDIX A Specifications.............................................................. 24
Page 2
WirelessNetworkAdapter Usermanual
Chapter 1 Introduction
1.1 Welcome
The Wireless Network Adapter is a powerful 32-bit Cardbus/PCI/USB Adapter
that installs quickly and easily into PCs. The Adapter can be used in Ad-Hoc
mode to connect directly with other cards for peer-to-peer file sharing or in
Infrastructure mode to connect with a wireless access point or router for access
to the Internet in your office or home network.
The Wireless Cardbus/PCI/USB Adapter connects you with 802.11g networks at
up to an incredible 54Mbps! And for added versatility, it can also interoperate
with all the up to 11Mbps 802.11b products found in homes, businesses, and
public wireless hotspots around the country. And in either mode, your wireless
communications are protected by industrial-strength WPA, so your data stays
secure.
1.2 About This Guide
This User Manual contains information on how to install and configure your
Wireless Adapter to get your network started accessing the Internet. It will
guide you through the correct configuration steps to get your device up and
running.
Note and Caution in this manual are highlighted with graphics as below to
indicate important information.
Contains related information corresponds to a topic.
Necessary steps, actions or messages should not be ignored.
1.3 Copyright statement
No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, whether electronic, mechanical,
photocopying, recording, or otherwise without the prior writing of the
publisher.
Page 3
WirelessNetworkAdapter Usermanual
1.4 Contents of Package
Wireless network Cardbus/PCI/USB adapter
Manual, Drivers and Utility on CD
Quick Installation Guide
If any of the above items are missing, please contact your reseller.
1.5 Before you begin
You must have at least the following:
A laptop computer/desktop PC with an available 32-bit Cardbus/PCI/USB
slot
At least a 300MHz processor and 32MB of memory
Windows 98SE, ME, 2000, XP, Vista
A CD-ROM Drive
Cardbus/PCI/USB controller properly installed and working in the laptop
computer
A 802.11g or 802.11b Access Point (for infrastructure Mode) or another
802.11g or 802.11b wireless adapter (for Ad-Hoc; Peer-to-Peer networking
mode.)
Chapter 2 Designing Your Wireless Network
The wireless Cardbus/PCI/USB Adapter supports up to 54 Mbps connections.
This card is fully compliant with the specifications defined in IEEE802.11g
standard. It is designed to complement PCI Local Bus computers and supports
Windows 98SE/Me/2000/XP/Vista.
2.1 Cardbus adapter
Figure 2-1
Page 4
WirelessNetworkAdapter Usermanual
The two status LED indicators of the Cardbus wireless adapter are described in
the following.
PWR ON (Green): Indicates the Adapter is ready
Lnk/Act ON (Green): Indicates a valid connection
Lnk/Act Flashing: Indicates the Adapter is transmitting or receiving data.
2.2 PCI adapter
Figure 2-2
The status LED indicators of the PCI wireless adapter are described in the
following.
Lnk/Act ON (Green): Indicates a valid connection
Lnk/Act Flashing: Indicates the Adapter is transmitting or receiving data.
2.3 USB adapter
The status LED indicators of the USB wireless adapter are described in the
following.
Lnk/Act ON (Green): Indicates a valid connection
Lnk/Act Flashing: Indicates the Adapter is transmitting or receiving data.
Figure 2-3
Page 5
WirelessNetworkAdapter Usermanual
Chapter 3 Install Wireless Adapter
3.1 Install Driver and Utility
Insert the Driver and Utility CD-ROM into the CD-ROM driver.
The Wizard should run automatically, and Figure 2-1 should appear. If it
dose not, click the Start button and choose Run. In the field that appears,
enter D:\autorun.exe (if ‘’D’’ is the letter of your CD-ROM drive).
Figure 2-1
Click Install Driver & Utility on the Wireless Client Configuration Utility
screen.
Page 6
WirelessNetworkAdapter Usermanual
Figure 2-2
Follow the Install Shield Wizard steps, and click Finish when done.
Figure 2-3
Now turn off your PC or notebook
Page 7
WirelessNetworkAdapter Usermanual
3.2 Install Adapter
3.2.1 Cardbus Adapter
Power on your notebook, let the operating system boot up completely, and
log in as needed.
Hold the adapter with the LOGO facing up and insert it into a Cardbus slot.

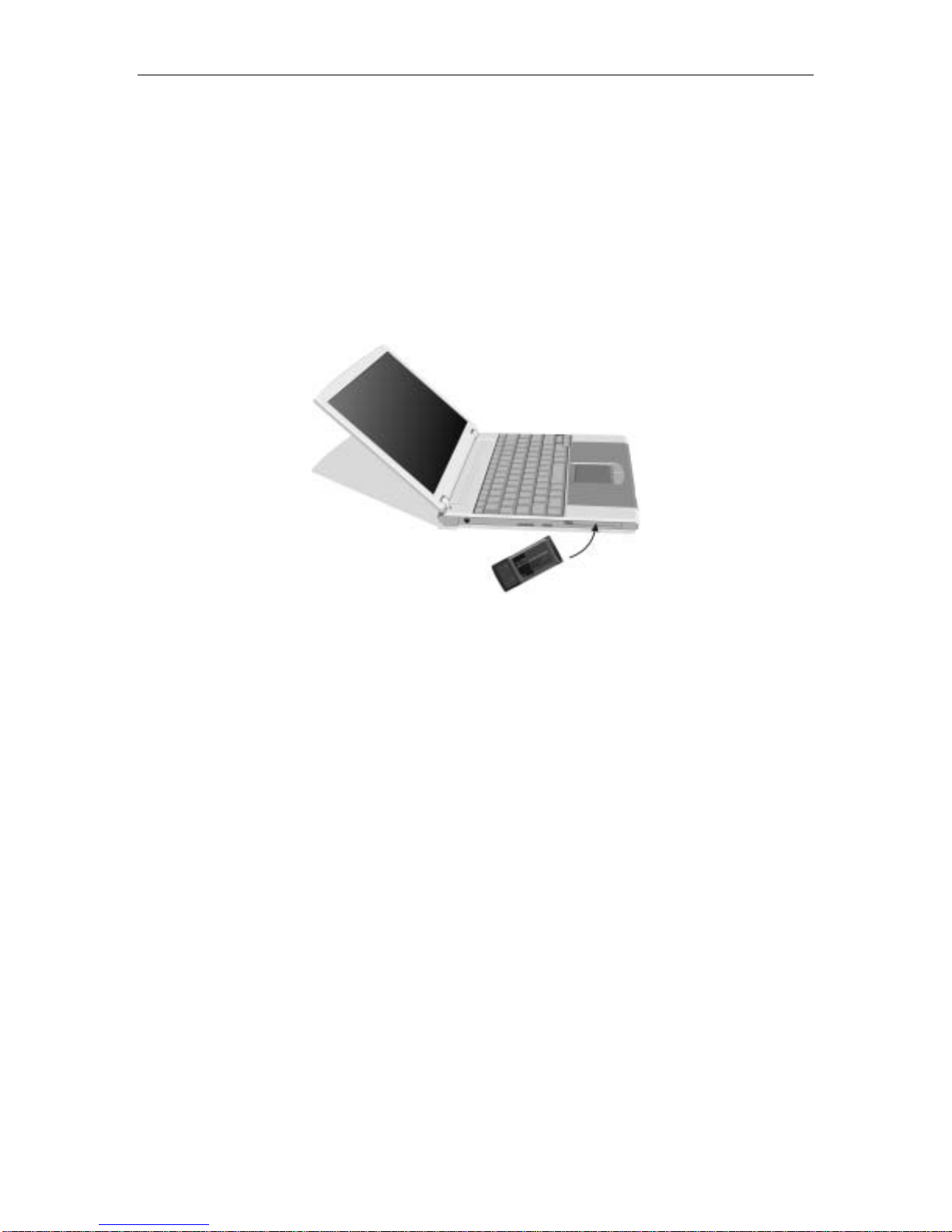

Figure 3-1
If the Found New Hardware Wizard displays, choose Install the software
automatically (Recommended), and click Next button. The driver will
be installed automatically.
Page 8
WirelessNetworkAdapter Usermanual
Figure 3-2
3.2.2 PCI Adapter
Open your PC case and locate an available PCI on the motherboard.
Slide the PCI Adapter into the PCI slot. Make sure that all of its pins are
touching the slot’s contacts. You may have to apply a bit of pressure to slide
the adapter all the way in. after the adapter is firmly in place, secure its
fastening tab to your PC’s chassis with a mounting screw. Then close your
PC.
Attach the external antenna to the adapter’s antenna port.
Power on the PC.
Page 9
WirelessNetworkAdapter Usermanual
Figure 3-3
If the Found New Hardware Wizard displays, choose install the software
automatically (Recommended), and click Next button. The driver will
be installed automatically.
3.2.3 USB Adapter
Power on your PC, let the operating system boot up completely, and log in
as needed.
Hold the adapter and insert it into a USB slot.

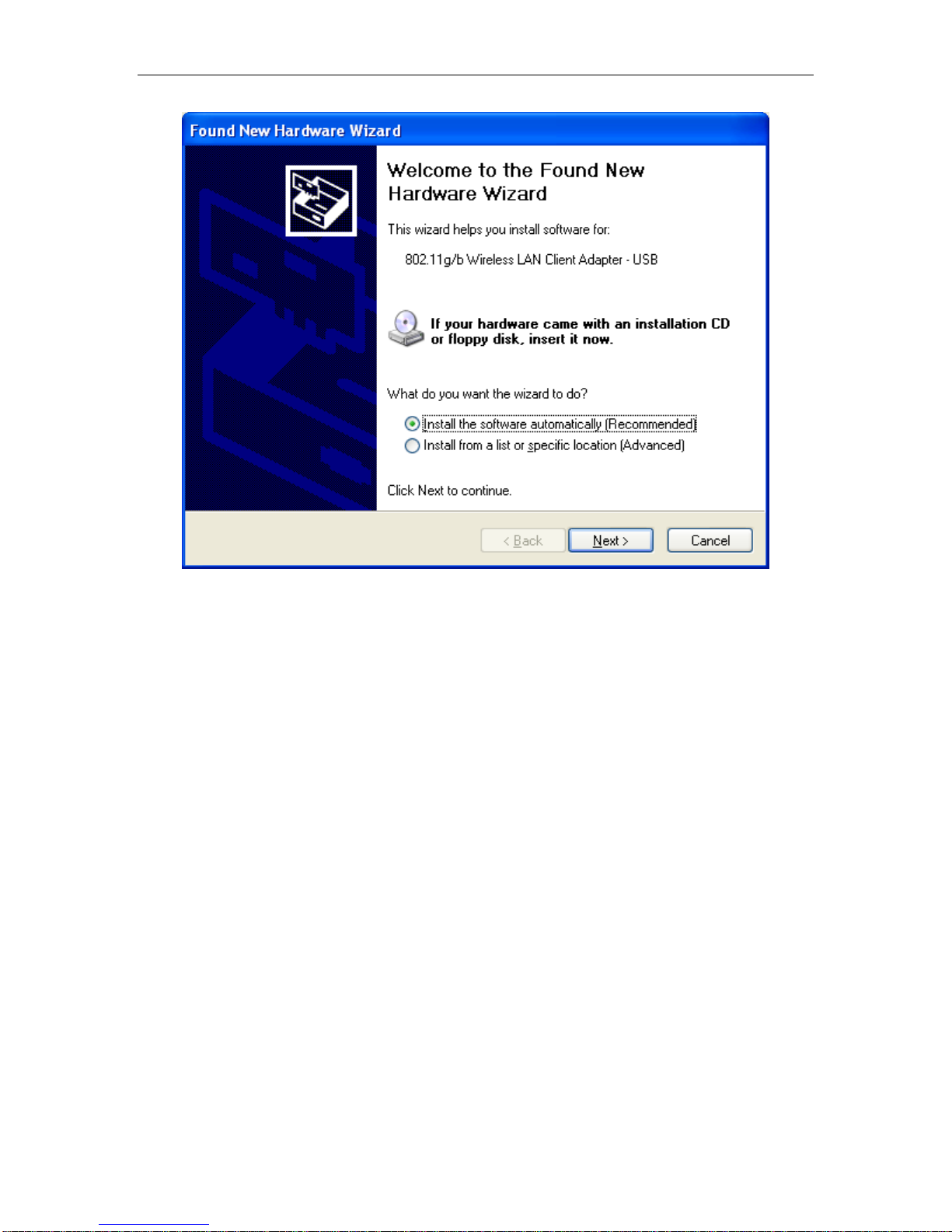

If the Found New Hardware Wizard displays, choose install the software
automatically (Recommended), and click Next button. The driver will
be installed automatically.
Figure 3-4
You have now completed the driver and hardware installation for the Adapter.
