Zortrax M200 Plus Guida

Troubleshooting: Camera

Preview Is Blurred

SOURCE:

https://support.zortrax.com/troubleshooting-camera-preview-blurred/

Table Of Content

Blurry Camera View 3

Unscrewing the Camera 4

Removing the Camera (from the Frame) 5

Unscrewing the Camera's Cover 6

Removing the Camera's Case 7

Recalibrating the Camera's Focus 8

Camera Installation, part 1 9

Securing the Camera's Cover 10

Camera's Installation, part 2 11

Securing the Camera 12

Sharp Camera View 13

Blurry Camera View

To see the preview from the printer’s camera, open Z-SUITE 2 and go to My Devices

panel. Select your printer (it should be connected to a local network) and click Camera

Preview.

If the preview in your printer is out of focus, follow the steps from this manual to adjust

focus to the proper point.

Unscrewing the Camera

Unscrew one screw that secures the camera in the printer’s frame. Use a 2mm Allen

key.

Removing the Camera (from the Frame)

Remove the camera together with its cable from the printer’s frame.

Unscrewing the Camera's Cover

Unscrew the two screws that secure the camera’s back cover. Use a Phillips

screwdriver.

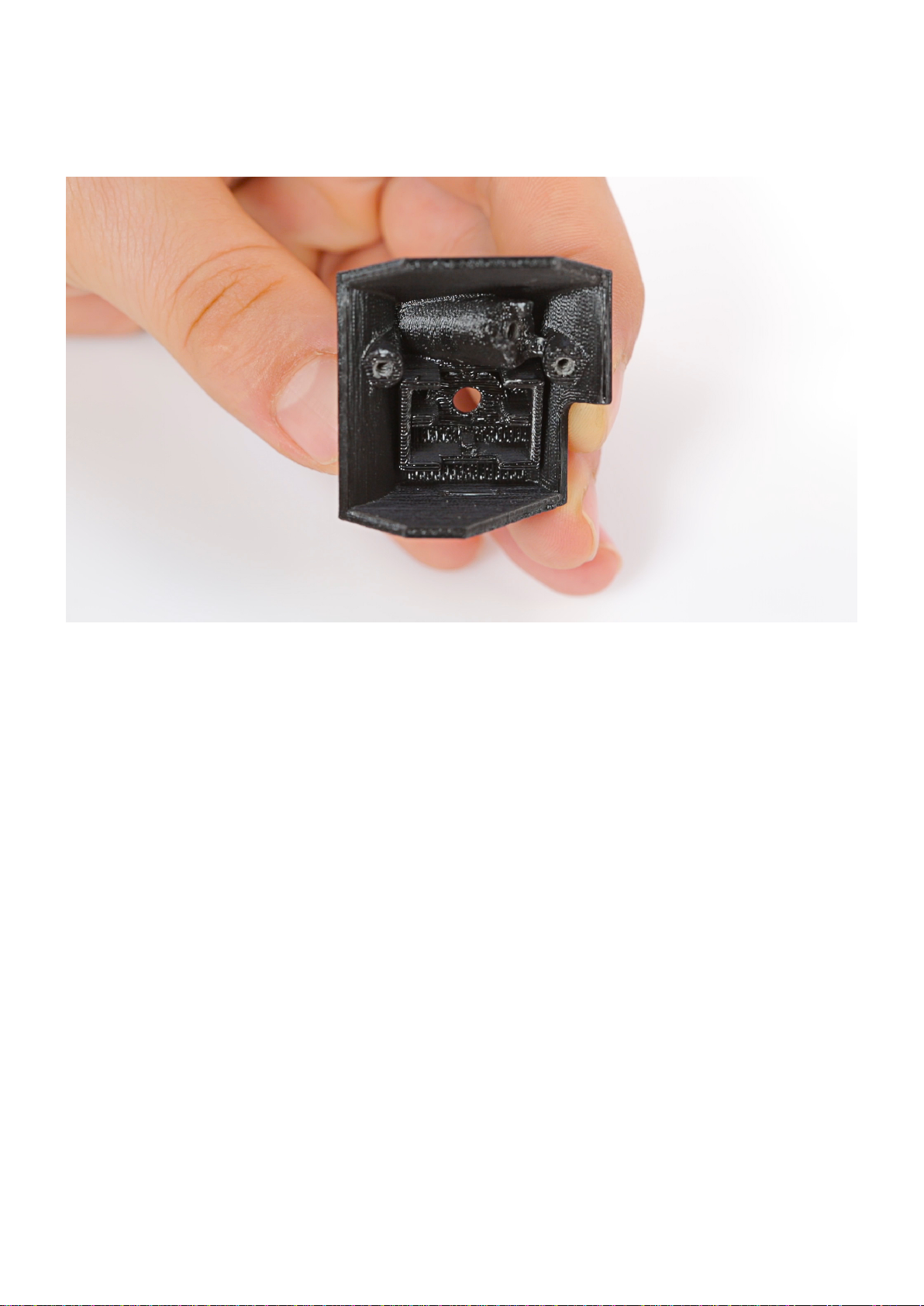

Removing the Camera's Case

Separate the camera from its printed case.

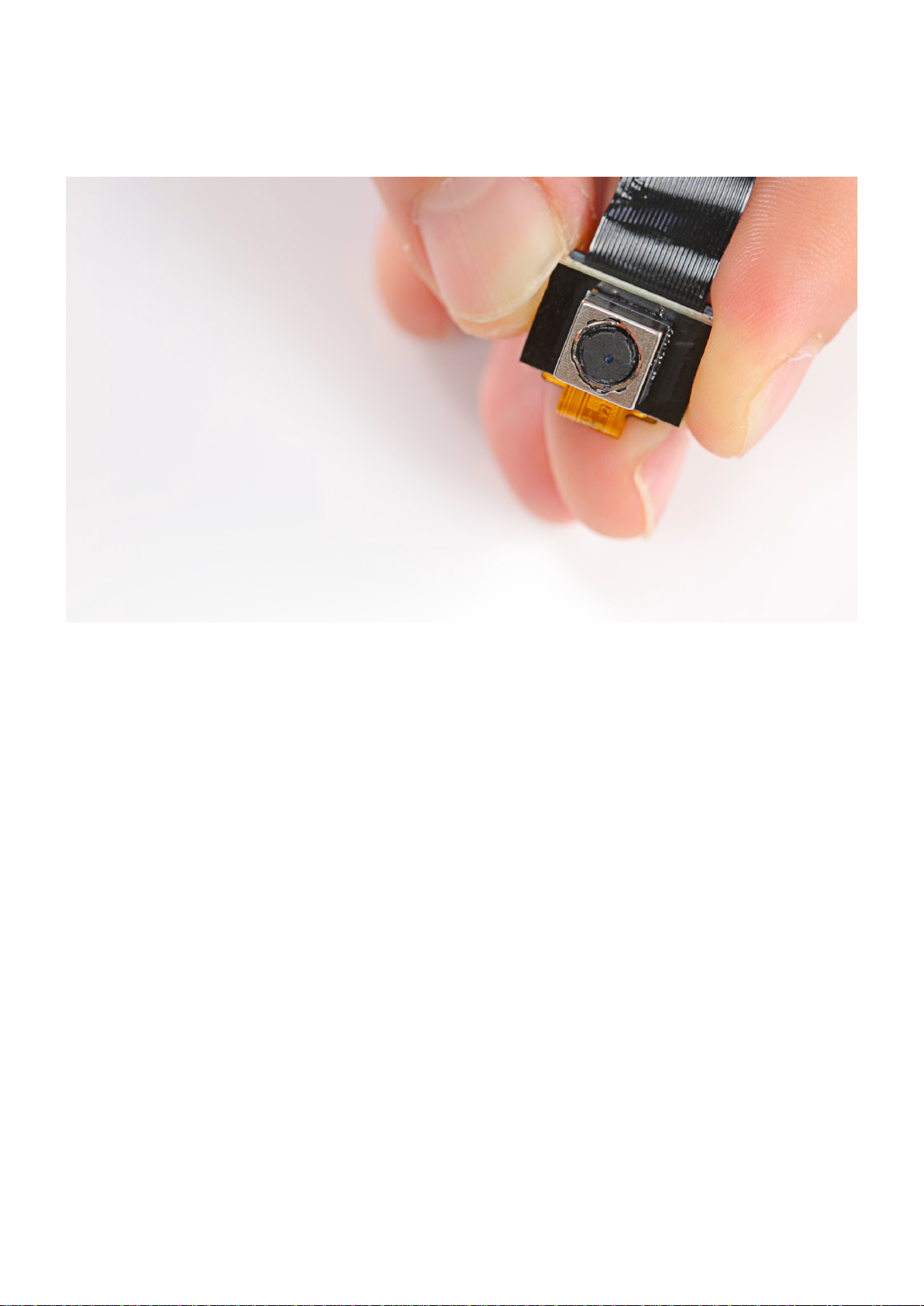

Recalibrating the Camera's Focus

Use tweezers and twist the camera’s lens.

To control focus in the camera, twist the lens either clockwise (if focus is set too far from

the camera) or counterclockwise (if focus is set too close to the camera).

Camera Installation, part 1

Put the camera back in its printed case.

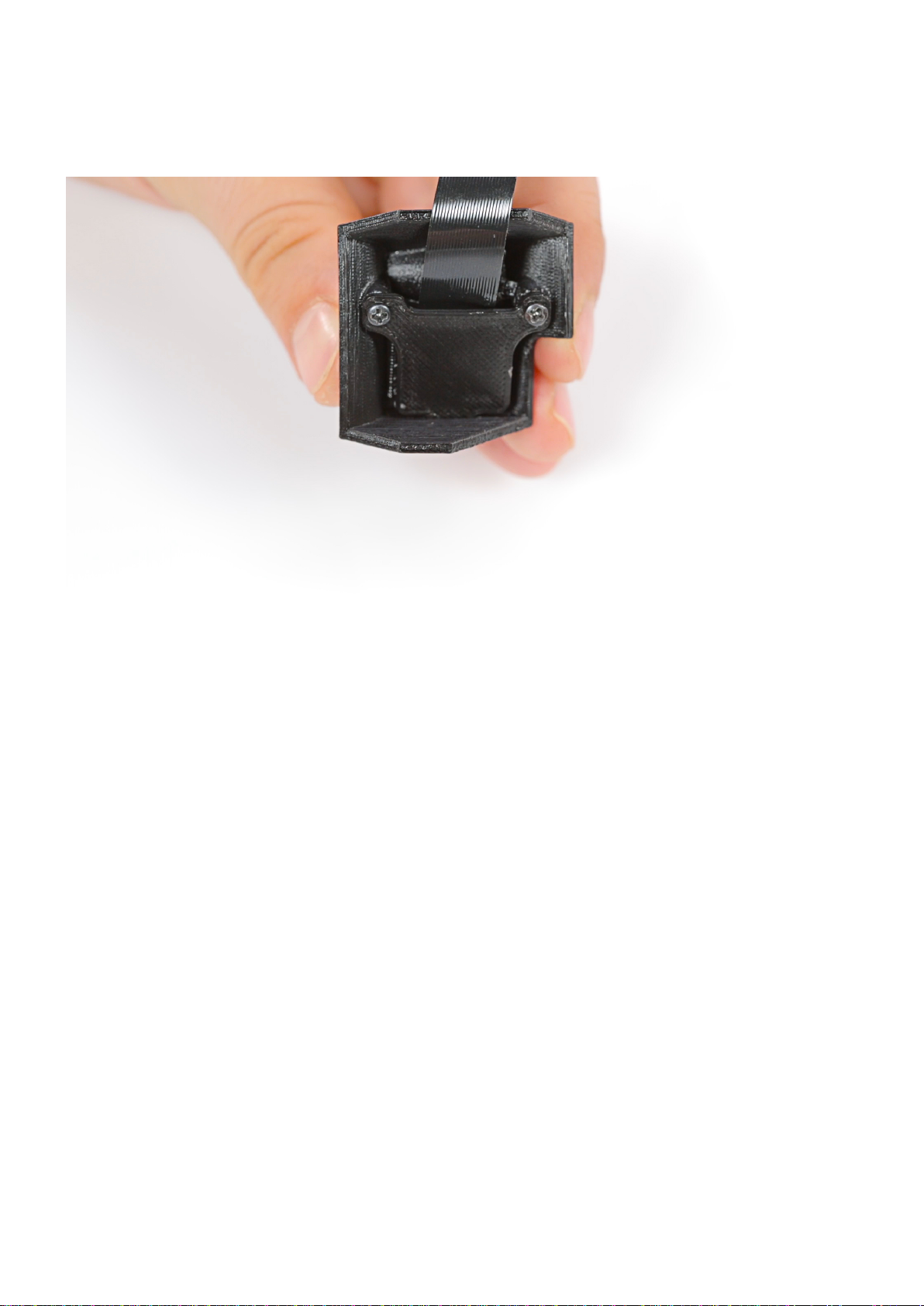

Securing the Camera's Cover

Secure the camera’s back cover with the two screws.
